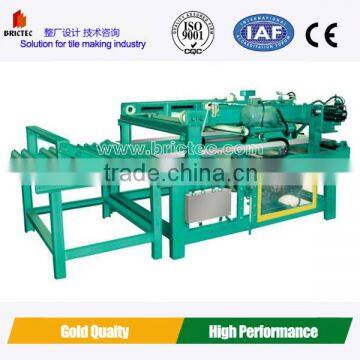

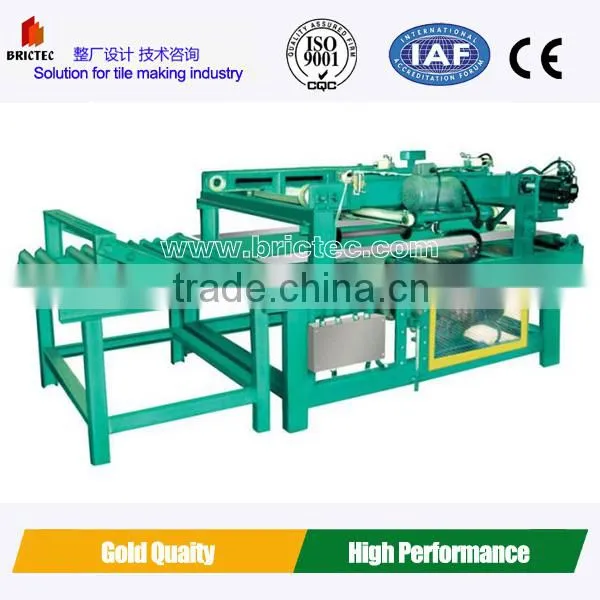

Help CenterHorizontal Tile and Brick Cutter
Related Products
-
High Quality Hot Sales Clay Tile Making MachineUS$ 10,000 - 100,000MOQ: 1 Set -
China Hot Sales Tile Making Machine for Ecological/ceramic Tile Making Machine Quality ChoiceUS$ 10,000 - 100,000MOQ: 1 Set
-
High Quality Concrete Tile Making MachineUS$ 10,000 - 100,000MOQ: 1 Set
-
Tile Cutting Machine With Complete Roof Tile Production Line Quality ChoiceUS$ 10,000 - 100,000MOQ: 1 Set
-
High Quality Floor Tile Making MachineUS$ 10,000 - 100,000MOQ: 1 Set
l HIGH-SPEED FINE GRINDING MILL
l Patterned technology specially made for the cutting process synchronously matched with high-grade and high-volume extruded wet-forming green ceramic tiles and bricks of lying conveyed, especially for making the high-class ceramic plate, large-size & thick plate etc. Especially the type WSTB-AE uses hob cutter and is suitable for cutting larger surface size and thinner one, like ceramic-plate etc. while type WSTB-GS uses steel wire cutter, so it is suitable for larger section size and thicker one, like special ceramic-plate, terracotta panels etc.
l Superior features of 6N+2L+3H ensure high quality and efficient production. (6N--No cutting leftovers &its recycle process, No man-made errors, No sliding friction surface default, No kerosene used & its pollution problem. 2L--Low worker’s & material’s cost. 3H--High cutting precision, out put and performance-price ratio)
Technical Parameters
Description |
WSTB-AE Parameters |
Dimension LxWx H |
3,240 x 1,930 x 1,440 (mm) |
Capacity |
1 ~ 60 (pieces / min) |
Cutting Frequency (Synchronous with Extruder ) |
1 ~ 22 (1 / min) Adjustable |
Cutting precision |
±1.5 (mm) |
Cutting length Range |
150 ~ 2000 (mm) |
Cutting Width Range |
≤700 (mm) |
Motor Power |
3.0 (kw) |
Net Weight |
≈ 1000 (kg) |
Company Information
1.We majors in the abroad & home fired-brick designing, kiln designing, factory building designing and turn-key project.
2.We have many professional specialists, among which 6 are professor-level engineer and 10 are of high title.
3.We have accomplished over 50 brick projects of engineering, trading, technical support in Asia, Africa and South American countries.
4.We have also successfully constructed over 20 production lines in China.
The business scope of our company is:
u Turnkey project of brick plant
u Design & Build Complete Modern Brick Plant
u Consultancy Services for Brick Plant
u Retrofit and Modernize of Existing Brick Plant
u Supply Brick Making Machinery
u Build Dryer & Kiln
Our Services
Before-sale services:
(1) Tell customer how to build a brick plant, the complete plant including three parts, brick shaping machinery, drying and firing.(Confirm clay,power electricity,water,land area, fund)
(2) Guide customers to choose the best and economic plant, recover the investment within short time.
(3) site inspection
(4) We are responsible for the offer, flow chart, and detail specification of each machinery.
In-Sale services:
(1)Quality control must be inspected strictly
(2)In accordance with the agreements stipulated in the contract
After-sale services:
(1) We will send the technicians to guide with device installation, debugging and training operators until customers are fully satisfied.
(2) Guarantee for machinery, materials and equipment supplied under this quotation are valid for a period of 12 months after commissioning or 16 months after delivery whichever is earlier. Warranty shall cover manufacturing defect in material and workmanship but exclude:
1. Daily wear and tear 2.mishandling or improper operation
3. Incoming power supply fluctuation 4. Consumable and spare parts.
(3) Regular visit customer, consult with the customer feedback, come true with the customer's two-way communication.
Related tile making machine for production line
Box feeder
FOUR SHAFTS MIXER
JAW CRUSHER
Auto LARGE-SIZE TILE HORIZONTAL CUTTER
