Specifications
portable water well drilling rigs for saleDiameter of Hole: 152-254 mm
Drilling Depth: 30 -200 m
16-30 m3/min 10.5-24.6Mpa

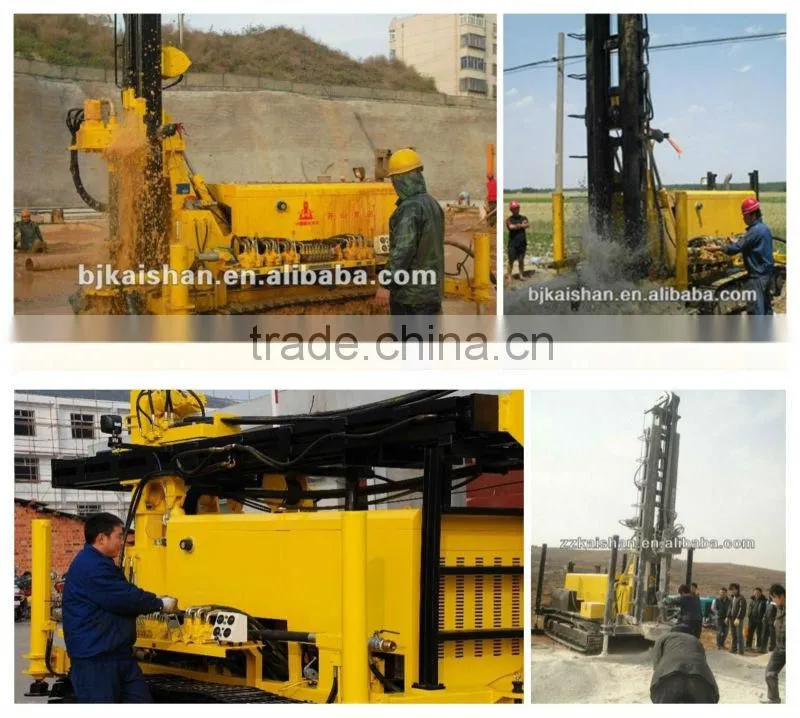

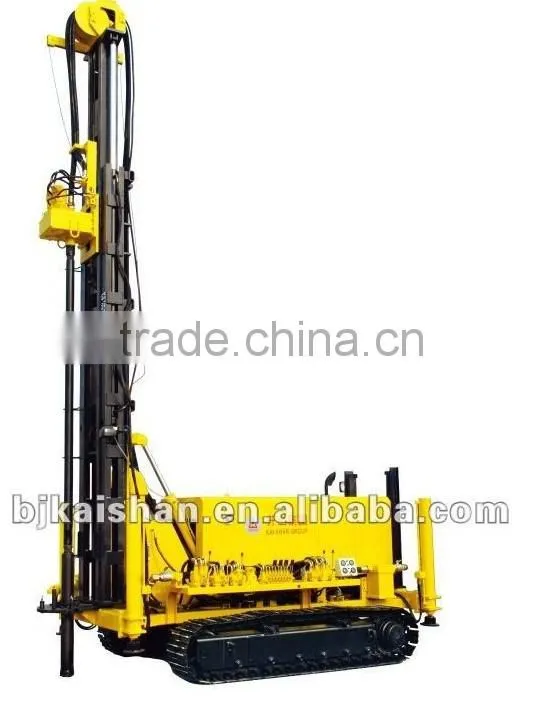

Portable Water Well Drilling Rig for sale /small Crawler Drilling rig machine/ KW20 Water Well Drilling Rig / 100m~200m
KW20 Water Well Drilling Machine is a lightweight, efficient, multi-function device of surface drill rig, which is mainly applied to drill wells, agricultural irrigation wells, geothermal air conditioners hole and other uses of the well hole specially for the water of the mountains and rock terrian project.
The rig could drill in the different stratum, drilling up to 254mm in diameter.
Independent module design, allows drilling rig could be loaded on a truck to increase its mobility.
The two steps of rotating and pushing speed to meet the soil and rock different, combination need.
| Model No: | KW10 | KW20 | KW30 |
| Dia.hole (mm) | 115-180 | 115-254 | 168-300 |
| Drilling depth (mm) | 120m | 200m | 300m |
| Air consumption: | 16-30 m³/min | 16-35 m³/min | 16-40 m³/min |
| Working pressure: | 10.5-24.6 bar | 10.5-24.6 bar | 10.5-24.6 bar |
| Ground clearance: | 245mm | 280mm | 280mm |
| Support cylinder stroke: | 460mm | 1000mm | 1000mm |
| Feed cylinder stroke: | 1750mm | 2400mm | 2400mm |
| Feed power: | 30000N | 45000N | 50000N |
| Lift power: | 70000 N | 95000N | 150000N |
| Low speed of rotator: | 50 rpm | 60 rpm | 43/52/69rpm |
| High speed of rotator: | 100 rpm | 105 rpm | 85/102/125rpm |
| Rotation torque: | 3200N.m | 4000N.m | High 8000N.m,Low 4000N.m |
| Travelling speed: | 0-2.5 km/h | 0-2.5 km/h | 0-2.5 km/h |
| Climb capacity: | 15° | 25° | 25° |
| Engine: | |||
| Engine model | YC4D80 | YC6B125-K10 | YC6B150Z-T21 |
| Power | 58KW/80HP | 92KW/125HP | 110KW/150HP |
| Rotation speed | 2400rpm | 2200rpm | 2100rpm |

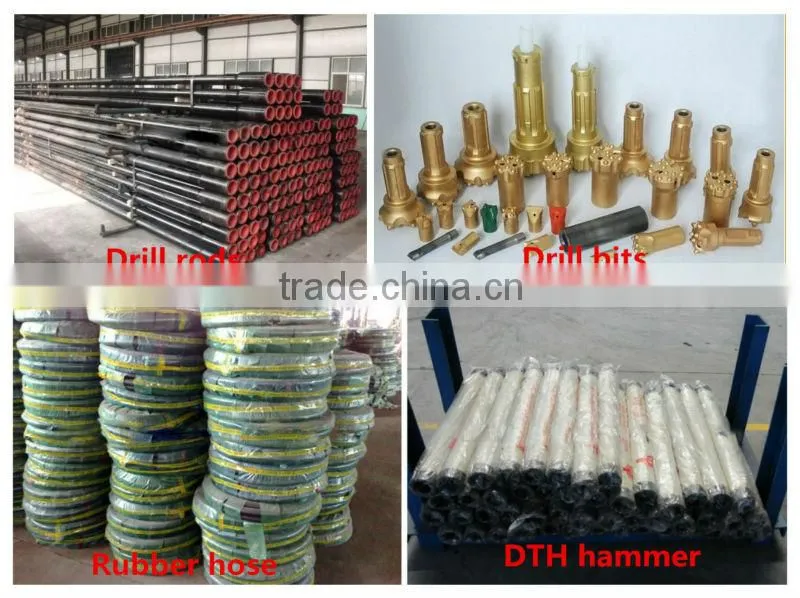

| Matching Drilling components: | |||
| Hammer | DHD360(DTH380) | DHD360(DTH380) | DHD360(DTH380) |
| Dia. Of rod | Φ89mm | Φ79mm,Φ89mm | Φ89mm-Φ102mm |
| Length of rod | 3m | 3m | 3m/4m |
| Dia. Of bit | Φ115-180mm | Φ115-254mm | Φ168-300mm |
| Weight (kg) | 6500kgs | 8500kgs | 9500kgs |
| Dimension (mm) | 6000×2300×2500 | 5100×2300×2850 | 5200×2300×3200 |

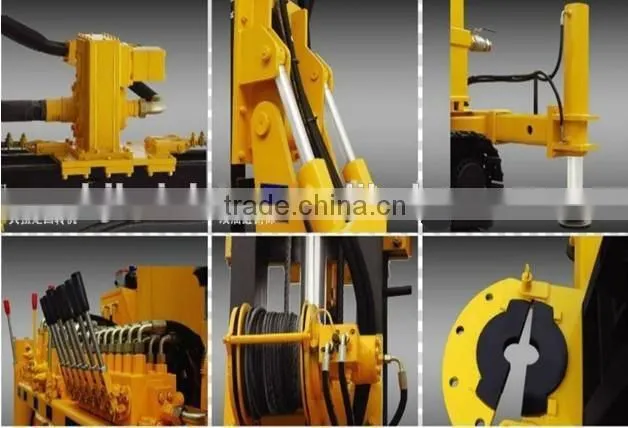

1.Dual motor rotating mechanism
2.Centralized operating system
3.Double cylinder propulsion system
4.Diesel two filter bodies
5.Safe and stable traveling system
6.Triple pump assemble
1.Outside package:Standard export wooden cases
2.Inner package:Stretch film
1.Our company is located in Beijing and our factory is located in Zhejiang province, which covers an area of 514,800 square meters with a total assets of one billion dollars.There are 6000 staffs including 1075 technicians.
2.We are the largest compressor and the main pneumatic tool manufacturer in China. In 2010 it produced and shipped 27,000 screw compressor units and 200,000 reciprocating compressor units.
3.KAISHAN compressor has a complete vertical integrated production line for compressor from the foundry plant, the airend plant, the pressure vessel plant, the sheet metal plant and the heat exchanger plant to the final unit and system assembly plant.
4.We are over 10 years professional manufacturer of air compressor and drill rig, good quality and competitive price which is guaranteed with CE,ISO9001,ISO14001, ASME, GC energy saving certificate.
We sincerely hope to establish long term cooperation relationship with you on the basis of mutual benefit,reciprocity and common development!
If you have any questions or comments pls let me know. Thank you and appreciate.
BR/William
Overseas Sales Department
KAISHAN GENERAL MACHINERY CO.,LTD(BEIJING)
Tel:8610-87825233
Fax:8610-87399234
Mob:+8618682092248
Skype:william11034
Website: www.bjkaishan.en.china.cn
Quality Control
1.KAISHAN Group established Development Center in Jersey North America, and the top international compressor expert Dr. Tangyan designed the world-class SKY rotor ."Design in North American, Made in China."
2.Advanced equipment of kaishan screw air compressor
Trade show and customers
Main products
1) Screw Type Air Compressors ( Air delivery:0.8m³/min -72m³/min;Work pressure: 8-13Bar;Power: 7.5Kw-400kw)
2) Diesel Driven Portable Screw Air Compressors (Air delivery:6m³/min-39m³/min ,Work pressure:7-35Bar,diesel engine:58kw-630kw )
3) Motor Powered Portable Screw Air Compressors( 350CFM – 910CFM)
4) Mining Piston air compressor(Air delivery:1.35m³/min -13m³/min;Work pressure:5-7Bar;Power: 11Kw-75kw)
5) Industrial piston air compressor(Air delivery:0.08m³/min -4.8m³/min;Work pressure:8-40Bar;Power: 0.75Kw-75kw)
6) Drill rig (Include Water well drill rig)
7) Rock Drill(YO18-Y19-YT23D-YT24-Y26-YT28)
Certificates
We have special service team which will offers you professional guidance:
1.Low maintenance cost, high efficiency.Minimizing downtime of the equipment.
2.Planned maintenance budget.Maintenance plans are designed according to the customers' different requirements.Providing dedicated and experienced maintenance technicians.
3.Our sales team will response for your question within 24 hours(holidays excluded)
4.Technical support will be available in any time. Providing dedicated and experienced maintenance technicians.
5.Quality Control:
1)We have our own experienced QC
2)There will be strict inspection and testing for every order before shipping out.
6.After-sale Service:
1)Quality Guarantee:12 months from delivery date(quick-wear part except)
2)For warranty repair/ replacement, user should send defective items back then supplier re-supply the same to user within assurance period for free(user in charge of freight fee)
The information you may like to know before order:
1.Payment terms:
T/T 50% in advance ,the balance should be paid within 5days against the B/L date
2.Delivery time:
Within 20 days after receiving your advance payment
3.Shipping way:
Sample order: We suggest courier and express service or by air
Bulk order: We suggest by air or by sea
4.Packaging:
1)Outside package:Standard export wooden cases
2)Inner package:Stretch film
5. HS CODE:
Air compressor:8414809090
Drill rig:8430310000
