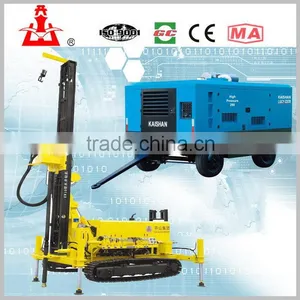

milling bench used depth 120m,diameter:115-254mm,KW10 High-Effect Hydraulic Geothermal Water Well Drilling Rigs

Specifications

water drilling rigs
1.ISO9001;2000
2.GC Certificate
3.European design
4.High Quality

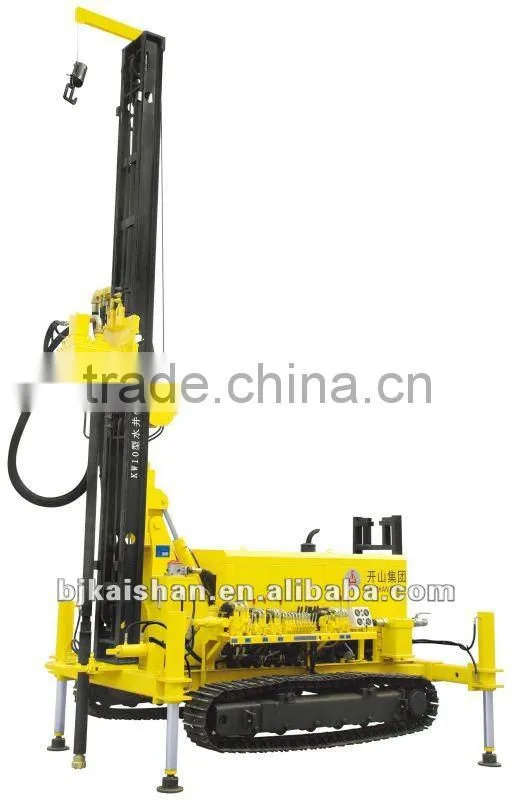

Water Well drilling machine!!depth 120m,diameter:115-254mm,KW10 High-Effect Hydraulic Geothermal Water Well Drilling Rigs





» » Quick view « «











» » Detailed Show « «

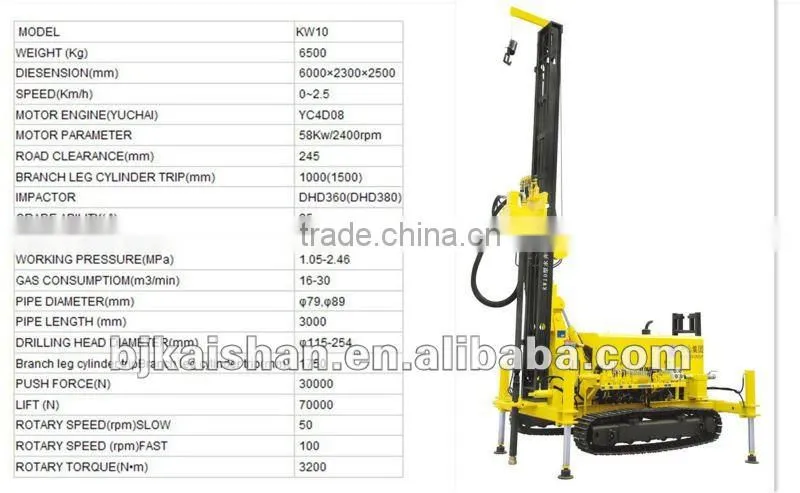

Feature:	KW10
Dia.of hole	115-254mm
Drilling depth	120m
Air consumption	16-30m3/min
Working pressure	10.5-24.6bar
Ground clearance	245mm

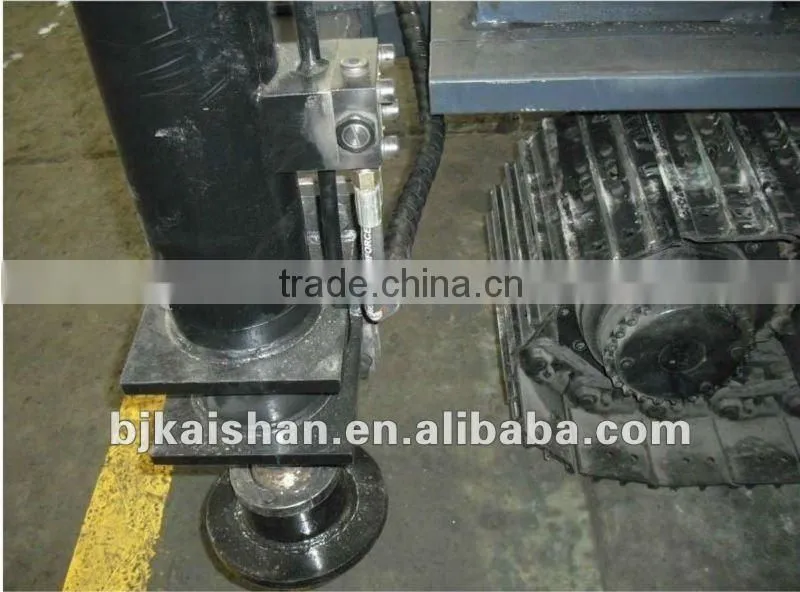

Support cylinder stroke	460mm
Feed cylinder stroke	1750mm
Feed power	30000N
Lift power	70000KN
Speed of rotator	50-100rpm
Rotation torque	3200N·M
Climb capacity	15o
Traveling speed	0-2.5km/h
Recommend compressor	LGCY-21/20  or  LGCY-26/20 LGCY18/17
Engine
Engine model	YC4D80
Power	58KW/80HP
Rotation speed	2400rpm
Drill Components
Hammer	DHD360(DHD380)
Dia. Of rod	Φ76 ,Φ89mm ,
Length of Rod	3m
Dia.of Bit	Φ115-254mm
Weight	6500KG
Dimensions	5700x2300x2700mm









Recommended matching air compressor:



LGCY-21/20 Diesel mobile screw air compressor











Capacity m3/min(cfm):	22(777)
Pressure bar(psig)	20(290)
Compression Stage	Double
Diesel Engine
Engine Model No.	Cummins 6LTAA8.96-C325
Rated Power(KW(HP))	239(325)
Rated RPM(r/min)	1800
Unload RPM(r/min)	1400
Dimensions	4200*2000*2700mm
Weight	5000KG





» » For more size « «



1)KW30,diameter:168-300mm depth:300m,  http://www.china.cn/product-gs/668687151/KW30

2)KW20, diameter: 152-254mm depth:200m, http://www.china.cn/product-gs/636510250/multi_function_water_well_drill_KW20.html

3)KW10, diameter:152-254mm depth:120m, http://www.china.cn/product-gs/671047562/multi_function_water_well_drill_depth.html

» Quality control«



» » cooperation « «



Certificate

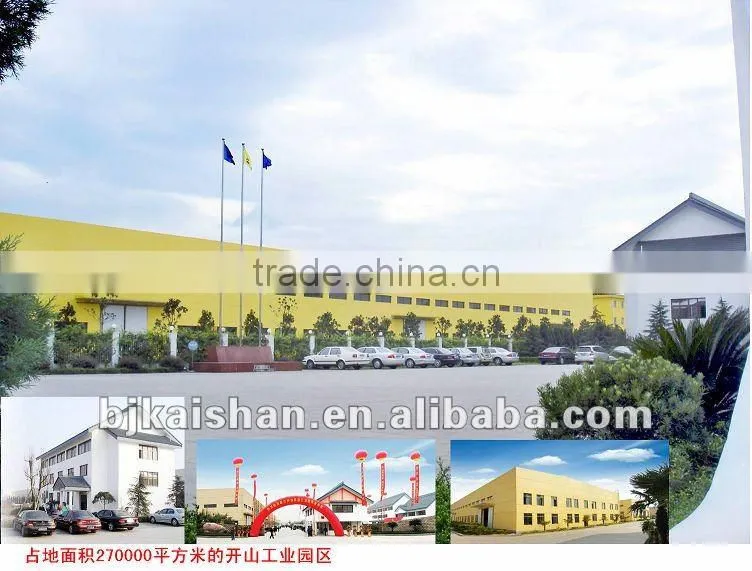

About us:

1. KAISHAN is the only manufacturer in china which is able to mass produce the motor powered and diesel powered portable air compressor, breaking the monopoly of foreign brand in the air compressor.

2. Good adaptability: automatically control the air delivery of diesel engine by matching the demand of air consumption, which equal to frequency conversion control in motor power screw air compressor

3. Operation parameter is straightforward, with multiple warning and shut down protection device









1)Delivery time :within 30days after receiving your advance payment







 2)Payment terms:T/T 50% in advance ,the balance should be paid within 5days against the B/L date







3)Package:1,plywood cases suitable for sea transportation 2,Fumigation-free wooden cases 3,simple package







4)Air compressor HS CODE:8414809090



5)Quality Guarantee:12 months from delivery date(quick-wear part except)



6)After-sale service:For warranty repair/ replacement, user should send defective items back then supplier
re-supply the same to user whin assurance period for free(user in charge of freight fee)









Our Factory produce all kinds of air compressor and rock drill and drill rig, any feedback from you will be highly appreciate.
