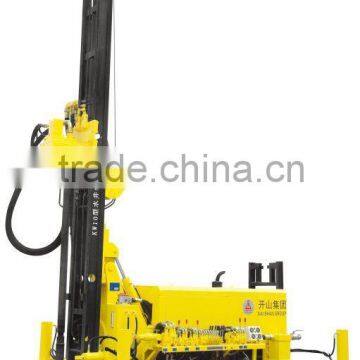

KW10 Factory Price Portable Water Well Drilling Rigs for Sale High-wind Pressure Crawler Drill Rig Kaishan Brand

KW10 Factory Price Portable Water Well Drilling Rigs for Sale High-wind Pressure Crawler Drill Rig Kaishan Brand thumbnail-1
KW10 Factory Price Portable Water Well Drilling Rigs for Sale High-wind Pressure Crawler Drill Rig Kaishan Brand photo-1
US$ 1,000 - 10,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Type:
Core Drilling Rig
Place of Origin:
Zhejiang, China
Contact Supplier Request Quote Chat Now
Kaishan General Machinery Co., Ltd. (Beijing)
Payment & Shipping
Payment Methods:
Port of Shipment:
any port of china
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Core Drilling Rig
Place of Origin Zhejiang, China
Brand Name KAISHAN
Model Number KW10
Usage Ore

Specifications

1.Reliable pump set
2, Gurantee of after sales service
3,Reliable Quality
4, ISO/GC Certificate

Technical datas of KW10:

1.hydraulic work motor
2.high efficient and cost-effective
3.easy to operate
4.ISO: 9001-2000

  Factory price KW10 High-wind Pressure  Crawler Drill Rig



MODEL

KW10

WEIGHT (Kg)

 6500

DIESENSION(mm)

 6000×2300×2500

SPEED(Km/h)

 0~2.5

MOTOR ENGINE(YUCHAI)

 YC4D08

MOTOR PARAMETER

 58Kw/2400rpm

ROAD CLEARANCE(mm)

 245

BRANCH LEG CYLINDER TRIP(mm)

 1000(1500)

IMPACTOR

 DHD360(DHD380)

GRADE ABILITY( °)

 25

DEPTH OF THE HOLE(m)

 120

WORKING PRESSURE(MPa)

 1.05-2.46

GAS CONSUMPTIOM(m3/min)

 16-30

PIPE DIAMETER(mm)

 φ79,φ89

PIPE LENGTH (mm)

 3000

DRILLING HEAD DIAMETER(mm)

 φ115-254

Branch leg cylinder tripBranch leg cylinder trip(mm)

 1750

PUSH FORCE(N)

 30000

LIFT (N)

 70000

ROTARY SPEED(rpm)SLOW

 50

ROTARY SPEED (rpm)FAST

 100

ROTARY TORQUE(N•m)

 3200

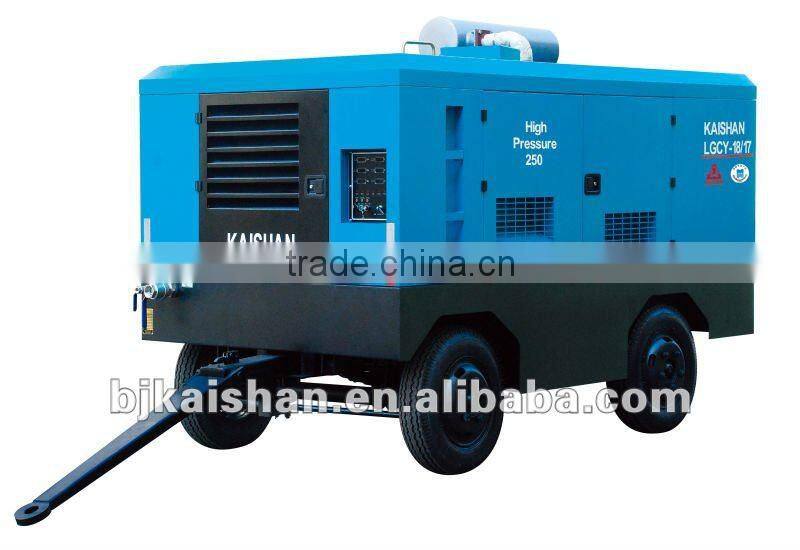

LGCY 18/17 air compressor





Model

Working

Pressure

 Mpa

 Motor

Kw

capacity     m3/min

Dimension

W*L*H mm

Diesel engine(hp)

Weight

  kg

LGCY-8/7
LGCY-7/10
LGCY-6/13

0.7

1.0

1.3



70

8

7

6

3750x1950×1800

YuChai
YC4108ZG

1700

LGCY-12/7
LGCY-11/10
LGCY-10/13

0.7

1.0

1.3



110

12

11

10

3850×2100×2100

YuChai
YC6108ZG

2500

LGCY-17/7
LGCY-14/12
LGCY-13/13

0.7

1.2

1.3



132

17

14

13

3750×1900×2250

Cummins
6BTA5.9-C132

3500

LGCY-21/7
LGCY-21/10
LGCY-21/13.5

0.7

1.0

1.35



266

21

21

21

4250×2000×2350

Steyr WD615.46

4800

LGCY-26/20

2.0

302

26

4250×2000×2400

Steyr WD615.57

600

LGCY-6/7
LGCY-7/7
LGCY-6/10

0.7
0.7
1.0



70

6
7
6

3600×1800×1600

YCD4B22-95

1400

LGCY-18/17

1.7

194

18

5300×1800×2800

Cummins
6CTA8.3-C2601

4000

















































KW10 factory price portable water well drilling rigs for sale High-wind Pressure Crawler Drill Rig kaishan brand







Advabtages of KY8S:







1,Safety and stability of the mobile mechanism



· low gravity, ground clearance achieved great, make drill car can easily go through bumpy road.



· advanced automatic balance system, make not only drill garage walk stable, and greatly reduced drill car wallop, guarantee the safe driving.



· high-power motor drive, and their climbing ability, with large traction.



· brakes and walk manipulated mechanism choi linkage mode, use parking brake, thus safeguarding namely for drilling in slope rock and car driving with stability and security.



· often buy braking street maneuvering valve respectively controlled movement, realized the caterpillar around move forward, backward, and steering, convenient and flexible.



· unique resistance from chain device, which greatly improves the reliability of the drill car.







2, Centralized control operation



· drill car design has the advanced hydraulic system and a complete function pneumatic system, all movements are centralized control, convenient operated.



· operating hydraulic maneuvering valve, which can realize the lift, swinging arm drill and drill frame of pitch, angular, translation (back) and crawler adjustment function, guarantee the equality of intersectorial drill hole drilling and drill car stability.



· operating pneumatic maneuverings valve, which can realize oil pump is open and drill car propulsion (increased), slewing, impact and dust collector of dust collection, counter blowing function to guarantee a efficient rock drill car



.



3,Strong propulsion, rotary organization



· propulsion reducer worm-gear, worm transmission, big push pull, and can realize the lock, By adjusting the advanced of the pressure reducing valve pressure, making push pull and push (increased) speed can be arbitrarily regulate according to need.



Rotary gear reducer, using the planet round transmission, speed, low torque force. By adjusting the rotary valve pressure makes speed and torque according to need to arbitrarily regulate, and to ensure the best DTH drilling efficiency.







4,Flexible drill arm



· use mobile drilling of arm, by controlling the oil cylinder telescopic can dip and level of drilling hole high-speed height, expanded the scope of drilling, improve the product adaptability.







Model

Diameter of the hole
mm

Depth of the hole
m

Length of one time
m

Working pressure

MPa

Gas consumption
M3/min

Lift
KN

remark

KC140

105-140

≥30

3

1.0-2.4

22

25

High Pressure Crawler Drill

KC120

105-120

≥30

3

0.7-1.4

21

20

Mdeium Pressure Crawler Drill

KY100

80-105

≥25

2

0.7-1.0

13

15

Low Pressure Crawler Drill

KY120

80-115

≥25

3

0.7-1.4

13

20

Low(Mdeium)Pressure Crawler Drill

KY140

105-140

≥25

3

1.0-2.4

15

20

High(Mdeium)Pressure Crawler Drill

KW10

115-254

120

3

1.05-2.46

16-30

70

WATER DRILL

KY8S

105-125

≥25

3

1.0-2.4

15-21

20

High Pressure Crawler Drill

KY100J

80-105

≥25

2

0.7-1.0

≥10

15

Low Pressure Crawler Drill

KY130

105-140

≥25

3

1.0-2.4

≥15

18

High Pressure Crawler Drill

KY125

80-115

≥25

3

0.7-1.4

≥13

17

Low(Mdeium)Pressure Crawler Drill

KT11S

105-125

18

3000

1.7

18

32

all-in-one









Certificate:

KW10 factory price portable water well drilling rigs for sale High-wind Pressure Crawler Drill Rig kaishan brandKW10 factory price portable water well drilling rigs for sale High-wind Pressure Crawler Drill Rig kaishan brandKW10 factory price portable water well drilling rigs for sale High-wind Pressure Crawler Drill Rig kaishan brand



Picture:





KW10 factory price portable water well drilling rigs for sale High-wind Pressure Crawler Drill Rig kaishan brandKW10 factory price portable water well drilling rigs for sale High-wind Pressure Crawler Drill Rig kaishan brandKW10 factory price portable water well drilling rigs for sale High-wind Pressure Crawler Drill Rig kaishan brand
