KW30 Portable Water Drilling Equipment

Name: KW30 Portable Water Drilling Equipment
Brand: kaishan
SKU: 101494595
Availability: InStock

US$ 40,000 - 50,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Rotary Drilling Rig

Place of Origin:

Zhejiang, China

Kaishan General Machinery Co., Ltd. (Beijing)

Payment & Shipping

Payment Methods:

Port of Shipment:

any port of china

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Rotary Drilling Rig

Place of Origin Zhejiang, China

Brand Name kaishan

Model Number KW30

Usage Water Well

Specifications

water drilling rigs
1.ISO9001;2000
2.GC Certificate
3.European design
4.High Quality

KW30 multi-function Water Well Drill rig technical parameters

1)type:crawler2)diameter:168-300mm3)depth:300m
Model		KW30
Total weight(Kg)		9500
size(mm)		5200×2300×3200
Travel speed(Km/h)		0~2.5
Drive type (yuchai)		YC6B150Z-T21
Drive parameter		110Kw/2100rpm
Ground clearance(mm)		280
hammer		DHD360(DHD380)
Climb slope ability(°)		25
Drill depth(m)		300
Work wind pressure(MPa)		1.05-2.46
Air consumption(m3/min)		16-40
Drill rod(mm)		φ89-φ102
Drill rod length(mm)		3000/4000
Drill hole diameter(mm)		φ168-300
propulsion(N)		50000
Lifting Power(N)		150000
Spindle Rotary Speed(rpm)	slow	43/52/69
	fast	85/102/125
Swing torque(N·m)	slow	8000
	fast	4000

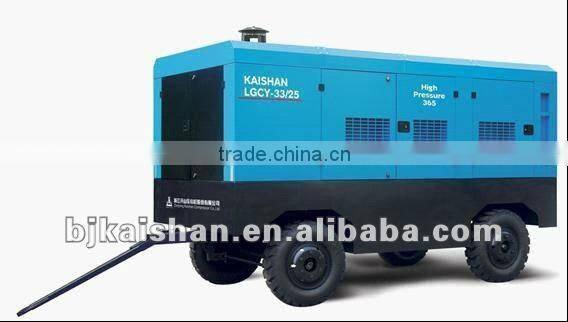

Recommended matching air compressor:LGCY-33/25 Diesel mobile screw air compressor

Model	LGCY-33/25
Air delivery (m3/min)	33
Working Pressure(Bar)	25
Total weight(kg)	6800
Overall dimension(mm)	4700×2100×2500
Tire Size X quantity	7.50-16×4
Diesel engine
manufacturer	Cummins
Model	QSZ13-C550
Type	Vertical array water
Inspiratory way	charge inter-cooling
Cylinder diameter X stroke X number of cylinders	130×163×6
output volume(L)	13.0
rated speed(r/min)	1800
Unloading speed(r/min)	1300
rated power(HP)	550
Diesel engine oil capacity(L)	35
Fuel Tank Capacity(L)	600
Electrical system voltage(v)	24
compressor
No of compression stage	2
Compressor oil capacity(L)	80
air supply valve size X quantity	G2×1,G3/4×1
