Home > Industrial Equipment & Components > Environment Protection Device > Waste Treatment Equipment > New Pruduct Dust Control System Alkaline Wet Flue Gas Scrubber To Remove Sox And Nox

New Pruduct Dust Control System Alkaline Wet Flue Gas Scrubber To Remove Sox And Nox

Name: New Pruduct Dust Control System Alkaline Wet Flue Gas Scrubber To Remove Sox And Nox
Brand: JIANGCHUAN
SKU: 101481069
Availability: InStock

New Pruduct Dust Control System Alkaline Wet Flue Gas Scrubber To Remove Sox And Nox thumbnail-1

New Pruduct Dust Control System Alkaline Wet Flue Gas Scrubber To Remove Sox And Nox thumbnail-2

New Pruduct Dust Control System Alkaline Wet Flue Gas Scrubber To Remove Sox And Nox thumbnail-3

New Pruduct Dust Control System Alkaline Wet Flue Gas Scrubber To Remove Sox And Nox thumbnail-4

New Pruduct Dust Control System Alkaline Wet Flue Gas Scrubber To Remove Sox And Nox thumbnail-5

New Pruduct Dust Control System Alkaline Wet Flue Gas Scrubber To Remove Sox And Nox thumbnail-6

New Pruduct Dust Control System Alkaline Wet Flue Gas Scrubber To Remove Sox And Nox photo-1

New Pruduct Dust Control System Alkaline Wet Flue Gas Scrubber To Remove Sox And Nox photo-2

New Pruduct Dust Control System Alkaline Wet Flue Gas Scrubber To Remove Sox And Nox photo-3

New Pruduct Dust Control System Alkaline Wet Flue Gas Scrubber To Remove Sox And Nox photo-4

New Pruduct Dust Control System Alkaline Wet Flue Gas Scrubber To Remove Sox And Nox photo-5

New Pruduct Dust Control System Alkaline Wet Flue Gas Scrubber To Remove Sox And Nox photo-6

US$ 1 - 28,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

JIANGCHUAN

Model Number:

SN-15C

Contact Supplier Request Quote Chat Now

Suzhou Jiangchuan Environmental Science And Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ShangHai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name JIANGCHUAN

Model Number SN-15C

Type of Gas	Name of Gas	Molecular formula	Removal Rate
Acid Alkali	Hydrochloric acid	HCl	98~99%
	Cyanic acid	HCN	>99%
	Hydrofluoric acid	HF	>99%
	Sulfur dioxide	SO2	98.5%-99.5%
	Chlorine	Cl2	>99%
	Hydrogen sulfide	H2S	98.5%-99.5%
	Sulfuric acid	H2SO4	98.5%-99.5%
	Nitric acid	HNO3	>99%
	ammonia gas	NH3	>99.5%
	Sodium hydroxide	NaOH	>99%
	oxynitride	NOX	98~99%
Organic	methylbenzene		>99%
	xylene		>99.5%
	xylene		>98.5%
	ethyl acetate		98~99%

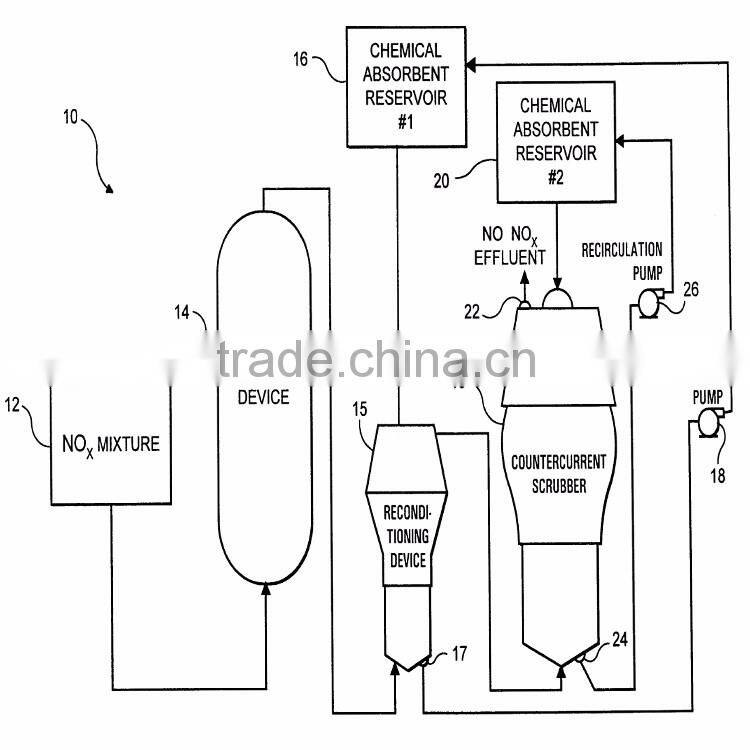

The system is in the role of the fan, the airflow makes upward movement from the imports in the bottom of the tower, besides , the chemical liquid makes downward movement . In the same time, there are numbers of filler in the tower , increase the contact area between liquid and gas , so achieve the purification effect .The clean gas is discharged through the upper layer of the demister .Due to the different composition of the gas , acid liquid or alkali were selected as the chemical liquid .

1.The purification tower could made of PVC,PP,FRP,carbon steel or stainless steel.

2. Process large air volume , and the performance is stable .

3. The operation and the maintenance are both convenience .

4. The purification efficiency is up to 99.9%.

AIR VOLUME		PRESSURE	FAN		PUMP		SIZE	GW
MODEL	m3/h		MODEL	POWER	FLOW	HP
1	1000	1800PA	SN-4C	1.1	550	5	800X5000X8T	500KG
2	2000-3000	1800PA	SN-5C	3	550	5	1200X5000X10T	620KG
3	4000-8000	1800PA	SN-6C	7.5	590	7.5	1500X5500X10T	710KG
4	9000-15000	1800PA	SN-15C	15	590	10	2000X5500X10T	800KG
5	16000-22000	1800PA	SN-23C	22	590	10	2400X5500X10T	1T
6	23000-28000	1800PA	SN-9C	30	1200	15	2600X5500X10T	1.2T
7	28000-35000	1800PA	SN-36C	37	1200	15	2700X5500X10T	1.5T
8	36000-45000	1800PA	SN-48C	45	1200	15	3000X5500X10T	1.7T
9	50000	1800PA	SN-55C	55	1200	15	3200X5500X10T	1.9T

Waste gas purification tower is generally made up of draught fan, packing layer, demister, circular watering pipe, circulating water channel, etc.

Currently, waste gas purification tower has been successfully used to deal with spraying waste gas, printing waste gas, chemical waste gas, electronic waste gas, medical waste gas, asphalt waste gas, mechanical exhaust, sewage waste gas, etc. And it also has a great success in meeting the national discharge standard. At the same time, it removes odour and improves the environment. It is especially suitable for the waste gas which is of low dust capacity, low concentration and great peculiar smell.

This machine aims at separating gas from the contaminant and translating into innocuous substance and then cleaning gas. The waste gas intakes to the purifying column through the air hose, after packing, the waste gas and absorption liquid are completely contacted and have a neutral reaction. After purified, the waste gas discharges into the environment after demisting and dehydration. Its motivation is draught fan.

1000 CMH Scrubbing Tower
