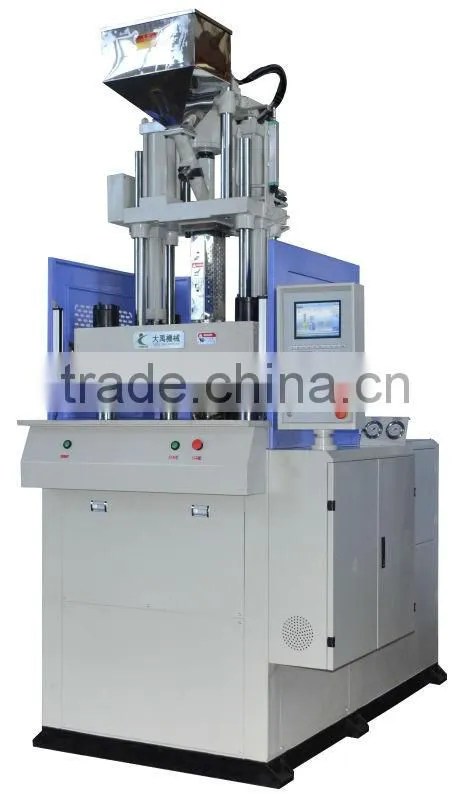

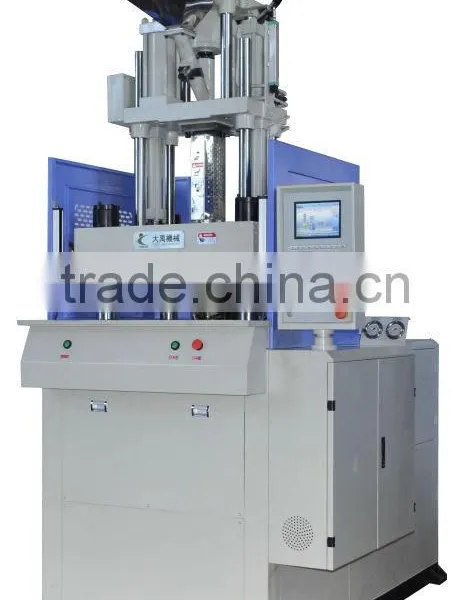

TY-1200 Vertical Injection Moulding Machine
- 1000 Set / Sets per Month
- SHANG HAI & NING BO
- T/T
Product Details
| Condition: | New | Type: | Other, semi-auto | Style: | Vertical |
| Brand Name: | TAYU | Model Number: | TY-1200 | ||
| Plastic Type: | Thermoplastic | Automatic: | Other, semi-auto | Injection Weight: | 325or415 |
| Injection Rate: | 123 or 157cm3/s | Clamping Force: | 120 tons | Opening Stroke: | 300mms |
Product Description
The following materials are suitable for our products:GPPS, HIPS, SAN, ABS,LDPE, HDPE,PP, PPO, PA6, PA66, ACEAL COPOLYMER, CAB, PET, PBT,PC, PMMA, hard PVC, soft PVC,PU, EVA, PSF, Bakelite, BMC.
Vertical-type four-column mold clamping, vertical-type injection, mold-clamping force 120ton, ejection volume of 325gram to 415gram, Chinese/English electrical control, screen display, effective, fast and stable hydraulic system, reasonable mechanical structures, convenient operation, auto(motor) parts, suitable for the production of second compacting products such as electric and electronic products.
Specification
Model TY-1200 | Units | Data | ||
Injection System | Screw Diameter | mm | 46 | 52 |
Injection Pressure | Kg/cm2 | 2193 | 1716 | |
Theoretical Shot volume | cm3 | 365 | 467 | |
(P.S) Max. Shot Weight | g/Oz | 325/14.6 | 415/14.6 | |
Injection Rate | cm3/sec | 123 | 157 | |
Temperature Control | ZONE | 4 | ||
Material Hopper Capacity | L | 30 | ||
Calming System | Clamping Force | T | 120 | |
Opening Force | T | 16 | ||
Mold dimensions | mm | 600x400 | ||
Min Mold Height | mm | 250 | ||
Opening Stroke | mm | 300 | ||
Max. Open Daylight | mm | 550 | ||
Ejector Force | T | 4.6 | ||
Ejector stoke | mm | 75 | ||
Hydraulic System | Max. Hydraulic Pressure | Kg/cm2 | 140 | |
Pump Output | L | 480 | ||
Pump Motor Power | KW | 15 | ||
Barrel Heating Power | KW | 10.4 | ||
Total Wattage | KW | 25.4 | ||
Other | Slide table stroke | mm | - | |
Round Set Diameter | mm | - | ||
Machine Weight | T | 6.5 | ||
Machine Dimensions(L x W x H) | m | 2.1x1.65x4 | ||
