Home > Manufacturing & Processing Machinery > Plastic Machinery > Injection Molding Machine > Double Slide Plate Injection Molding Machine

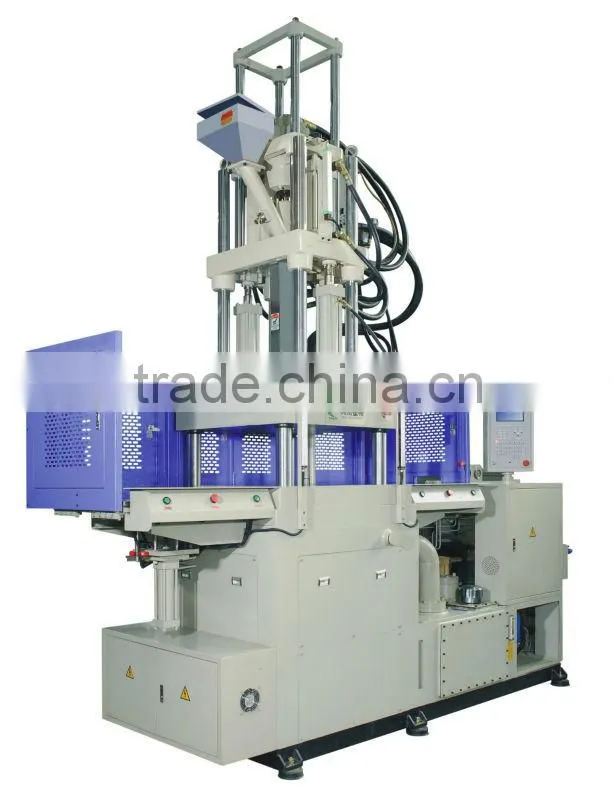

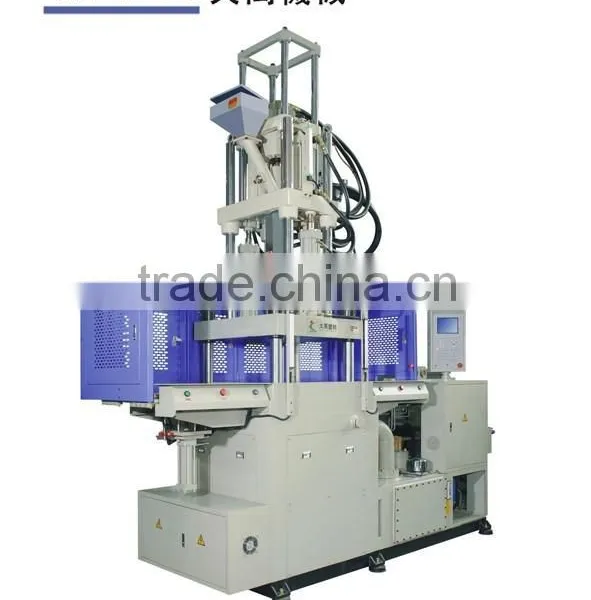

Double Slide Plate Injection Molding Machine

Name: Double Slide Plate Injection Molding Machine
Brand: TAYU
SKU: 101471803

Double Slide Plate Injection Molding Machine thumbnail-1

Double Slide Plate Injection Molding Machine photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Type:

Preform Injection

Style:

Vertical

Contact Supplier Request Quote Chat Now

Hangzhou Tayu Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Preform Injection

Style Vertical

Brand Name TAYU

Model Number TY-1500DS/50

Plastic Type Thermoplastic

Automatic Other, semi-auto

Injection Weight 420/14.8g/Oz, 509/17.9g/Oz

Injection Rate 141cm3/s, 171cm3/s

Clamping Force 150 tons

Opening Stroke 600mm

After-sales Service Provided Engineers available to service machinery overseas

The following materials are suitable for our products:GPPS, HIPS, SAN, ABS,LDPE, HDPE,PP, PPO, PA6, PA66, ACEAL COPOLYMER, CAB, PET, PBT,PC, PMMA, hard PVC, soft PVC,PU, EVA, PSF, Bakelite, BMC.

Vertical-type four-column mould clamping. Vertical-type injection, mould-clamping force of 12 tons to 250 tons, ejection volume of 35g to 740g, Chinese/English electrical control, screen display, effective, fast and stable hydraulic system, reasonable mechanical structures, convenient operation, suitable for the production of second compacting products such as electric and electronic products.

Technical Parameters

Model		Units	TY-1500DS
Injection Unit	Screw Diameter	mm	50	55
	Injection Pressure	Kg/cm²	1856	1534
	Theoretical Shot volume	cm³	471	570
	(P.S) Max. Shot Weight	g/Oz	420/14.8	509/17.9
	Injection Rate	cm³/sec	141	171
	Temperature Control	ZONE	4
	Material Hopper Capacity	L	30
Clamping Unit	Clamping Force	T	155
	Opening Force	T	18
	Mold dimensions	mm	660x630
	Min Mold Height	mm	300
	Opening Stroke	mm	300
	Max. Open Daylight	mm	600
	Ejector Force	T	5.4
	Ejector stroke	mm	75
Hydraulic Unit	Max. Hydraulic Pressure	Kg/cm²	140
	Pump Output	L	500
	Pump Motor Power	KW	18.5
	Barrel Heating Power	KW	10.5
	Total Wattage	KW	29
Others	Slide table stroke	mm	-
	Round Set Diameter	mm	-
	Machine Weight	T	7.6
	Machine Dimensions(L x W x H)	m	3.7x1.2x4.1
