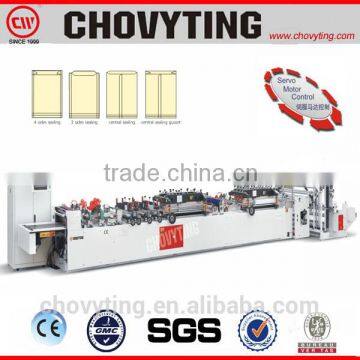

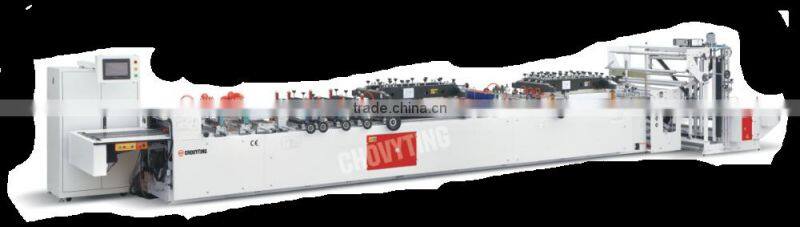

Yes Computerized Plastic Laminated Paper Central Sealing Bag Making Machine

Yes Computerized Plastic Laminated Paper Central Sealing Bag Making Machine photo-1
Yes Computerized Plastic Laminated Paper Central Sealing Bag Making Machine photo-2
Yes Computerized Plastic Laminated Paper Central Sealing Bag Making Machine photo-3
Yes Computerized Plastic Laminated Paper Central Sealing Bag Making Machine photo-4
Yes Computerized Plastic Laminated Paper Central Sealing Bag Making Machine photo-5
Yes Computerized Plastic Laminated Paper Central Sealing Bag Making Machine photo-6
US$ 28,800 - 30,900 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Machine Type:
Bag Forming Machine
Bag Type:
Other, three side&central sealing bag
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Machine Type Bag Forming Machine
Bag Type Other, three side&central sealing bag
Material Other, laminated bag
Computerized Yes
Place of Origin Zhejiang, China
Brand Name CHOVYTING
Model Number CWZD-400B+FS
Voltage 380/220V 50/60HZ
Power(W) 38KW
Dimension(L*W*H) 11000*1750*1800mm
Weight 3900kg
Certification CE/SGS/ISO9001
Warranty One Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Product Application

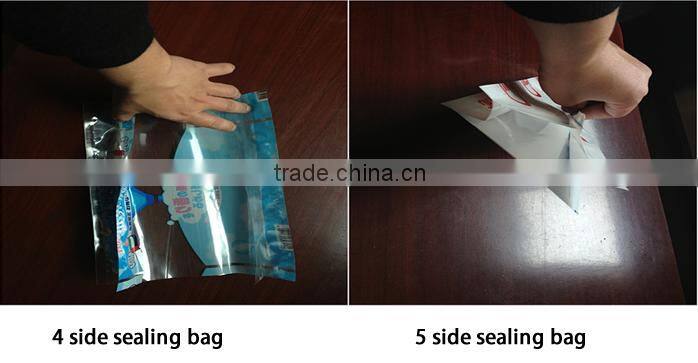

New design for laminated bag making machine,can make four side seal,five seal bag.

Bag making function: 3 sides sealing bag ,centre sealing bag with side gusset, 4 sides sealing bag (single film with printing bottom film fold as optional)

Main Features

1)Large human-computer interface screen control,automatic design.

2) New design 4 sides sealing heating structure,high strong sealing.

3) Special servo motor control,suitable for high speed running.

4) Super longer size with skip device.

Optional

1.Double layer unwinder device

2.Unwinder with automatic air loading device

3.Handle hole puncher

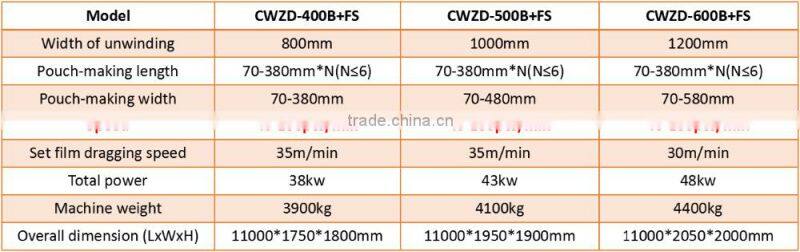

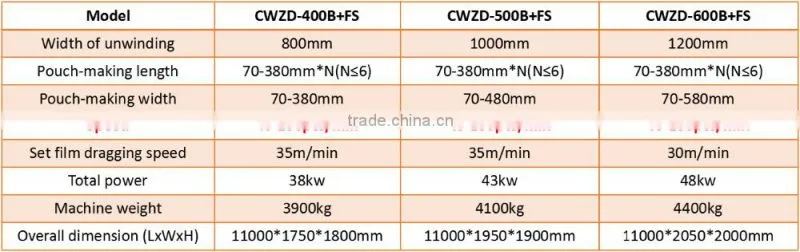

Technical Parameter

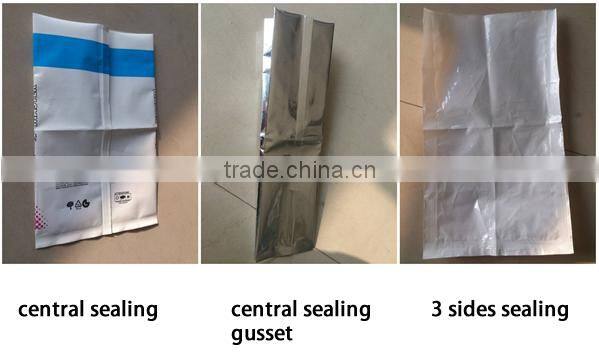

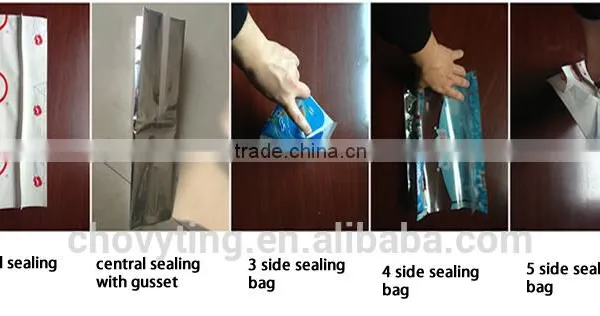

Sample Bag
Detailed Images

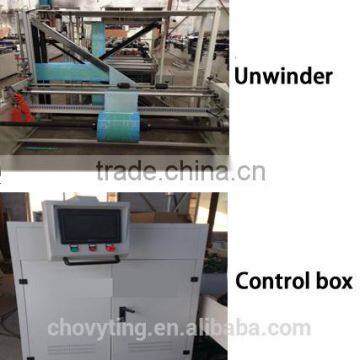

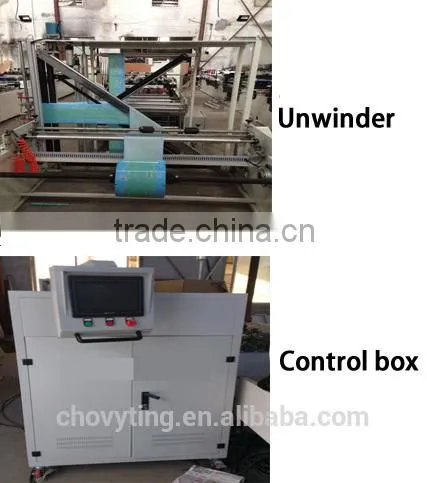

Unwinding device

 1)With automatic tension monitor

 2)Equipped with plug type and pneumatic locking device







Central sealing forming device

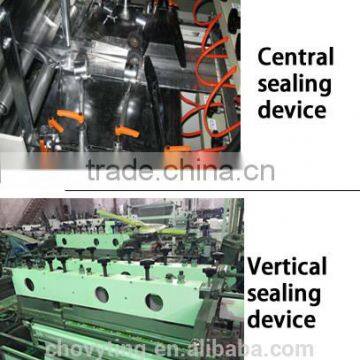

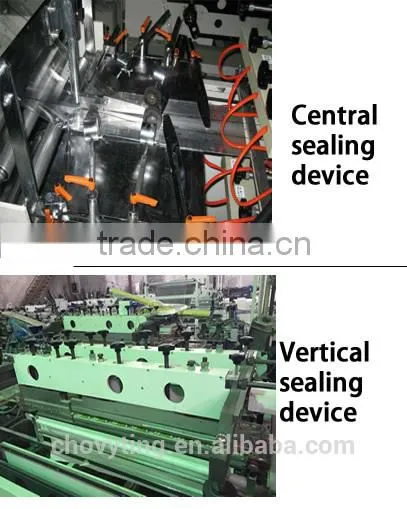

Central sealing device

1)Central-sealing adopts 2 groups for level




Central sealing bag with gusset

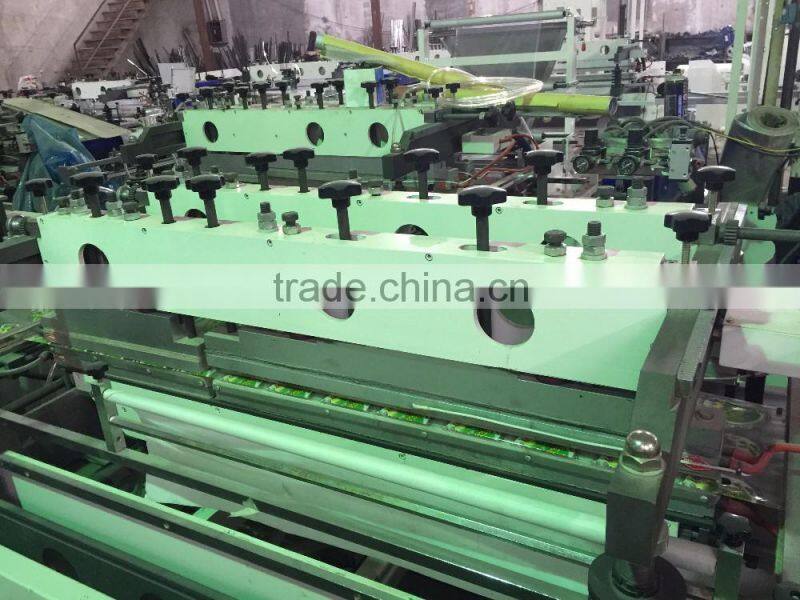

Vertical sealing device

1)Vertical-sealing adopts 3 groups for heating fluctuation, cooling fluctuation from up and down.


Film traction

1)photoelectric sensor with integrated control Proximity Switch

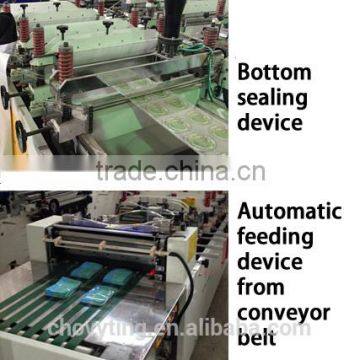

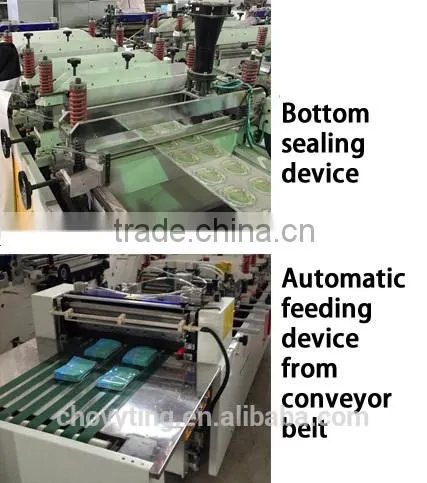

Bottom sealing device

1)Bottom sealing adopt 3 groups heating fluctuation, 1 group for cooling fluctuation.




Automatic feeding device from conveyor belt



Control box

1)The control box is in control of whole machine with PLC from Japan with an automatic human-computer interface screen.

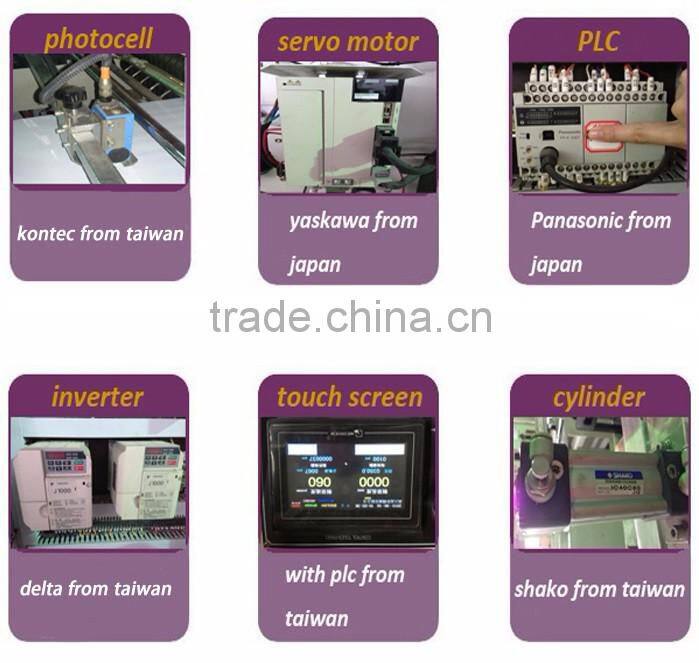

Main Parts
