Product Application

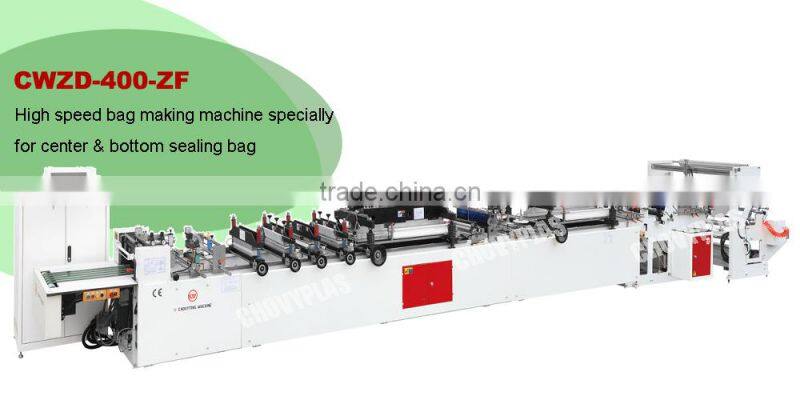

Newly designed central sealing machine series,tend to be faster and more professional,meanwhile,it can make many type bags.
Main Features
1) It has many kinds of bags for changeable,you can set the fixed parameter
2) Double servo motor,double inverter driving,the film will not shake even the machine running at a high speed.
3) Coaxial eccentricity transmission mode,long time heat sealing but low temperature
4) Bridge type heavy pressing heat sealing structure,the sealing have a high intensity
Optional
1.Punching device for handle
2.Butterfly type puncher
3.Bottom gusset stand up + zipper bag

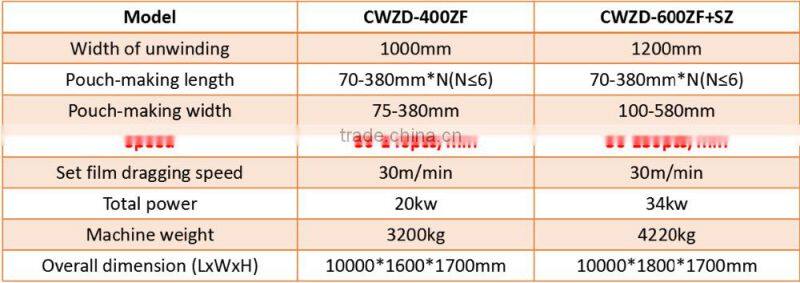

Technical Parameter
Unwinding device
1)With automatic tension monitor
2)Equipped with plug type and pneumatic locking device
3)With continuous feeding device from unwind
Round bottom gusset device
Central sealing forming device

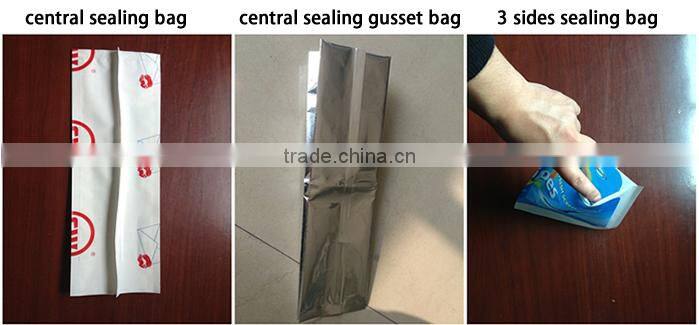

Central sealing bag with gusset
Central sealing device
1)Vertical-sealing of central sealing adopts 1 groups for heating fluctuation,
Vertical sealing device
1)Vertical sealing of 4 sides sealing adopt 2 groups for heating and level
Bottom sealing device
1)Bottom sealing adopt 3 groups heating fluctuation, 1 group for cooling fluctuation.(3 group K sealing bar for exchange with bottom sealing bar)
Film traction
1)Photoelectric sensor with integrated control Proximity Switch
Automatic feeding device from conveyor belt
Control box
CWZD-400A Three side¢ral sealing bag making machine
CWZD-400B+FS Four side sealing laminated bag making machine
CWZD-600C+CS Laminated zipper stand up pouch bag making machine
