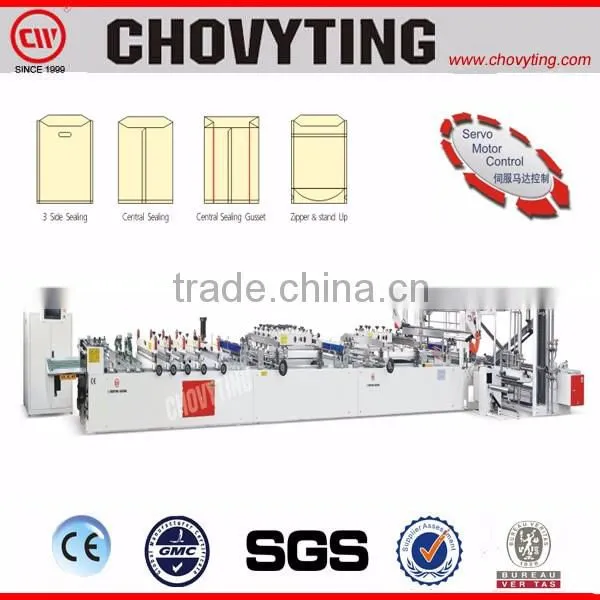

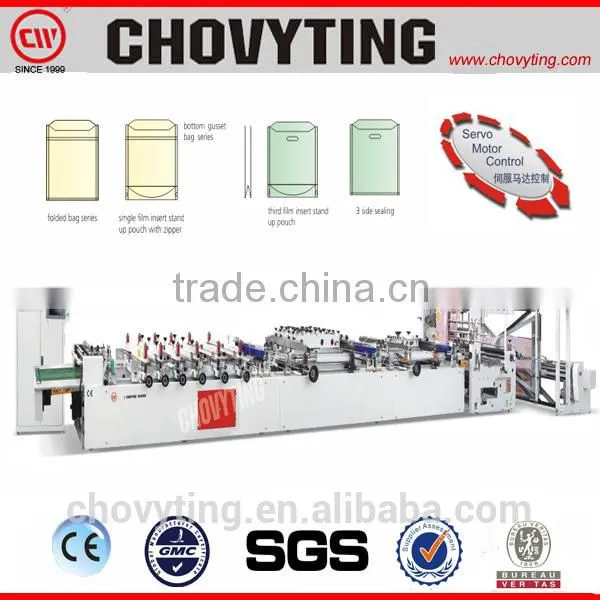

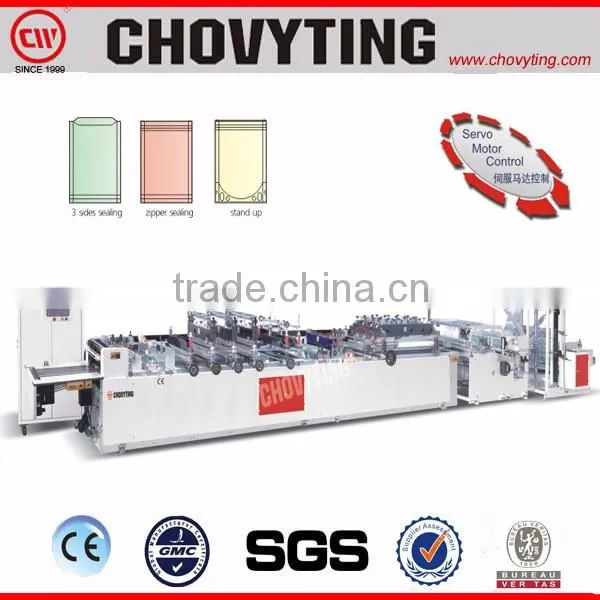

Chovyting Automatic Plastic Ziploc Stand up Paper Bag Making Machine

Chovyting Automatic Plastic Ziploc Stand up Paper Bag Making Machine thumbnail-1
Chovyting Automatic Plastic Ziploc Stand up Paper Bag Making Machine thumbnail-2
Chovyting Automatic Plastic Ziploc Stand up Paper Bag Making Machine thumbnail-3
Chovyting Automatic Plastic Ziploc Stand up Paper Bag Making Machine thumbnail-4
Chovyting Automatic Plastic Ziploc Stand up Paper Bag Making Machine thumbnail-5
Chovyting Automatic Plastic Ziploc Stand up Paper Bag Making Machine thumbnail-6
Chovyting Automatic Plastic Ziploc Stand up Paper Bag Making Machine photo-1
Chovyting Automatic Plastic Ziploc Stand up Paper Bag Making Machine photo-2
Chovyting Automatic Plastic Ziploc Stand up Paper Bag Making Machine photo-3
Chovyting Automatic Plastic Ziploc Stand up Paper Bag Making Machine photo-4
Chovyting Automatic Plastic Ziploc Stand up Paper Bag Making Machine photo-5
Chovyting Automatic Plastic Ziploc Stand up Paper Bag Making Machine photo-6
US$ 43,500 - 45,600 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Machine Type:
Bag Forming Machine
Bag Type:
Other, hree Sides sealing zipper pouch and stand up bag making machine
Contact Supplier Request Quote Chat Now
Zhejiang Chovyting Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Machine Type Bag Forming Machine
Bag Type Other, hree Sides sealing zipper pouch and stand up bag making machine
Material Other, laminated bag
Computerized Yes
Place of Origin Zhejiang, China
Brand Name CHOVYTING
Model Number CWZD-600C+FD
Voltage 380/220V 50/60HZ
Power(W) 38KW
Dimension(L*W*H) 12300*1750*1800mm
Weight 3900kg
Certification CE/SGS/ISO9001
Warranty One Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Product Application

Newly design for producing America laminated bag(single sheet folded stand up pouch and zipper bag),also can produce pet food bag popular from America.

Main Features

1) Folding ,punch,bottom gusset and sealing automatic design

2) Newly design feeding structure,high speed feeding no shake

3) Special design bottom gusset device,easily to operate

4) Double layers unwinding design,suitable for multi-function laminated bag

5) Newly design zipper and stand up device

6) Bottom gusset stand up continuous punch device

Optional

1.Air cylinder automatic loading device

2.Handle hole puncher

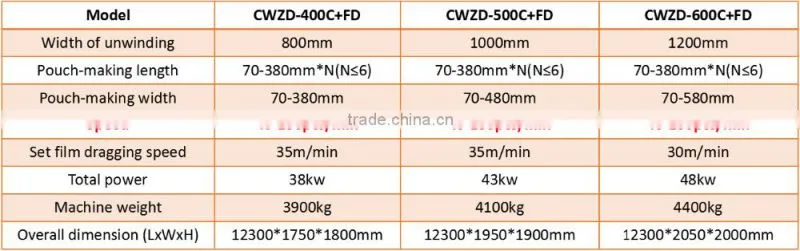

Technical Parameter

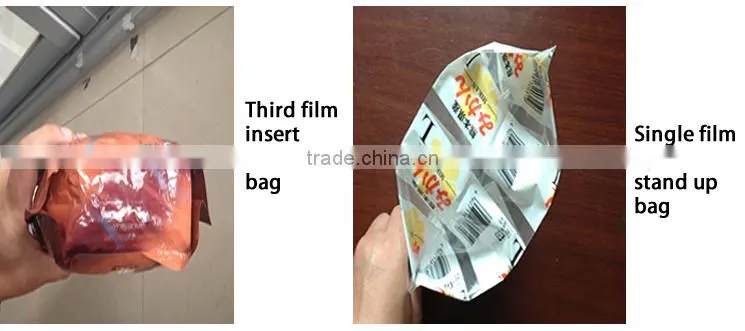

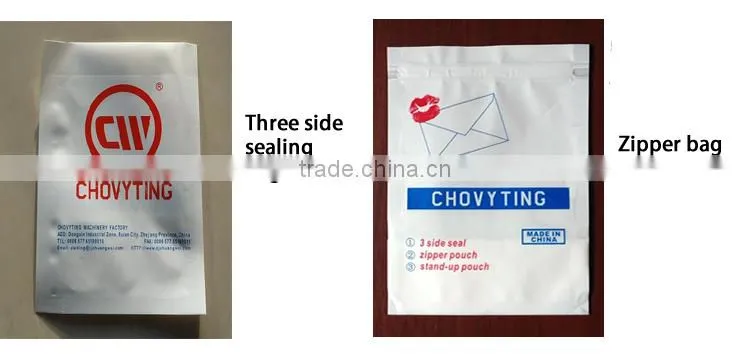

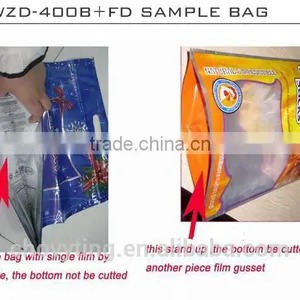

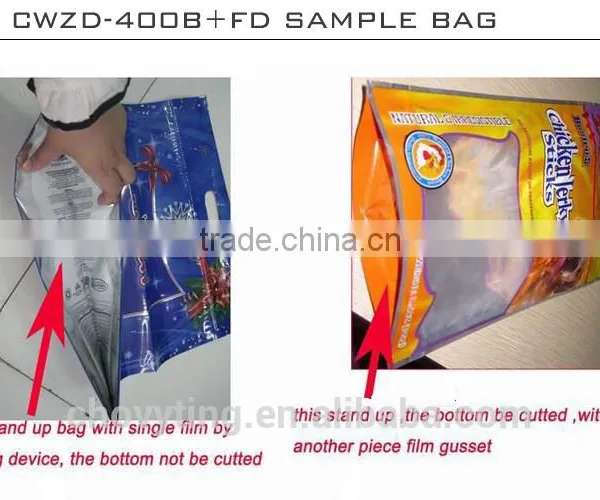

Sample Bag
Detailed Images


Unwinding device

 1)With automatic tension monitor

 2)Equipped with plug type and pneumatic locking device

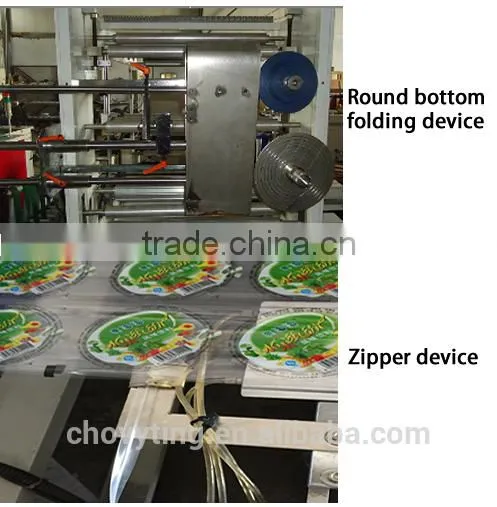

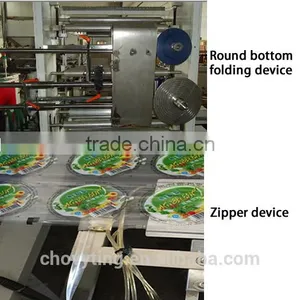

Round bottom gusset device

1)The single film of stand up bag is folden by the device,the bottom not be cutted.



Third film inserted stand up device

1)This device is horizontal expected level with photoelectric tracking with centralized control of the host computer with the computer on pneumatic control.



Zipper ultrasonic device

1)The zipper ultrasonic device make the zipper seal much more stronger with a independent controller.
2)Zipper flattening adopt 2 groups heating.



Vertical sealing device

1)Vertical-sealing for zipper adopts 1 group for heating fluctuation.

2)Vertical-sealing for side sealing adopt 5groups for heating fluctuation,cooling fluctuation from up and down.


Film traction

1)photoelectric sensor with integrated control Proximity Switch


Bottom sealing device

1)Bottom sealing adopt 3 groups heating fluctuation, 1 group for cooling fluctuation.




Automatic feeding device from conveyor belt



Control box

1)The control box is in control of whole machine with PLC from Japan with an automatic human-computer interface screen.

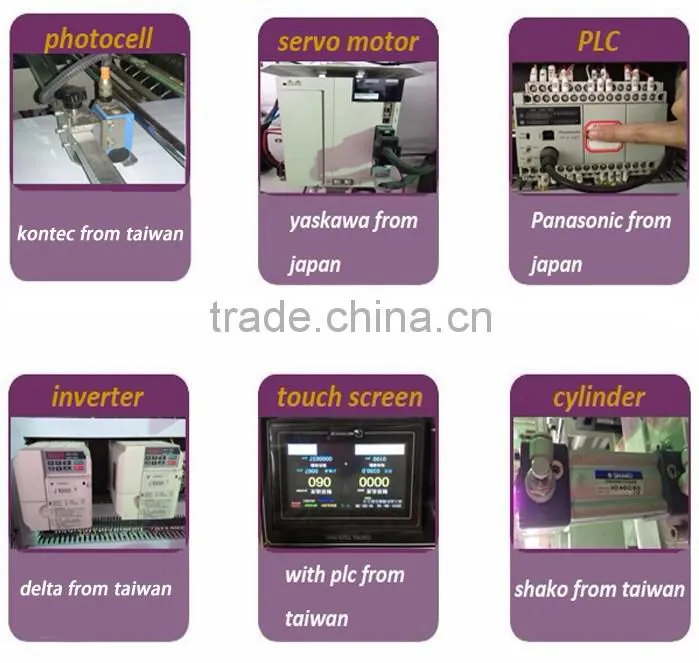

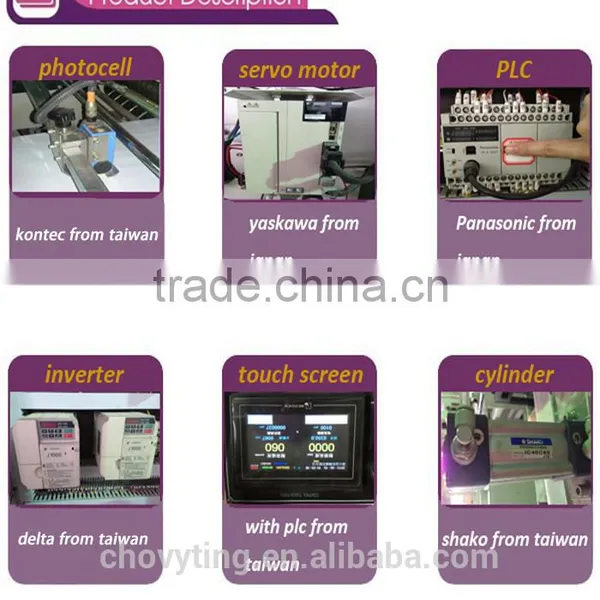

Main Parts
Packing & Delivery
About Our Company
FAQ
Related Products

CWZD-400B Standing bag and zipper bag making machine

CWZD-600C+CS Laminated zipper stand up pouch bag making machine

CW-400ZF High speed central sealing and four side sealing bag making machine
