Specifications
Ribbon Conveyer1.Long conveying distance
2.Large capacity
3.CE, ISO, BV
4.Energy saving

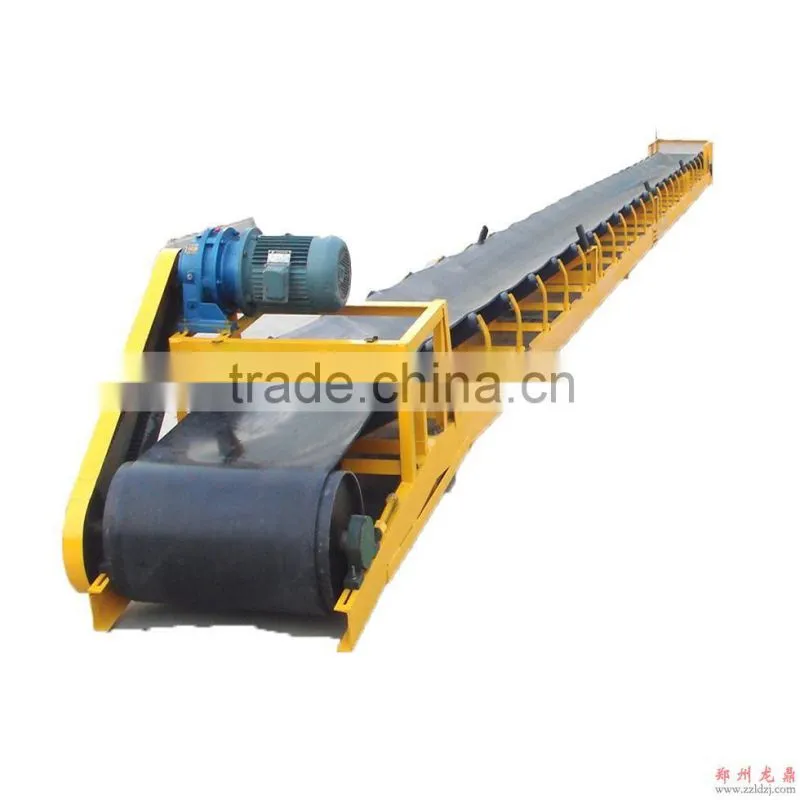

Ribbon Conveyer
Product introduction- Ribbon Conveyer
Fixed belt conveyor is a machine can transport materials in a continuous mechanical move by friction drive. It is made up of the rack, conveyor belt, rollers, tensioning devices, drives and other components. It can transport the material to a certain line, from the feed point to the final discharge point, became a transport processe between the two points.
Working principle- Ribbon Conveyer
Belt-driven approach: gear motor drive, electric drum drive
Belt speed mode: frequency control, infinitely variable.
Rack material: carbon steel, stainless steel, aluminum
Different Type- Ribbon Conveyer
Groove belt conveyor, flat belt conveyor, climbing belt, belt curves, telescopic belt conveyor and other forms, Belt conveyor can be added to other accessories to meet process requirements. Such as lifting, both sides of the conveyor table, the installation of fixtures, electronic instrument assembly, food packaging and other belt conveyor assembly line.
Material- Ribbon Conveyer
Rubber, silicone, PVC, PU and other materials, except for transport ordinary materials, it also transport special requirements, like oil, corrosion resistance, anti-static materials etc. Using special conveyor belt for grain, to meet the food, pharmaceutical, household chemicals and other industry requirements.
Belt conveyor has a simple structure, easy maintenance, less energy consumption
and low cost characteristics, but also has the following characteristics:
1, Many kinds of material can be transported, also transport all kinds of bulk material,
a variety of cartons, bags and other single-piece lightweight products, it can also be used to transport goods at a large supermarket cashier, etc.
2, Many diverse forms of structure, can also add other accessories to meet different process requirements.
3, Except for the delivery of ordinary materials, also works for special requirements,
like corrosion resistance, anti-static materials etc.
4, Smooth transportation between the material and the conveyor belt there is no relative movement, to avoid damage to the transported material .
6, The noise is smaller than other kinds of conveyors , suitable for quiet work environment.
Technical parameters- Ribbon Conveyer
| Belt Width(mm) | Belt Length(m) / Power(kw) | Belt Speed(m/s) | Capacity(t/h) | ||
| B400 | ≤12/1.5 | 12-20/2.2 | 20-25/3 | 0.8-2 | 40-80 |
| B500 | ≤12/3 | 12-20/4 | 20-30/5.5 | 0.8-2 | 78-191 |
| B650 | ≤12/4 | 12-20/5.5 | 20-30/7.5 | 0.8-2 | 131-323 |
| B800 | ≤10/4 | 10-15/5.5 | 15-25/7.5 | 1.0-2 | 278-546 |
| B1000 | ≤10/5.5 | 10-20/7.5 | 20-25/11 | 1.0-2 | 435-853 |
| B1200 | ≤10/7.5 | 10-20/11 | 20-25/15 | 1.0-2 | 655-1284 |
Delivery details- Ribbon Conveyer
7-20days after deposit
Packaging- Ribbon Conveyer
Fumigation-free wooden case
Waterproof, anti-corrosion, difficult to burn, sturdy and durable
Certification- Ribbon Conveyer
CE, ISO, BV, Supplier Assessment, Letter of Patent, Quality Authentication
Professional service- Ribbon Conveyer
Our products are sold in China and abroad in over 15 countries;
We will send you an engineer to abroad help for the machine setup and training your workers.
Why choose us?
Jinzhen Machinery Manufacturing
We are specialized in manufacturing Belt conveyor and many kinds of machinery for 25 years.
BEST QUALITY+ REASONABLE PRICE+ PROFESSIONAL SERVICE= JINZHEN
