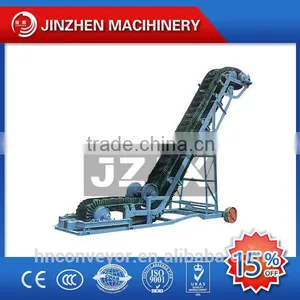

Mini Band Conveyer Manufacturing Movable Conveyer Belt Small Rubber Belts
Product introduction- Small Rubber Belts
Small Rubber Belts is a machine can transport materials in a continuous
mechanical move by friction drive. It is made up of the rack, conveyor belt, rollers,
tensioning devices, drives and other components. It can transport the material to a
certain line, from the feed point to the final discharge point, became a transport
processe between the two points.
Working principle- Small Rubber Belts
Belt-driven approach: gear motor drive, electric drum drive.
Belt speed mode: frequency control, infinitely variable.
Rack material: carbon steel, stainless steel, aluminum.
Type- Small Rubber Belts
Groove belt conveyor, flat belt conveyor, climbing belt, belt curves, telescopic belt conveyor
and other forms, Belt conveyor can be added to other accessories to satisfy process
requirements. Such as lifting, both sides of the conveyor table, the installation of fixtures,
electronic instrument assembly, food packaging and other belt conveyor assembly line.
Belt Material- Small Rubber Belts
Rubber, silicone, PVC, PU and other materials, except for transport ordinary materials,
it also transport special requirements, like oil, corrosion resistance, anti-static materials etc.
Using special conveyor belt for grain, to meet the food, pharmaceutical, household chemicals
and other industry requirements.
Belt conveyor has a simple structure, easy maintenance, less energy consumption
and low cost characteristics, but also has the following characteristics:
1, Many kinds of material can be transported, also transport all kinds of bulk material,
a variety of cartons, bags and other single-piece lightweight products, it can also be
used to transport goods at a large supermarket cashier, etc.
2, Many diverse forms of structure, can also add other accessories to meet different
process requirements.
3, Except for the delivery of ordinary materials, also works for special requirements,
like corrosion resistance, anti-static materials etc.
4, Smooth transportation between the material and the conveyor belt there is no relative
movement, to avoid damage to the transported material .
6, The noise is smaller than other kinds of conveyors , suitable for quiet work environment.
Technical parameters- Small Rubber Belts
| Belt Width(mm) | Belt Length(m) / Power(kw) | Belt Speed(m/s) | Capacity(t/h) | ||
| B400 | ≤12/1.5 | 12-20/2.2 | 20-25/3 | 0.8-2 | 40-80 |
| B500 | ≤12/3 | 12-20/4 | 20-30/5.5 | 0.8-2 | 78-191 |
| B650 | ≤12/4 | 12-20/5.5 | 20-30/7.5 | 0.8-2 | 131-323 |
| B800 | ≤10/4 | 10-15/5.5 | 15-25/7.5 | 1.0-2 | 278-546 |
| B1000 | ≤10/5.5 | 10-20/7.5 | 20-25/11 | 1.0-2 | 435-853 |
| B1200 | ≤10/7.5 | 10-20/11 | 20-25/15 | 1.0-2 | 655-1284 |
Delivery details- Small Rubber Belts
7-20days after deposit
Packaging- Small Rubber Belts
Fumigation-free wooden case
Waterproof, anti-corrosion, difficult to burn, sturdy and durable
Certification- Small Rubber Belts
CE, ISO, BV, Supplier Assessment, Letter of Patent, Quality Authentication
Professional service- Small Rubber Belts
Our products are sold in China and abroad in over 15 countries;
We will send you an engineer to abroad help for the machine setup and training your workers.
Why choose us?
Jinzhen Machinery Manufacturing
We are specialized in manufacturing Belt conveyor and many kinds of machinery for 25 years.
BEST QUALITY+ REASONABLE PRICE+ PROFESSIONAL SERVICE= JINZHEN
