Steel-plastic composite pipe / epoxy coated composite pipe / PE coated steel reinforced pipe
Plastic coated steel pipe is a kind of steel pipe which lined the quality plastic against the inner wall of the steel pipe. By the ordinary steel material as the steel pipe, and excellent plastic with abrasive resistance, anti-corrosion, heat-resistance and so on .As a lining layer, we combine the characteristics of metal and plastic together, into the characteristics with high strength, high abrasive resistance, high anti-corrosion and high heat-resistance. Therefore it can be widely used for the pipeline system of industrial deslagging, exhaust in metallurgy, mining, electric undertaking, chemical industry and so on.
Our Plastic coated steel pipe is a kind of composite pipe with many kinds of characters of polymer and steel pipe. It not only keeps the intensity and traditional connect methods of steel tube, but also fully shows the characteristics of corrosion resistance, aging resistance, high wear resistance, stainlessness, non-toxicity, smooth inside wall and so on after different performance evolution of plastic materials. Plastic lined pipes reaches the national sanitation standard after changing performance, and it is recommended in the civilian construction, urban water supply and discharge. It is the alternative products of industrial pipeline that used in the oil transportation, chemical industry, electric power, coal mine, steamer, dock and so on.
Plastic coated steel pipe

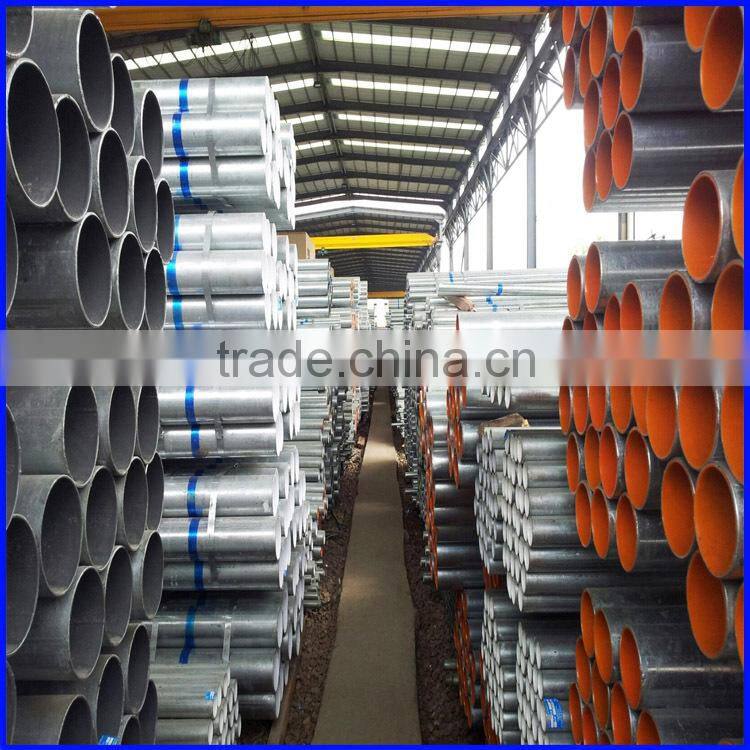

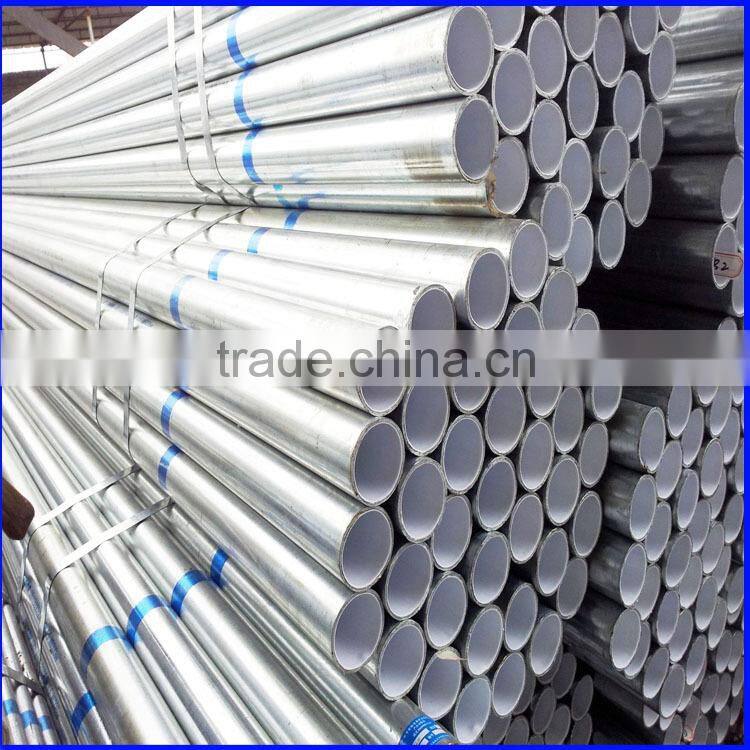

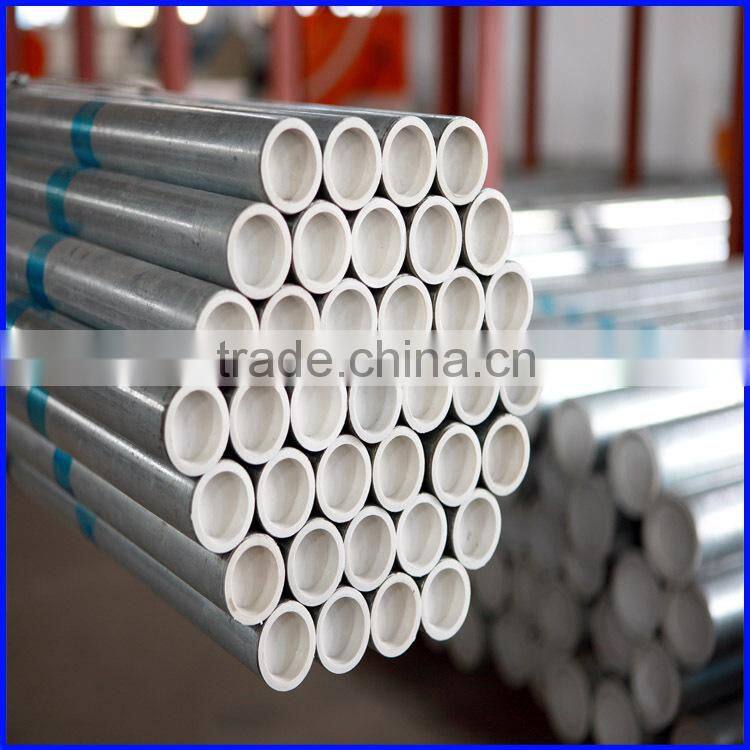

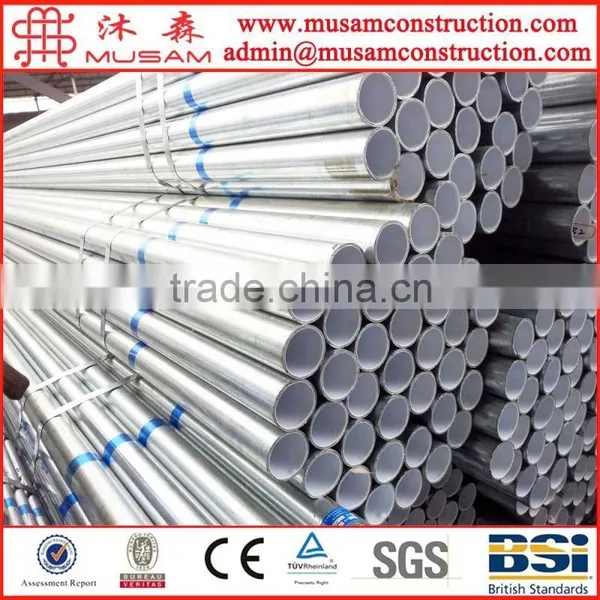

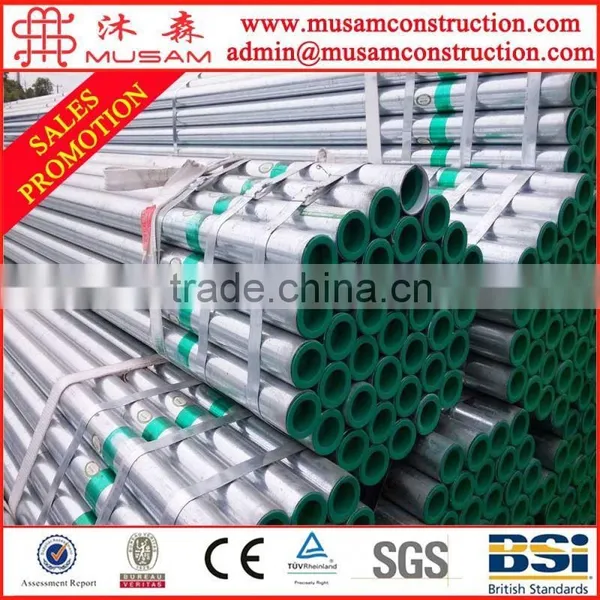

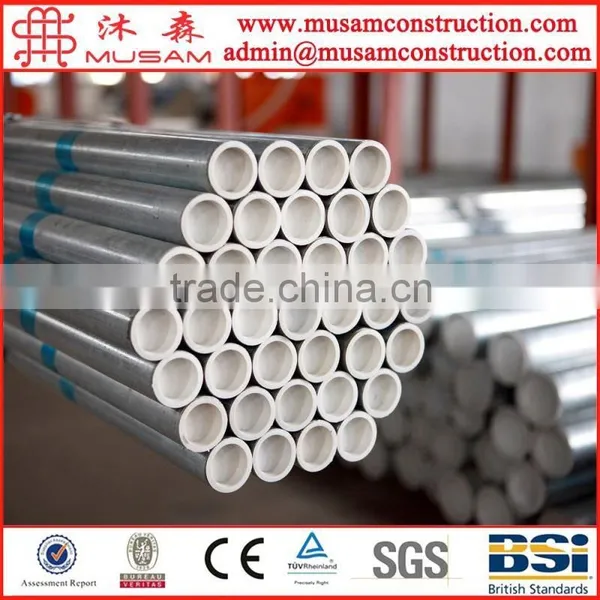

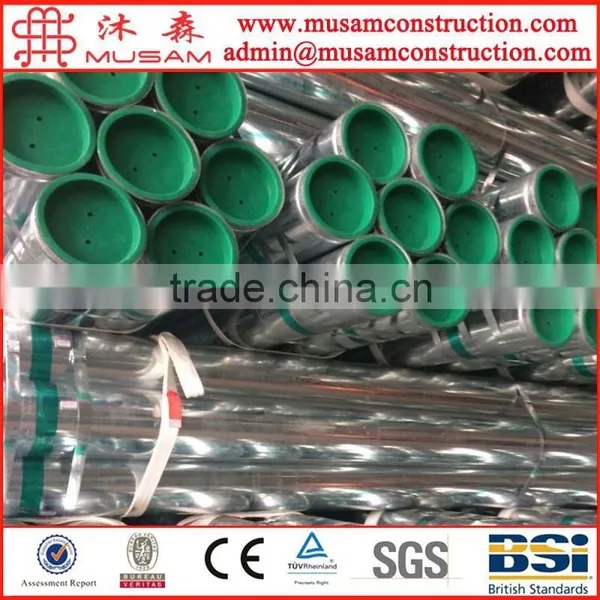

Product Show
Plastic coated steel pipe
Product features
1. Excellent physical properties;
2. Good anti-corrosion ability.
3. Same mechanical strength with steel pipe;
4. Sanitary, non-toxic, non-foulin gand non-breeding;
5. Resistance to chemical corrosion, marine bio-corrosion, and resistance to cathodic stripping;
6. Skilled and convenient Installation process;
7. Good weather resistance, and adapt to the severe environment of desert, saline aquifers and so on;
8. Smooth inside wall, high efficient transportation and long life-span.
Plastic coated steel pipe

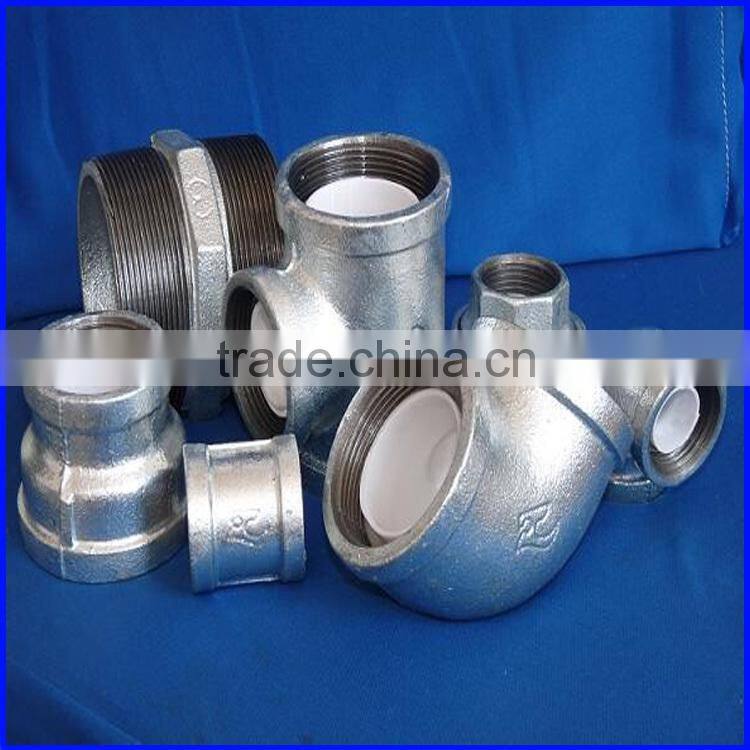

Pipe fittings
Plastic coated steel pipe
Standard Sizes
|
DN
mm
|
Outer Diameter
mm
|
Steel W.T
mm
|
Plastic W.T
mm
|
Length
mm
|
15 |
21.3 |
2.8 |
1.5±0.2 |
5800 |
20 |
26.9 |
2.8 |
1.5±0.2 |
5800 |
25 |
33.7 |
3.2 |
1.5±0.2 |
5800 |
32 |
42.4 |
3.5 |
1.5±0.2 |
5800 |
40 |
48.3 |
3.5 |
1.5±0.2 |
5800 |
50 |
60.3 |
3.8 |
1.5±0.2 |
5800 |
65 |
76.1 |
4.0 |
1.5±0.2 |
5800 |
80 |
88.9 |
4.0 |
2.0±0.2 |
5800 |
100 |
114.3 |
4.0 |
2.0±0.2 |
5800 |
125 |
139.7 |
4.0 |
2.0±0.2 |
5800 |
150 |
165(168.3) |
4.5 |
2.5±0.2 |
5800 |
Standard sizes of Plastic Coated Pipes :
|
DN mm |
Outer Diameter mm |
Steel W.T mm |
Coating W.T mm |
Length mm |
15 |
21.3 |
2.8 |
>0.3 |
5800 |
20 |
26.9 |
2.8 |
>0.3 |
5800 |
25 |
33.7 |
3.2 |
>0.3 |
5800 |
32 |
42.4 |
3.5 |
>0.35 |
5800 |
40 |
48.3 |
3.5 |
>0.35 |
5800 |
50 |
60.3 |
3.8 |
>0.35 |
5800 |
65 |
76.1 |
4.0 |
>0.4 |
5800 |
80 |
88.9 |
4.0 |
>0.4 |
5800 |
100 |
114.3 |
4.0 |
>0.4 |
5800 |
125 |
139.7 |
4.0 |
>0.4 |
5800 |
150 |
165(168.3) |
4.5 |
>0.4 |
5800 |

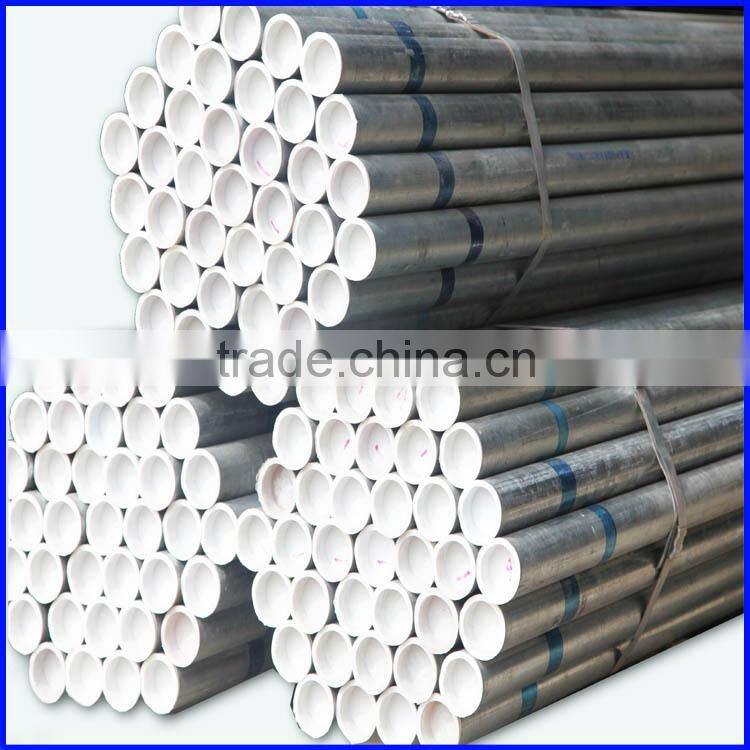

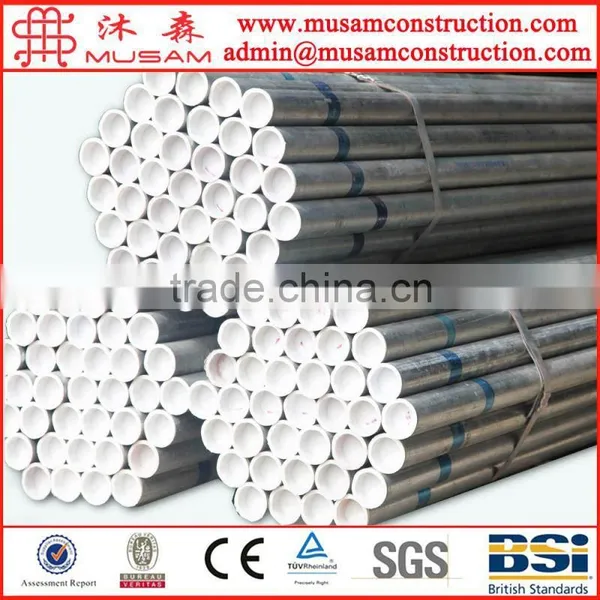

The Plastic coated steel pipe packaged in bundle by steel belt or covered by plastic clothes .
Plastic coated steel pipe

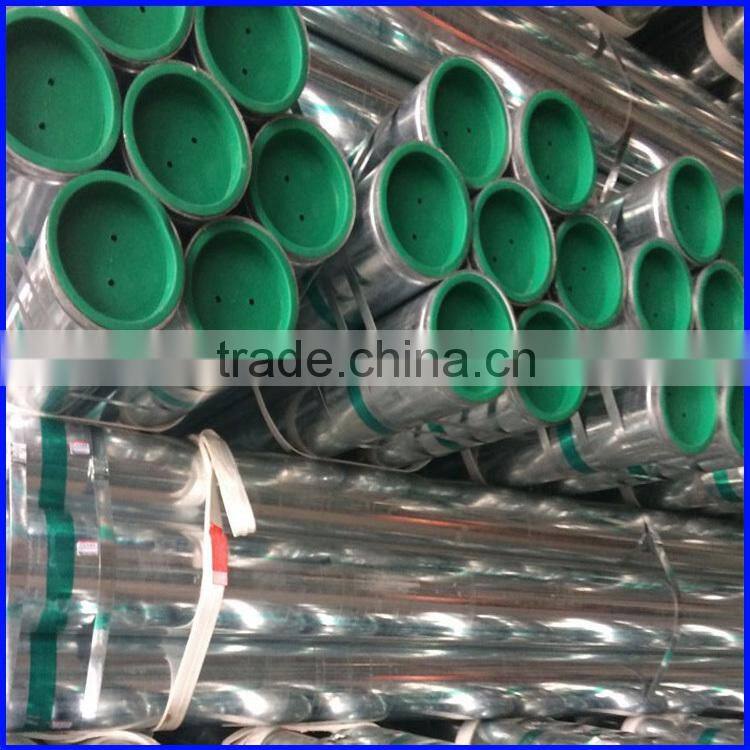

Packing method
Plastic coated steel pipe
Packing and loading
Plastic coated steel pipe
Factory overview
Plastic coated steel pipe

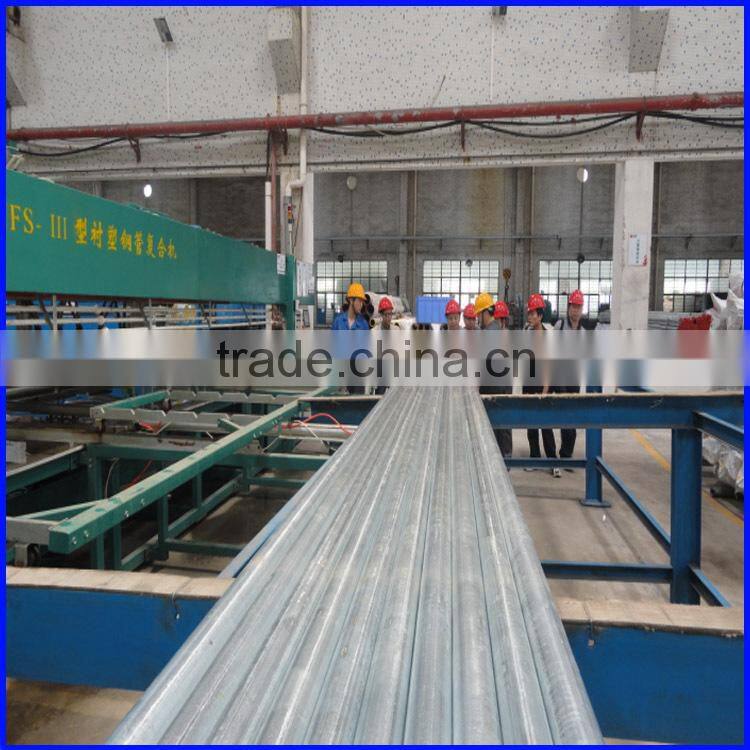

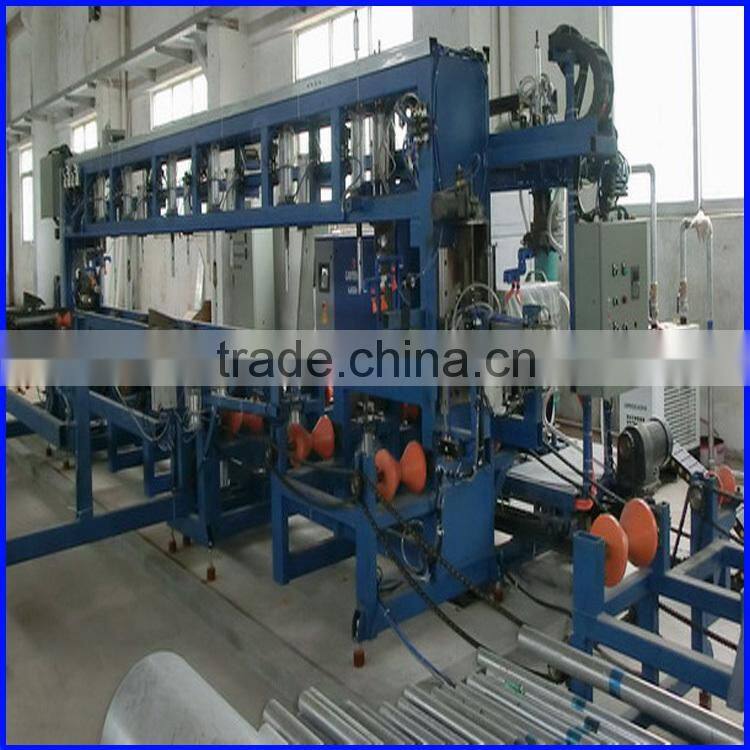

Production line
Plastic coated steel pipe

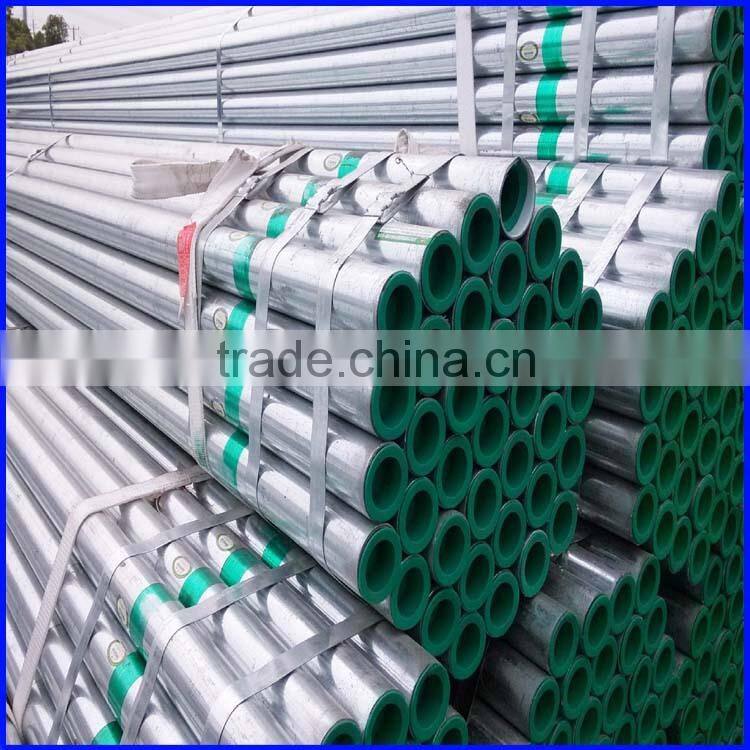

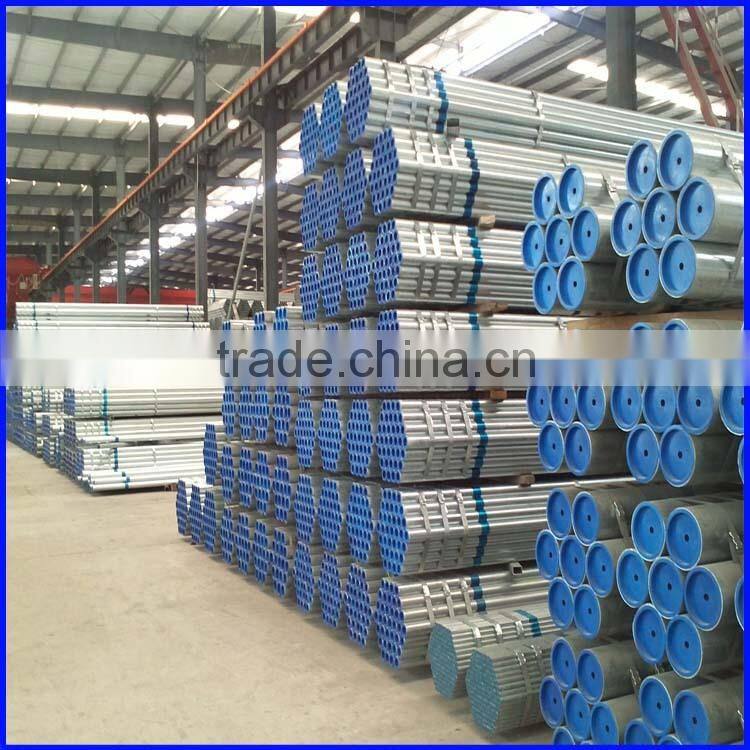

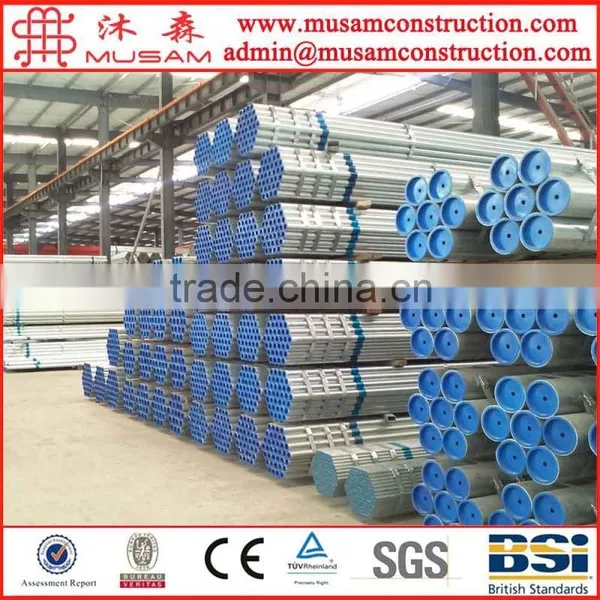

Ready stock
Plastic coated steel pipe
Company certificate
Steel-plastic composite pipe / epoxy coated composite pipe / PE coated steel reinforced pipe
Together ,we make it better !
