Steel pipes of complex plastic / steel pipes of lining plastic / coating plastic steel pipe / composite pipe
Coating plastic steel pipe is a kind of steel pipe which lined the quality plastic against the inner wall of the steel pipe. By the ordinary steel material as the steel pipe, and excellent plastic with abrasive resistance, anti-corrosion, heat-resistance and so on .As a lining layer, we combine the characteristics of metal and plastic together, into the characteristics with high strength, high abrasive resistance, high anti-corrosion and high heat-resistance. Therefore it can be widely used for the pipeline system of industrial deslagging, exhaust in metallurgy, mining, electric undertaking, chemical industry and so on.
Our Coating plastic steel pipe is a kind of composite pipe with many kinds of characters of polymer and steel pipe. It not only keeps the intensity and traditional connect methods of steel tube, but also fully shows the characteristics of corrosion resistance, aging resistance, high wear resistance, stainlessness, non-toxicity, smooth inside wall and so on after different performance evolution of plastic materials. Plastic lined pipes reaches the national sanitation standard after changing performance, and it is recommended in the civilian construction, urban water supply and discharge. It is the alternative products of industrial pipeline that used in the oil transportation, chemical industry, electric power, coal mine, steamer, dock and so on.
Coating plastic steel pipe
Product Show
Coating plastic steel pipe
Product features
1. Excellent physical properties;
2. Good anti-corrosion ability.
3. Same mechanical strength with steel pipe;
4. Sanitary, non-toxic, non-foulin gand non-breeding;
5. Resistance to chemical corrosion, marine bio-corrosion, and resistance to cathodic stripping;
6. Skilled and convenient Installation process;
7. Good weather resistance, and adapt to the severe environment of desert, saline aquifers and so on;
8. Smooth inside wall, high efficient transportation and long life-span.
Coating plastic steel pipe
Pipe fittings
Coating plastic steel pipe
Standard Sizes
|
DN
mm
|
Outer Diameter
mm
|
Steel W.T
mm
|
Plastic W.T
mm
|
Length
mm
|
15 |
21.3 |
2.8 |
1.5±0.2 |
5800 |
20 |
26.9 |
2.8 |
1.5±0.2 |
5800 |
25 |
33.7 |
3.2 |
1.5±0.2 |
5800 |
32 |
42.4 |
3.5 |
1.5±0.2 |
5800 |
40 |
48.3 |
3.5 |
1.5±0.2 |
5800 |
50 |
60.3 |
3.8 |
1.5±0.2 |
5800 |
65 |
76.1 |
4.0 |
1.5±0.2 |
5800 |
80 |
88.9 |
4.0 |
2.0±0.2 |
5800 |
100 |
114.3 |
4.0 |
2.0±0.2 |
5800 |
125 |
139.7 |
4.0 |
2.0±0.2 |
5800 |
150 |
165(168.3) |
4.5 |
2.5±0.2 |
5800 |
Standard sizes of Plastic Coated Pipes :
|
DN mm |
Outer Diameter mm |
Steel W.T mm |
Coating W.T mm |
Length mm |
15 |
21.3 |
2.8 |
>0.3 |
5800 |
20 |
26.9 |
2.8 |
>0.3 |
5800 |
25 |
33.7 |
3.2 |
>0.3 |
5800 |
32 |
42.4 |
3.5 |
>0.35 |
5800 |
40 |
48.3 |
3.5 |
>0.35 |
5800 |
50 |
60.3 |
3.8 |
>0.35 |
5800 |
65 |
76.1 |
4.0 |
>0.4 |
5800 |
80 |
88.9 |
4.0 |
>0.4 |
5800 |
100 |
114.3 |
4.0 |
>0.4 |
5800 |
125 |
139.7 |
4.0 |
>0.4 |
5800 |
150 |
165(168.3) |
4.5 |
>0.4 |
5800 |
The Coating plastic steel pipe packaged in bundle by steel belt or covered by plastic clothes .
Coating plastic steel pipe
Packing method
Coating plastic steel pipe
Packing and loading
Coating plastic steel pipe
Factory overview
Coating plastic steel pipe
Production line
Coating plastic steel pipe

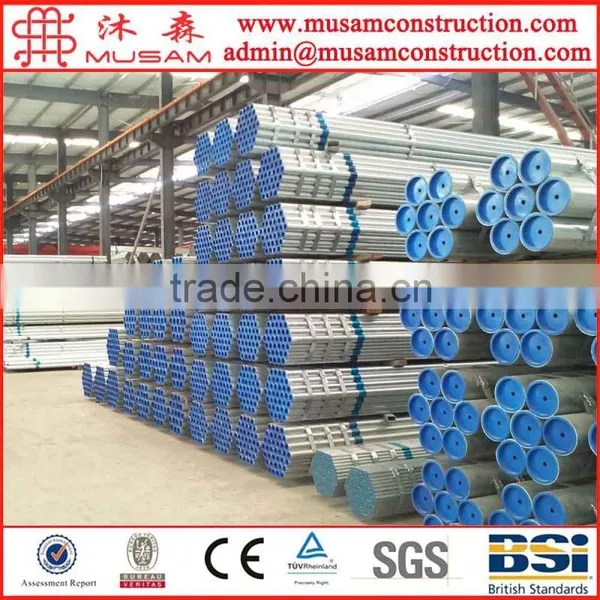

Ready stock
Coating plastic steel pipe
Company certificate
Steel pipes of complex plastic / steel pipes of lining plastic / coating plastic steel pipe / composite pipe
Together ,we make it better !
