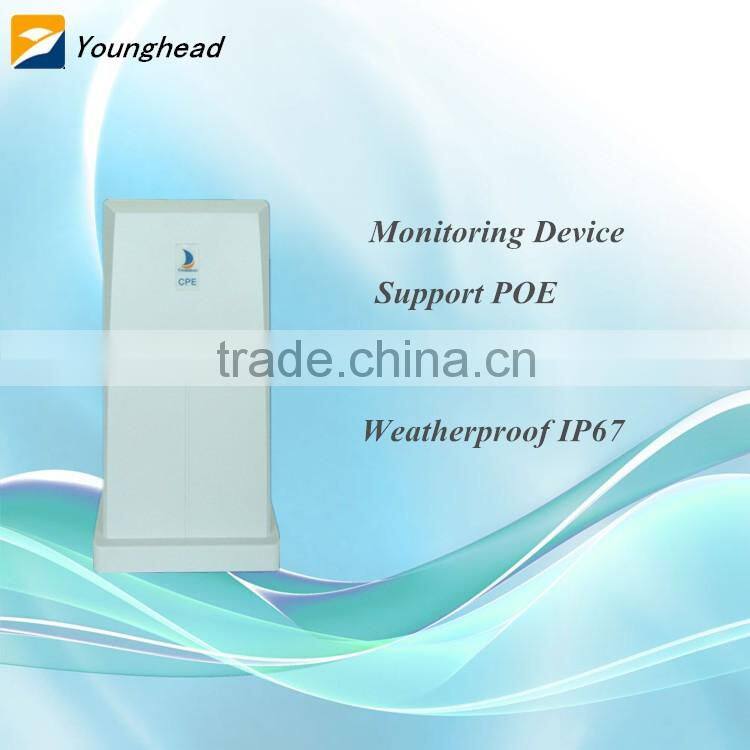

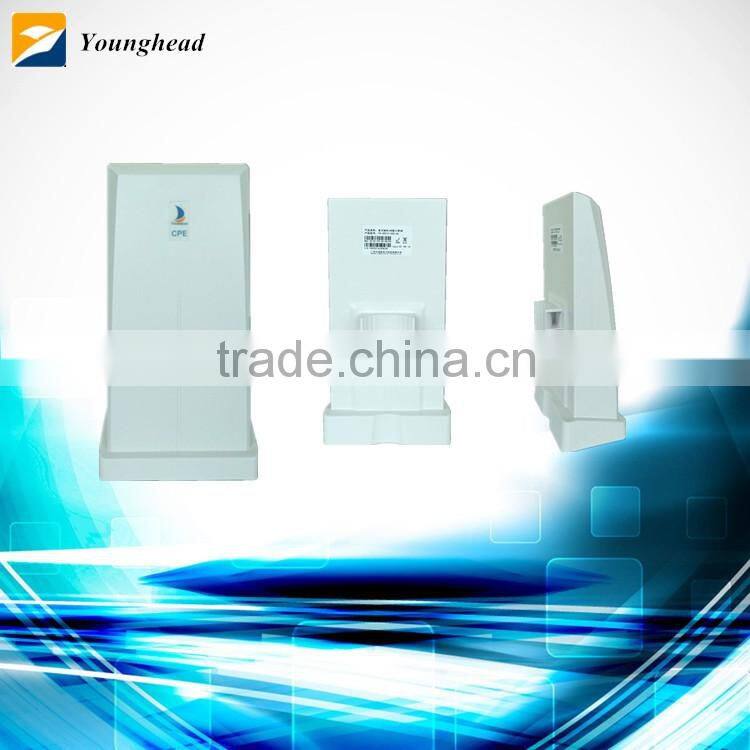

24dBm Outdoor 5g Wireless Bridge CPE Router
YH-BRG10-2R2-5
YH-BRG10-2R2-5(2*2MIMO) is 5.8GHz long distance wireless CPE device for montoring, which based on Qualcomm Atheros platform, and accorded with industrial standards. Its protection level up to IP67, can normally work under the harsh outdoor environment. Support POE power.
This device can be used in scenic area/station/dock/airport/park/commercial plaza/school/industry zone, and so on.
Features:
- high speed rate up to 300M
- 5.8GHz frequency band
- compliant with IEEE802.11a/n
- high gain, network stability
- long distance, 3-5km
- support POE and power distance 70M
- waterproof IP67 and anti-thunder
Parameter:
| Item | Parameter |
| Frequency | 5.15~5.825GHz |
Transmitted Power |
3-24dBm(can chose) |
| Standard | IEEE 802.11 a/n |
| Receiving distance | 3-5km |
| Speed rate | 300Mbps |
| Antenna | 16dBi±1 built-in directional antenna |
| Port | 1xWAN(10M/100M)RJ45,1xReset |
| LED | 1xPower,3xSignal |
| Power |
9-19V (passive PoE) |
Operating Temperature |
-40℃~70℃ |
Operating Humidity |
0%~100%RH(None condensation) |
Power Dissipation |
<12W |
Weight |
0.9kg |
| Size | 262mm×142mm×79mm |
Protection Standards |
IP67; Anti-thunder class:GB/T 17626.5 |

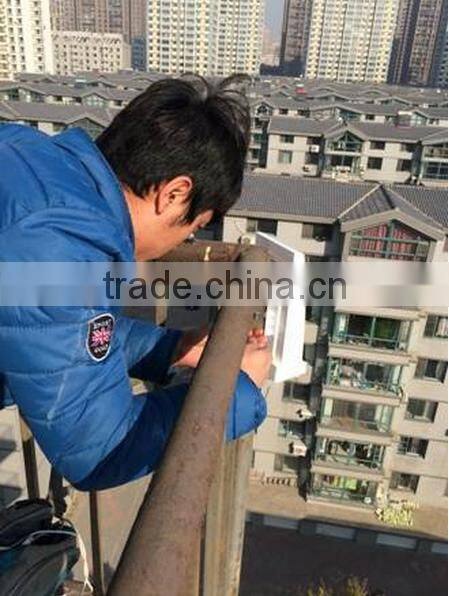

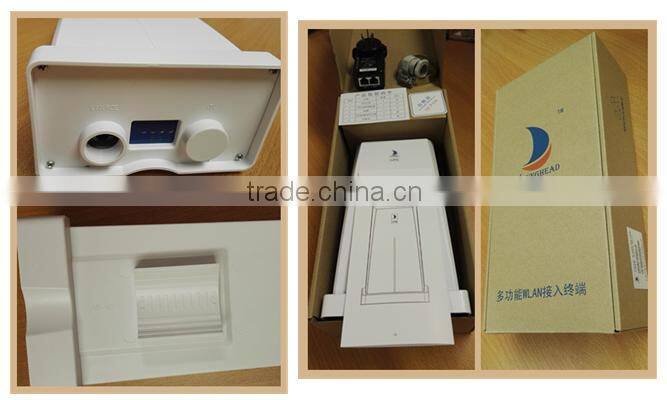

Product Pictures
Our service:
---Your inquiry will be replied in 24hours
---Well-trained and experienced staffs to answer all your inquires in fluent English
---OEM&ODM, for any of your customized products we can help you to design and put into product
---Monthly output over 10,000 pcs
---All our products with 24months guarantee
About sample:
---Sample is available.
---Sample lead time: 2-3 working days, 4-5 days with customized logo
---More details, please contact with us.
Payment methods:
---T/T, Western Union, Paypal.
---30% deposit, balanced before shipment.
Shipping & Trade terms:
---By sea, air, or UPS, FEDEX, EMS, DHL, etc.
---Payment:T/T, Western Union, Paypal.
---Delivered time: 2-3 business days for sample, 20-25 days for mass order.
Contact Us:
---Name: Judy Lv
---Skype: vivian.vivian70
---Mobile: +86 13430531099
---QQ: 1047878112
