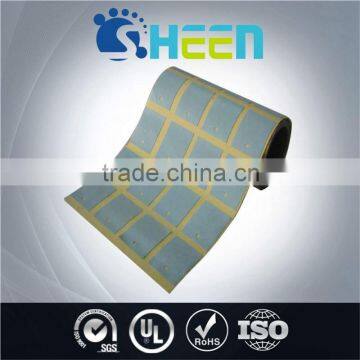

Insulative Insulated Sheets For High Pressure Interface

FOB Price

USD $0.01 - $0.05 / Piece

100 Pieces(Min.Order)

Port shenzhen
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	SHEEN
Model Number	SC800FG	Type	Insulation Sheet
Material	Composite Polymer	Application	High Voltage
Tensile Strength	450

Product Description

Insulative Insulated Sheets For High Pressure Interface

Product Information

Product Name	Insulative Insulated Sheets For High Pressure Interface
Item No.	SC800FG
Color	Gray
Construction & compostionn	Silicone elastomer
Thickness (inch/mm)	0.2mm
Specific Gravity, (g/cc)	2.2
Hardness, (Shore A)	45
Tensile Strength, (psi)	450
Continuous Use Temp °F/ °C	(-58 to 356°F)/ (-50 to 180°C)
Dielectric Breakdown Voltage,(V)	>6000
Dielectric Constant, (1000 Hz)	5.5
Volume Resistivity ohm-meter	5.0 X 10¹³
Fire rating	94 V0
Thermal Conductivity,(W/m-K)	0.8
Configurations Available	Can be die-cut into specific dimensions; - Adhesive coatings are optional
Introduction	The SC series products are the high-efficiency insulation ones with thermal conduction properties.The supplement of the insulation base film made by silica gel into the heat-conduction material creates a great effect on both the insulation and heat conduction.
Features and Benefits	- 0.8W/mK thermal conductivity - Electrically isolating - High breakdown voltage - ROHS compliant -High tensile strength
Typical Applications Include	- Power supply - Automotive electronics - Motor controls - Power semiconductors - High pressure interface

Product Display

Hot Sale

" href="http://sheen.en.china.cn/productgrouplist-801575840/thermally_conductive_pad.html" target="_blank">Thermally conductive " href="http://sheen.en.china.cn/productgrouplist-801575840/thermally_conductive_pad.html" target="_blank">pad >	" href="http://sheen.en.china.cn/productgrouplist-801559511/Thermally_ConductiveTape.html" target="_blank">Thermally conductive " href="http://sheen.en.china.cn/productgrouplist-801559511/Thermally_ConductiveTape.html" target="_blank"> tape >	" href="http://sheen.en.china.cn/productgrouplist-801533008/Thermal_silicone_RTV.html" target="_blank">Thermal silicone RTV >	" href="http://sheen.en.china.cn/productgrouplist-801584663/Thermal_Grease.html" target="_blank">Thermal grease >
" href="http://sheen.en.china.cn/productgrouplist-801646855/Phase_Change_Thermal_interface_Materials.html" target="_blank">Phase change thermal " href="http://sheen.en.china.cn/productgrouplist-801646855/Phase_Change_Thermal_interface_Materials.html" target="_blank"> interface materials >	" href="http://sheen.en.china.cn/productgrouplist-801559512/Thermally_Conductive_silicone_Pug.html" target="_blank">Thermally conductive " href="http://sheen.en.china.cn/productgrouplist-801559512/Thermally_Conductive_silicone_Pug.html" target="_blank"> silicone pug >	" href="http://sheen.en.china.cn/productgrouplist-801646856/Thermally_conductive_insulators.html" target="_blank">Thermally conductive " href="http://sheen.en.china.cn/productgrouplist-801646856/Thermally_conductive_insulators.html" target="_blank"> insulators >	" href="http://sheen.en.china.cn/productgrouplist-801586206/Thermally_conductive_graphite_sheets.html" target="_blank">Thermally conductive " href="http://sheen.en.china.cn/productgrouplist-801586206/Thermally_conductive_graphite_sheets.html" target="_blank"> graphite sheets >
" href="http://sheen.en.china.cn/productgrouplist-801559513/Thermally_double_component_silicone_poly_urethane_.html" target="_blank">Thermally double " href="http://sheen.en.china.cn/productgrouplist-801559513/Thermally_double_component_silicone_poly_urethane_.html" target="_blank"> component silicone >	" href="http://sheen.en.china.cn/productgrouplist-801647661/Thermally_Conductive_plastics.html" target="_blank">Thermally conductive " href="http://sheen.en.china.cn/productgrouplist-801647661/Thermally_Conductive_plastics.html" target="_blank"> plastics >	" href="http://sheen.en.china.cn/productgrouplist-801533811/Epoxy_Adhesive.html" target="_blank">Epoxy adhesive >	" href="http://sheen.en.china.cn/productlist.html" target="_blank">More products >

Product Advantage

Fill the air gap between heating devices and heat sink or metal base
Improve the efficiency and service life of heating components

Ultra-strong adhesion to various surface
High thermally conductive acrylic adhesive
Double-sided pressure-sensitive adhesive tape
Effectively replace lubricating grease and mechanical fastening

With good adhesion to most metal, glass, alloy and plastic materials, etc.
Solidified under room temperature
With good electrical insulation and weather resistance

No preheating process is required for the product
Excellent adhesion and sealing strength with good conductivity
Suitable for auto-dispensing and screen printing

Compared with traditional materials, the phase change thermal interface materials can cover and fill the gap and hollow between the contact interfaces when being liquid.
