Insulative Thermo Insulation For Power Semiconductors

Insulative Thermo Insulation For Power Semiconductors photo-1

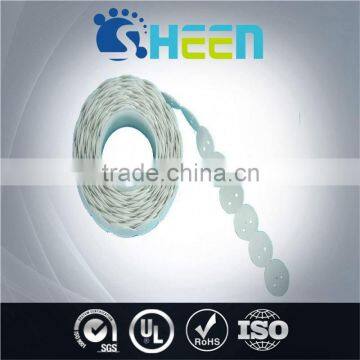

Insulative Thermo Insulation For Power Semiconductors photo-2

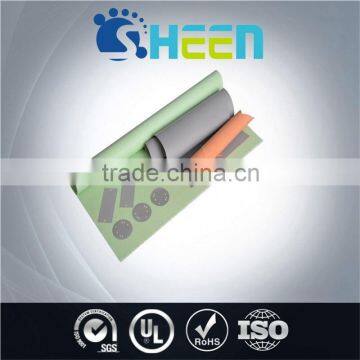

Insulative Thermo Insulation For Power Semiconductors photo-3
US$ 32 - 54 MOQ: 100 Square Meters
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SHEEN
Model Number:
SC800FG
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name SHEEN
Model Number SC800FG
Type Insulation Sheet
Material Composite Polymer
Application High Voltage
Tensile Strength 450

Insulative Thermo Insulation For Power Semiconductors

Insulative Thermo Insulation For Power Semiconductors

Product Information

Product Name
Insulative Thermo Insulation For Power Semiconductors
Item No.SC800FG
ColorGray
Construction & compostionn Silicone elastomer
Thickness (inch/mm) 0.2mm
Specific Gravity, (g/cc) 2.2
Hardness, (Shore A) 45

Tensile Strength, (psi)

450
Continuous Use Temp °F/ °C (-58 to 356°F)/ (-50 to 180°C)
Dielectric Breakdown Voltage,(V) >6000
Dielectric Constant, (1000 Hz) 5.5
Volume Resistivity ohm-meter 5.0 X 1013
Fire rating 94 V0
Thermal Conductivity,(W/m-K) 0.8
Configurations Available Can be die-cut into specific dimensions;  - Adhesive coatings are optional
IntroductionThe SC series products are the high-efficiency insulation ones with thermal conduction properties.The supplement of the insulation base film made by silica gel into the heat-conduction material creates a great effect on both the insulation and heat conduction.
Features and Benefits

- 0.8W/mK thermal conductivity

- Electrically isolating

- High breakdown voltage

- ROHS compliant

-High tensile strength

Typical Applications Include

- Power supply

- Automotive electronics

Motor controls

- Power semiconductors

- High pressure interface


Product Display
Insulative Thermo Insulation For Power SemiconductorsInsulative Thermo Insulation For Power SemiconductorsInsulative Thermo Insulation For Power Semiconductors
Hot Sale
" href="http://sheen.en.china.cn/productgrouplist-801575840/thermally_conductive_pad.html" target="_blank">Thermally conductive
" href="http://sheen.en.china.cn/productgrouplist-801575840/thermally_conductive_pad.html" target="_blank">pad >
" href="http://sheen.en.china.cn/productgrouplist-801559511/Thermally_ConductiveTape.html" target="_blank">Thermally conductive
" href="http://sheen.en.china.cn/productgrouplist-801559511/Thermally_ConductiveTape.html" target="_blank"> tape >
" href="http://sheen.en.china.cn/productgrouplist-801533008/Thermal_silicone_RTV.html" target="_blank">Thermal silicone RTV >" href="http://sheen.en.china.cn/productgrouplist-801584663/Thermal_Grease.html" target="_blank">Thermal grease >
" href="http://sheen.en.china.cn/productgrouplist-801646855/Phase_Change_Thermal_interface_Materials.html" target="_blank">Phase change thermal
" href="http://sheen.en.china.cn/productgrouplist-801646855/Phase_Change_Thermal_interface_Materials.html" target="_blank"> interface materials >
" href="http://sheen.en.china.cn/productgrouplist-801559512/Thermally_Conductive_silicone_Pug.html" target="_blank">Thermally conductive
" href="http://sheen.en.china.cn/productgrouplist-801559512/Thermally_Conductive_silicone_Pug.html" target="_blank"> silicone pug >
" href="http://sheen.en.china.cn/productgrouplist-801646856/Thermally_conductive_insulators.html" target="_blank">Thermally conductive
" href="http://sheen.en.china.cn/productgrouplist-801646856/Thermally_conductive_insulators.html" target="_blank"> insulators >
" href="http://sheen.en.china.cn/productgrouplist-801586206/Thermally_conductive_graphite_sheets.html" target="_blank">Thermally conductive
" href="http://sheen.en.china.cn/productgrouplist-801586206/Thermally_conductive_graphite_sheets.html" target="_blank"> graphite sheets >
" href="http://sheen.en.china.cn/productgrouplist-801559513/Thermally_double_component_silicone_poly_urethane_.html" target="_blank">Thermally double
" href="http://sheen.en.china.cn/productgrouplist-801559513/Thermally_double_component_silicone_poly_urethane_.html" target="_blank"> component silicone >
" href="http://sheen.en.china.cn/productgrouplist-801647661/Thermally_Conductive_plastics.html" target="_blank">Thermally conductive
" href="http://sheen.en.china.cn/productgrouplist-801647661/Thermally_Conductive_plastics.html" target="_blank"> plastics >
" href="http://sheen.en.china.cn/productgrouplist-801533811/Epoxy_Adhesive.html" target="_blank">Epoxy adhesive >" href="http://sheen.en.china.cn/productlist.html" target="_blank">More products >

Product Advantage

  • Fill the air gap between heating devices and heat sink or metal base

  • Improve the efficiency and service life of heating components

  • Ultra-strong adhesion to various surface

  • High thermally conductive acrylic adhesive

  • Double-sided pressure-sensitive adhesive tape

  • Effectively replace lubricating grease and mechanical fastening

Insulative Thermo Insulation For Power Semiconductors

  • With good adhesion to most metal, glass, alloy and plastic materials, etc.

  • Solidified under room temperature

  • With good electrical insulation and weather resistance

  • No preheating process is required for the product

  • Excellent adhesion and sealing strength with good conductivity

  • Suitable for auto-dispensing and screen printing


Compared with traditional materials, the phase change thermal interface materials can cover and fill the gap and hollow between the contact interfaces when being liquid.



Company Overview
Certificate
Contact
We can make many specifications according to your request!
For more information. Please contact us.
Tel+86-769-82784016Address6th Floor, Building M, Jinxiongda Science and
Technology Park, Datanglang Villiage, Dalingshan
Town, Dongguan City, Guangdong Province, China
Fax+86-769-82784017
Web/
/
  E-Mail
sheen.trading @foxmail.com
FAQ

1. What are your main products?

We supply thermally conductive pad, thermally silicone RTV, thermally conductive silicone pug, thermally double component silicone, thermally conductive materials, phase change thermal interface materials, thermally conductive insulators and thermal grease.

2. What about the product quality and which certificate do you have?

We have UL certificate and RoHS certificate.

3. How long does it take to deliver after order?

For small quantity, we arrange delivery within one week normally while for big quantity, we will arrange delivery as soon as possible according to actual situation and customer's requirements.

4. What about your after-sale service?

We fully guarantee our product quality and will provide free technical guidance on operations.
