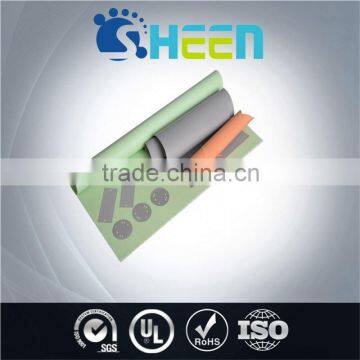

Environmental Good Thermal Insulator For Power Semiconductors

FOB Price

USD $32 - $54 / Square Meter

100 Square Meters(Min.Order)

Supply Ability 2000 Square Meter / Square Meters per Month
Port shenzhen
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	SHEEN
Model Number	SC900FG	Type	Insulation Sheet
Material	Composite Polymer	Application	High Voltage
Tensile Strength	450

Product Description

Environmental Good Thermal Insulator For Power Semiconductors

Product Information

Product Name	Environmental Good Thermal Insulator For Power Semiconductors
Item No.	SC900FG
Color	Gray, red brick
Construction & compostionn	Silicone elastomer, thermally conductive ceramic
Thickness (inch/mm)	0.2-0.5mm
Specific Gravity, (g/cc)	2.5
Hardness, (Shore A)	45
Tensile Strength, (psi)	450
Continuous Use Temp °F/ °C	-60 to 200°C
Dielectric Breakdown Voltage,(V)	>5000
Dielectric Constant, (1000 Hz)	5.5
Volume Resistivity ohm-meter	5.0 X 10¹³
Fire rating	94 V0
Thermal Conductivity,(W/m-K)	2.0
Configurations Available	Can be die-cut into specific dimensions; - Adhesive coatings are optional
Introduction	The SC900FG series products are the high-efficiency insulation ones with thermal conduction properties.The supplement of the insulation base film made by silica gel into the heat-conduction material creates a great effect on both the insulation and heat conduction.
Features and Benefits	- 2.0 W/mK thermal conductivity - Electrically isolating - High breakdown voltage - ROHS compliant -High tensile strength
Typical Applications Include	- Power supply - Automotive electronics - Motor controls - Power semiconductors - High pressure interface

Product Display

Hot Sale

" href="http://sheen.en.china.cn/productgrouplist-801575840/thermally_conductive_pad.html" target="_blank">Thermally conductive " href="http://sheen.en.china.cn/productgrouplist-801575840/thermally_conductive_pad.html" target="_blank">pad >	" href="http://sheen.en.china.cn/productgrouplist-801559511/Thermally_ConductiveTape.html" target="_blank">Thermally conductive " href="http://sheen.en.china.cn/productgrouplist-801559511/Thermally_ConductiveTape.html" target="_blank"> tape >	" href="http://sheen.en.china.cn/productgrouplist-801533008/Thermal_silicone_RTV.html" target="_blank">Thermal silicone RTV >	" href="http://sheen.en.china.cn/productgrouplist-801584663/Thermal_Grease.html" target="_blank">Thermal grease >
" href="http://sheen.en.china.cn/productgrouplist-801646855/Phase_Change_Thermal_interface_Materials.html" target="_blank">Phase change thermal " href="http://sheen.en.china.cn/productgrouplist-801646855/Phase_Change_Thermal_interface_Materials.html" target="_blank"> interface materials >	" href="http://sheen.en.china.cn/productgrouplist-801559512/Thermally_Conductive_silicone_Pug.html" target="_blank">Thermally conductive " href="http://sheen.en.china.cn/productgrouplist-801559512/Thermally_Conductive_silicone_Pug.html" target="_blank"> silicone pug >	" href="http://sheen.en.china.cn/productgrouplist-801646856/Thermally_conductive_insulators.html" target="_blank">Thermally conductive " href="http://sheen.en.china.cn/productgrouplist-801646856/Thermally_conductive_insulators.html" target="_blank"> insulators >	" href="http://sheen.en.china.cn/productgrouplist-801586206/Thermally_conductive_graphite_sheets.html" target="_blank">Thermally conductive " href="http://sheen.en.china.cn/productgrouplist-801586206/Thermally_conductive_graphite_sheets.html" target="_blank"> graphite sheets >
" href="http://sheen.en.china.cn/productgrouplist-801559513/Thermally_double_component_silicone_poly_urethane_.html" target="_blank">Thermally double " href="http://sheen.en.china.cn/productgrouplist-801559513/Thermally_double_component_silicone_poly_urethane_.html" target="_blank"> component silicone >	" href="http://sheen.en.china.cn/productgrouplist-801647661/Thermally_Conductive_plastics.html" target="_blank">Thermally conductive " href="http://sheen.en.china.cn/productgrouplist-801647661/Thermally_Conductive_plastics.html" target="_blank"> plastics >	" href="http://sheen.en.china.cn/productgrouplist-801533811/Epoxy_Adhesive.html" target="_blank">Epoxy adhesive >	" href="http://sheen.en.china.cn/productlist.html" target="_blank">More products >

Product Advantage

Fill the air gap between heating devices and heat sink or metal base
Improve the efficiency and service life of heating components

Ultra-strong adhesion to various surface
High thermally conductive acrylic adhesive
Double-sided pressure-sensitive adhesive tape
Effectively replace lubricating grease and mechanical fastening

With good adhesion to most metal, glass, alloy and plastic materials, etc.
Solidified under room temperature
With good electrical insulation and weather resistance

No preheating process is required for the product
Excellent adhesion and sealing strength with good conductivity
Suitable for auto-dispensing and screen printing

Compared with traditional materials, the phase change thermal interface materials can cover and fill the gap and hollow between the contact interfaces when being liquid.

Company Overview

Certificate

Contact

We can make many specifications according to your request!
For more information. Please contact us.

Tel	+86-769-82784016	Address	6th Floor, Building M, Jinxiongda Science and Technology Park, Datanglang Villiage, Dalingshan Town, Dongguan City, Guangdong Province, China
Fax	+86-769-82784017
Web	/ /
		E-Mail	sheen.trading @foxmail.com

FAQ

1. What are your main products?

We supply thermally conductive pad, thermally silicone RTV, thermally conductive silicone pug, thermally double component silicone, thermally conductive materials, phase change thermal interface materials, thermally conductive insulators and thermal grease.

2. What about the product quality and which certificate do you have?

We have UL certificate and RoHS certificate.

3. How long does it take to deliver after order?

For small quantity, we arrange delivery within one week normally while for big quantity, we will arrange delivery as soon as possible according to actual situation and customer's requirements.

4. What about your after-sale service?

We fully guarantee our product quality and will provide free technical guidance on operations.
