New Products 2016 BUS CAR wifi router with SIM Card WiFi Router 9-36V
YC01-DB22
Industry-class LTE-Fi device can be used as wifi cover and access device for LTE, which has been developed and built by Guangdong YoungHead Co.,Ltd..It is based on Qualcomm Atheros platform, accorded with industrial standards, and became a very mature product. It supports iEEE802.11B/G/N 2T2R, bandwidth up to 300M.
Industry-class LTE-Fi device is used for receiving remote LTE signal and near-end WiFi communication. E.g. vehicle-mounted, mining area and countryside broadband wireless access; scenic region and park's wifi covers; dormitory and school wifi covers, etc. Based on current cellular network and this LTE-Fi device, the new users can access internet quickly in partial scope.
This industry-class LTE-Fi device type is YC01-DB22, LTE module supports CAT3 and FDD/TDD, and the device supports vehicle-mounted power supply and waterproof IP65.
Features:
- iEEE802.11 b/g/n, 2T2R, Max 300M
- support vehicle-mounted power and POE
- support FDD/TDD
- support multiple security methods(opensysytem, WPA/WPA2, iEEE802.11i, WAPi)

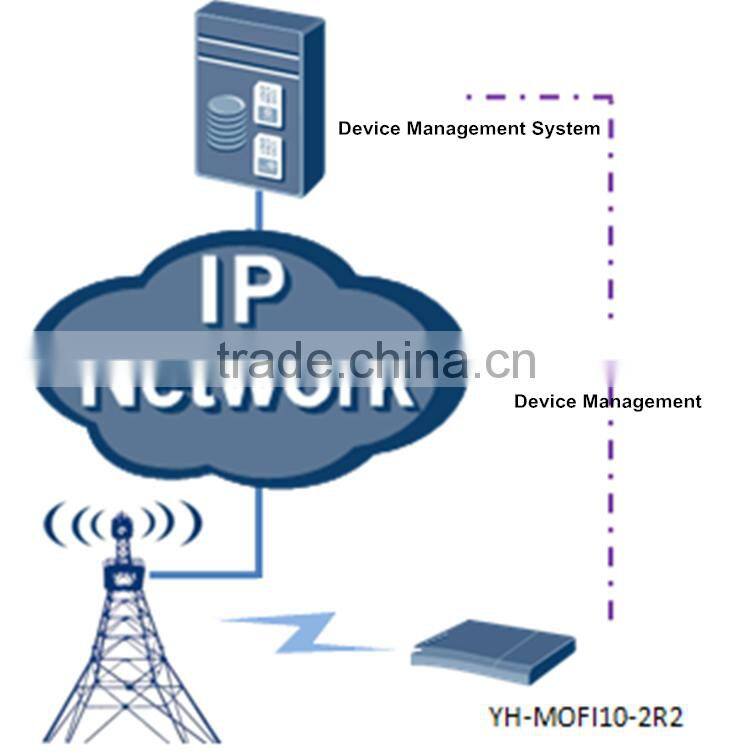

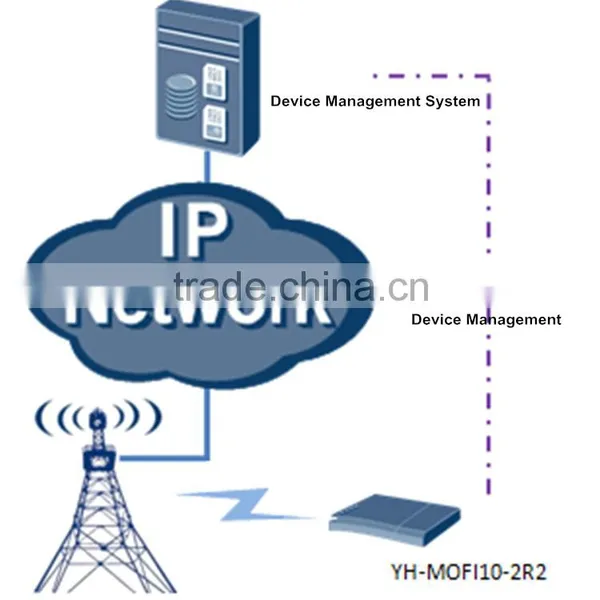

- perfect device management(local WEB, cloud management control)
- IP65 protection and anti-thunder
- high gain(per-antenna has 20dBm TX power with 5dBi gain)
- high concurrency(support more than 30 video users)
- 4g access point
Parameter:
| Item | Parameter |
| Frequency |
WiFi: 2.400~2.483GHz TD-LTE: B38/39/40/41 FDD-LTE: B1/3/7/8 TD-SCDMA: B34/39 WCDMA: B1/5/8 GSM: B2/3/5/8 |
Transmitted Power |
WiFi: 24dBm LTE: 23dBm |
| Standard | IEEE 802.11 B/g/n |
| EVM/Receive sensitivity | EVM<-31dBm, sensitivity<-78dBm(@54M) |
| Speed rate | 300Mbps |
| Antenna | external antenna |

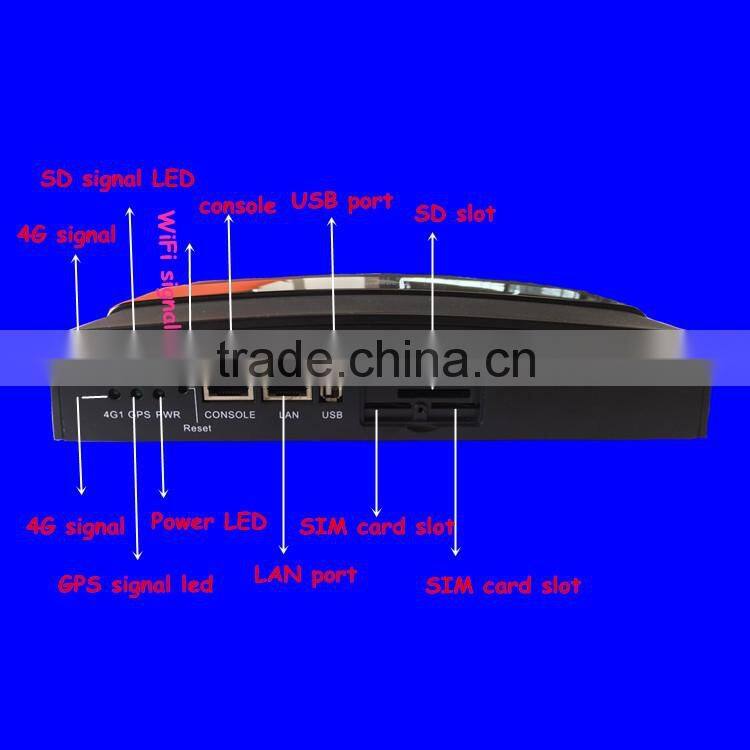

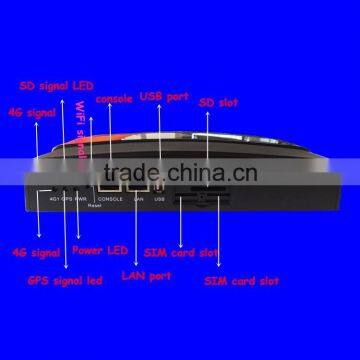

| Port | 1xLAN(10M/100M)RJ45,1xReset,1 Console |
| LED | 1xPower, 1xWLAN, 1xLAN, 4xLTE Signal |
| Power | 9-36V |
Operating Temperature |
-35℃~55℃ |
Operating Humidity |
0%~100%RH(None condensation) |
Power Dissipation |
<16W |
Weight |
0.6kg |
| Size | 224mm×160mm×45mm |
Protection Standards |
IP41; Anti-thunder class:GB/T 17626.5 |

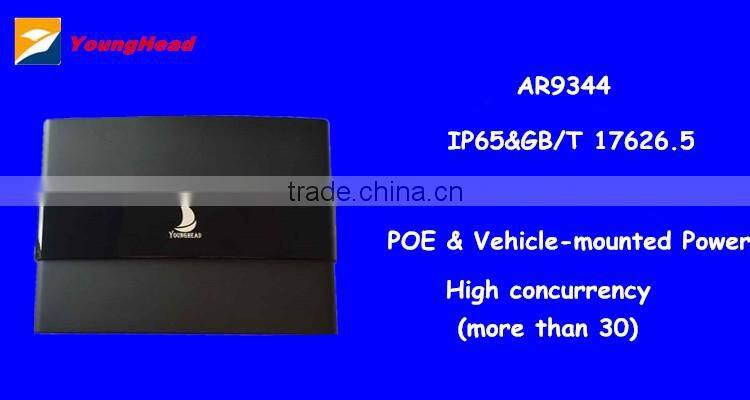

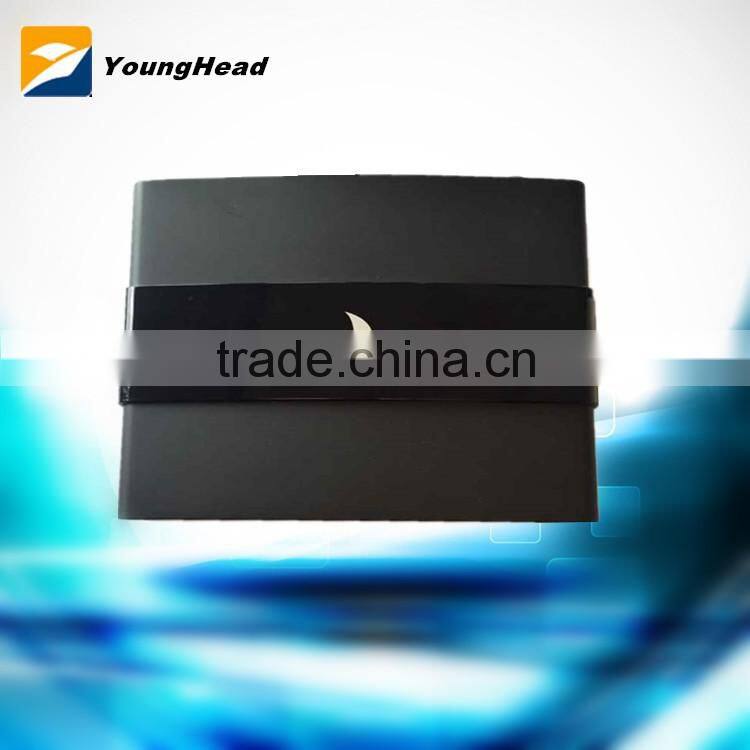

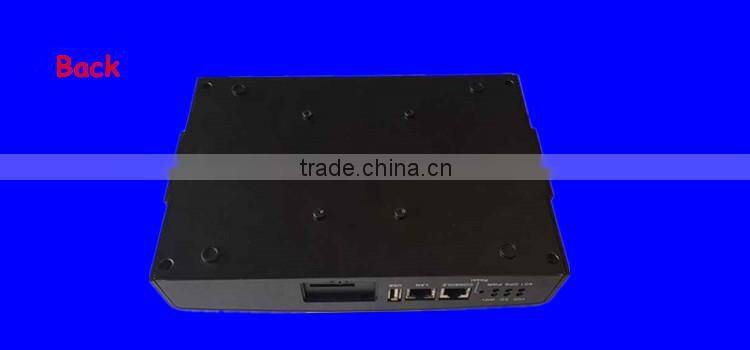

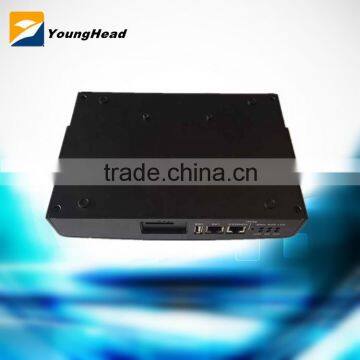

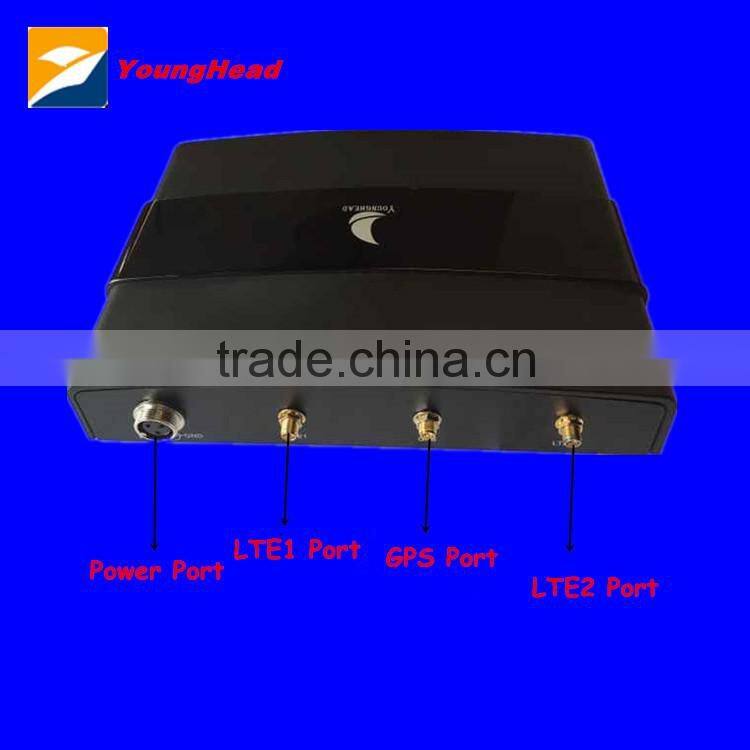

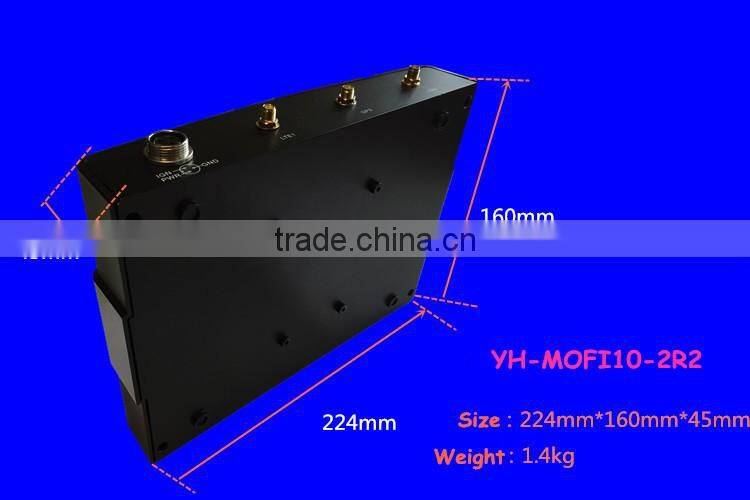

Product Pictures
