2016 OEM Chinese 3km-5km wireless outdoor 2.4g cpe with wholesale price directional antenna
YH-CPE10-2R2
YH-CPE10-2R2 is an carrier-class wireless CPE device, including 2.4GHz and 5.8GHz , which based on Qualcomm Atheros platform, and accorded with industrial standards. Its protection level up to IP67, can normally work under the harsh outdoor environment. Besides, it support long distance(3.7km) communication when working with our WLAN device and cloud management and control system. Base on the current network and this wifi device,the new users can access internet quickly in the remote area.

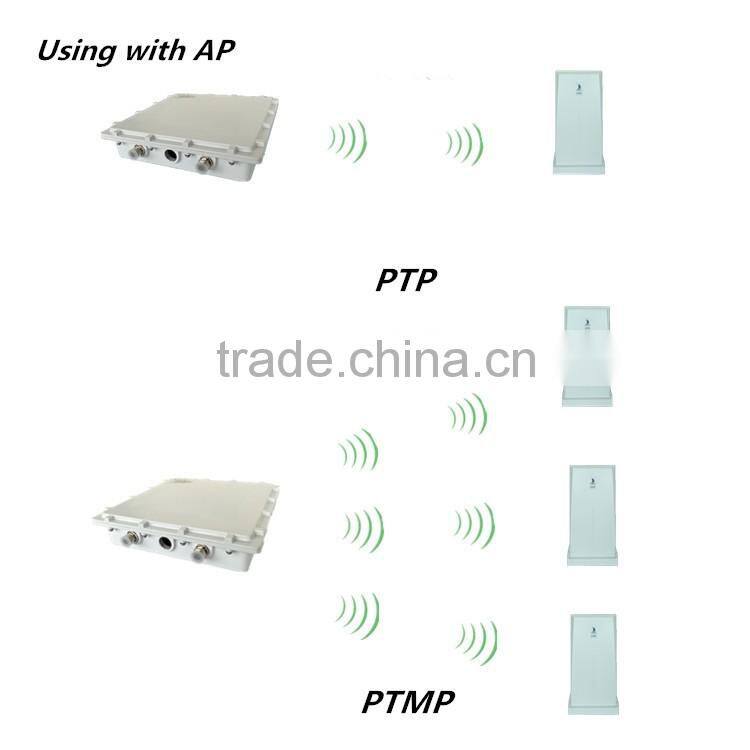

This device has multifunction, for example: Broadband wireless access in countryside, scenic area, station/dock/airport/park/commercial plaza, industry zone/dormitory/school; Network bridge and so on.
Features:
- high speed rate up to 300M
- 2.4GHz frequency band
- compliant with IEEE802.11b/g/n
- high gain, network stability
- long distance, more than 3km
- support POE and power distance 70M
- waterproof IP67 and anti-thunder
- 2.4ghz high power wireless outdoor cpe
Parameter:
| Item | Parameter |
| Frequency | 2.400~2.483GHz |
Transmitted Power |
3-24dBm(can chose) |
| Standard | IEEE 802.11 B/g/n |
| Receiving distance | more than 3km |
| Speed rate | 300Mbps |
| Antenna | 15dBi±1 built-in directional antenna |
| Port | 1xWAN(10M/100M)RJ45,1xReset |
| LED | 1xPower,3xSignal |
| Power |
9-19V (passive PoE) |
Operating Temperature |
-40℃~70℃ |
Operating Humidity |
0%~100%RH(None condensation) |
Power Dissipation |
<12W |
Weight |
0.9kg |
| Size | 262mm×142mm×79mm |
Protection Standards |
IP67; Anti-thunder class:GB/T 17626.5 |

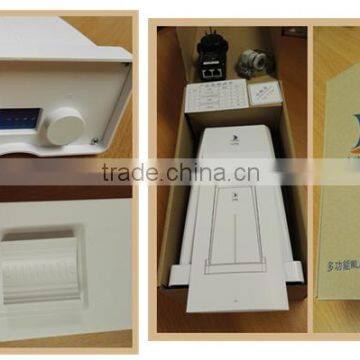

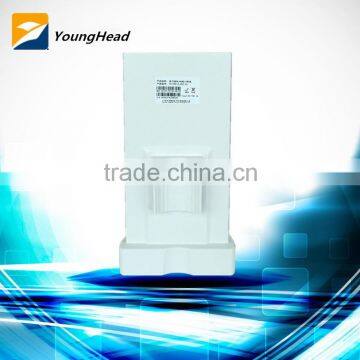

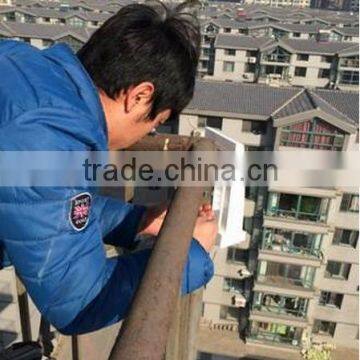

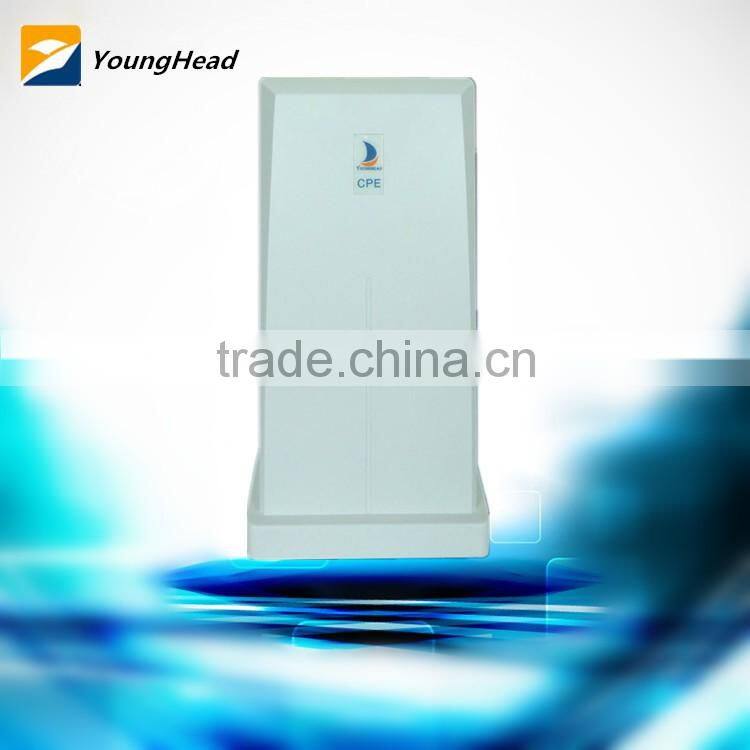

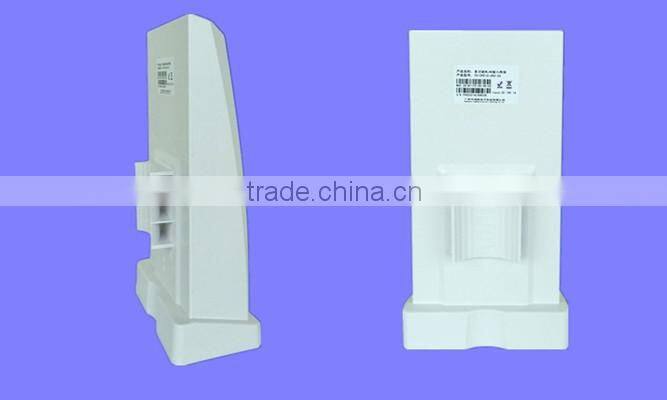

Product Pictures
Our service:
---Your inquiry will be replied in 24hours
---Well-trained and experienced staffs to answer all your inquires in fluent English
---OEM&ODM, for any of your customized products we can help you to design and put into product
---Monthly output over 10,000 pcs
---All our products with 24months guarantee
About sample:
---Sample is available.
---Sample lead time: 2-3 working days, 4-5 days with customized logo
---More details, please contact with us.
Payment methods:
---T/T, Western Union, Paypal.
---30% deposit, balanced before shipment.
Shipping & Trade terms:
---By sea, air, or UPS, FEDEX, EMS, DHL, etc.
---Payment:T/T, Western Union, Paypal.
---Delivered time: 2-3 business days for sample, 20-25 days for mass order.
Contact Us:
---Name: Judy Lv
---Skype: vivian.vivian70
---Mobile: +86 13430531099
---QQ: 1047878112
