Waterproof Outdoor Long Distance Point to Point/MP Wireless Wifi AP 5.8g
YH-WBS10-2R2-D3
Community WiFi device(iEEE802.11A/N 2T2R 300M) has been developed and built by Guangdong YoungHead Co.,Ltd., which is base on Qualcomm Atheros platform, and accored with industrial standards. It is carrier-class wifi device, according with IP67 protection standards.

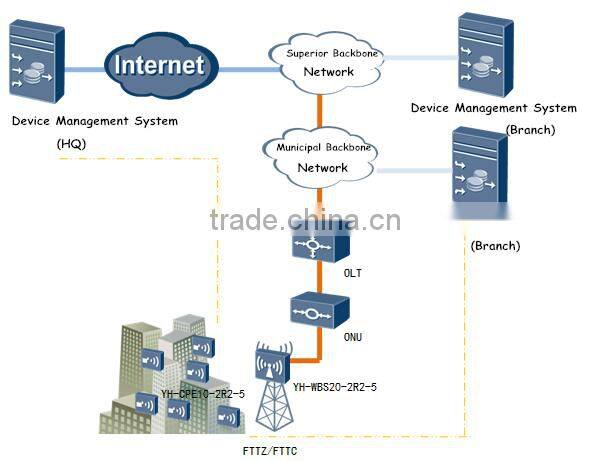

Community Wifi device is supporting FTTZ and FTTC without wiring; meantime, based on ISM 5.8GHz, solving current serious 2.4GHz interference.

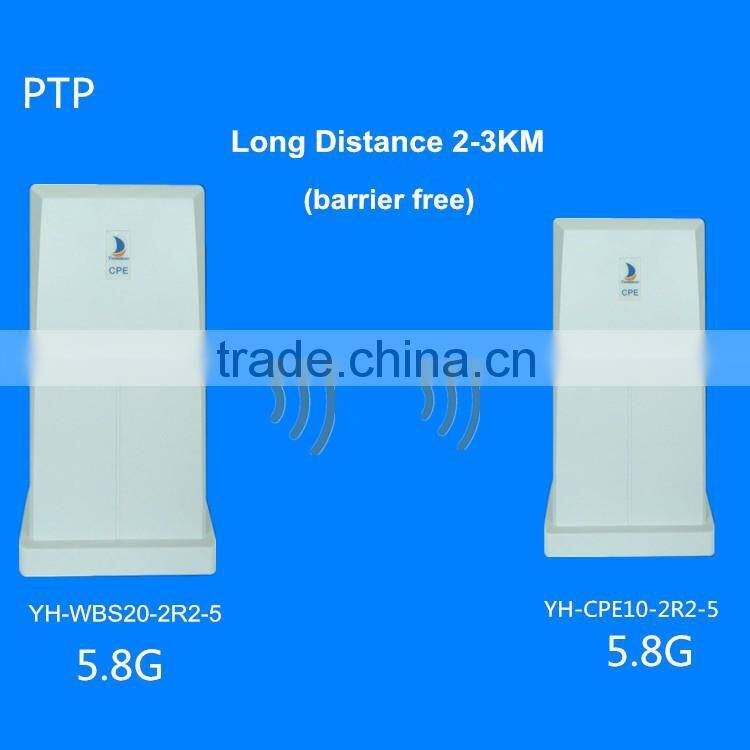

Community WiFi device including two types: YH-WBS20-2R2-5 and YH-CPE10-2R2-5. The former YH-WBS20-2R2-5 is an access point, installed usually on the communication towers or roofs. The latter YH-CPE10-2R2-5 is an user end device, which deployed usually on the roofs or balconies. Both are green&security&high-gain products, supporting more than 70Mbps over 2km(LOS).
Features:
- high speed rate up to 300Mbps
- 5.8GHz frequency band
- compliant with IEEE802.11 a/n, 2T2R
- high gain 16dBi, network stability
- long distance, more than 2km
- high concurrency(more than 15 users at same time)
- waterproof IP67 and anti-thunder
Parameter:
| Item | Parameter |
| Frequency | 5.15~5.825GHz |
Transmitted Power |
24dBm |
| Standard | IEEE 802.11 a/n |
| Distance | more than 2km |
| Speed rate | 300Mbps |
| Antenna | 16dBi±1 built-in directional antenna |
| Port | 1xWAN(10M/100M)RJ45,1xReset |
| LED | 1xPower,3xSignal |
| Power |
9-19V (passive PoE) |
Operating Temperature |
-40℃~70℃ |
Operating Humidity |
0%~100%RH(None condensation) |
Power Dissipation |
<12W |
Weight |
0.9kg |
| Size | 262mm×142mm×79mm |
Protection Standards |
IP67; Anti-thunder class:GB/T 17626.5 |

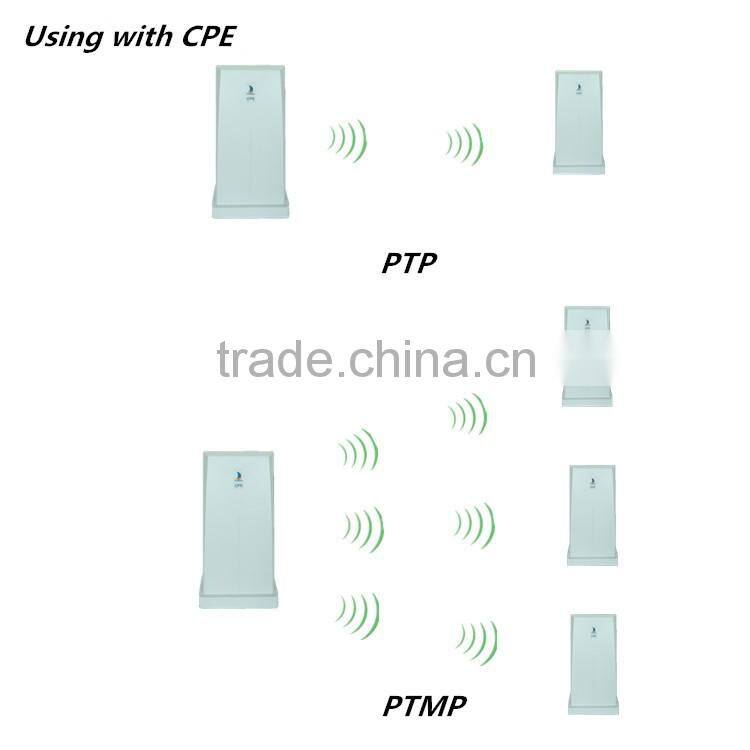

Product Pictures
