Home > Products > Ungrouped > submersible pump fuel/High Performance Electric Fuel Transfer Blue Jacket for fuel dispenser
submersible pump fuel/High Performance Electric Fuel Transfer Blue Jacket for fuel dispenser
- 200 Set / Sets per Month
- NINGBO/SHANGHAI
- T/T Credit Card
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | TDW | Model Number: | TDW-BT60 |
Product Description

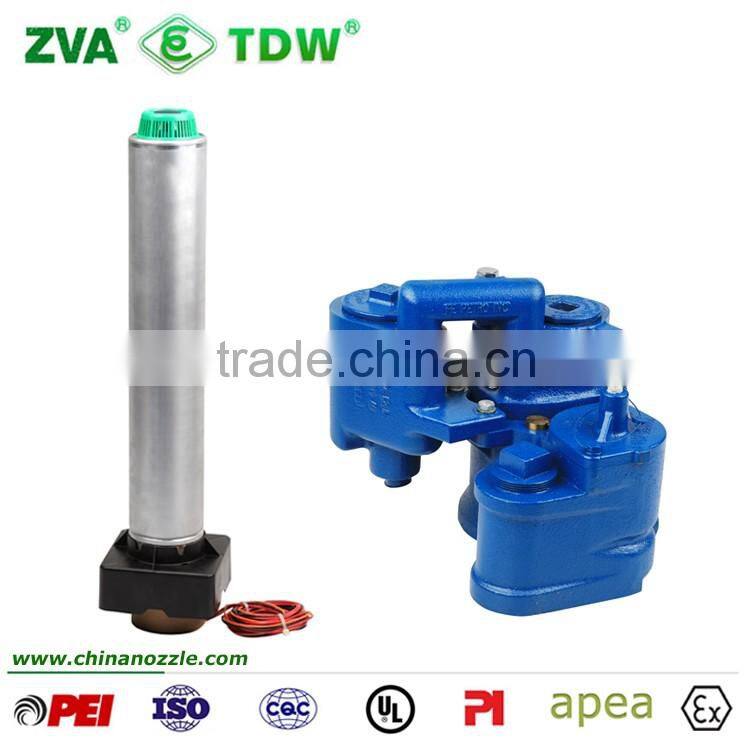

submersible pump fuel/High Performance Electric Fuel Transfer Blue Jacket for fuel dispenser
The TDW- ESP150 has a hermetically sealed motor close-coupled to the pump body. The submersible pumps used in ESP installations are multistage centrifugal pumps operating in a vertical position. It is applicable to fuel supply system for petrol station, manufacture plants and buildings.
Technical Specifications: | |
Pump Body | |
Rated Voltage | AC220V |
Rated Current | 9.5A |
Outlet Pressure | ≤0.25MPa |
Nominal Flow Rate | 250L/m |
Protection Lever | IP54 |
Motor | |
Protection Lever | IPX8 |
Power | 1.3KW |
Frequency | 50HZ |
Rated Speed | 2850r/min |
Efficiency | ≥0.69 |
Power Factor | ≥0.92 |
Noise | ≤68dB |
Insulation Resistance | Normal State20MΩ Thermal State20MΩ |
Dielectric strength | 1500V ,1 minute, no breakdown |
1- Could you develop our own design? Yes
2- The fuel nozzle including swivel? Yes
3- Can we visit your factory? Yes
4- Could you send the sample for testing? Yes
5- Could you offer door to door service? Yes
