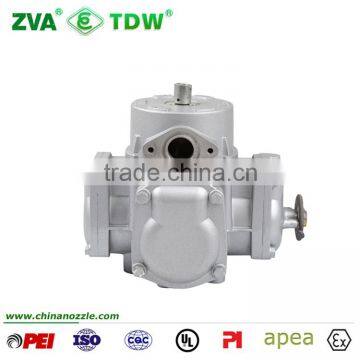

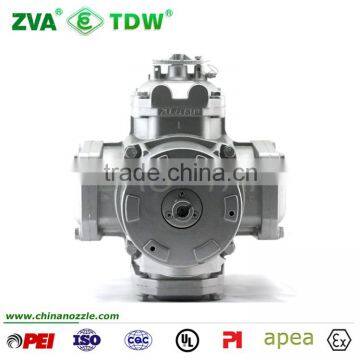

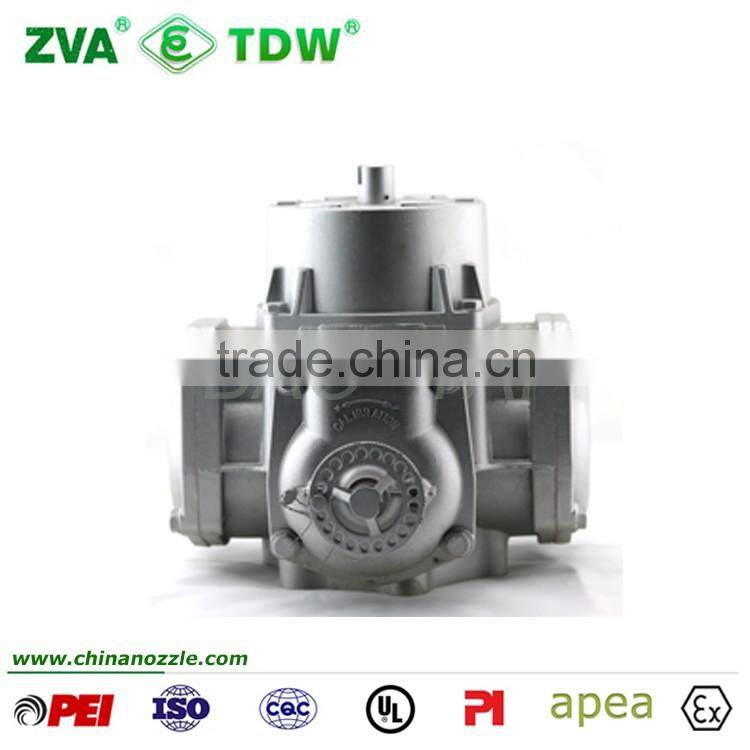

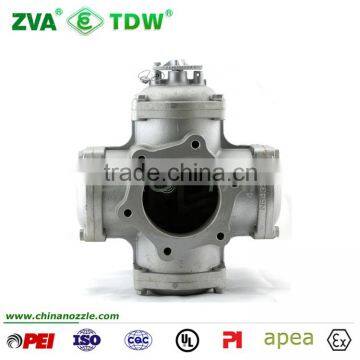

The function of flow meter is to record the volume of oil liquid flowed out. For a flow meter, the measurement accuracy is regarded as its most important feature. The metal piston & leather cup piston flow meter are the two most common types of flow meter. Whenever a certain amount of liquid passed, it will cause a angular deviation to the flow meter transmission shaft, and then the pulse generating gadget will give out a certain pulse signal to indicate the volume.
Features and Benefits:
Ø The plunger seal that is positioned with the cup toward the fluid, this provides longer life and eliminates "blow-by" for superior overall performance and accuracy
Ø Using bushing to replace bearings provide longer life time and high precision
Ø The meter uses a direct drive to the pulser which is equipped with an adjustable timeout feature for fuel theft prevention
Ø 100% Factory tested to ensure absolute "leak proof" quality.
|
Technical Specifications | |
|
Working Pressure |
0.12-0.35Mpa |
|
Temperature |
-25° C to 55° C |
|
Flow Rate |
5-80L/m |
|
Measurement Accuracy |
±0.2% or better |
|
Repeat Variation |
≤0.1% |
|
Discharge rate per revolution |
0.5L |
|
Rotary Direction of Axial |
Clockwise |
|
Working Life |
≥10000000L |
|
Dimension |
224mmx198mmx197mm |
|
Net Weight |
About 5KG |
You may like our other flow meter, fuel transfer pump for fuel dispenser.(Click!)
1- Could you develop our own design? Yes
2- The fuel nozzle including swivel? Yes
3- Can we visit your factory? Yes
4- Could you send the sample for testing? Yes
5- Could you offer door to door service? Yes
