Product Details
Place of Origin: | Zhejiang, China | Brand Name: | TDW | Model Number: | TDW-BT120 |
Theory: | Centrifugal Pump | Structure: | Diaphragm Pump | Usage: | Oil |
Power: | Electric | Standard or Nonstandard: | Standard | Fuel: | Other, Diesel/gasoline |
Pressure: | Low Pressure | Application: | Other |
Product Description
injection pump petrol station diesel fuel pump for fuel dispenser

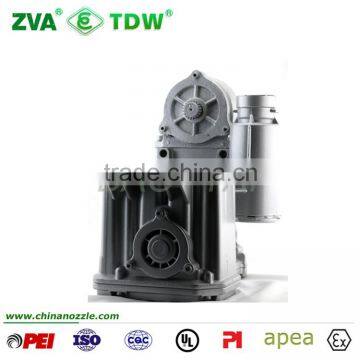

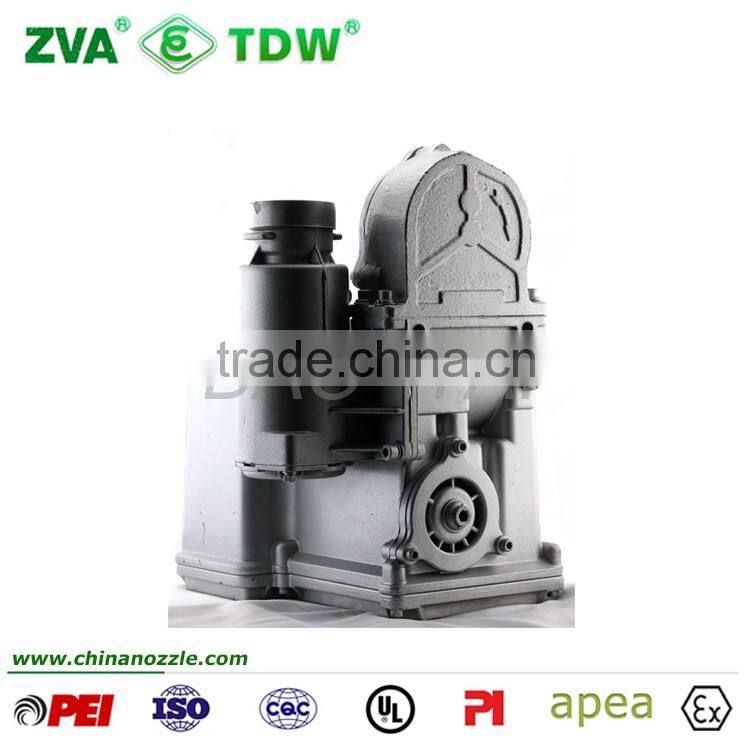

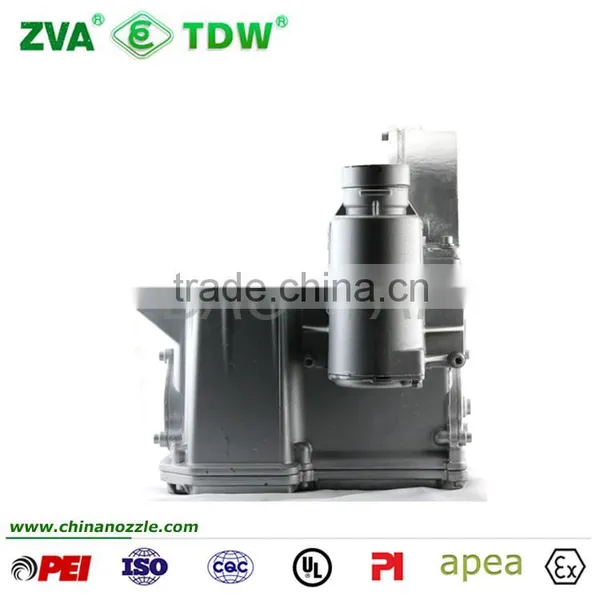

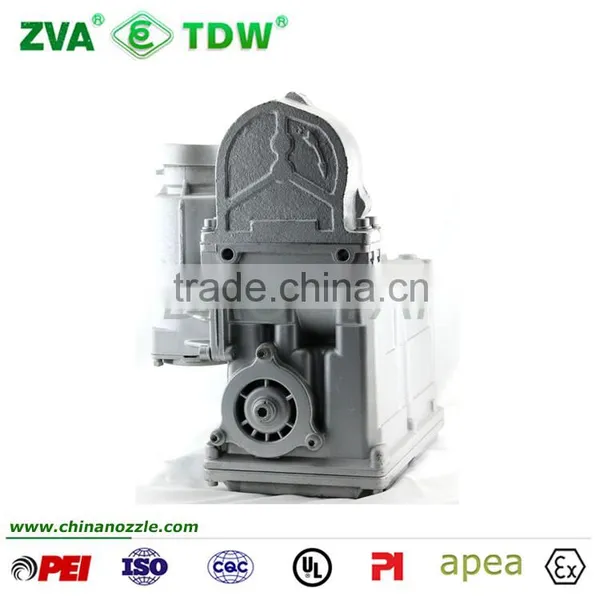

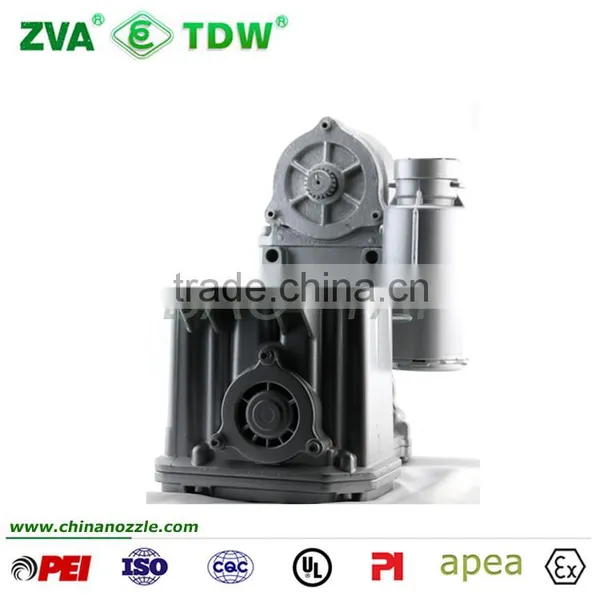

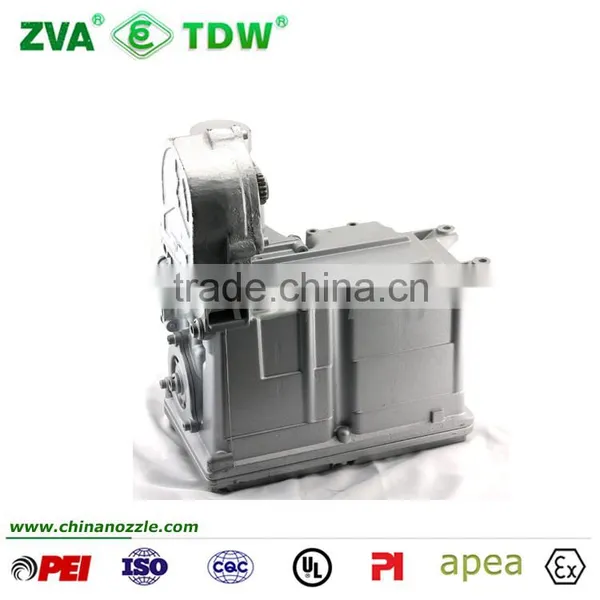

The TDW-BT120 pump is composed of an aluminum body to which the filter housing, the pump and the electronic motor are connected.
Ø Non-return valve integrated in the filter.
Ø Fuel filter consisting of a filtering cartridge in synthetic resin with stainless steel wire gauze.
Ø Self-priming blade rotary volumetric pump.
Ø Centrifugal air separator composed of two concentric pipes, the internal one allows gases separated from the liquid part to be collected.
Ø By pass valve equipped with a device for limiting and regulating pump delivery pressure.
Ø Air separator drainage reflux chamber equipped with a float valve allowing drainage of the liquid part on reaching a pre-established level, and with a vent for evacuating the air separated from the liquid.
Features and Benefits:
Ø Reduced number of components
Ø Easy maintenance
Ø Reduced dimensions and weight
Ø No belts or pulleys in motor-pump connection
Ø Filter flanged to the main body
Ø Wide filtering surface
Ø Compliance with OIML Standards
Technical Specifications | |
Working Pressure | ≤0.3 Mpa |
Flow rate | 90-120L/m |
Vacuum | ≥0.06Mpa |
Motor Power | 0.75KW |
Motor Speed | 960rpm |
Rated Current | 2.3A |
Noise | ≤72dB |
Suction Pipe Section | 1-1/2" |
Dimension | 360mmx320mmx300mm |
Net Weight | About 15KG |
You may like our other flow meter, fuel transfer pump for fuel dispenser.(Click!)
1- Could you develop our own design? Yes
2- The fuel nozzle including swivel? Yes
3- Can we visit your factory? Yes
4- Could you send the sample for testing? Yes
5- Could you offer door to door service? Yes
