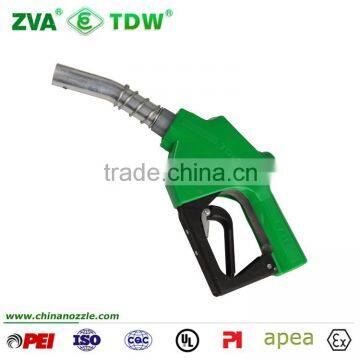

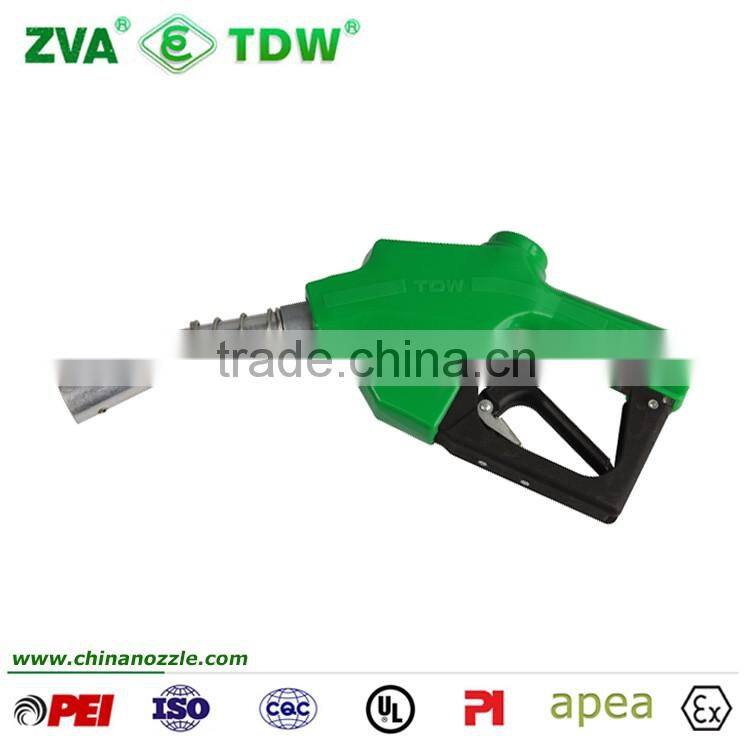

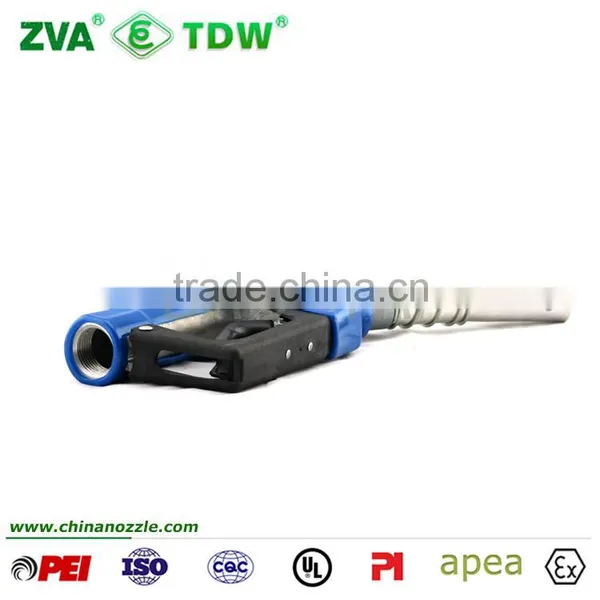

UL certificated automatic auto seal oil diesel filling nozzle from nozzles manufactures
Ø Even, Smooth spray pattern - Minimizes diesel foaming and false shut-off
Ø Extra long anchor spring - Keeps the nozzle secure in most large fill opening.
Ø Help reduces spills - A unique two-stage lever design assures a positive shut-off, even if held wide open.
Ø Three Position hold-open device - One finger control of hold-open mechanism means easy setting of flow rate.
Ø Easily replaced spouts -Simply remove three screws, Replacement kits are readily available from TDW.
Ø Dash-pot Action - For smoother closing action and reduced line shock.
Ø Dual Poppet - Easy to open nozzle against high pressure.
Ø Available with flow lock - Designed to shut off automatically when the spout is tipped ip, limiting spillage.
Ø Suitable for diesel, kerosene, gasoline and gasoline with ethanol blends.
Ø 100% Factory Tested.
Ø TDW-7H UL LISTED.
| Material | |
| Body | Aluminum |
| Lever and lever guard | Duratuff |
| Main stem | Extra hard stainless steel |
| Seals | Buna-N, Viton |
| Technical Specifical | |
| Working Pressure | 0.2 Mpa |
| Auto Shut-off sensibility | 0.1 second |
| Inlet Size | 1" |
| Thread | NPT/BSPT |
| Spout Outlet Diameter | 30 mm, 28.7 mm |
| Flow Rate | 20 - 120 L/m |
| Net Weight | 1.55 KG |
| Order Specifications | ||
| Item No. | Inlet Thread | Spout O.D. |
| TDW-7H01 | 1" NPT | 28.7 mm |
| TDW-7H02 | 1" NPT | 30 mm |
| TDW-7H03 | 1" BSPT | 28.7 mm |
| TDW-7H04 | 1" BSPT | 30 mm |
| TDW-7HB01 | 1" NPT | 28.7 mm |
| TDW-7HB02 | 1" NPT | 30 mm |
| TDW-7HB03 | 1" BSPT | 28.7 mm |
| TDW-7HB04 | 1" BSPT | 30 mm |
| Color Options | |
| Red, Green, Blue, Yellow, Black |
| Package Data | |
| Size | Gross Weight |
| 1pcs = 43*17*6.5 cm (box) | 1.7 kg |
| 20pcs = 0.11 club (carton) | 34.3 kg |
YOU MAY LIKE OUR OTHER AUTOMATIC NOZZLES.( CLICK !!!)
1- Could you develop our own design? Yes
2- The fuel nozzle including swivel? Yes
3- Can we visit your factory? Yes
4- Could you send the sample for testing? Yes
5- Could you offer door to door service? Yes
