gas emergency shut off solenoid valve emergency shut off valve for fuel filling station
- 1000 Set / Sets per Month
- NINGBO/SHANGHAI
- T/T
Product Details
Standard or Nonstandard: | Standard | Structure: | Shutoff | Pressure: | Low Pressure |
Power: | Hydraulic | Material: | Casting | Temperature of Media: | Normal Temperature |
Media: | Other, Oil, Oil | Port Size: | 1-1/2'' / 2'', 1-1/2'' / 2'' | Place of Origin: | Zhejiang, China |
Model Number: | TDW-QDF | Brand Name: | TDW | Application: | General |
Product Description

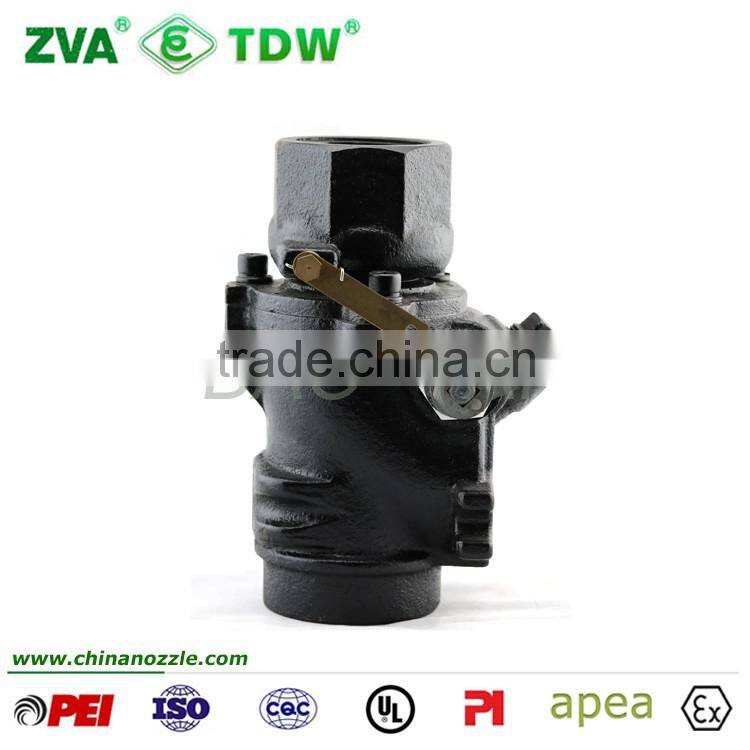

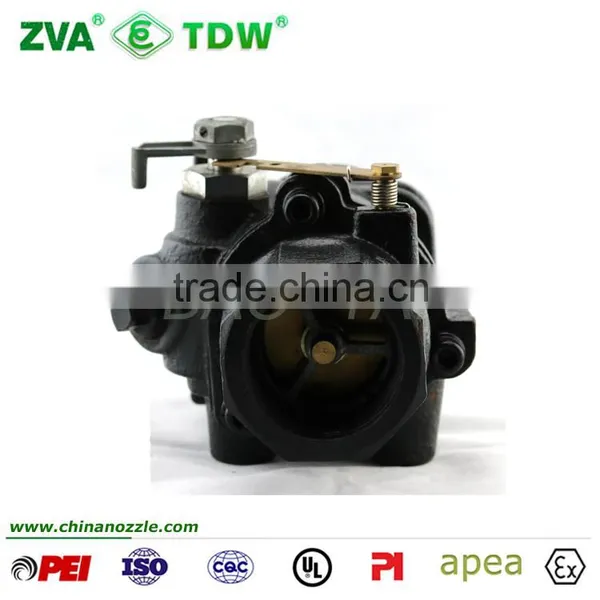

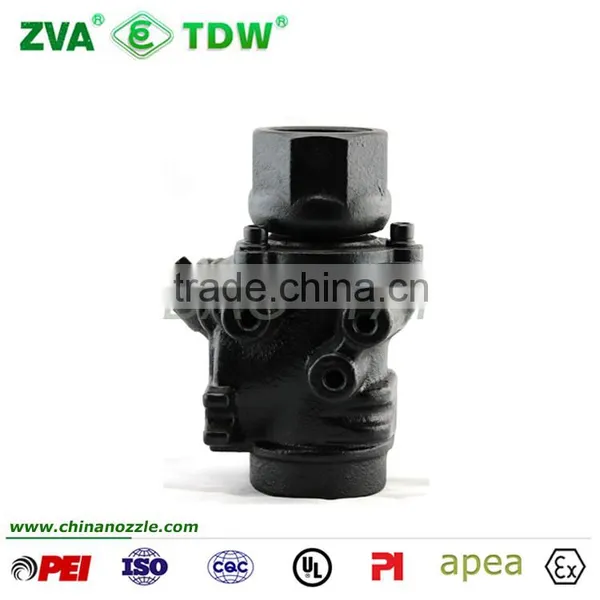

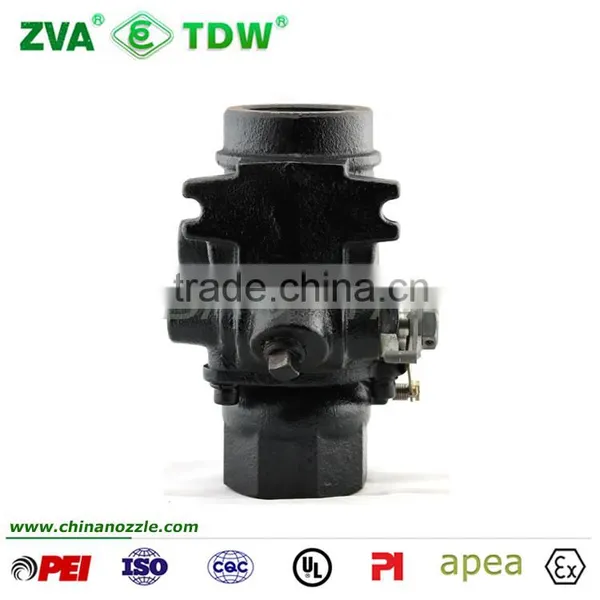

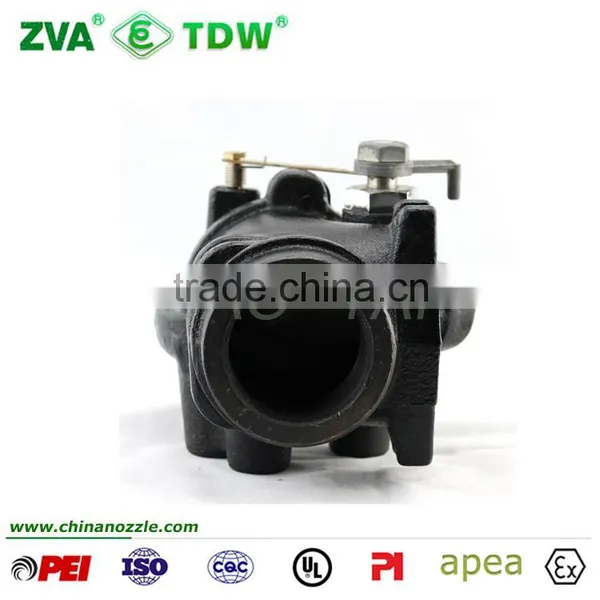

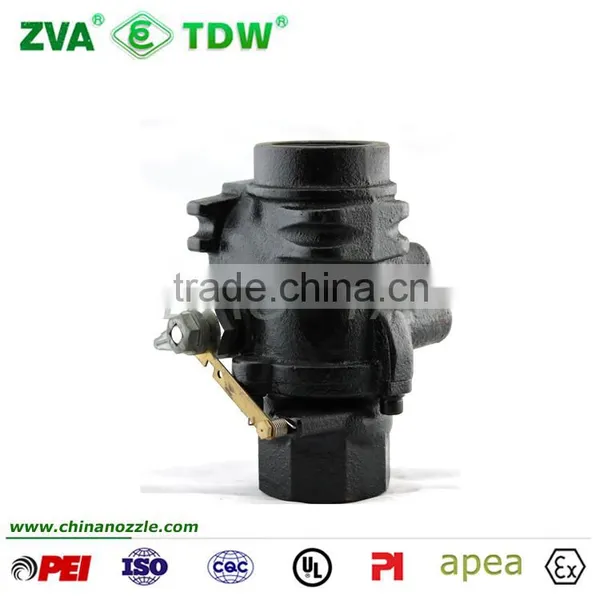

gas emergency shut off solenoid valve emergency shut off valve for fuel filling station
Emergency Shut-off Valves are installed on fuel supply lines beneath dispensers at grade-level to minimize hazards associated with collision or fire at the dispenser. If the dispenser is pulled over or dislodged by collision, the top of the valve breaks off at the integral shear groove, activating poppets and shutting off the flow of fuel. Single-poppet models shut off supply flow.Double-poppet models shut off supply as well as prevent release of fuel from the dispenser’s internal piping.
Features:
Ø Can be manually shut-off-Valve closing speed: 0.5s
Ø Unique black Durable coating- Nickel plated.
Ø U-Bolt retainer or stabilizer mount.
Ø Fire Protection- a fusible link trips the valve closed at 75° C to shut off fuel.
Ø Built-in air test port.
Ø For gasoline, diesel and kerosene.
Technical Specifications | |
Outlet Thread | 1-1/2", NPT/BSP |
Poppet Configuration | Single/Double |
Body | Cast Iron |
Seals | Buna-N |
Ordering Specifications: | ||
Item No. | Size | Poppet Configuration |
TDW-ESV01 | Female 1-1/2" NPT | Single |
TDW-ESV02 | Female 1-1/2" NPT | Double |
TDW-ESV03 | Female 1-1/2" BSPT | Single |
TDW-ESV04 | Female 1-1/2" BSPT | Double |
1- Could you develop our own design? Yes
2- The fuel nozzle including swivel? Yes
3- Can we visit your factory? Yes
4- Could you send the sample for testing? Yes
5- Could you offer door to door service? Yes
