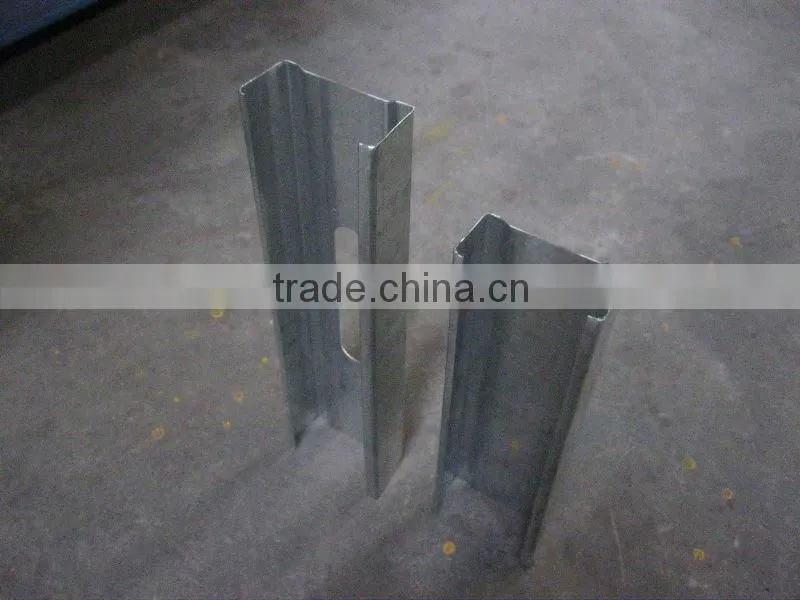

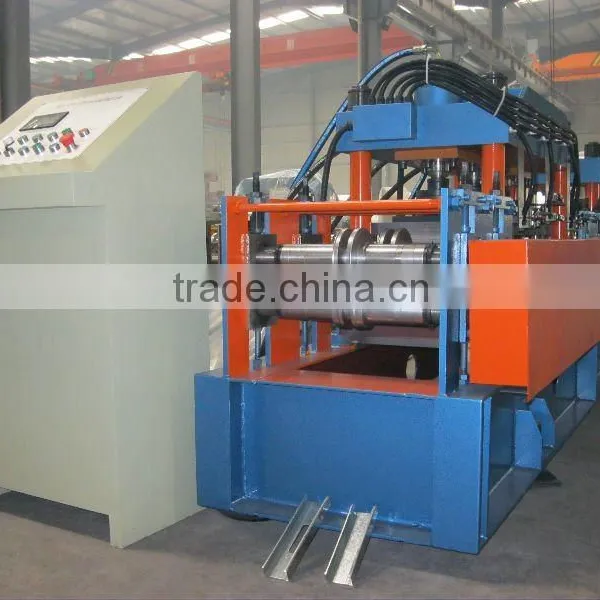

Metal Stud Forming Machine
Technical Parameters
1. Suitable material: Galvanized Steel sheet
2. Thickness of material: 0.4-0.7mm
3. Yield strength: 235-345Mpa
4. Forming Speed: about 10-15m/min.
5. Power Requirement : Main motor power: 5.5 KW; Hydraulic station power: 2.2 KW (Depend on final design)

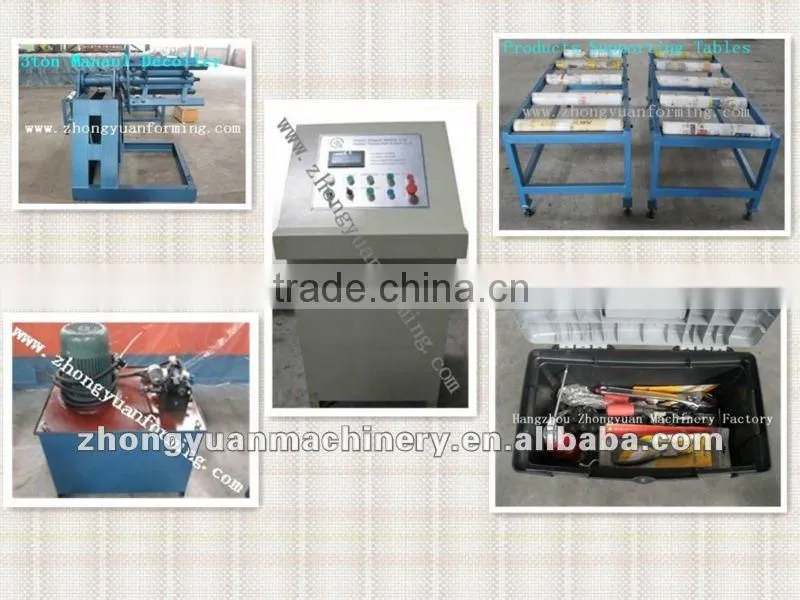

6. Suitble Decoiler: 3000kgs(depends on customers)
7. Control system: Mitsubishi PLC and converter
8. Type of cutting: length-set cutting and post forming style
9. Electric condition: 380V/3Phase/50HZ or as per buyer’s requirement
Material of Main Equipment
1). Roller Material: High grade No.45 forged steel, with digital-controlled procession, Surface of rollers is plated with hard chrome with thickness of 0.05mm.
2). Active Shaft Material: High grade No.45 carbon wrought steel,which can improve the integrated mechanic feature of the shaft
3). Electric Elements: PLC control panel, transducer imported from Mitsubishi of Japan. Other elements from famous suppliers in China
4). Cutter blade: Cr12 mould steel with quenched treatment
*Appreciated for your enquiry to us. We are sure you good machine quality, low prices and good service after sales.
