Rolling Forming Light Gauge Steel Framing Machine Quality Choice

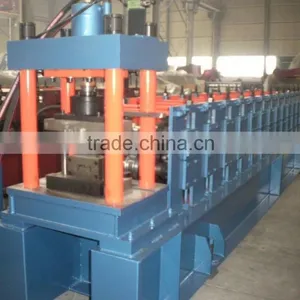

Rolling Forming Light Gauge Steel Framing Machine Quality Choice thumbnail-1
Rolling Forming Light Gauge Steel Framing Machine Quality Choice thumbnail-2

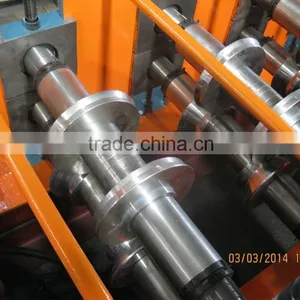

Rolling Forming Light Gauge Steel Framing Machine Quality Choice thumbnail-3
Rolling Forming Light Gauge Steel Framing Machine Quality Choice photo-1
Rolling Forming Light Gauge Steel Framing Machine Quality Choice photo-2
Rolling Forming Light Gauge Steel Framing Machine Quality Choice photo-3
US$ 35,000 - 65,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
zhongyuan
Model Number:
ZYYX series
Contact Supplier Request Quote Chat Now
Hangzhou Zhongyuan Machinery Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name zhongyuan
Model Number ZYYX series
After-sales Service Provided Engineers available to service machinery overseas

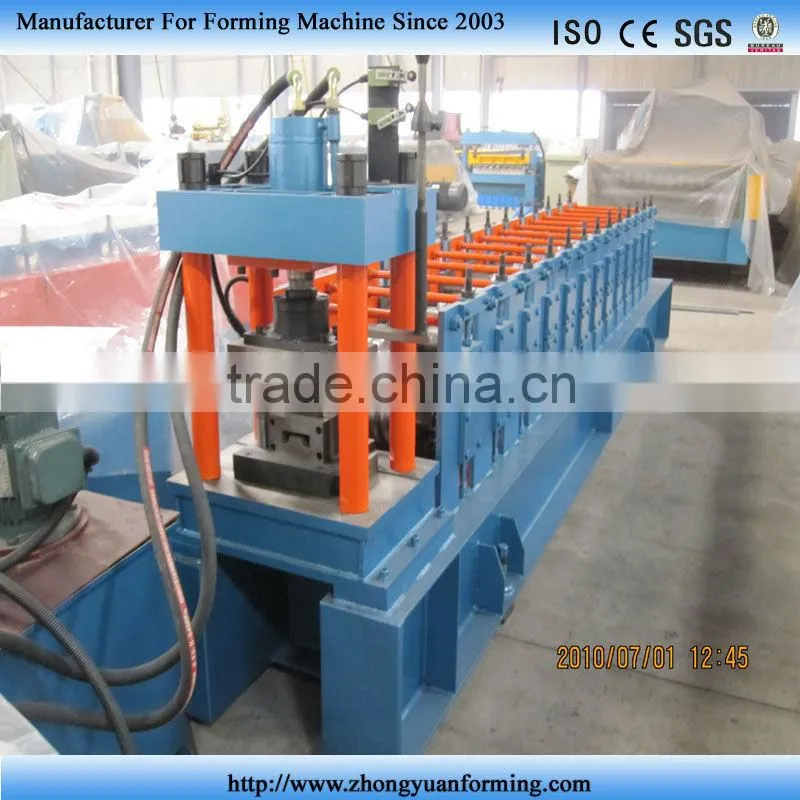

Rolling Forming Light Gauge Steel Framing Machine

product description

Machine was designed by 15 years experienced R&D members.

Lifetime services

Certificate: ISO 9001, CE,





 Rolling Forming Light Gauge Steel Framing Machine





Machine Parameters

1. Technical Parameters:

Item

Specification



Material

Type

Pre-painted steel coil & galvanized coils

Thickness

0.3-0.7mm

Yield strength

235-345Mpa

Forming speed

About 15m/min

Output speed

8m/min

Speed adjusting mode

AC Frequency

Roller drive

Decelerating motor + Chain drive

Cutting mode

Hydraulic cutting

Length measurement

Encoder

Control mode

Mitsubishi PLC

Operating mode

Button + Mitsubishi Touch screen

Main motor

4KW

Hydraulic station motor

 2.2 KW

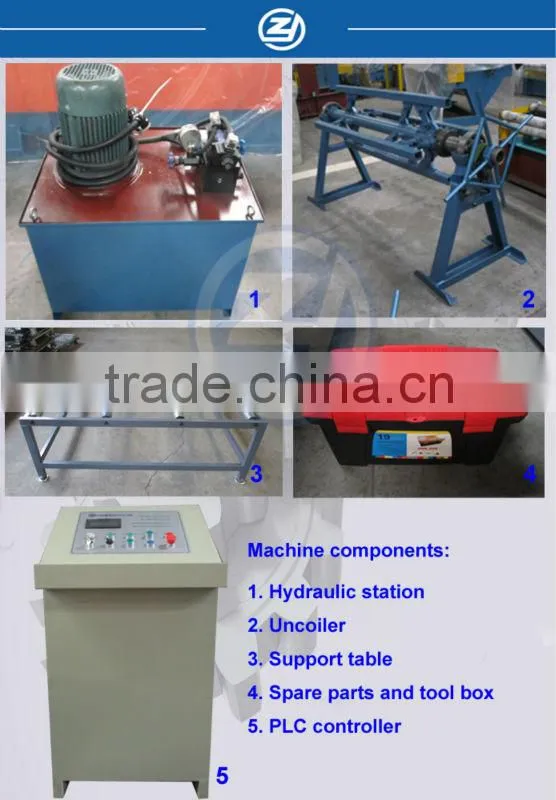

2. Components

Rolling Forming Light Gauge Steel Framing Machine





3. Process flow:

Decoiler -- Feeding & Guiding -- Roll forming---Hydraulic Cutting – product to run out table

Rolling Forming Light Gauge Steel Framing Machine

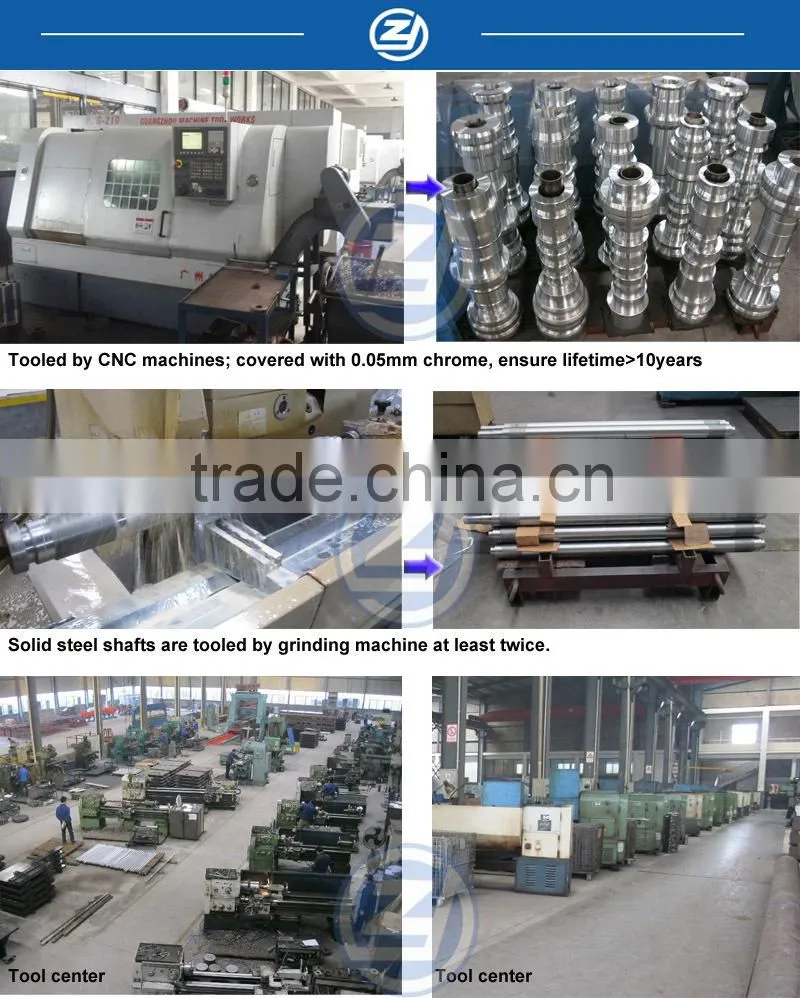

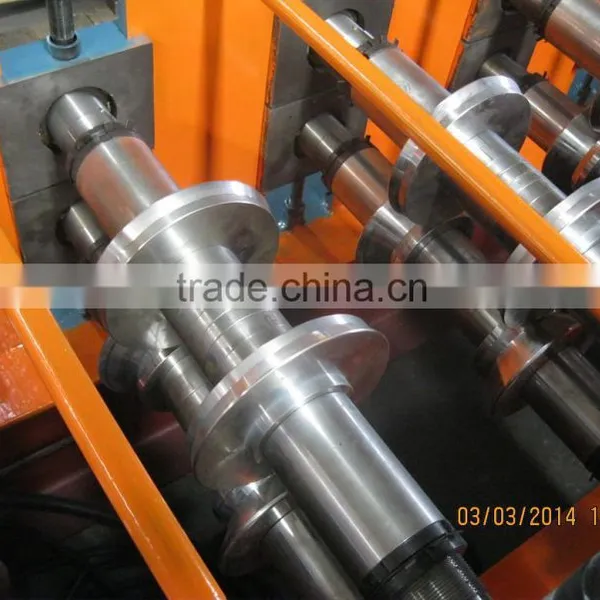

Rollers and shafts

Rollers and shafts are the critical parts of forming machine. Their process affect machines lifetime and panel profile precision.



72mm solid steel shafts; hard chrome rollers

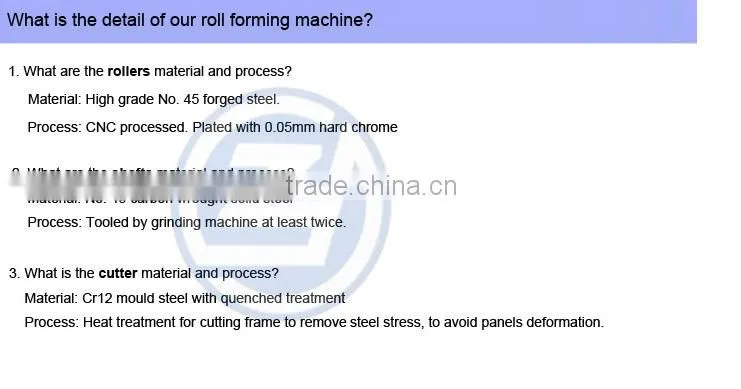

What is the main process of our machine rolllers and shafts?

Rolling Forming Light Gauge Steel Framing Machine

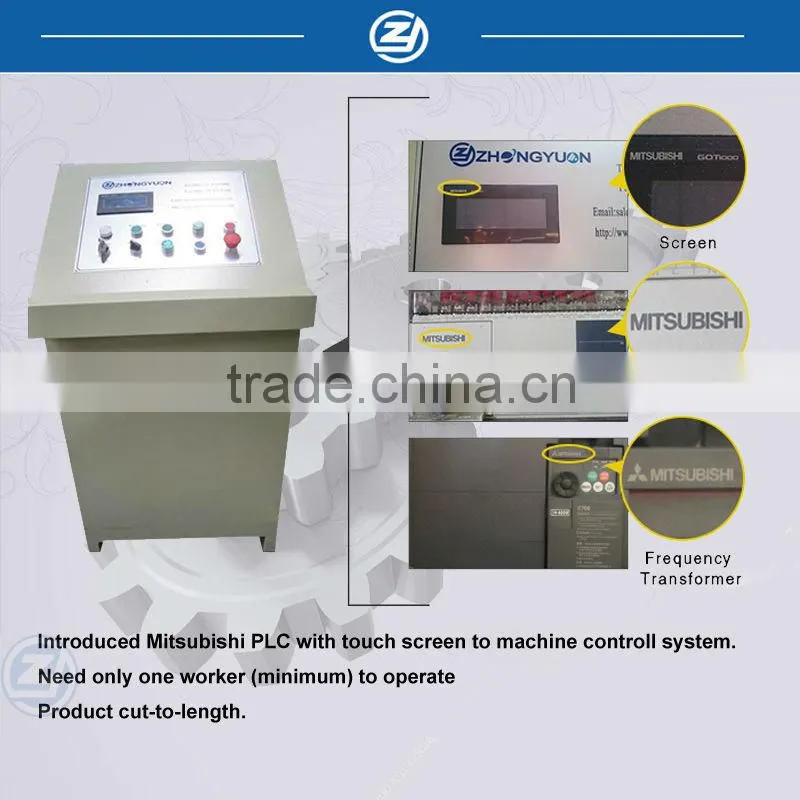

Controller

PLC Controller

The PLC controller is the "CPU" of forming machine. Machine excellence performance need the supports of excellence PLC.



We choose Mitsubishi PLC from Japan.

With touch screen mode, let your workers enjoy the easy operation; with auto working mode, let your workers free their hands!

Rolling Forming Light Gauge Steel Framing Machine

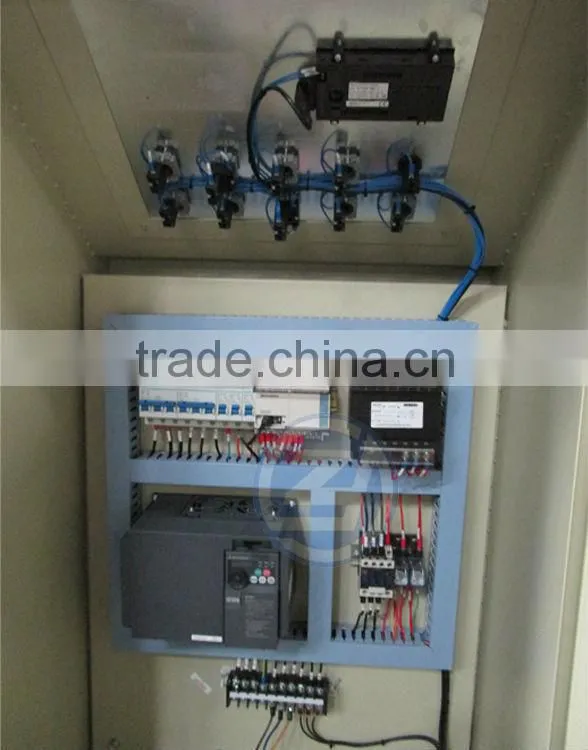

Inside of PLC Controller for reference

Rolling Forming Light Gauge Steel Framing Machine

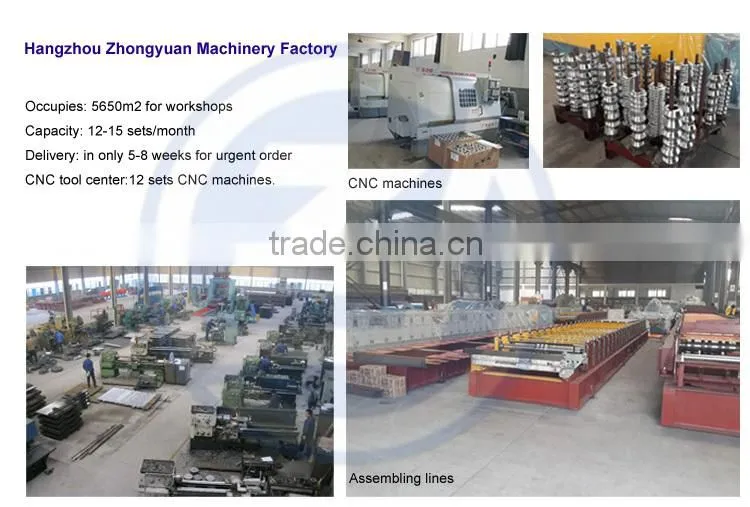

Company Information

Rolling Forming Light Gauge Steel Framing MachineRolling Forming Light Gauge Steel Framing Machine



Certifications

Rolling Forming Light Gauge Steel Framing Machine



Customize machine

Rolling Forming Light Gauge Steel Framing Machine



How is our cooperation process?

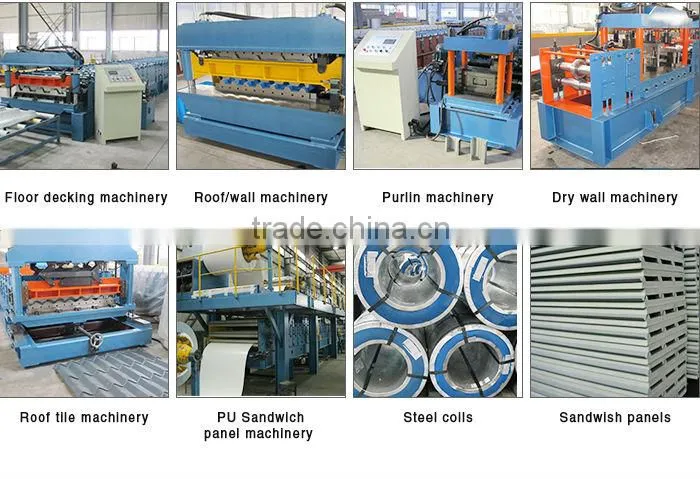

Relative products

Rolling Forming Light Gauge Steel Framing Machine



Our Services

Lifetime services;

Technician can be sent to your factory to install the machine and train your workers.
