Metal Drywall Stud Roll Forming Machine
Why choose this machine?
1.Certificate: ISO 9001, CE,
2. Lifetime services
3. Roller cover with 0.05mm chrome; 72mm diameter solid steel shaft. Lifetime>10years.
4. Introduced Mitsubishi PLC with touch screen to machine controll system.
5. One worker operation (minimum)
6. Heat treatment:Cutting blade. Quenched treatment: Cr12 mould steel cutter
7. Product cut-to-length.
8.Technician overseas installing and training available
1. Parameters of Metal Drywall Stud Roll Forming Machine
| Item | Specification | |
| Type | Galvanized coils | |
| Material | Thickness (mm) | 0.5-1.5 |
| Yield strength (mpa) | 235 | |
| Roller material | 45#Chrome steel | |
| Forming speed(m/min) | About 15 | |
| Speed adjusting mode | AC Frequency | |
| Roller drive | Decelerating motor + Chain drive | |
| Cutting mode | Hydraulic cutting | |
| Cutter material | Cr12 mold steel | |
| Length measurement | Encoder Nemicon (Japan) | |
| Control mode | Mitsubishi PLC | |
| Operating mode | Button + Mitsubishi Touch screen | |
| Main motor power (kw) | 4 kw (Depend on final design) | |
| Hydraulic station power | 2.2 kw (Depend on final design) | |
| Total power (kw) | 6.2kw | |
| Uncoiler's loading capacity | Max. Capacity: 3000kgs | |
| Machine`s weight | about 4500kgs | |
2. Components of Metal Drywall Stud Roll Forming Machine
| Decoiler | 1set | |
| Feeding & guiding device | 1set | |
| Main roll forming machine | 1set | |
| Hydraulic cutting system | 1set | |
| Controlling system | 1set | |
| Run out table | 1set (two pieces, 1.5m/piece) | |

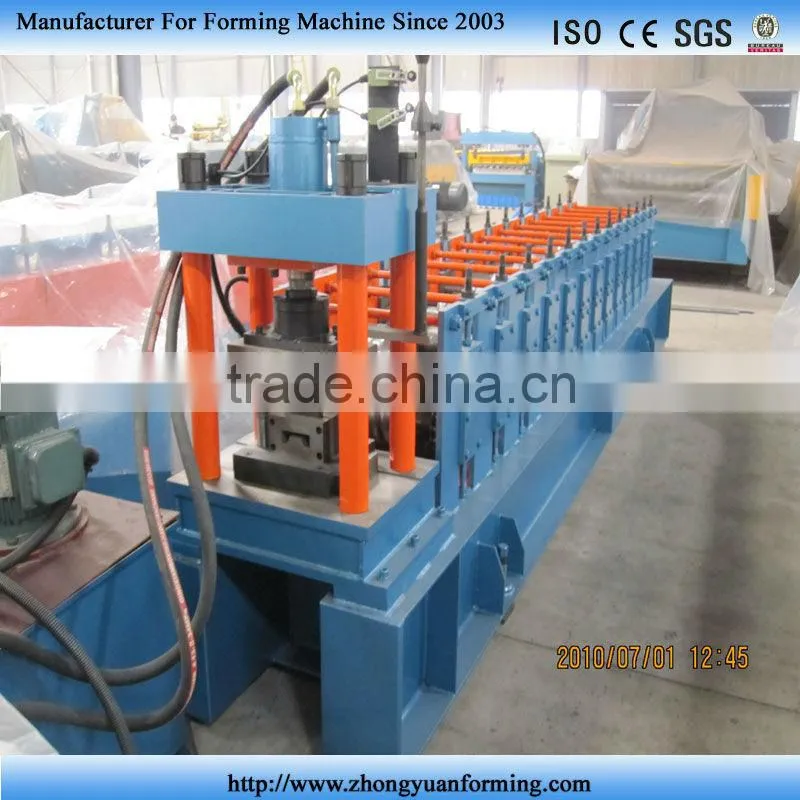

View of Metal Drywall Stud Roll Forming Machine
We are professional in making roll forming machines since 2003.
1. Company occupies 6650, in which 5650 for workshops.
2. Capacity: 12-15 sets/month.
3. We are "All-in-house source" --from raw material to the final high-precision forming machine.
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our factory.
6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.
7) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are ALIBAB’s Gold supplier with BV assessment (Audit report can be provided).
We joined Alibaba trade assurance. With Trade Assurance, you’re covered for On-time shipment and Pre-shipment product quality (Optional).
8) What should I provide if I`d love to customized my machine?
A: To customize machine, we`d love to know:
1. Profile drawing
2. Raw material: the width(1250mm?), thickness(0.3-0.7mm?), and yield strength of steel coil.
3. Voltage: designed per your requirement
4. Configuration requirement: Hydraulic or manual decoiler/ stacker
Have no idea about them?
We will be glad to recommend machines ----Just let us know your country!
9) How is your cooperate process?
A: Below is the cooperation flow chart
Lifetime services;
Technician can be sent to your factory to install the machine and train your workers
Get Free:
"Send" below to get profile drawing & design technical support by our 15 year experience technicians FOR FREE!
| |||
|
