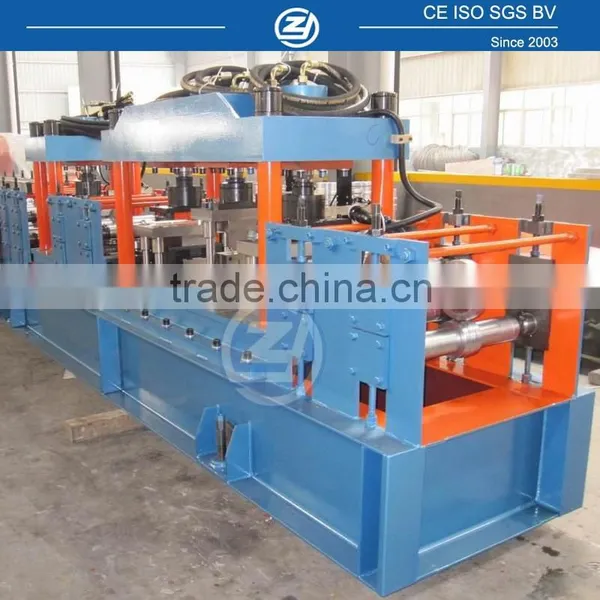

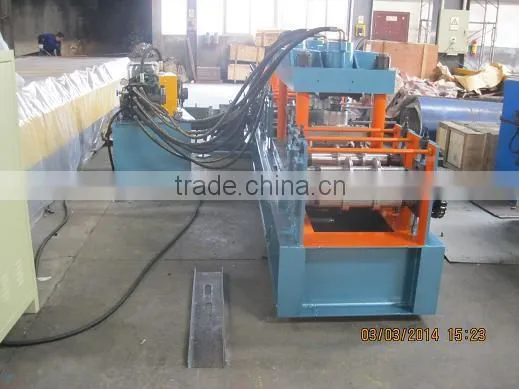

Metal Stud Roll Forming Machine with ISO, Roofing Products
Metal Stud Roll Forming Machine with ISO, Roofing Products Overview
Machine was designed by 15 years experienced R&D members with lifetime services
1. Metal Stud Roll Forming Machine with ISO, Roofing Products Parameters
| Item | Specification | |
| Type | Galvanized coils | |
| Material | Thickness (mm) | 0.5-1.5 |
| Yield strength (mpa) | 235 | |
| Roller material | 45#Chrome steel | |
| Forming speed(m/min) | About 15 | |
| Speed adjusting mode | AC Frequency | |
| Roller drive | Decelerating motor + Chain drive | |
| Cutting mode | Hydraulic cutting | |
| Cutter material | Cr12 mold steel | |
| Length measurement | Encoder Nemicon (Japan) | |
| Control mode | Mitsubishi PLC | |
| Operating mode | Button + Mitsubishi Touch screen | |
| Main motor power (kw) | 7.5 kw (Depend on final design) | |
| Hydraulic station power | 2.2 kw (Depend on final design) | |
| Total power (kw) | 9.7 kw | |
| Uncoiler's loading capacity | Max. Capacity: 3000kgs | |
| Machine`s size | About 6*1*1.4m (Depend on final design) | |

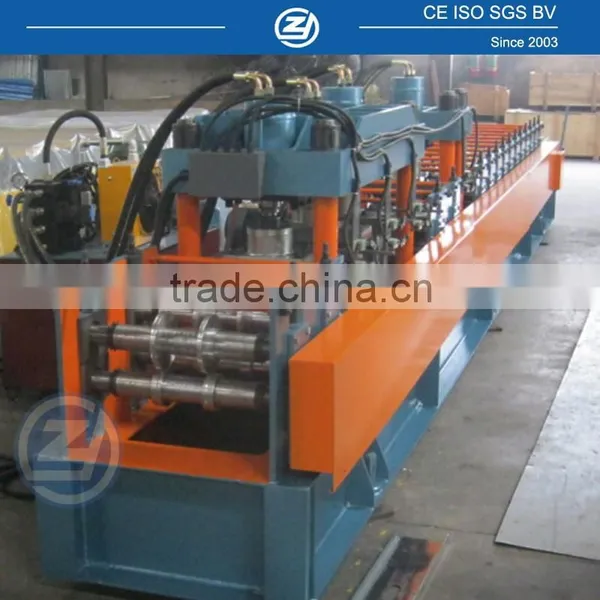

2. Metal Stud Roll Forming Machine with ISO, Roofing Products Machine components
3. Metal Stud Roll Forming Machine Process Flow:
Decoiler -- Feeding & Guiding -- Roll Forming-- Punching(for option)--Hydraulic Cutting – Product to Run Out Table

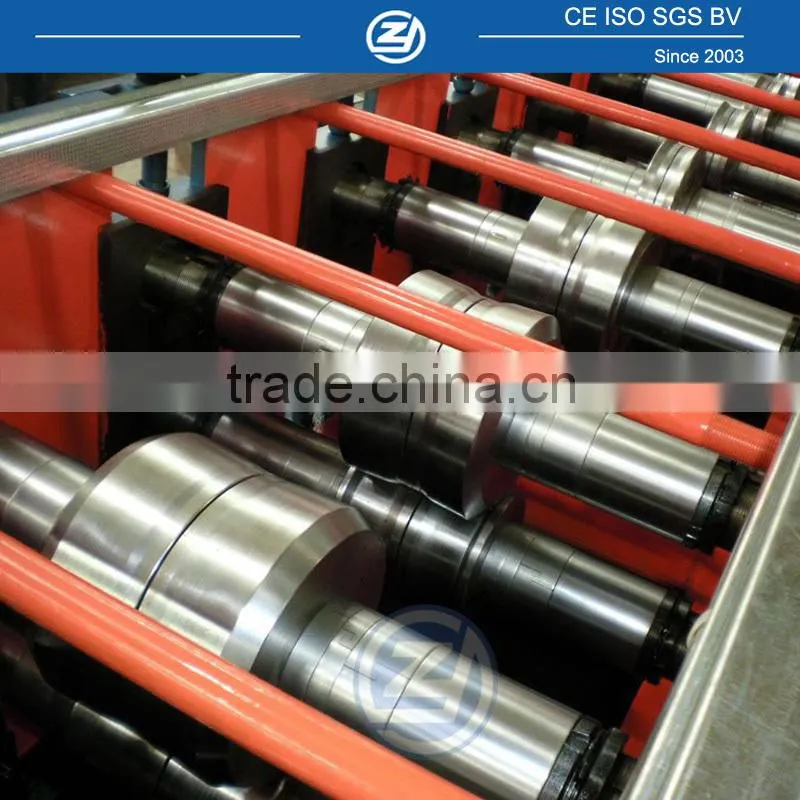

4. Metal Stud Roll Forming Machine Rollers and Shafts
Metal Stud Roll Forming Machine PLC Controller
Inside of PLC Controller for reference
About us
We are professional in making roll forming machines since 2003.
Company occupies 6650, in which 5650 for workshops.
1. Capacity: 12-15 sets/month
2. Delivery: in only 5-8 weeks for urgent order
3. Have our own tool center. 12 sets CNC machines to process machine rollers.
4. Zhongyuan is a "All-in-house source"
--from raw material to the final high-precision forming machine. We have our precise tooling center.
5. Over 15 years engineers to design and make your machines.
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our factory.
6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.
7) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are ALIBAB’s Gold supplier with BV assessment (Audit report can be provided).
8) What should I provide if I`d love to customized my machine?
A: To customize machine, we`d love to know:
1. Profile drawing
2. Raw material: the width(1250mm?), thickness(0.3-0.7mm?), and yield strength of steel coil.
3. Voltage: designed per your requirement
4. Configuration requirement: Hydraulic or manual decoiler/ stacker
Have no idea about them?
We will be glad to recommend machines ----Just let us know your country!
Please feel free to contact us for more machine information!
