Specifications
cement brick making machine :1.ISO9001:2008 & CE
2.multi-purpose design
3.Adopt full program
4.PLC control
Hot type! cement brick making machine DS6-15 automatic concrete block making machine price from China manufactures
DS6-15 automatic fly ash Block Making Machine:
1. Adopt Germany, Italy, Japan technology to manufacturing;
2. Compatible with the road blocks, road-side bricks and river bricks;
3. Adopt sub-storage device to overcome the liquefaction of concrete defects in advance;
4. The whole set of machine can be operated automatically.
5. Adopt four-oriented approach to insure the pressure head and mold box move exactly with good stability, and wide fixed mold plate for mold box, with the replacement of various models of multi-purpose tool of a machine to meet the various needs.
6. The host machine adopt hydraulic rotational molding and vibration compression molding. Molding cycle takes 15 - 25 seconds to leave the floor for forming health, and spend a lot of floor investment.
7. Forced feeding, the traditional feeding method is difficult to feed materials evenly to mold box, DS6-15 box-type cement brick making is machine equipped with a multi-fabric mixing fork, mold box to the top of mixing fork work on mandatory feed box.
Main technical parameters of DS6-15 automatic fly ash block making machine:
Parameter Name |
Parameter values |
||
The largest machine dimensions |
8800×1600×2750(L×W×H)(mm) |
||
Rated pressure of hydraulic system |
21Mpa |
||
Main vibration form |
All vibration molded desk |
||
Vibration frequency |
50~70Hz |
||
Vibration acceleration |
10-15g |
||
To adapt to the high brick |
50-200mm |
||
Pallet size |
Wooden |
970×680×(15-25)(mm) |
|
PVC(Plastic) |
970×680×(15-25)(mm) |
||
Bamboo |
970×680×(15-25)(mm) |
||
Molding cycle |
15-25 seconds to be added fabrics |
|
|
Production |
Standard block(240×115×53mm) |
57,600 Pieces/ 8 hours |
|
Feeder capacity |
Effective storage volume of 0.45m3 hopper |
||
|
Effective volume of 0.15m3 car charging |
||
Machine power |
29.7kw |
||
Machine weight |
10.5T |
||
Brick shaped mold can be produced according to user needs. | |||
Main product specifications and production of each plate:
Model |
Block Specifications (mm) |
Forming number |
Molding cycle |
Capacity (pcs) |
|
DS6-15 |
390×190×190 (brick) |
6 |
15 |
11520 |
|
240×115×90 (brick) |
15 |
15 |
28800 |
||
240×115×53 (standard brick) |
30 |
15 |
57600 |
||
·This series of 150-650 tons of products with different specifications. Brick shaped mold can be produced according to user needs. | |||||
Production conditions: | ||
Production sites |
Venues |
8-10 acres |
Operate camp |
60 |
|
Raw space |
300 |
|
Office space |
30 |
|
Other conditions |
Staff |
8-10 people |
Distribution |
40kw |
|
Water |
10T/day |
|

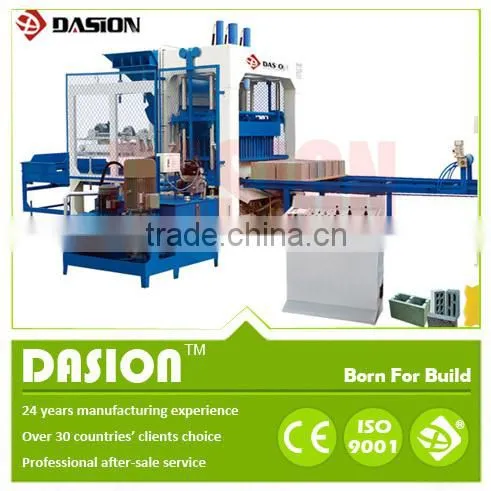

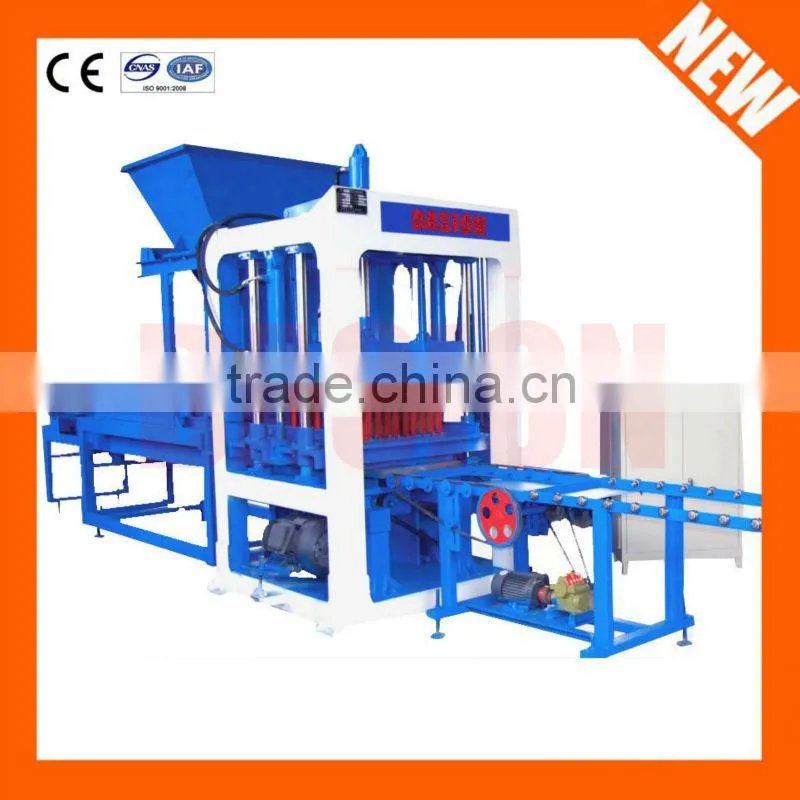

Our DS6-15 automatic fly ash block making machine picture:
The DS6-15 automatic fly ash block making machine and the brick type:
Fashioned bricks in the curing room:
The DS6-15 automatic fly ash block making machine operation schematic diagram:
The customer visit our factory:
Composition diagram of each part of the machine:

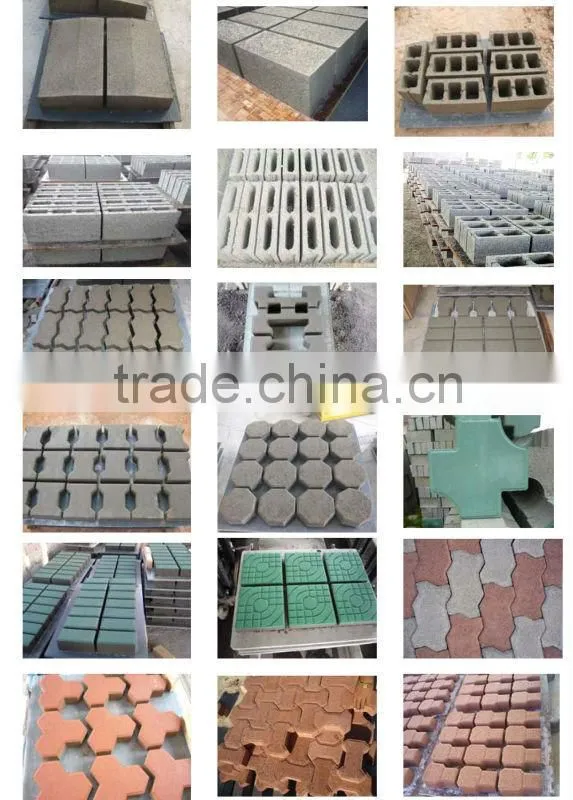

The different types of brick that our machine can produce:
