Specifications
hydraform brick making machine1.390x190x190mm
2.Multi-purpose design
3.Hydraulic Pressure
4.ISO9001:2008&CE

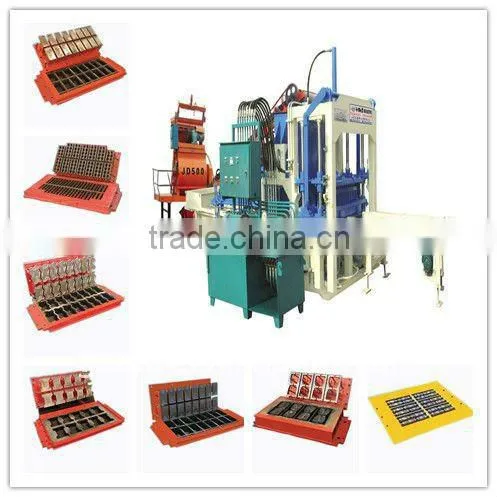

high efficiency and low cost hydraform brick making machine DS4-15 hot selling concrete hollow block making machine export to South Africa
DS4-15 Block Making Line (Hydraulic):
1. Unique structure design to insure the material discharging swimmingly and fabric equably;
2. Super actuating shock force design to insure the final bricks becomes high-intensity and high-density in a short time;
3. Multi-purpose design to produce different shape and specification of bricks.
DS4-15 Block Making Line (Hydraulic):
1. Unique structure design. Adopt special material discharging and break device, there are multi-row mixing forks inside of the material tank. The mixing forks works automatically once the material tank is moved above the mould box, then the material will be discharged forcibly, to insure the material discharging swimmingly and fabric equably. This tech will make sure the final products (bricks) high-intensity and equable weight.
2. Super actuating shock forcedesign. Control the hydraulic system by computer, such as hydraulic flow and pressure, to achieve vibrating, frequency conversion, stop at same time, to insure the final products (bricks) becomes high-intensity and high- density in a short time.
3. Multi-purpose design. Change different moulds, then it can produce different shape and spec of bricks.
DS4-15 concrete hollow block making machine main technical parameters:
Block Specifications (mm) |
Forming Number (block) |
Molding Cycle (seconds) |
Capacity (pcs) (8 hours) |
390 × 190 × 190 (hollow brick) |
4 |
20-25 |
4608-5760 |
240 × 115 × 90 (porous brick) |
13 |
20-25 |
14950-18720 |
240 × 115 × 53 (standard brick) |
26 |
20-25 |
29900-37440 |
Note: Bamboo pallet size: 920 × 570 × 20mm (Brick shaped mold can be produced according to user needs).
Host power: 25.5KW Machine size: 6650 × 1500 × 2650(L×W×H)mm Total weight: 8.5T
Technical Parameters | ||||
Every molding |
Standard brick |
24-28pcs/mold |
Host Machine Power |
33KW |
Colored ground brick |
/ |
Whole weight |
9.8T |
|
Cellular brick |
18pcs/mold |
Exterior size |
6750*2205*2780mm |
|
Blocks |
4pcs/mold |
Pallet size |
900*550*25/30mm |
|
Molding period |
15-20seconds/time |
Producing capacity |
53760pcs/8H(Standard brick) |
|
Exciting force |
60KN |
Certificate |
ISO9001:2000/CE |
|
Vibration frequency |
4600-6100rolls/minute |
|||
Pressure |
10-22Mpa |
|||
Remark |
the production line of DS4-15 automatic block making machine, gross weight is about 24T |
|||
Plant Construction Program | ||
Mixer operator |
Workshop space |
About200m2 |
Stacking space |
About2500-3000m2 |
|
Raw material storage space |
About1500m2 |
|
Office space |
About100m2 |
|
Working capital space |
About1300m2 |
|
Free space |
About1000m2 |
|
Remark: Detail arrangement according to actual situation | ||
Staff |
Factory director |
1 |
Financial officers |
1 |
|
Porter |
1 |
|
Host operator |
1 |
|
Transport workers |
2 |
|
Palletizing staff |
5-6 |
|
Mixer operator |
1 |
|
Product Maintenance |
15 |
|
Other staff needed as your demand | ||
Cost and benefit analysis | ||
1.Regions of different materials prices, costs vary | ||
2.Availability of raw materials:Slag, Construction Waste, Fly Ash, River sand, Coal Gangue,etc. | ||
3.Reference to local market conditions | ||
DS series block making machine brief introduction as following:
Model |
Block Specifications(mm) |
Forming Number (brick) |
Molding Cycle (seconds) |
Capacity (pcs) (8 hours) |
DS4-35 |
390 × 190 × 190 (hollow brick) |
4 |
35-40 |
3000-3290 |
|
240 × 115 × 90 (porous brick) |
9 |
35-40 |
7000-7400 |
|
240 × 115 × 53 (standard brick) |
21 |
35-40 |
15000-17200 |
|
Bamboo pallet size: 920 × 570 × 20mm Host power: 25.5KW Machine size: 6650 × 1500 × 2650(L×W×H)mm Total weight: 4.5T |
|||
DS4-15 |
390 × 190 × 190 (hollow brick) |
4 |
20-25 |
4608-5760 |
|
240 × 115 × 90 (porous brick) |
13 |
20-25 |
14950-18720 |
|
240 × 115 × 53 (standard brick) |
26 |
20-25 |
29900-37440 |
|
Bamboo pallet size: 920 × 570 × 20mm Host power: 25.5KW Machine size: 6650 × 1500 × 2650(L×W×H)mm Total weight: 8.5T |
|||
DS6-15 |
390 × 190 × 190 (hollow brick) |
6 |
15-25 |
7000-11520 |
|
240 × 115 × 90 (porous brick) |
12 |
15-25 |
14000-23040 |
|
240 × 115 × 53 (standard brick) |
30 |
15-25 |
34560-57600 |
|
Bamboo pallet size: 800 × 700 × 25mm Host power: 29.7KW |
|||
|
Machine size: 8800 × 1600 × 2750(L×W×H)mm Total weight: 10.5T |
|||
DS8-15 |
390 × 190 × 190 (hollow brick) |
8 |
15-20 |
11520-15360 |
|
240 × 115 × 90 (porous brick) |
21 |
15-20 |
30240-40320 |
|
240 × 115 × 53 (standard brick) |
42 |
15-20 |
60480-80640 |
|
Bamboo pallet size: 920 × 850 × 40mm Host power: 36.8KW Machine size: 7200 × 2100 × 2825(L×W×H)mm Total weight: 11.8T |
|||
DS10-15 |
390 × 190 × 190 (hollow brick) |
10 |
15-20 |
14400-19200 |
|
240 × 115 × 90 (porous brick) |
24 |
15-20 |
34560-46080 |
|
240 × 115 × 53 (standard brick) |
51 |
15-20 |
73440-97920 |
|
Bamboo pallet size: 1070 × 840 × 40mm Host power: 36.8KW Machine size: 7200 × 2290 × 3100(L×W×H)mm Total weight: 14.8T |
|||
The DS4-15 full-automatic concrete block making machine operation schematic diagram:
The customer visit our factory:

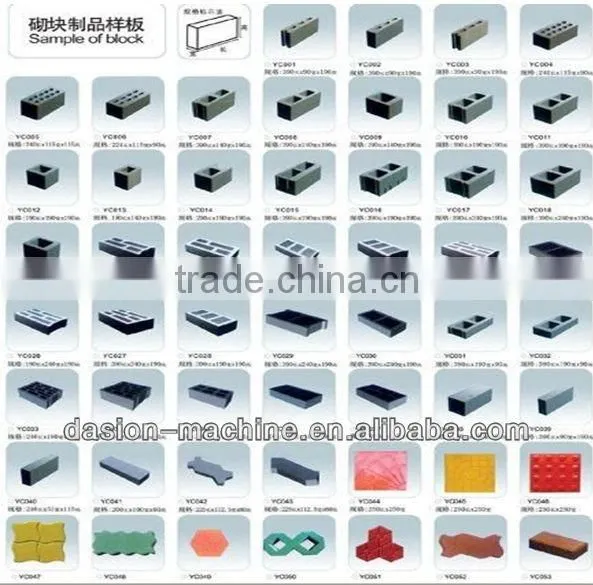

The different types of brick that our machine can produce:
The block production line
