Specifications
hollow block making machine1.ISO9001:2008 & CE
2.multi-purpose design
3.Adopt full program
4.PLC control
hollow block making machine DS4-35 manual concrete hollow small industry machinery with easy operation
Technical features of DS4-35
Unique structure design to insure the material discharging swimmingly and fabric equably;
Super actuating shock force design to insure the final bricks becomes high-intensity and high-density in a short time;
Multi-purpose design to produce different shape and specification of bricks.
A.Unique structure design. Adopt special material discharging and break device, there are multi-row mixing forks inside of the material tank. The mixing forks works automatically once the material tank is moved above the mould box, then the material will be discharged forcibly, to insure the material discharging swimmingly and fabric equably. This tech will make sure the final products (bricks) high-intensity and equable weight.
B.Super actuating shock forcedesign. Control the hydraulic system by computer, such as hydraulic flow and pressure, to achieve vibrating, frequency conversion, stop at same time, to insure the final products (bricks) becomes high-intensity and high- density in a short time.
C.Multi-purpose design. Change different moulds, then it can produce different shape and spec of
bricks.
DS4-35 manual concrete hollow block making machine:
1. Adopt mechanical transmission to operate the material feeding molding separately
2. Adopt double-vertical pressurizing vibrating to insure the block shape well
3. Multi-purpose design to produce different shape and specification of bricks.
4.Transmission: Adopt mechanical transmission, use the mechanical power effectively. Material feeding molding is separately operated by one transmission device. Long service time, easy for maintenance.
5.Vibrating: Adopt double-vertical pressurizing vibrating on head pressure beam, to insure the brick shape well.
6.Multi-purpose design. Change different moulds, then it can produce different shape and spec of bricks;
7.Mould box: Adopt assembly style, the spare parts can be changed easily, save the mould cost as well.
Main technical parameters of DS4-35 manual concrete hollow block making machine:
Block Specifications |
Forming a few blocks |
Molding cycle |
Middle class(8 hours)) |
390 × 190 × 190 |
4 block |
35 Seconds |
3000-3290 block |
390 × 240 × 190 |
3 block |
35 Seconds |
2000-2480 block |
240 × 115 × 90 |
9 block |
35 Seconds |
7000-7400 block |
240 × 115 × 53 |
21 block |
35 Seconds |
15000-17200 block |
Brick shaped mold can be produced according to user needs. | |||
Our DS4-35 manual concrete hollow block making machine picture:
The DS4-35 manual concrete hollow block making machine and the brick type:
Fashioned bricks in the curing room:
The DS10-15 manual concrete hollow block making machine operation schematic diagram:

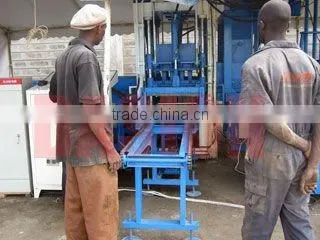

The customer visit our factory:
The different types of brick that our machine can produce:
