Product Details
| Condition: | New | Type: | Hollow Block Making Machine | Brick Raw Material: | Concrete |
| Processing: | Brick Production Line | Method: | Hydraulic Pressure | Automatic: | Yes |
| Place of Origin: | Henan, China | Brand Name: | DASION | Model Number: | DS |
| Certification: | ISO9001:2008&CE | Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
cement block making machine1.ISO9001:2008,CE
2.multi-purpose design
3.Adopt full program
4.PLC control

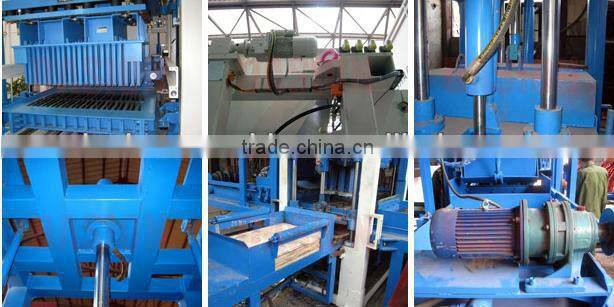

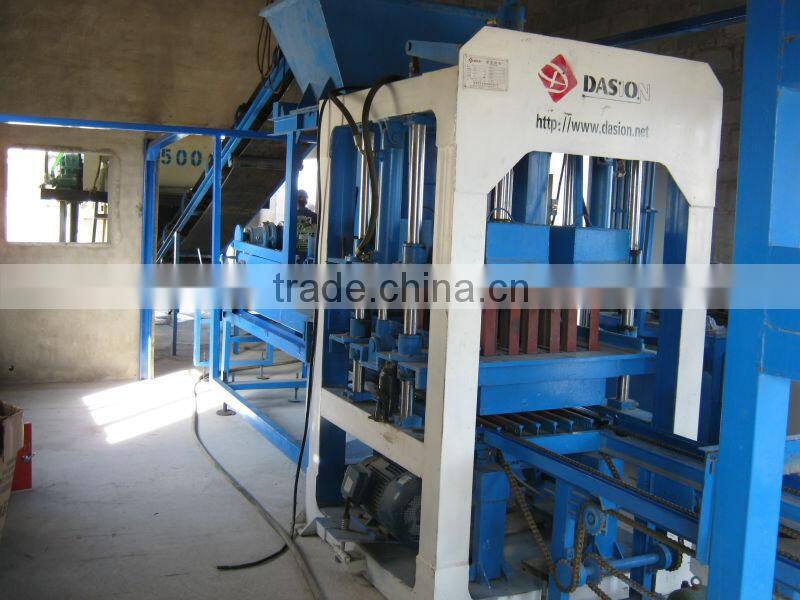

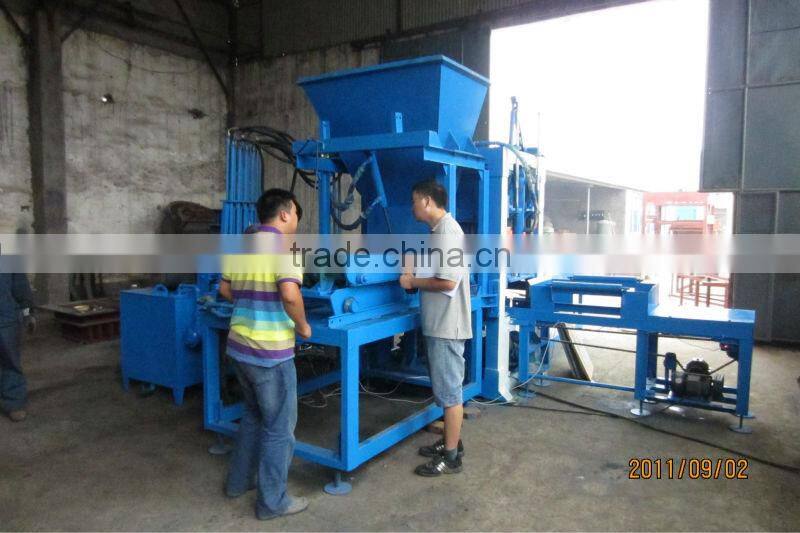

cement block making machine DS Series compression molding machine block splitter

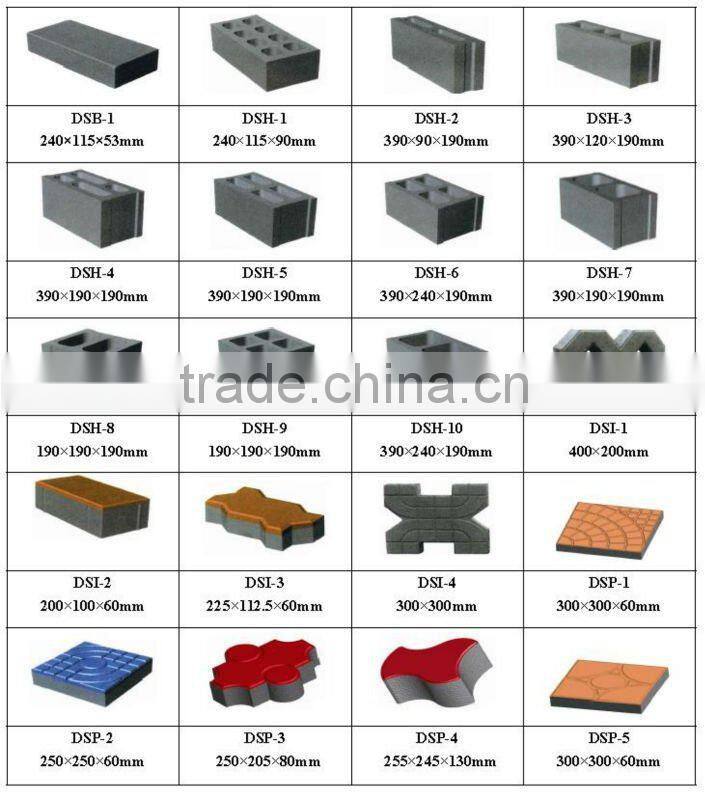

DASION concrete block making machine can produce concrete blocks, standard/solid/hollow/porous
masonry products, paving stones with or without facemix, grass blocks, interlocks, etc.
The concrete brick making machineries are all fully-automatic design and double-vertical pressurizing vibrating to insure the block shape well.
DASION DS series Concrete Brick Making Machinery:
1. Adopt Germany, Italy, Japan technology to manufacturing;
2. Compatible with the concrete blocks, standard/solid/hollow/porous masonry products, paving stones with or without facemix, grass blocks, interlocks, etc.;
3. Adopt sub-storage device to overcome the liquefaction of concrete defects in advance;
4. The whole set of machine can be operated automatically, except DS4-35 be operated semi-automatically.
5. Adopt four-oriented approach to insure the pressure head and mold box move exactly with good stability, and wide fixed mold plate for mold box, with the replacement of various models of multi-purpose tool of a machine to meet the various needs.
6. The host machine adopt hydraulic rotational molding and vibration compression molding.
7. Forced feeding, the mold box equipped with a multi-fabric mixing fork, mold box to the top of mixing fork work on mandatory feed box.
Brief parameters introduction of concrete block making machine as following:
Model | Block Specifications(mm) | Forming Number (brick) | Molding Cycle (seconds) | Capacity (pcs) (8 hours) |
DS4-35 | 390 × 190 × 190 (hollow brick) | 4 | 35-40 | 3000-3290 |
240 × 115 × 90 (porous brick) | 9 | 35-40 | 7000-7400 | |
240 × 115 × 53 (standard brick) | 21 | 35-40 | 15000-17200 | |
Bamboo pallet size: 920 × 570 × 20mm Host power: 25.5KW Machine size: 6650 × 1500 × 2650(L×W×H)mm Total weight: 4.5T | ||||
DS4-15 | 390 × 190 × 190 (hollow brick) | 4 | 20-25 | 4608-5760 |
240 × 115 × 90 (porous brick) | 13 | 20-25 | 14950-18720 | |
240 × 115 × 53 (standard brick) | 26 | 20-25 | 29900-37440 | |
Bamboo pallet size: 920 × 570 × 20mm Host power: 25.5KW Machine size: 6650 × 1500 × 2650(L×W×H)mm Total weight: 8.5T | ||||
DS6-15 | 390 × 190 × 190 (hollow brick) | 6 | 15-25 | 7000-11520 |
240 × 115 × 90 (porous brick) | 12 | 15-25 | 14000-23040 | |
240 × 115 × 53 (standard brick) | 30 | 15-25 | 34560-57600 | |
Bamboo pallet size: 800 × 700 × 25mm Host power: 29.7KW | ||||
Machine size: 8800 × 1600 × 2750(L×W×H)mm Total weight: 10.5T | ||||
DS8-15 | 390 × 190 × 190 (hollow brick) | 8 | 15-20 | 11520-15360 |
240 × 115 × 90 (porous brick) | 21 | 15-20 | 30240-40320 | |
240 × 115 × 53 (standard brick) | 42 | 15-20 | 60480-80640 | |
Bamboo pallet size: 920 × 850 × 40mm Host power: 36.8KW Machine size: 7200 × 2100 × 2825(L×W×H)mm Total weight: 11.8T | ||||
DS10-15 | 390 × 190 × 190 (hollow brick) | 10 | 15-20 | 14400-19200 |
240 × 115 × 90 (porous brick) | 24 | 15-20 | 34560-46080 | |
240 × 115 × 53 (standard brick) | 51 | 15-20 | 73440-97920 | |
Bamboo pallet size: 1070 × 840 × 40mm Host power: 36.8KW Machine size: 7200 × 2290 × 3100(L×W×H)mm Total weight: 14.8T | ||||
