Specifications
bricks macking machinery1.ISO9001:2008 & CE
2.Multi-purpose mould
3.Hydraulic system
4.PLC control

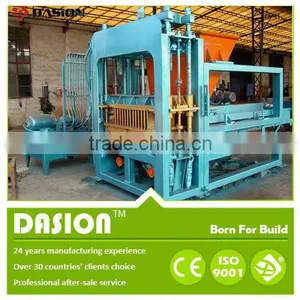

concrete block making machine DS12-15 bricks macking machinery
DS12-15 Brick Machinery:
1. Adopt Germany, Italy, Japan technology to manufacturing;
2. Compatible with the road blocks, road-side bricks and river bricks;
3. Adopt sub-storage device to overcome the liquefaction of concrete defects in advance;
4. The whole set of machine can be operated automatically.
5. Adopt four-oriented approach to insure the pressure head and mold box move exactly with good stability, and wide fixed mold plate for mold box, with the replacement of various models of multi-purpose tool of a machine to meet the various needs.
6. The host machine adopt hydraulic rotational molding and vibration compression molding. Molding cycle takes 15 - 18 seconds to leave the floor for forming health, and spend a lot of floor investment.
7. Forced feeding, the traditional feeding method is difficult to feed materials evenly to mold box, DS10-15 box-type machine equipped with a multi-fabric mixing fork, mold box to the top of mixing fork work on mandatory feed box.
Main technical parameters of DS6-15 hydraulic brick machine:
Parameter Name |
Parameter values |
||
The largest machine dimensions |
8200 × 2300 × 3000(L×W×H)mm
|
||
Rated pressure of hydraulic system |
21Mpa |
||
Main vibration form |
All vibration molded desk |
||
Vibration frequency |
50~70Hz |
||
Vibration acceleration |
10-15g |
||
To adapt to the high brick |
50-200mm |
||
Pallet size |
Wooden |
1310×840×(40±1)(mm) |
|
Iron |
1310×840×(8-10±1)(mm) |
||
Bamboo |
1310×840×40(mm) |
||
Molding cycle |
15-18 seconds 20-23 seconds to be added fabrics |
|
|
Production |
Standard block(240×115×53mm) |
14400 Pieces/ 8 hours |
|
Feeder capacity |
Effective storage volume of 0.45m3 hopper |
||
|
Effective volume of 0.15m3 car charging |
||
Machine power |
46kw |
||
Machine weight |
13T |
||
Brick shaped mold can be produced according to user needs. | |||
