Home > Products > Concrete Block Making Machine > DSM4-45 Egg laying Manual Brick Making Machine new arrival in stock

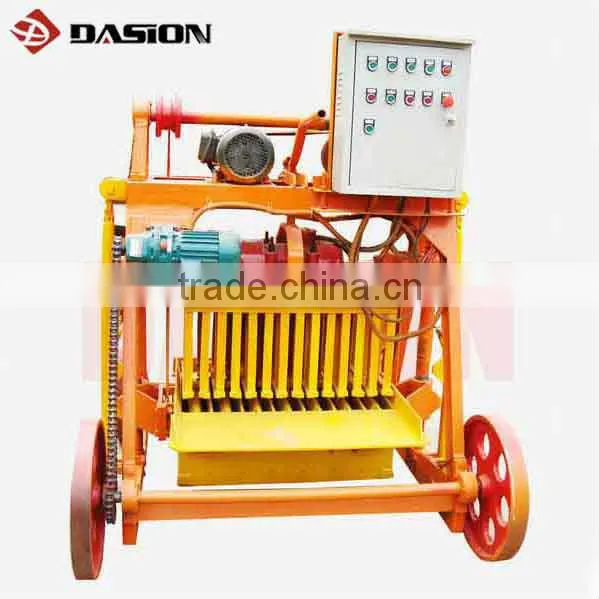

DSM4-45 Egg laying Manual Brick Making Machine new arrival in stock
- 100 Set / Sets per Month
- Qingdao port
- T/T Credit Card
- China pe200x300 smallest jaw crusher
- Popular compound pendulum jaw crusher price
- 2016 china products stone coated steel roofing tile ,shingle steel roof tile
- 2016 china products lightweight roof tile,blue glazed roof tile
- colored metal roofing prices,sand coated metal roofing tiles
- roofing tiles coated with stones,roofing tiles for houses
Product Details
Condition: | New | Type: | Hollow Block Making Machine | Brick Raw Material: | Cement |
Processing: | Other | Method: | Other | Automatic: | No |
Capacity: | 2500-3200pieces/8 hours, 2500-3200pieces/8 hours | Place of Origin: | Henan, China | Brand Name: | DASION |
Model Number: | DSM4-45 | Power: | 6.65KW | Dimension(L*W*H): | 1360*1300*1600mm |
Certification: | ISO9001:2008 & CE, ISO9001:2000 | Warranty: | 12MONTHS | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
Egg laying block making machine1.ISO9001:2008 & CE
2.multi-purpose design
3.Motor Power:6.65KW
DSM4-45 Egg laying Manual Brick Making Machine new arrival in stock
DSM4-45 Egg laying block making machine is small block machine,which manufactured on the base of technical modifications to the orginal block shaping machines.
Charging the former one-time-vibration into twice-vibrations of moulding core, so the block density becomes higher,shaping speed quicker and block strength more even.
Main parameters of DSM4-45 small brick making machine
Brick size(mm) | Pcs per pallet | Capacity per 8hours(pcs) |
400*200*200 | 4 | 2500 |
400*150*200 | 5 | 3200 |
Molding cycle:45s | Overall size:1360*1300*1600mm | Over mass:1000kg |
DS series brick making machine brief introduction as following:
Model | Block Specifications(mm) | Forming Number (brick) | Molding Cycle (seconds) | Capacity (pcs) (8 hours) |
DS4-35 | 390 × 190 × 190 (hollow brick) | 4 | 35-40 | 3000-3290 |
| 240 × 115 × 90 (porous brick) | 9 | 35-40 | 7000-7400 |
| 240 × 115 × 53 (standard brick) | 21 | 35-40 | 15000-17200 |
| Bamboo pallet size: 920 × 570 × 20mm Host power: 25.5KW Machine size: 6650 × 1500 × 2650(L×W×H)mm Total weight: 4.5T | |||
DS4-15 | 390 × 190 × 190 (hollow brick) | 4 | 20-25 | 4608-5760 |
| 240 × 115 × 90 (porous brick) | 13 | 20-25 | 14950-18720 |
| 240 × 115 × 53 (standard brick) | 26 | 20-25 | 29900-37440 |
| Bamboo pallet size: 920 × 570 × 20mm Host power: 25.5KW Machine size: 6650 × 1500 × 2650(L×W×H)mm Total weight: 8.5T | |||
DS6-15 | 390 × 190 × 190 (hollow brick) | 6 | 15-25 | 7000-11520 |
| 240 × 115 × 90 (porous brick) | 12 | 15-25 | 14000-23040 |
| 240 × 115 × 53 (standard brick) | 30 | 15-25 | 34560-57600 |
| Bamboo pallet size: 800 × 700 × 25mm Host power: 29.7KW | |||
| Machine size: 8800 × 1600 × 2750(L×W×H)mm Total weight: 10.5T | |||
DS8-15 | 390 × 190 × 190 (hollow brick) | 8 | 15-20 | 11520-15360 |
| 240 × 115 × 90 (porous brick) | 21 | 15-20 | 30240-40320 |
| 240 × 115 × 53 (standard brick) | 42 | 15-20 | 60480-80640 |
| Bamboo pallet size: 920 × 850 × 40mm Host power: 36.8KW Machine size: 7200 × 2100 × 2825(L×W×H)mm Total weight: 11.8T | |||
DS10-15 | 390 × 190 × 190 (hollow brick) | 10 | 15-20 | 14400-19200 |
| 240 × 115 × 90 (porous brick) | 24 | 15-20 | 34560-46080 |
| 240 × 115 × 53 (standard brick) | 51 | 15-20 | 73440-97920 |
| Bamboo pallet size: 1070 × 840 × 40mm Host power: 36.8KW Machine size: 7200 × 2290 × 3100(L×W×H)mm Total weight: 14.8T |
