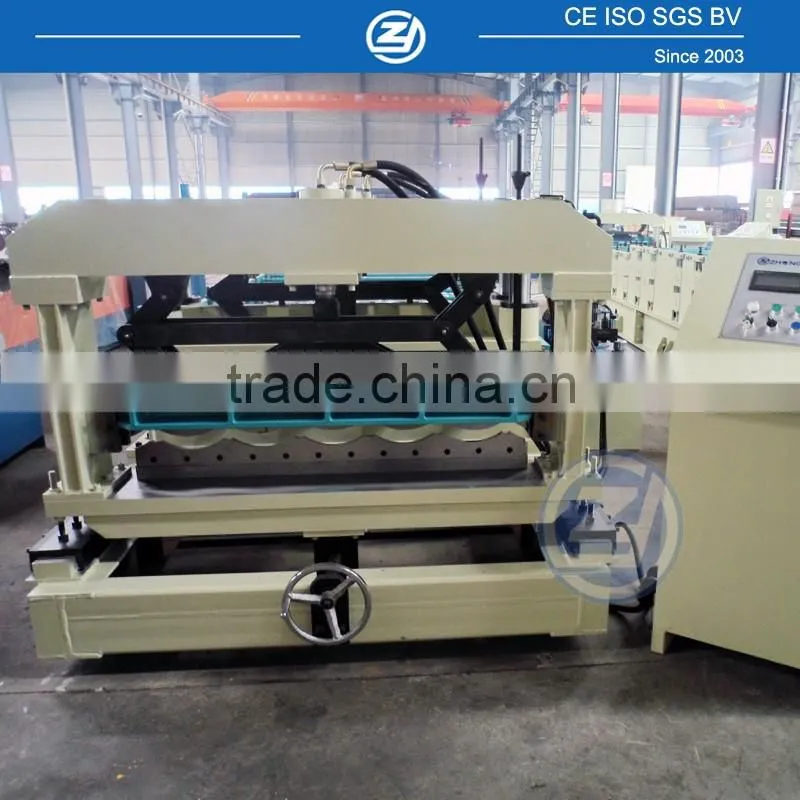

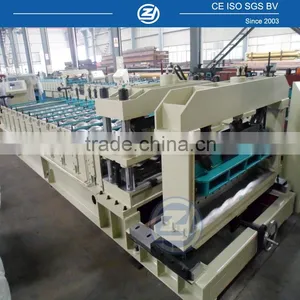

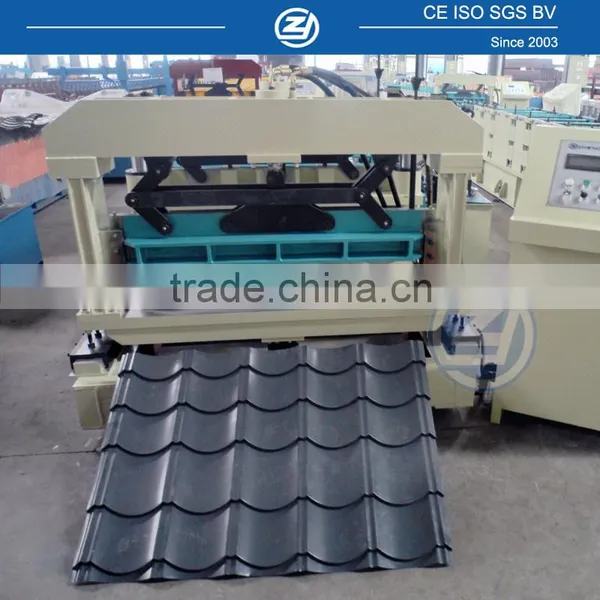

ISO Standard Metal Tiles Making Machine
Machine detail
| |
| Suitable material: glazed/ galvanize/ color coated steel | |
| Steel thickness: 03.-0.8mm | |
| Steel yield strength: 235-345 Mpa | |
| Machine size: About 14*1.7*1.4m | |
| Machine weight: About 9 tons |
|
Manual decoiler Hydraulic uncoiler for option
|
| Loading capacity: 5ton (10ton for option) |
| Coil inner diameters: 508/610mm |
| Max coil width: 1250mm |
| Coil car: For option |
| Auto decoiler motor: 4kw*2 (for 5 ton) / 5.5kw*2 (for 10 ton) |
|
Feeding device Pre-cutter
|
| Level device: yes |
| Film cover device: for option |
| Pre-cutter: for option |
| Cutting blade material: Cr12 mould steel |
| Cutting blade process: heat treatment |
| |
| Roller material: No. 45 forged solid steel; processed by CNC | |
| Shafts material: No. 45 forged solid steel; tooled by grinding machine at least twice | |
| Shafts diameter: 72mm | |
| Transimission: By chain | |
| Main motor: 7.5 kw | |
| Forming speed: 8m/min | |
| Out put speed: 0-3 m/min |
|
| |
| Cutter material: Cr12 mould steel | |
| Cutting treatment: Heat treatment | |
| Cutting type: Auto cut to length | |
| Motor: 5.5kw |
|
| Converter: Mitsubishi from Japan |
| Touch screen: Mitsubishi from Japan |
| Language: English or as required |
|
| Motor: 5.5kw |
| Oil: No 46. Hydraulic oil |
| Cooling sytem: Fan (or water for option) |
|
Support table Tool box (for free)
|
| Size: 1.5m/pc, total 2 pcs |
| Automatic: Can customize |
Raw Material:
1. Material: Pre-painted steel coil & galvanized coils
2. Yield strength: 235Mpa
3. Thickness: 0.5-0.6mm
Machine material
1. Electric elements: Mitsubishi PLC & transducer from Japan.
2. Anti-rust roller: High grade No. 45 forged steel. Plated with 0.05mm hard chrome
3. Well resisting active shaft: High grade No. 45 carbon wrought steel.
4. Cutter blade: Cr12 mould steel with quenched treatment
5. Precision: shafts are tooled by grinding machine at least twice. Rollers are CNC processed.
Machine components:
Decoiler (manual decoiler and hydraulic decoiler for option) 1 set
Feeding & guiding device 1 set

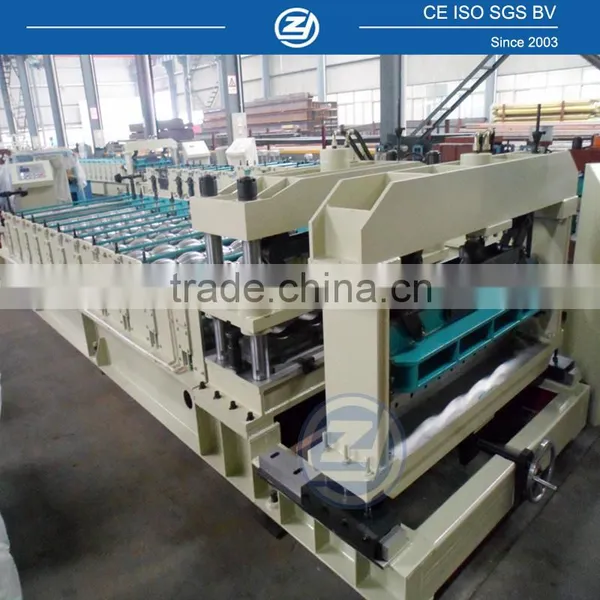

Main roll forming machine 1 set
Press device 1 set
Hydraulic cutting system 1 set
Controlling system 1 set
Run out table (auto. Stacker for option) 2 pcs
Components spec.:
1. Decoiler Max. Capacity: 5000kgs
2. Hydraulic station power: About 5.5Kw (Depend on final design)
3. Control system: Mitsubishi PLC with touch screen
4. Cutting length: Cut-to-length
Machine spec.
1. Size: about 14*1.7*1.4m (L*W*H)
2. Weight: About 9ton
3. Color: Make-to-order
4. Forming Speed: 8m/min.
5. Power : 380V/3Phase/ 50Hz
6. Main motor power: 5.5Kw(Depend on final design)
Process flow:
Decoiler -- Feeding & Guiding -- Roll forming---Hydraulic pressing ---Hydraulic Cutting – product to run out table
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our factory.
6) Q: Do you have this metal tile making machine in stock?
A: No, machine is made to order.
7) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are ALIBAB’s Gold supplier with BV assessment (Audit report can be provided).
We join Alibaba Trade Assurance.
8) What should I provide if I`d love to customized my machine?
A: To customize machine, we`d love to know:
1. Profile drawing
2. Raw material: the width(1250mm?), thickness(0.3-0.7mm?), and yield strength of steel coil.
3. Voltage: designed per your requirement
4. Configuration requirement: Hydraulic or manual decoiler/ stacker
Have no idea about them?
We will be glad to recommend machines ----Just let us know your country!
9) How is your cooperate process?
A: Below is the cooperation flow chart
Lifetime services;
Technician can be sent to your factory to install the machine and train your workers
Get Free:
"Send" below to get profile drawing & design support by our 15 year experience technicians FOR FREE!
