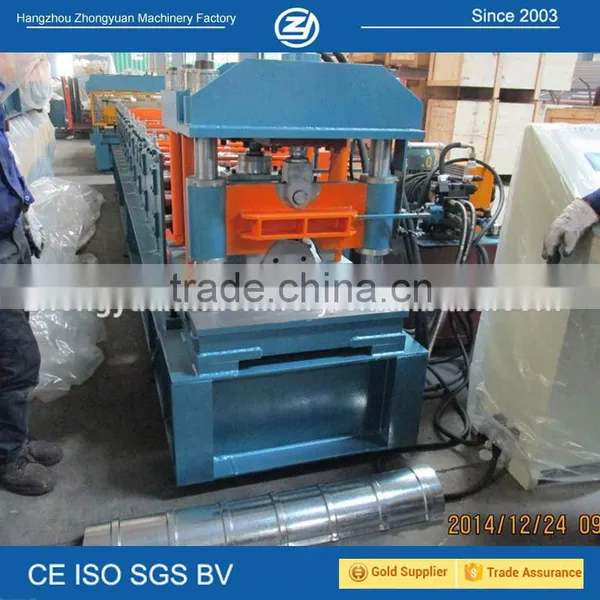

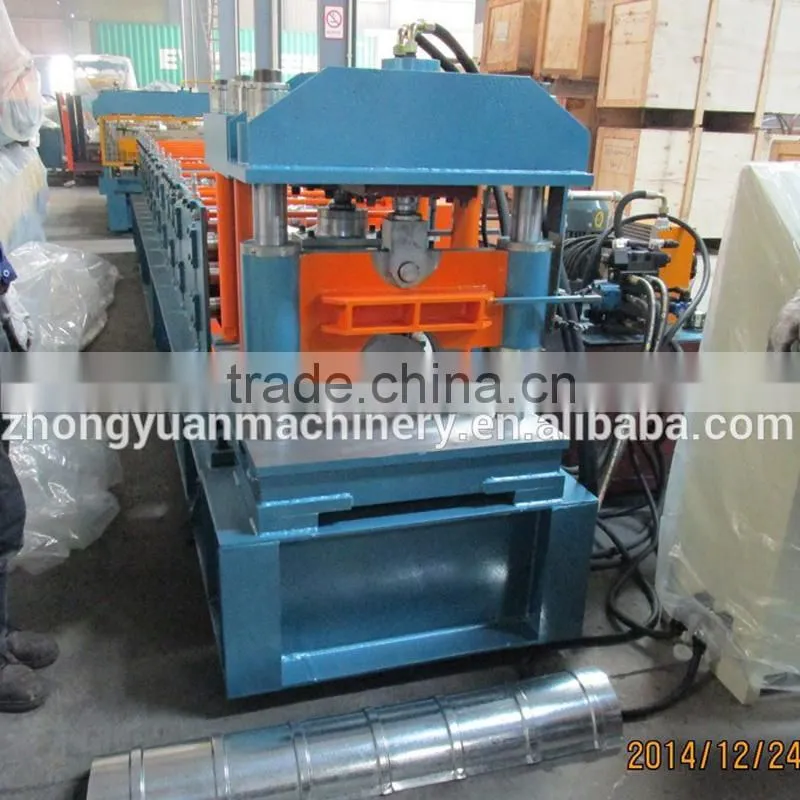

Ridge Cap Forming Machine
Introduced Mitsubishi PLC with touch screen.
Need only one worker to operate

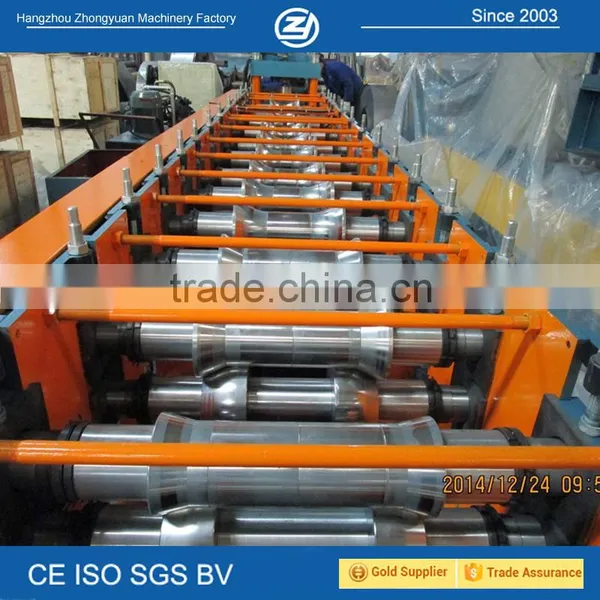

Roller cover with 0.05mm chrome, ensure lifetime>10years
Cr12 mould steel cutter with quenched treatment. Blade with heat treatment.

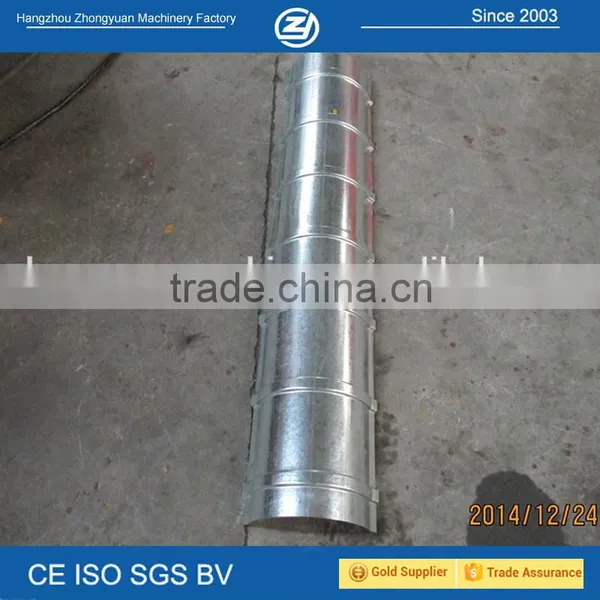

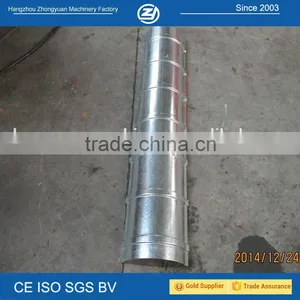

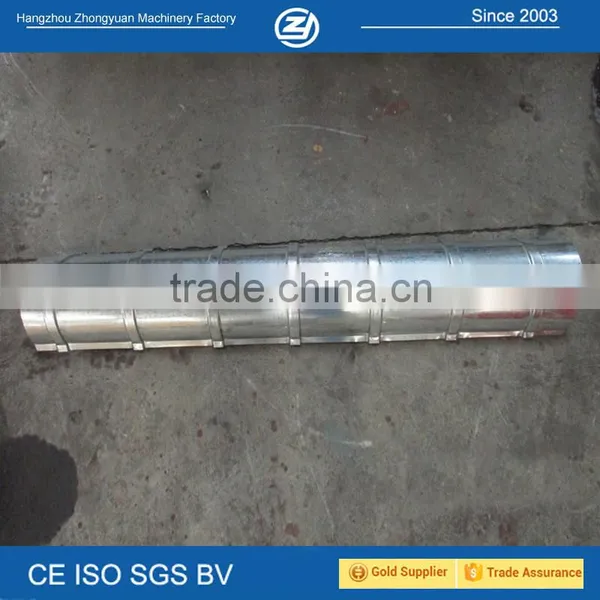

Product cut-to-length
Machine detail
| |
| Suitable material: glazed/ galvanize/ color coated steel | |
| Steel thickness: 03.-0.8mm | |
| Steel yield strength: 235-345 Mpa | |
| Machine size: About 10*1.7*1.6m | |
| Machine weight: About 8 tons |
|
Manual decoiler
|
| Loading capacity: 5ton (10ton for option) |
| Coil inner diameters: 508/610mm |
| Max coil width: 1250mm |
| Coil car: For option |
| Auto decoiler motor: 4kw*2 (for 5 ton) / 5.5kw*2 (for 10 ton) |
|
Feeding device Pre-cutter
|
| Level device: yes |
| Film cover device: for option |
| Pre-cutter: for option |
| Cutting blade material: Cr12 mould steel |
| Cutting blade process: heat treatment |
| |
| Roller material: No. 45 forged solid steel; processed by CNC | |
| Shafts material: No. 45 forged solid steel; tooled by grinding machine at least twice | |
| Shafts diameter: 72mm | |
| Transimission: By chain | |
| Main motor: 7.5 kw | |
| Forming speed: 20m/min | |
| Out put speed: 8-10 m/min | |
|
|
|
| Converter: Mitsubishi from Japan |
| Touch screen: Mitsubishi from Japan |
| Language: English or as required |
|
| Motor: 2.2kw |
| Oil: No 46. Hydraulic oil |
| Cooling sytem: Fan (or water for option) |
|
Support table Tool box (for free)
|
| Size: 1.5m/pc, total 2 pcs |
| Automatic: Can customize |
Parameters
|
Ridge Cap Forming Machine for Spanish Tile | ||
| Item | Specification | |
| Material | Type | pre-painted galvanized steel sheet |
| Thickness(mm) | 0. 4 -0. 6 | |
| Width | 420mm | |
| Yield strength(mpa) | 385 | |
| Roller material | 45#Chrome steel | |
| Shaft diameter (mm) | about 55 | |
| Forming speed(m/min) | About 15 | |
| Step distance | Adjustable according to requirement | |
| Speed adjusting mode | AC Frequency | |
| Roller drive | Decelerating motor + Chain drive | |
| Cutting mode | Hydraulic cutting | |
| Cutter material | Cr12 mold steel | |
| Length measurement | Encoder | |
| Control mode | Mitsubishi PLC | |
| Operating mode | Button + Mitsubishi Touch screen | |
| Main motor power(kw) | 7.7KW | |
| Hydraulic station power | 5.5K W | |
| Total power(kw) | 13.2KW | |
| Uncoiler's loading capacity | Max. Capacity: 3000kgs | |
| Machine`s size |
About 6*1.2*1.4m (Depend on final design) |
|
| Machine weight | About 5000kgs | |
Components of machine:
Process flow:
Decoiler -- Feeding & Guiding -- Roll forming ---Hydraulic Cutting –product to run out table
