Steel Profile Roll Forming Machine

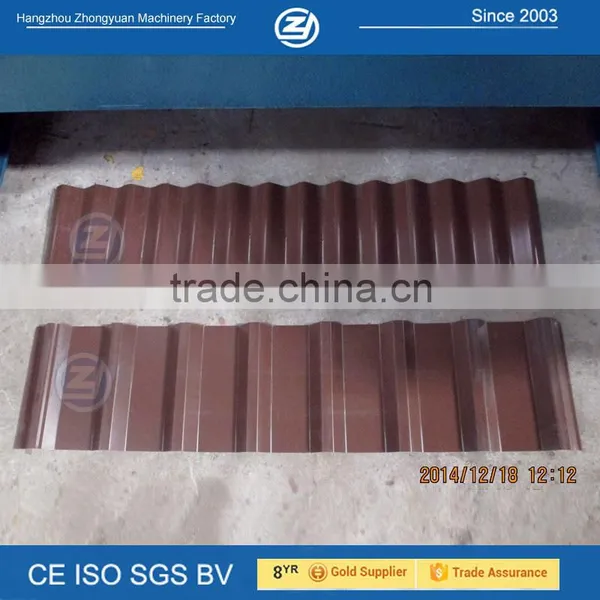

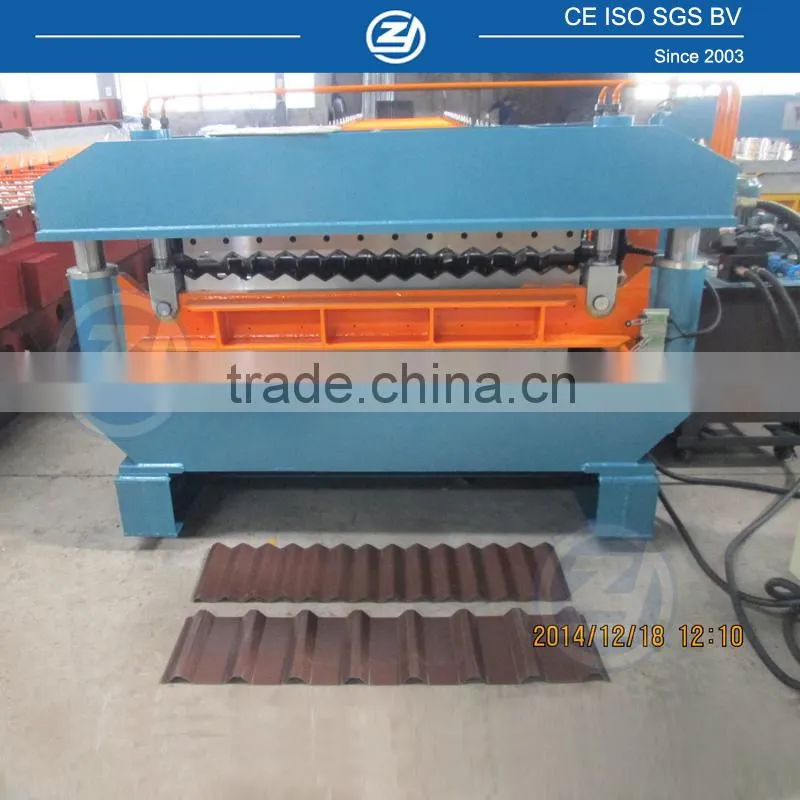

One machine makes two profile
Certificate: ISO 9001, CE,
Lifetime services
Control system: Mitsubishi PLC with touch screen.
Engineer overseas installing and training available
Why choose this machine?

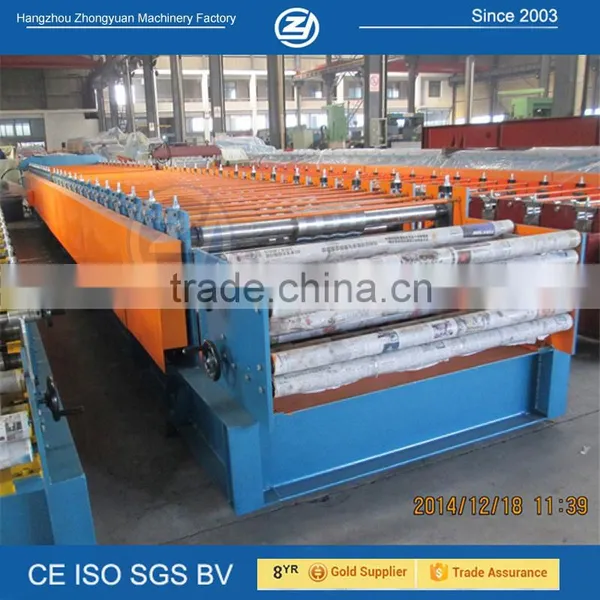

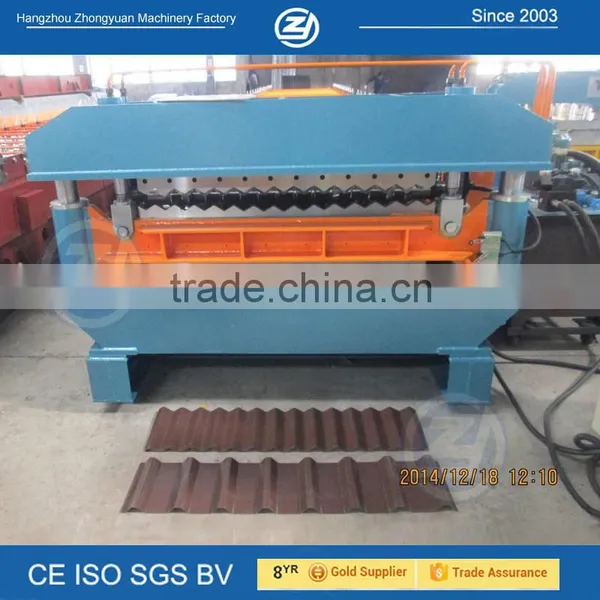

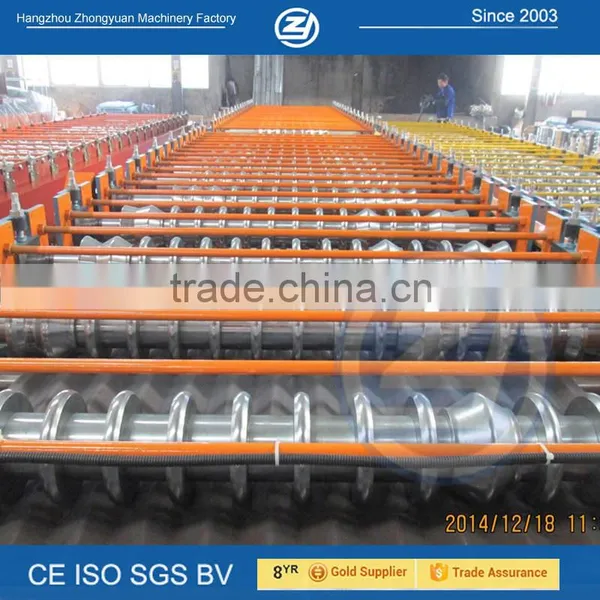

Machine overview

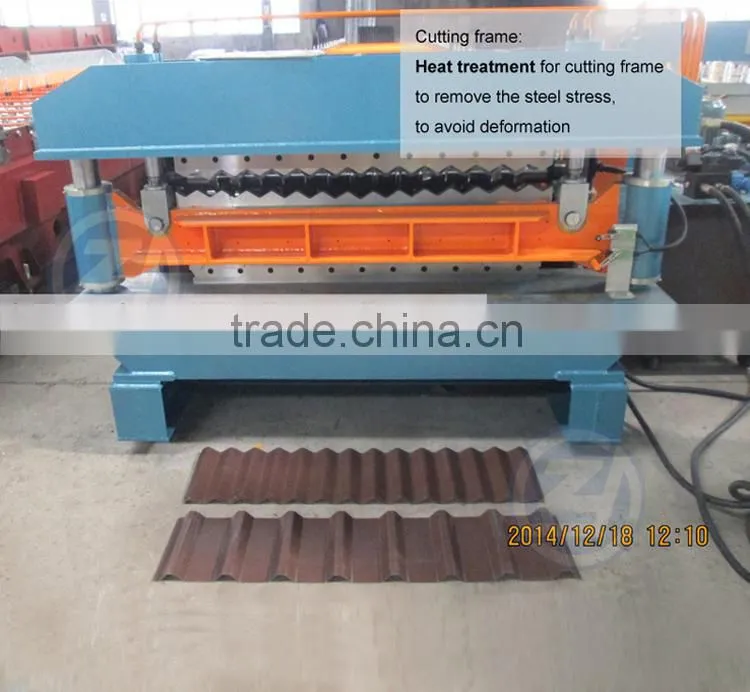

Machine details
72mm diameter solid steel shaft.
Roller cover with 0.05mm chrome;
Lifetime>10years.
Machine details

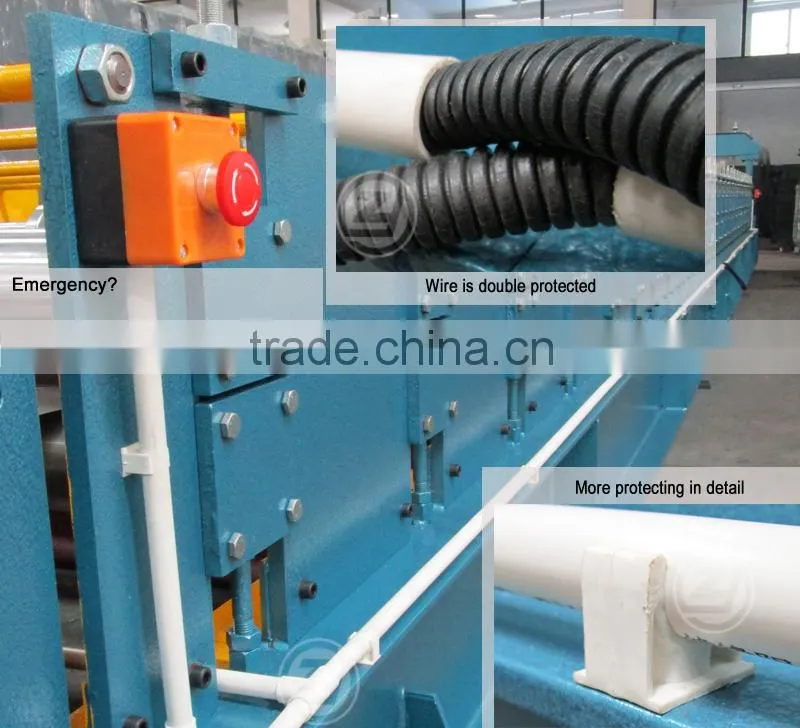

4 emergency switches in front and back of machine.
Wire is Double protected.
Machine details

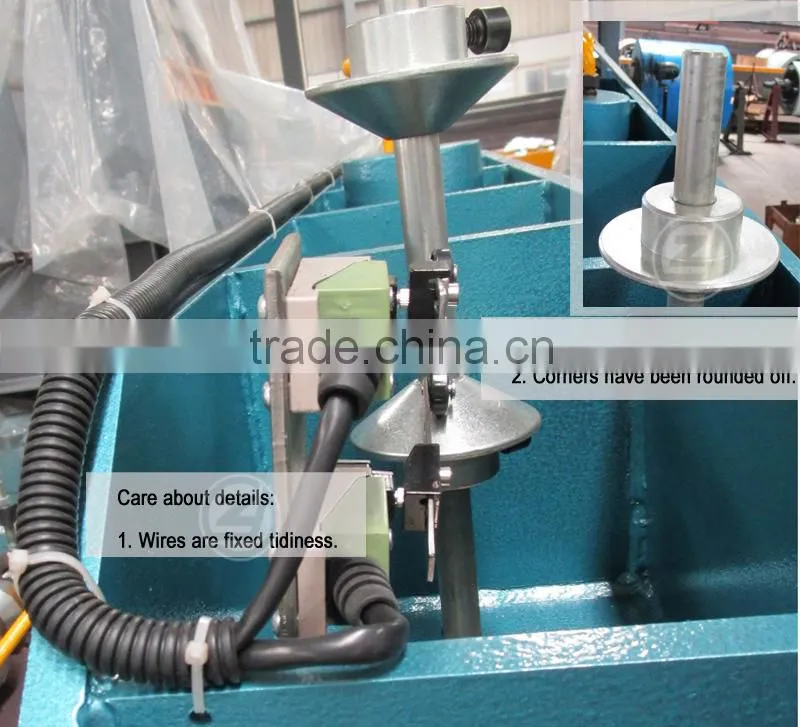

Wire is fixed tidiness
Machine details

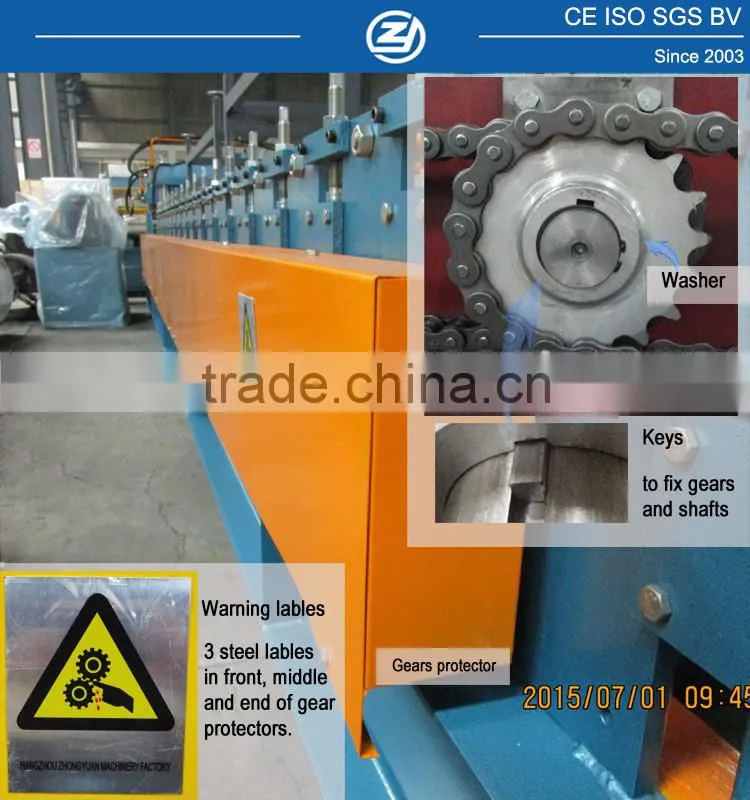

Gears with protector
Warning lables on protector
Keys to fix gears and shafts
Machine details

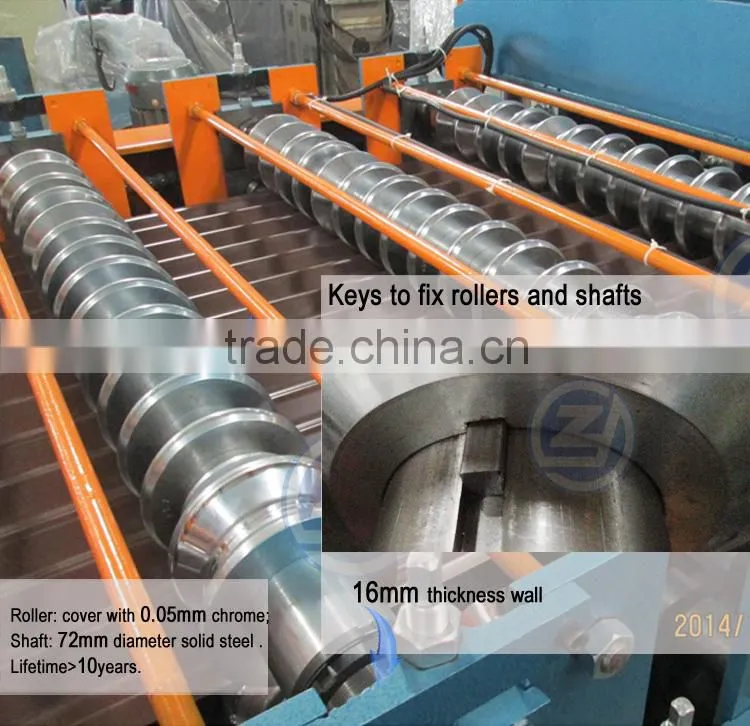

Keys to fix rollers and shafts(72mm)
rollers and shafts are solid steel
16mm thickness wall

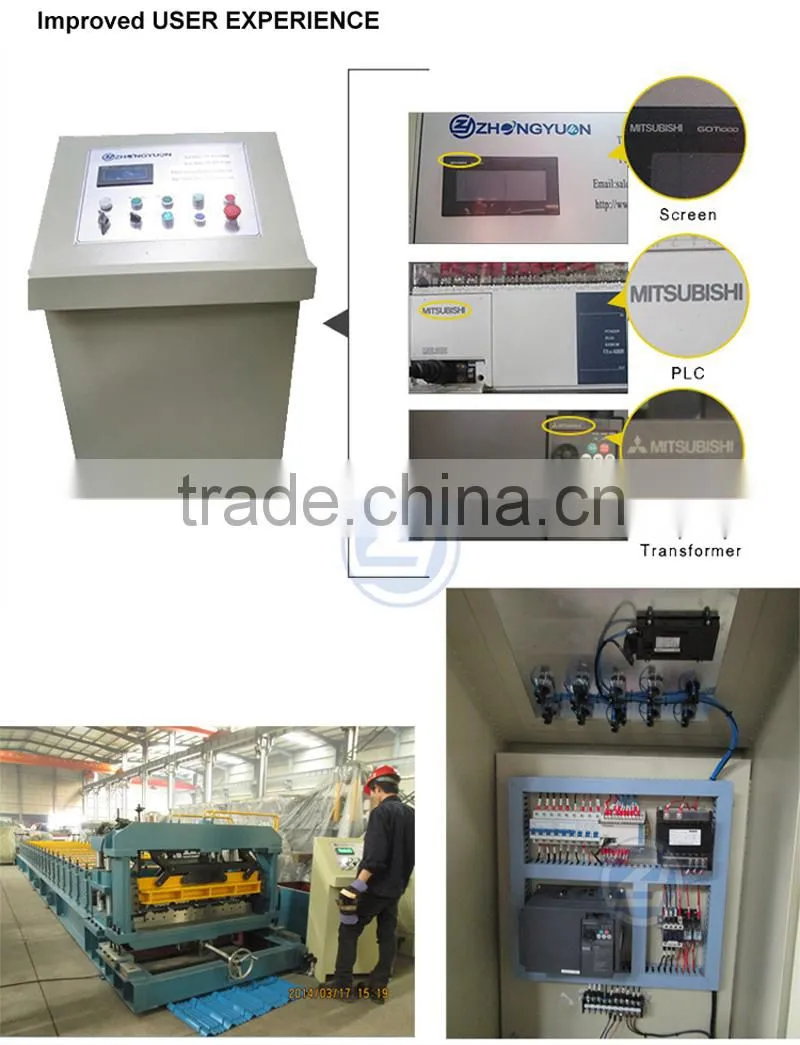

Improved USER EXPERIENCE
We choose Mitsubishi PLC from Japan.
With touch screen mode, let your workers enjoy the easy operation;
With auto working mode, let your workers free their hands!
1. Steel Profile Roll Forming Machine Technical Parameter
|
Steel Profile Roll Forming Machine | ||
Item |
Specification |
|
|
Material |
Type |
Pre-painted steel coil & galvanized coils |
Thickness |
0.3-0.7mm |
|
Yield strength |
235-345Mpa |
|
Roller material |
No.45 forged steel, with hard chrome coating 0.05mm |
|
Forming speed |
About 20-25m/min |
|
Output speed |
16m/min |
|
Speed adjusting mode |
AC Frequency |
|
Roller drive |
Decelerating motor + Chain drive |
|
Cutting mode |
Hydraulic cutting |
|
Cutter material |
Cr12 mould steel |
|
Length measurement |
Encoder |
|
Control mode |
Mitsubishi PLC |
|
Operating mode |
Button + Mitsubishi Touch screen |
|
Main motor power |
7.5KW |
|
Total power |
9.7KW |
|

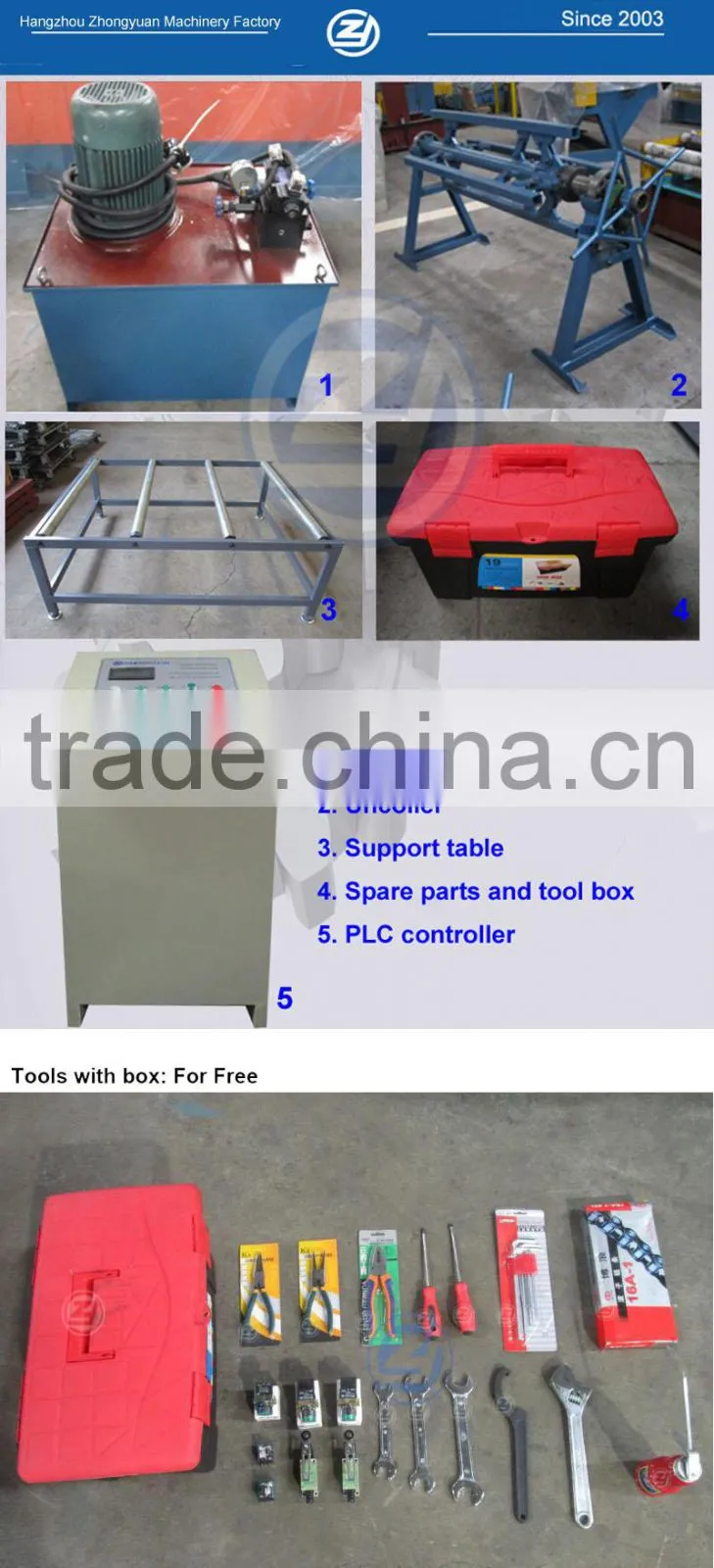

2. Steel Profile Roll Forming Machine Components
|
Decoiler (manual/ hydraulic decoiler for option) |
1set | |
| Feeding & guiding device | 2set | |
| Main roll forming machine | 2set | |
| Hydraulic cutting system | 1set (two blades) | |
| Controlling system | 1set | |
| Run out table (auto. Stacker for option) | 1.5m/ pc, 2 pcs | |
4. Steel Profile Roll Forming Machine Process flow:
Decoiler -- Feeding & Guiding -- Roll forming---Hydraulic Cutting – product to run out table
About us
We are professional in making roll forming machines since 2003.
Company occupies 6650, in which 5650 for workshops.
1. Capacity: 12-15 sets/month
2. Delivery: in only 5-8 weeks for urgent order
3. Have our own tool center. 12 sets CNC machines to process machine rollers.
4. Zhongyuan is a "All-in-house source"
--from raw material to the final high-precision forming machine. We have our precise tooling center.
5. Over 15 years engineers to design and make your machines.
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our factory.
6) Q: Do you have steel profile roll forming machine in stock?
A: No, this machine is made to order. We delivery it within 60 days.
7) Q: Will you deliver the right goods as ordered? How can I trust you?

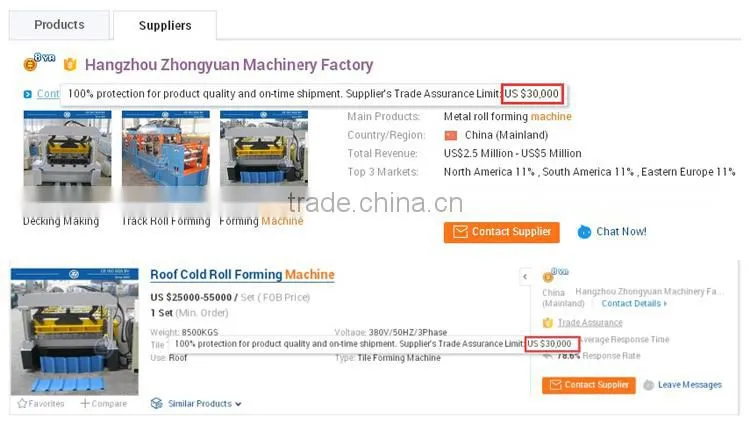

A: Yes, we will. We are ALIBAB’s Gold supplier with BV assessment (Audit report can be provided).
We join Alibaba Trade Assurance.
8) What should I provide if I`d love to customized my machine?
A: To customize machine, we`d love to know:
1. Profile drawing
2. Raw material: the width(1250mm?), thickness(0.3-0.7mm?), and yield strength of steel coil.
3. Voltage: designed per your requirement
4. Configuration requirement: Hydraulic or manual decoiler/ stacker
Have no idea about them?
We will be glad to recommend machines ----Just let us know your country!
Lifetime services;
Technician can be sent to your factory to install the machine and train your workers
Get Free:
"Send" below to get profile drawing & design support by our 15 year experience technicians FOR FREE!
