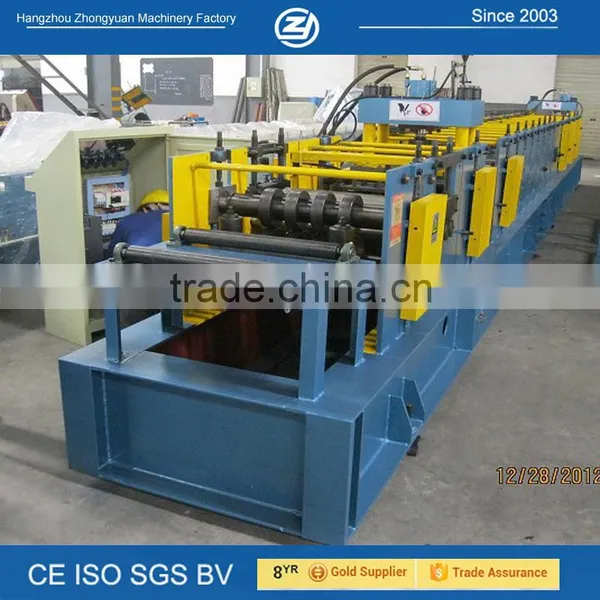

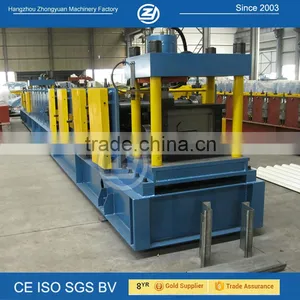

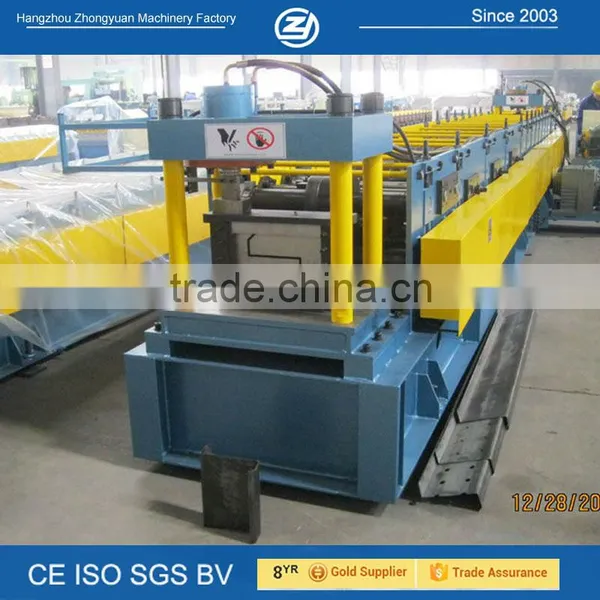

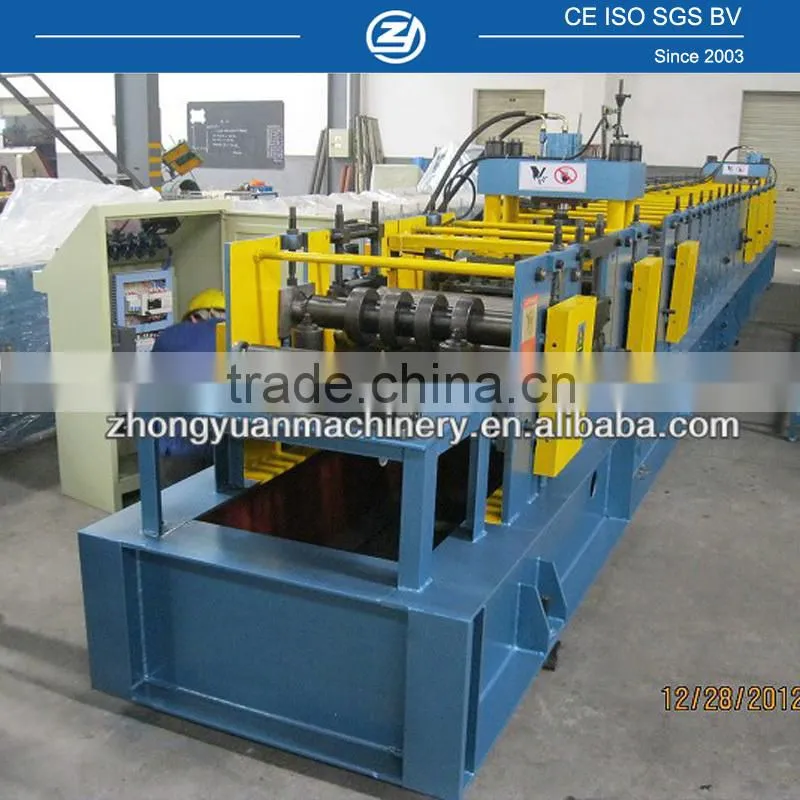

Maquina para Correas Estructurales en Z
Machine details
4 emergency switches in front and back of machine.
Wire is Double protected.
Machine details
Wire is fixed tidiness
Machine details
Gears with protector
Warning lables on protector
Keys to fix gears and shafts
Improved USER EXPERIENCE
We choose Mitsubishi PLC from Japan.
With touch screen mode, let your workers enjoy the easy operation;
With auto working mode, let your workers free their hands!
Why choose this machine?
1. Certificate: ISO 9001, CE,
2. Lifetime services
3. Introduced Mitsubishi PLC with touch screen to machine controll system.

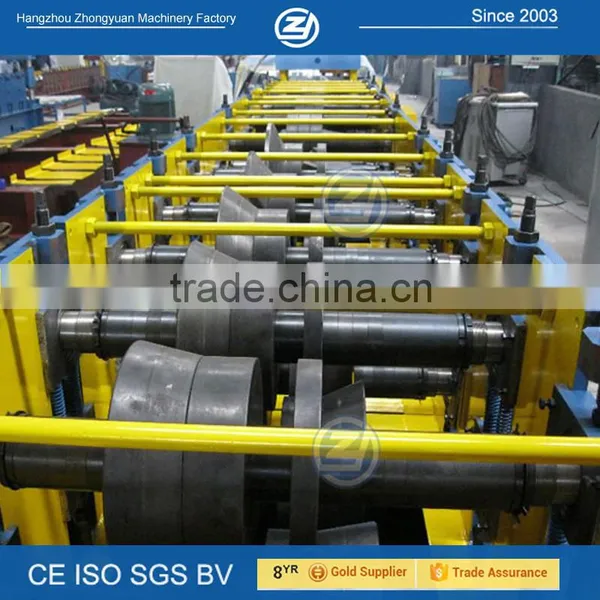

4. Cr12 mould steel rollers; 82mm diameter solid steel shaft. Lifetime>10years.
5. One worker operation (minimum)
6. Heat treatment:Cutting blade. Quenched treatment: Cr12 mould steel cutter
7. Product cut-to-length.
8.Technician overseas installing and training available
1.Technical parameter:
Item |
Specification |
|
|
Material |
Type |
Galvanized coils |
Thickness |
1.5-3mm |
|
Yield strength |
235Mpa |
|
Roller material |
Cr12 mould steel |
|
Forming speed |
10-15m/min |
|
Output speed |
6-8m/min |
|
Speed adjusting mode |
AC Frequency |
|
Roller drive |
Decelerating motor + Chain drive |
|
Cutting mode |
Hydraulic cutting |
|
Cutter material |
Cr12 mould steel |
|
Length measurement |
Encoder |
|
Control mode |
Mitsubishi PLC |
|
Operating mode |
Button + Mitsubishi Touch screen |
|
Main motor power |
15KW |
|
Hydraulic station power |
5.5KW |
|
2. Main parts of machine:
Decoiler |
1set |
Feeding & guiding device |
1set |
Leveling device |
1 set |
Punching device |
Depend on final design |
Main roll forming machine |
1set |
Hydraulic cutting system |
1set |
Controlling system |
1set |
Run out table |
1set |
3. Working folw:
Decoiler--Feeding & Guiding--Leveling--Punching--Roll forming--Hydraulic cutting--Products to run out table
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our factory.
6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.
7) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are ALIBAB’s Gold supplier with BV assessment (Audit report can be provided).
We join Alibaba Trade Assurance.
8) What should I provide if I`d love to customized my machine?
A: To customize machine, we`d love to know:
1. Profile drawing
2. Raw material: the width(1250mm?), thickness(0.3-0.7mm?), and yield strength of steel coil.
3. Voltage: designed per your requirement
4. Configuration requirement: Hydraulic or manual decoiler/ stacker
Have no idea about them?
We will be glad to recommend machines ----Just let us know your country!
Lifetime services;
Technician can be sent to your factory to install the machine and train your workers
Get Free:
"Send" below to get profile drawing & design technical support by our 15 year experience technicians FOR FREE!
