1. Why choose this machine ?
1. Certificate: ISO 9001, CE,
2. Lifetime services
3. Roller cover with 0.05mm chrome; 72mm diameter solid steel shaft. Lifetime>10years.
4. Introduced Mitsubishi PLC with touch screen to machine controll system.
5. One worker operation (minimum)
6. Cr12 mould steel cutter with quenched treatment. Cutting blade with heat treatment.
7. Product cut-to-length.
8.Technician overseas installing and training available
2. Roof Sheet Roll Forming Machine, Metal Roll Forming Machine
Machine Parameters
Item |
Specification |
|
|
Material |
Type |
Pre-painted steel coil & galvanized coils |
Thickness |
0.3-0.7mm |
|
Yield strength |
235-345Mpa |
|
Forming speed |
20-25m/min |
|
Output speed |
8-12m/min |
|
Speed adjusting mode |
AC Frequency |
|
Cutting mode |
Hydraulic cutting |
|
Cutter material |
Cr12 mould steel |
|
Length measurement |
Encoder |
|
Control mode |
Mitsubishi PLC |
|
Main motor power |
5.5KW |
|
Total power |
7.7KW |
|
Shafts |
72mm solid steel |
|
3. Roof Sheet Roll Forming Machine, Metal Roll Forming Machine

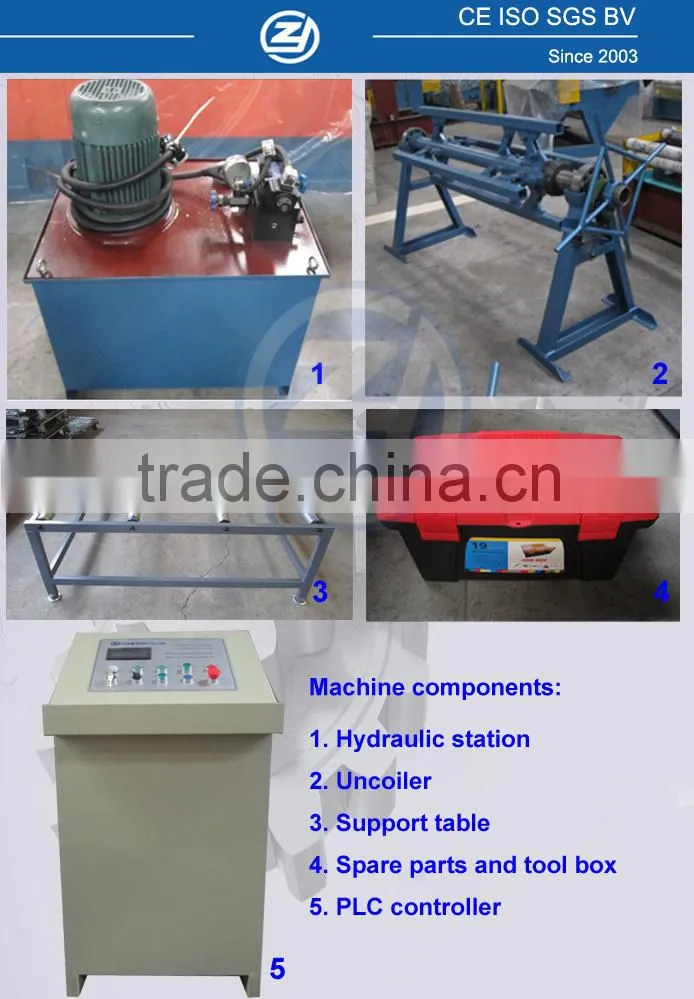

Machine Components
|
Decoiler (manual/ hydraulic decoiler for option) |
1set | |
| Feeding & guiding device | 1set | |
| Main roll forming machine | 1set | |
| Hydraulic cutting system | 1set | |
| Controlling system | 1set | |
|
Run out table (auto. Stacker for option) |
1.5m/ pc, 2 pcs | |
4. Roof Sheet Roll Forming Machine, Metal Roll Forming Machine
Process flow:
Decoiler -- Feeding & Guiding -- Roll Forming-- Hydraulic Cutting - Product to Run Out Table
Why choose this machine?

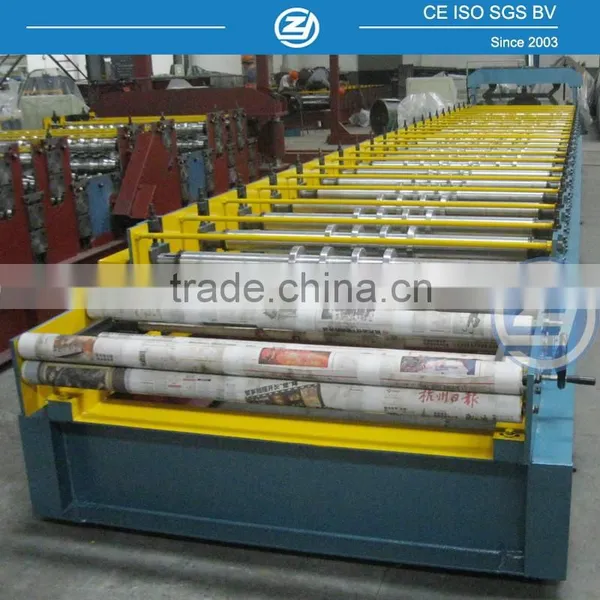

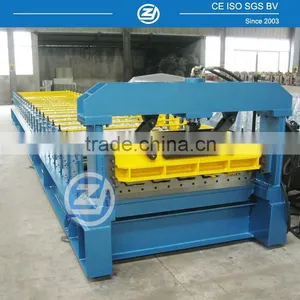

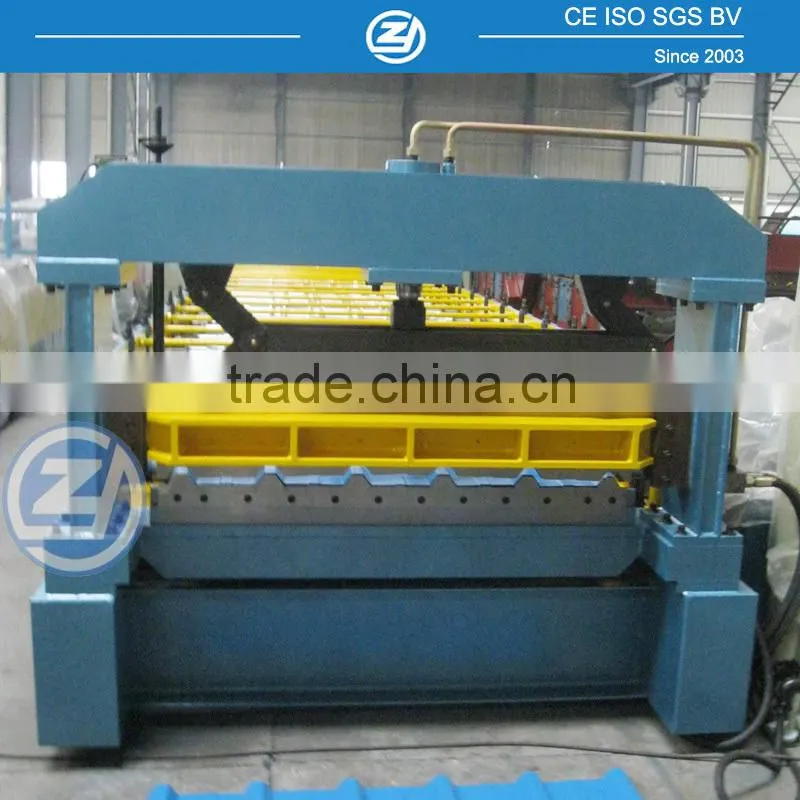

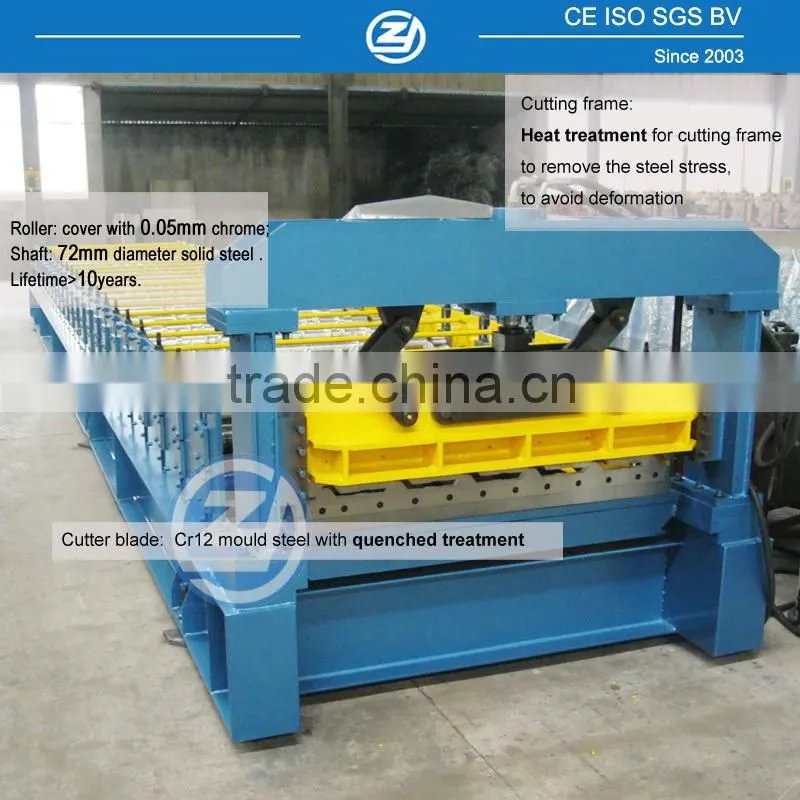

Machine overview
Roof Sheet Roll Forming Machine, Metal Roll Forming Machine

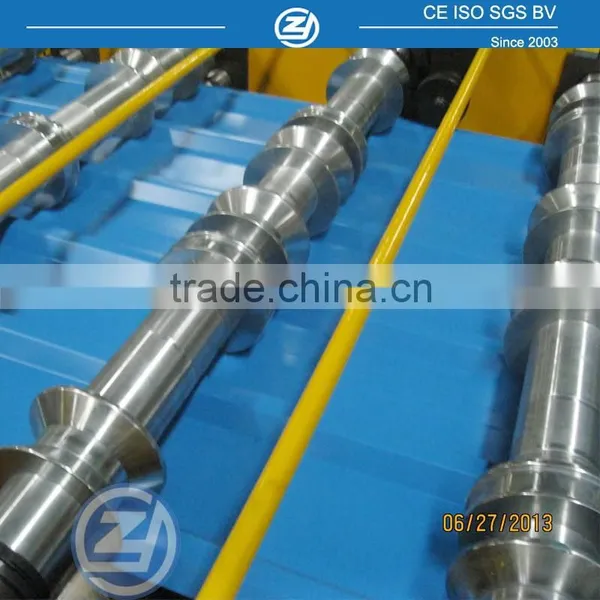

Machine details 1.
72mm diameter solid steel shaft.
Roller cover with 0.05mm chrome;
Lifetime>10years.

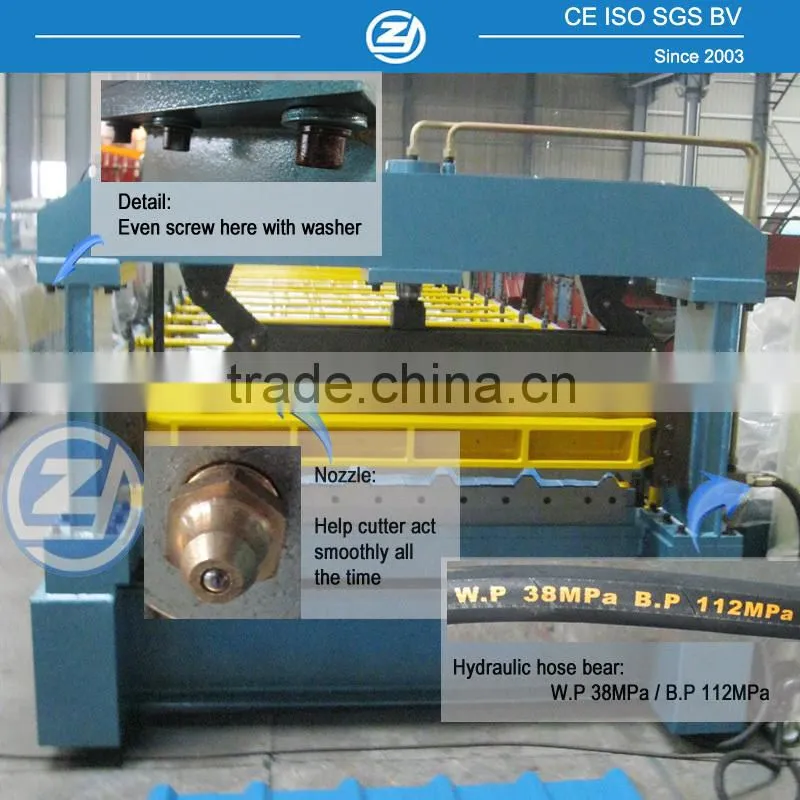

Machine details 2.
Hydraulic hose bear W.P 38mpA / B.P 112MPa.

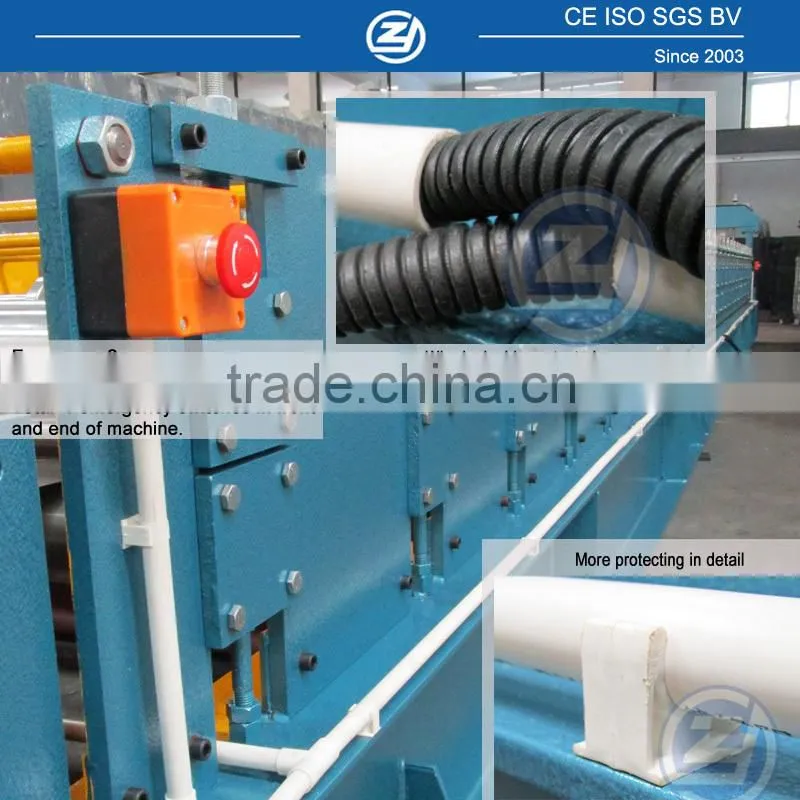

Machine details 3.
4 emergency switches in front and back of machine.
Wire is Double protected.

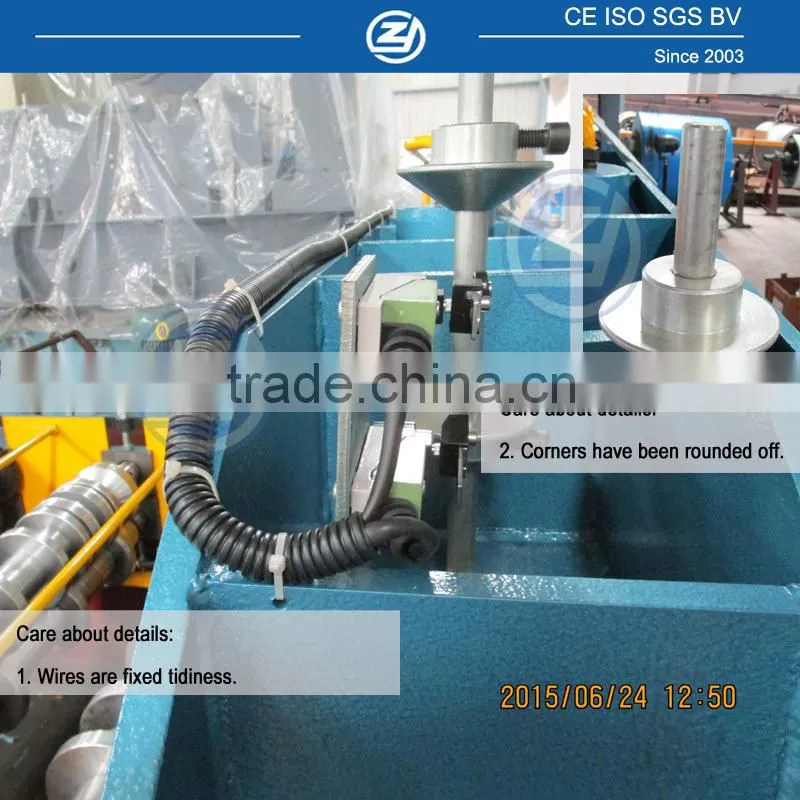

Machine details 4
Wire is fixed tidiness

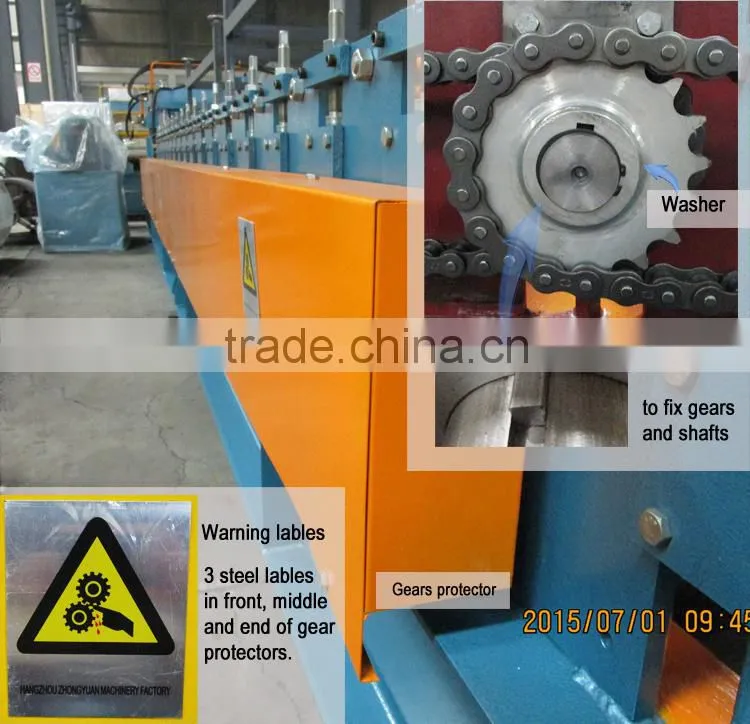

Machine details 5.
Gears with protector
Warning lables on protector
Keys to fix gears and shafts

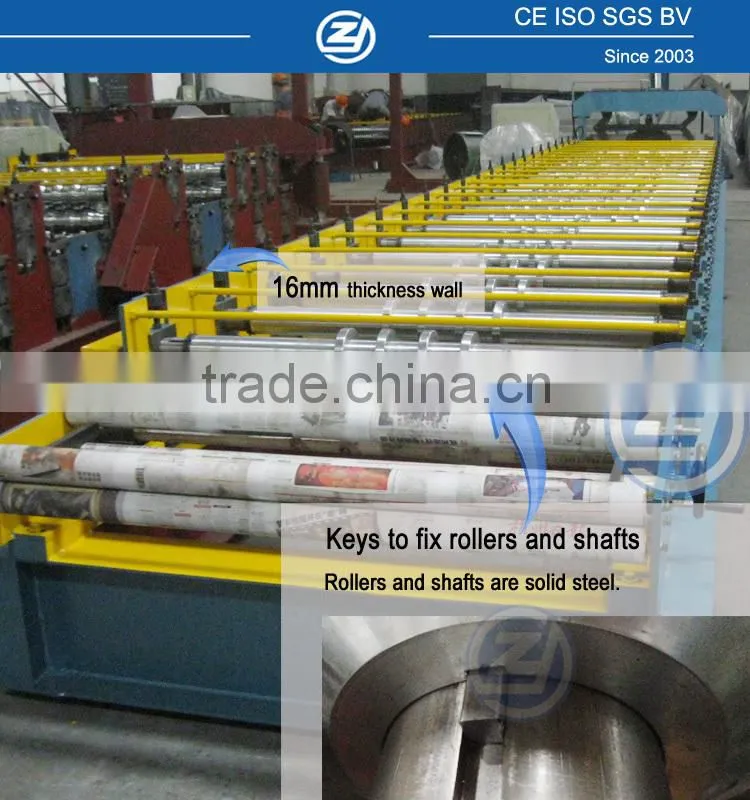

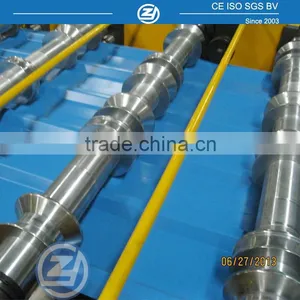

Machine details 6.
Keys to fix rollers and shafts(72mm)
rollers and shafts are solid steel
16mm thickness wall

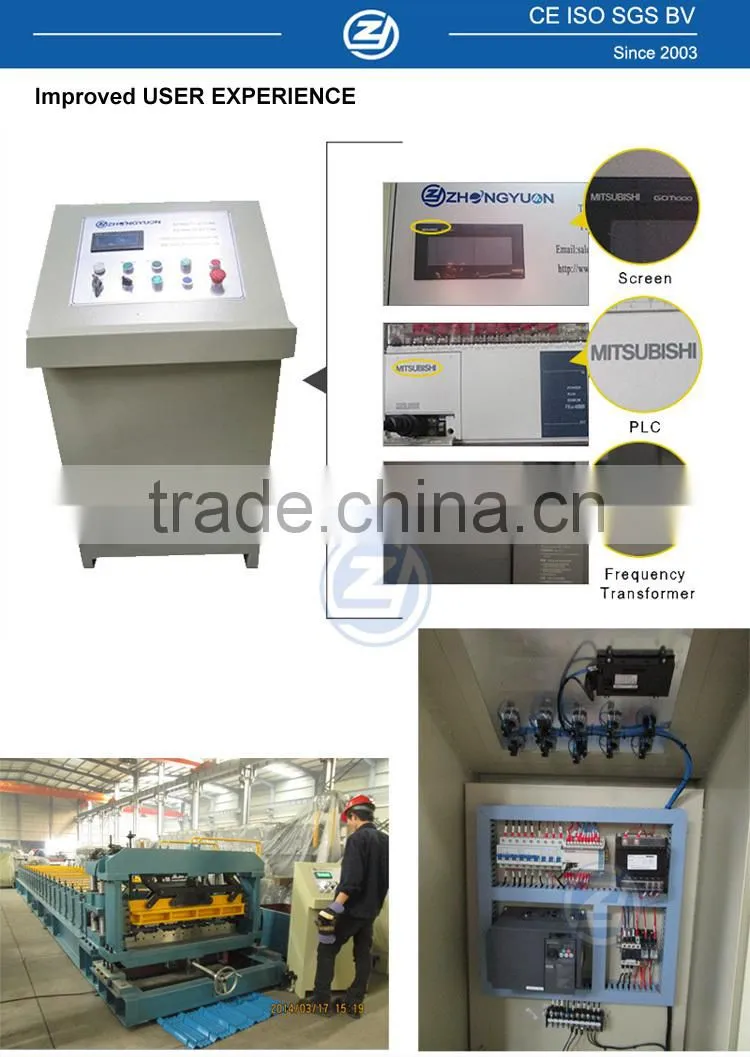

Improved USER EXPERIENCE
We choose Mitsubishi PLC from Japan.
With touch screen mode, let your workers enjoy the easy operation;
With auto working mode, let your workers free their hands!

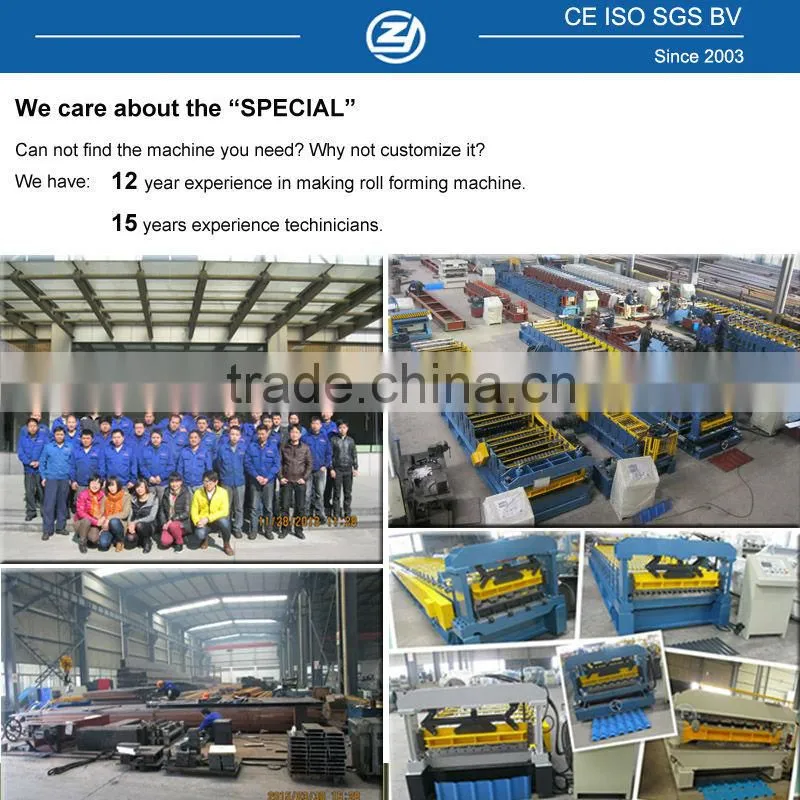

About us
We are professional in making roll forming machines since 2003.
Company occupies 6650, in which 5650 for workshops.
1. Capacity: 12-15 sets/month
2. Delivery: in only 5-8 weeks for urgent order

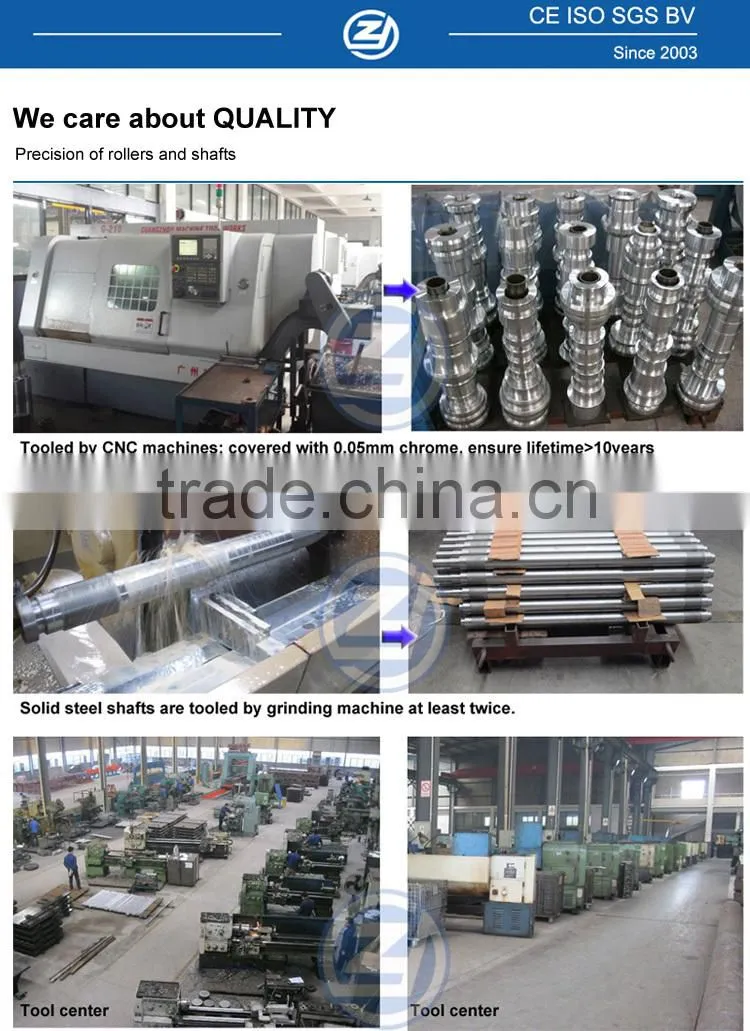

3. Have our own tool center. 12 sets CNC machines.
4. Zhongyuan is a "All-in-house source"
--from raw material to the final high-precision forming machine. We have our precise tooling center.
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .

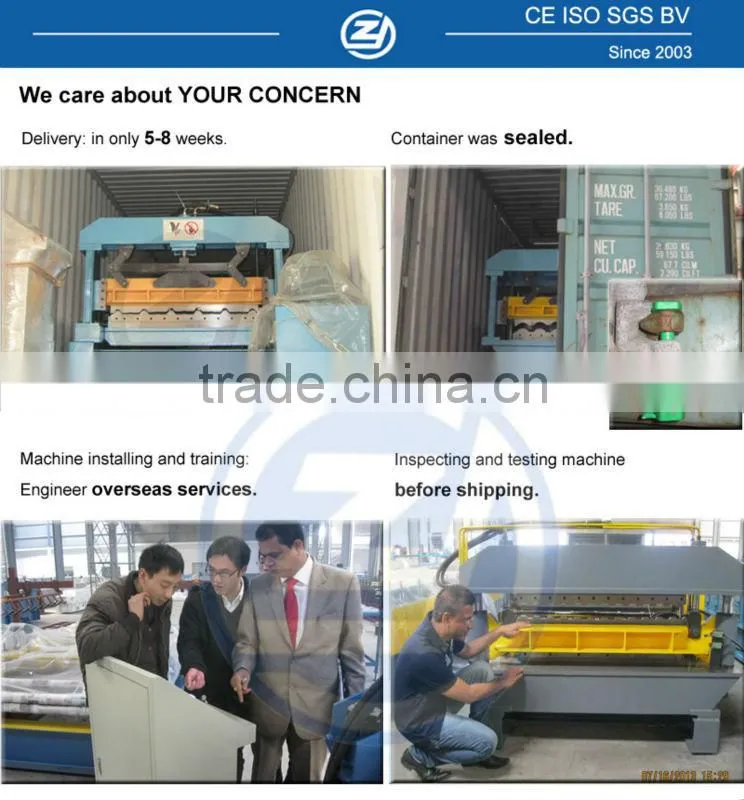

2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our factory.
6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.
7) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are ALIBAB’s Gold supplier with BV assessment (Audit report can be provided).
8) What should I provide if I`d love to customized my machine?
A: To customize machine, we`d love to know:
1. Profile drawing
2. Raw material: the width(1250mm?), thickness(0.3-0.7mm?), and yield strength of steel coil.
3. Voltage: designed per your requirement
4. Configuration requirement: Hydraulic or manual decoiler/ stacker
Have no idea about them?
We will be glad to recommend machines ----Just let us know your country!
Lifetime services;
Technician can be sent to your factory to install the machine and train your workers
Get Free:
"Send" below to get profile drawing & design technical support by our 15 year experience technicians FOR FREE!
