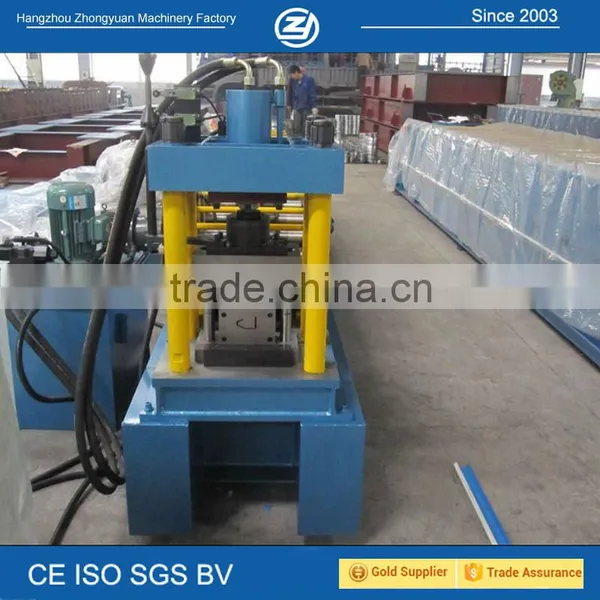

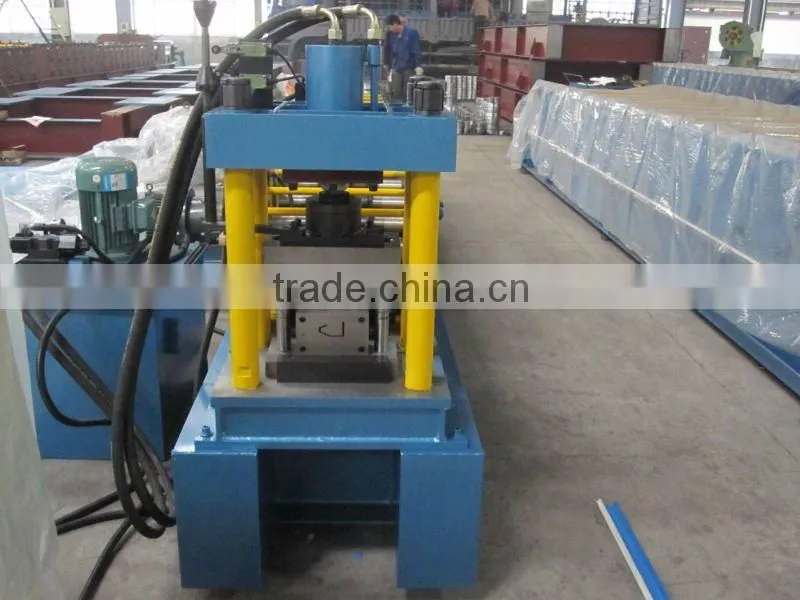

C section Machine
C section Forming Machine can produce many types of C-shaped purline.The whole line mainly consists of uncoiler and its base, coil sheet flattening equipment, flattening device, roll forming system, punching equipment, cutting equipment, hydraulic station, PLC controlling system and support table.
Product Feature And Usage:
The C -shaped purlines formed by this machine have excellent anti-bending property and are easy to install. They are widely used as the supporter of roof and wall in large-scale and mid-scale construction, such as factory, warehouse, garage, exhibition center, cinema, theatre, garden and so on.
Machine detail
| |
| Suitable material: glazed/ galvanize/ color coated steel | |
| Steel thickness: 03.-0.8mm | |
| Steel yield strength: 235-345 Mpa | |
| Machine size: About 10*1.7*1.6m | |
| Machine weight: About 8 tons |
|
Manual decoiler
|
| Loading capacity: 3ton |
| Coil inner diameters: 508/610mm |
| |

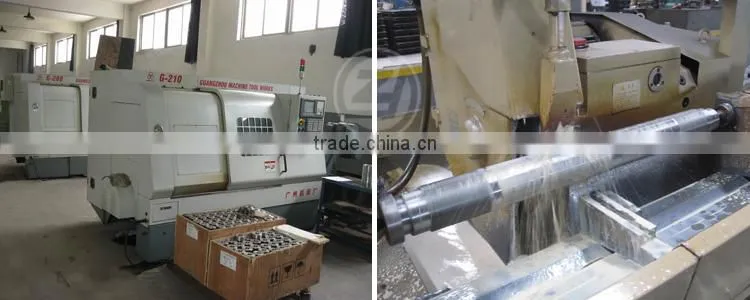

| Roller material: No. 45 forged solid steel; processed by CNC | |
| Shafts material: No. 45 forged solid steel; tooled by grinding machine at least twice | |
| Shafts diameter: 72mm | |
| Transimission: By chain | |
| Main motor: 7.5 kw | |
| Forming speed: 15m/min | |
| Out put speed: 8m/min | |
|

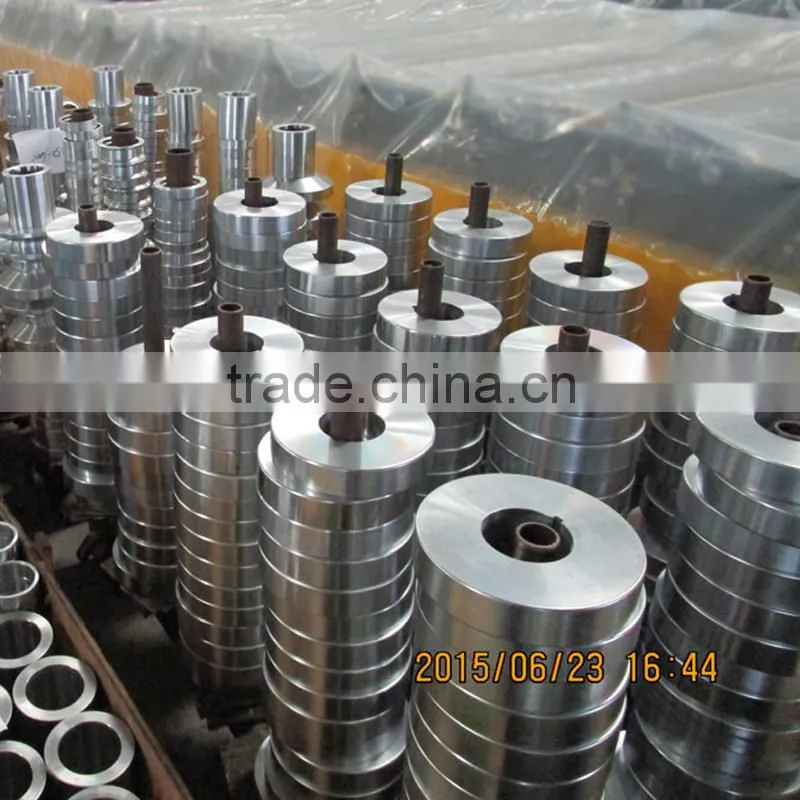

Rollers

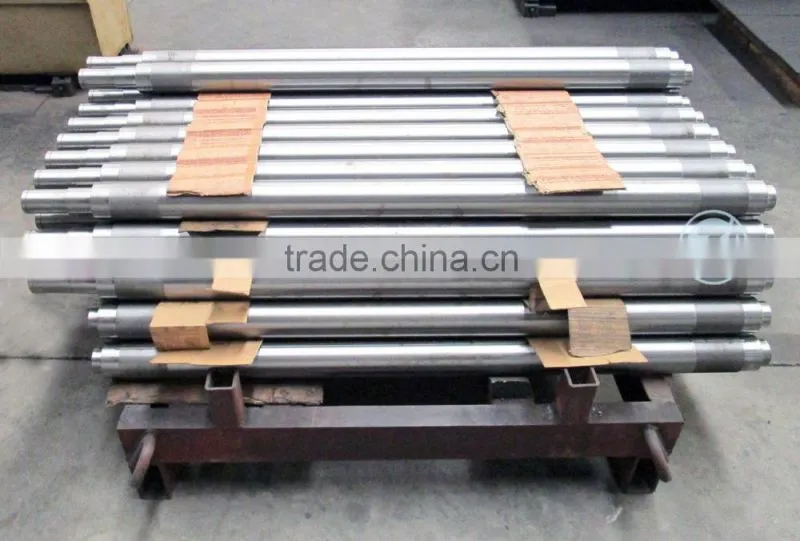

Shafts
|
|

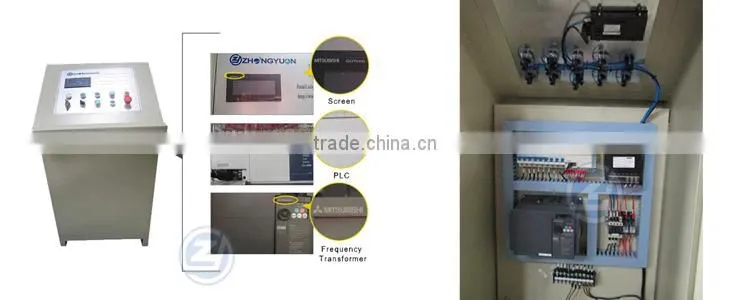

| Converter: Mitsubishi from Japan |
| Touch screen: Mitsubishi from Japan |
| Language: English or as required |
|

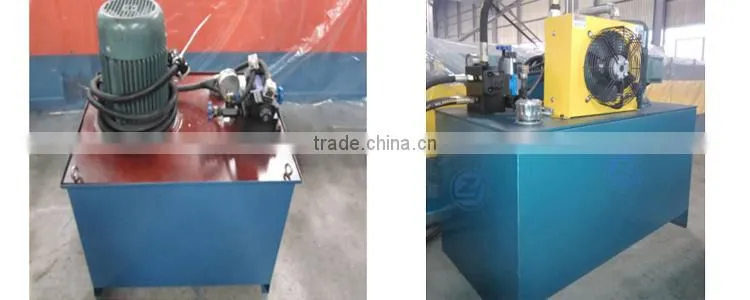

| Motor: 2.2kw |
| Oil: No 46. Hydraulic oil |
| Cooling sytem: Fan (or water for option) |
|

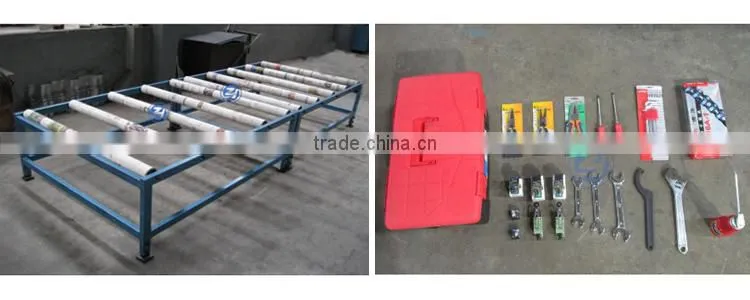

Support table Tool box (for free)
|
| Size: 1.5m/pc, total 2 pcs |
| Automatic: Can customize |
Main Technical Specification:
1.Size: about 12000mm×2400mm×1400mm
2.Total weight:about 2,500kg
3.Controlling system: PLC
4.Power requirement:
Main motor power: 7.5kw Hydraulic power: 2.2kw
5. roller stations : 13
Suitable Material For Production:
Cold-rolled steel strip and heat-treated galvanized steel strip.
Material thinckness:1.5 mm.
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our factory.
6) Q: Do you have this C section machine in stock?
A: No, machine is made to order.
7) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are ALIBAB’s Gold supplier with BV assessment (Audit report can be provided).
We join Alibaba Trade Assurance.
8) What should I provide if I`d love to customized my machine?
A: To customize machine, we`d love to know:
1. Profile drawing
2. Raw material: the width(1250mm?), thickness(0.3-0.7mm?), and yield strength of steel coil.
3. Voltage: designed per your requirement
4. Configuration requirement: Hydraulic or manual decoiler/ stacker
Have no idea about them?
We will be glad to recommend machines ----Just let us know your country!
9) How is your cooperate process?
A: Below is the cooperation flow chart
Lifetime services;
Technician can be sent to your factory to install the machine and train your workers
Get Free:
"Send" below to get profile drawing & design support by our 15 year experience technicians FOR FREE!
