Metal Purling Making Machine, Z Purlin Forming Machine
Parameter of metal purling making machine
Why choose this machine?
1. Certificate: ISO 9001, CE,
2. Lifetime services

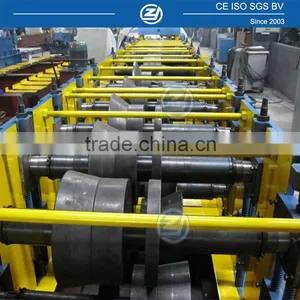

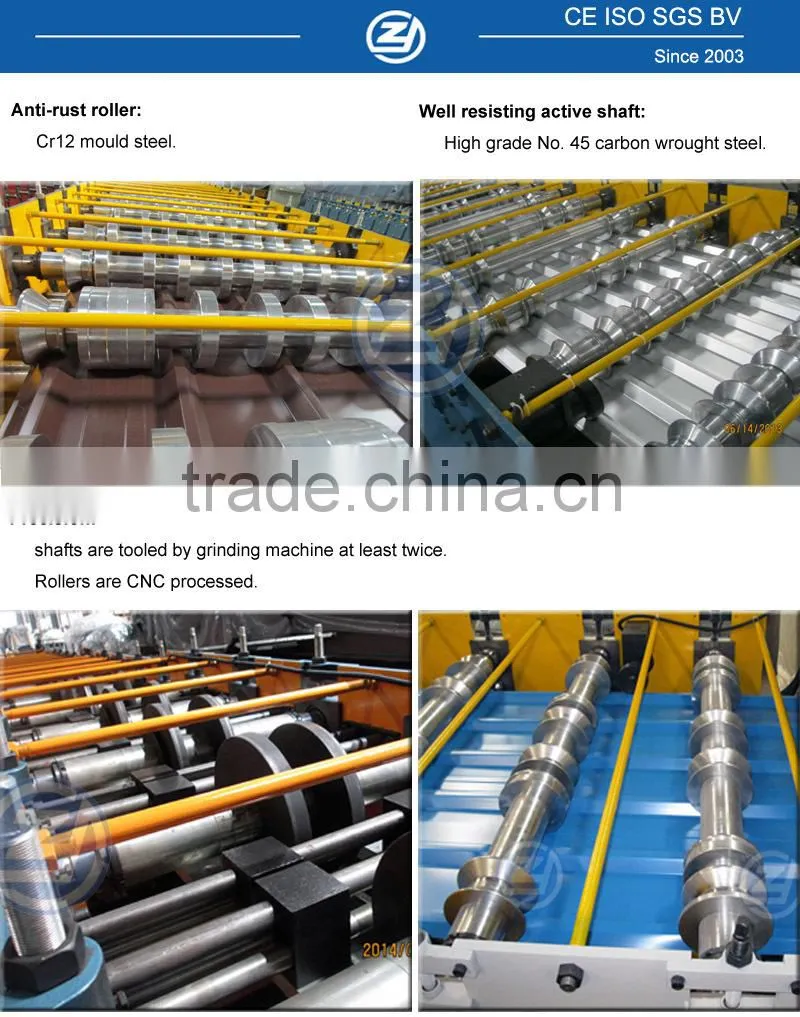

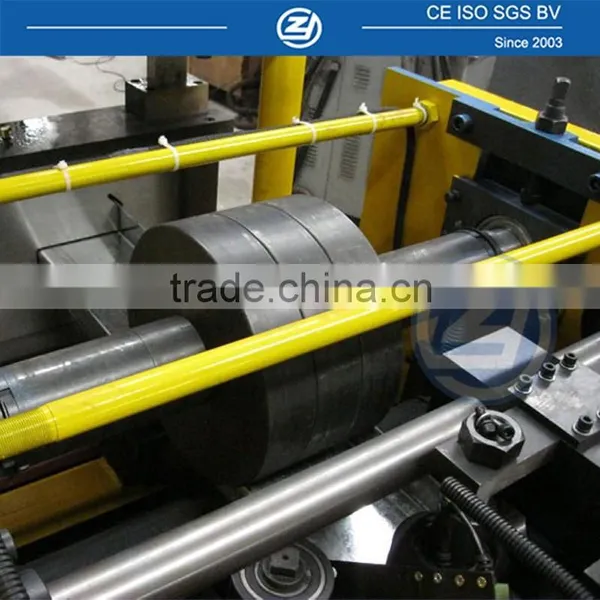

3. Cr12 mould steel rollers; 82mm diameter solid steel shafts. Lifetime>10years.
4. Introduced Mitsubishi PLC with touch screen to machine controll system.
5. One worker operation (minimum)

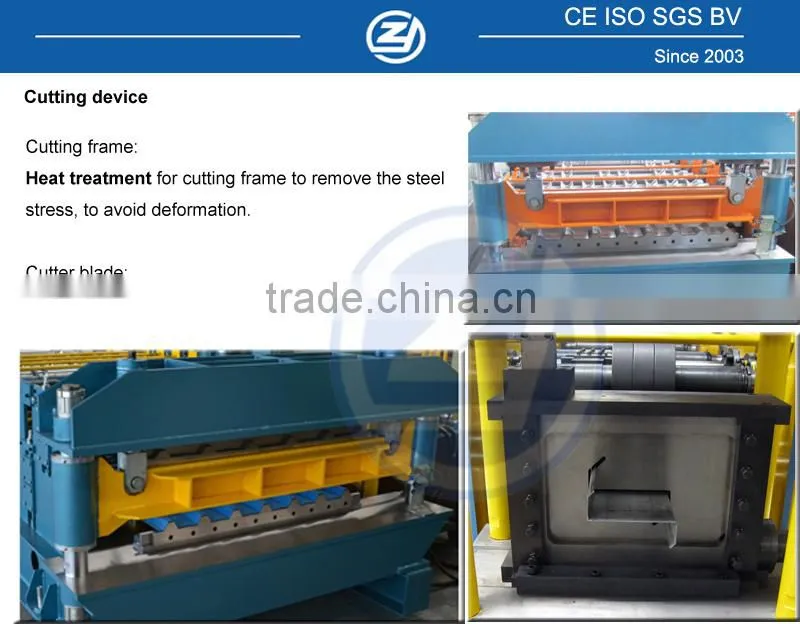

6. Heat treatment:Cutting blade. Quenched treatment: Cr12 mould steel cutter

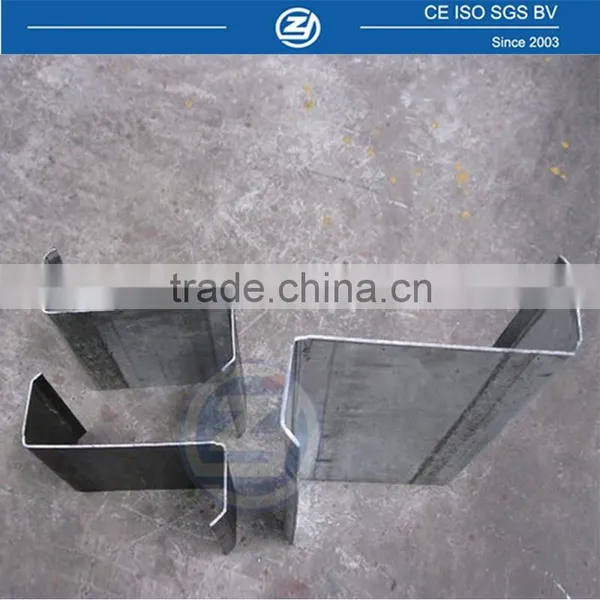

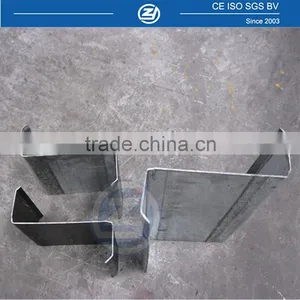

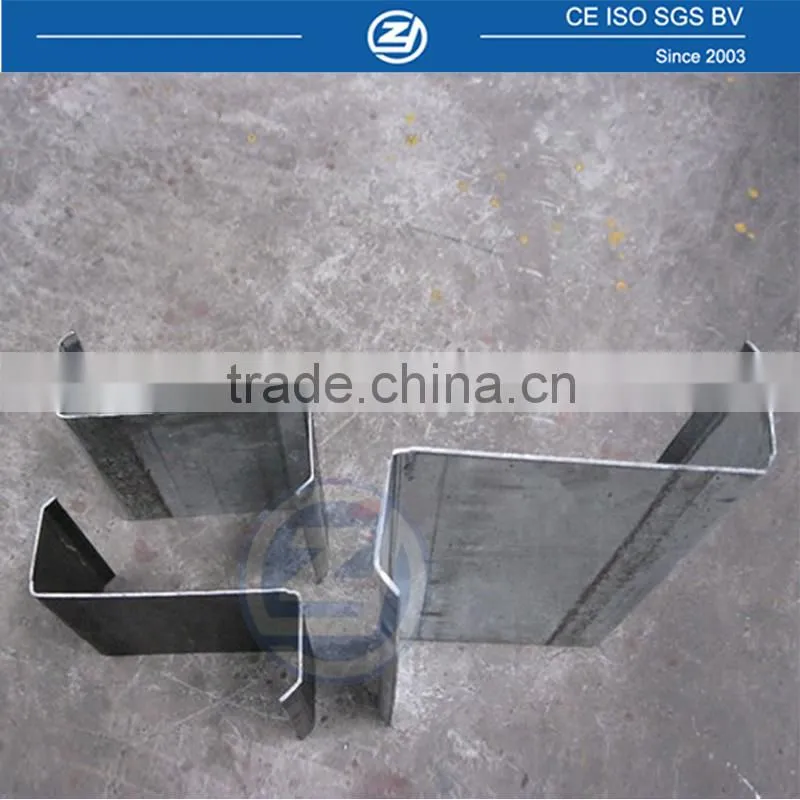

7. Product cut-to-length.
8.Technician overseas installing and training available
1.Technical parameter
Item |
Specification |
|
|
Material |
Type |
Galvanized coils |
Thickness |
1.5-3mm |
|
Yield strength |
235Mpa |
|
Roller material |
Cr12 mould steel |
|
Forming speed |
10-15m/min |
|
Output speed |
6-8m/min |
|
Speed adjusting mode |
AC Frequency |
|
Roller drive |
Decelerating motor + Chain drive |
|
Cutting mode |
Hydraulic cutting |
|
Cutter material |
Cr12 mould steel |
|
Length measurement |
Encoder |
|
Control mode |
Mitsubishi PLC |
|
Operating mode |
Button + Mitsubishi Touch screen |
|
Main motor power |
15KW |
|
Total power |
20.5KW |
|
2. Main parts
Decoiler |
1set |
Feeding & guiding device |
1set |
Leveling device |
1 set |
Punching device |
Depend on final design |

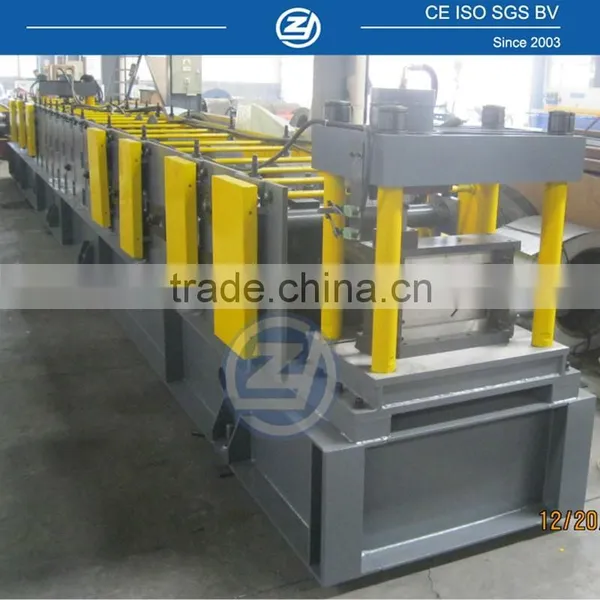

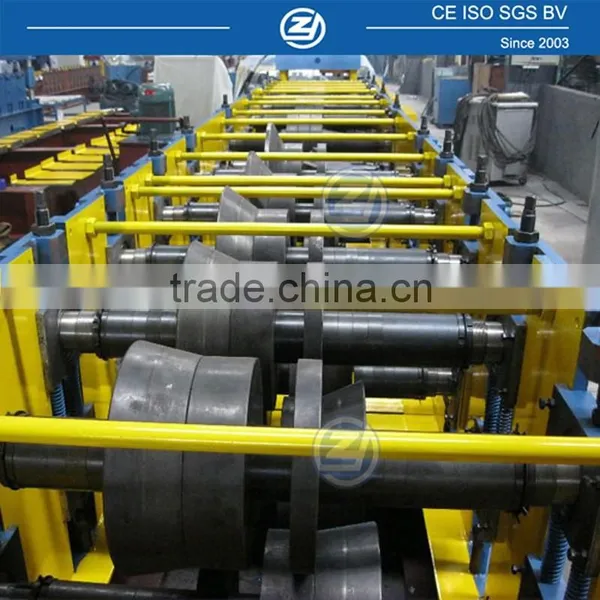

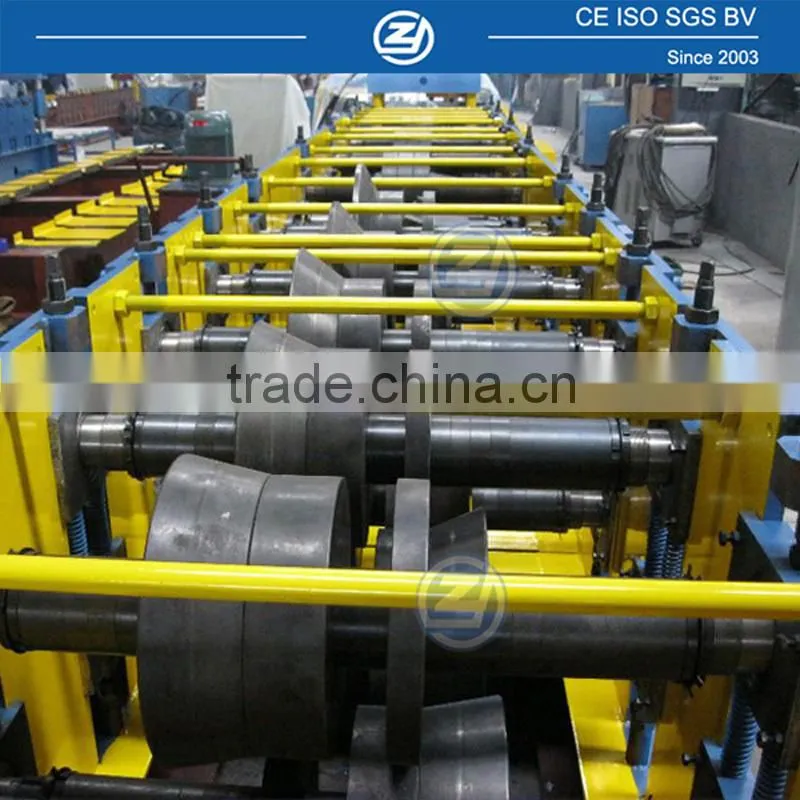

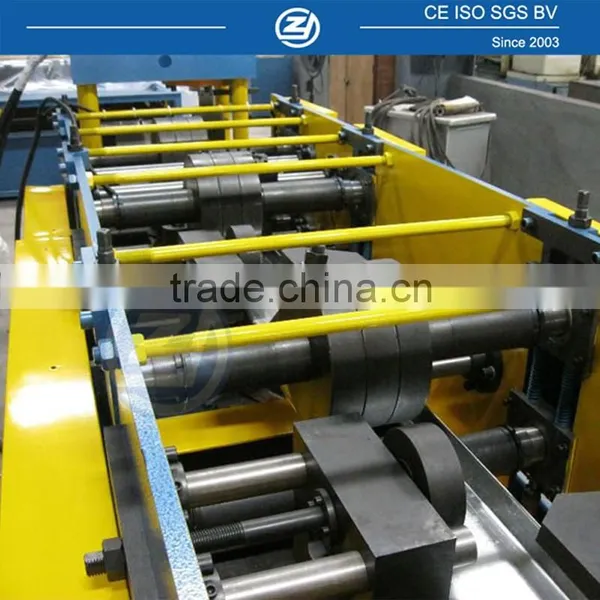

Main roll forming machine |
1set |

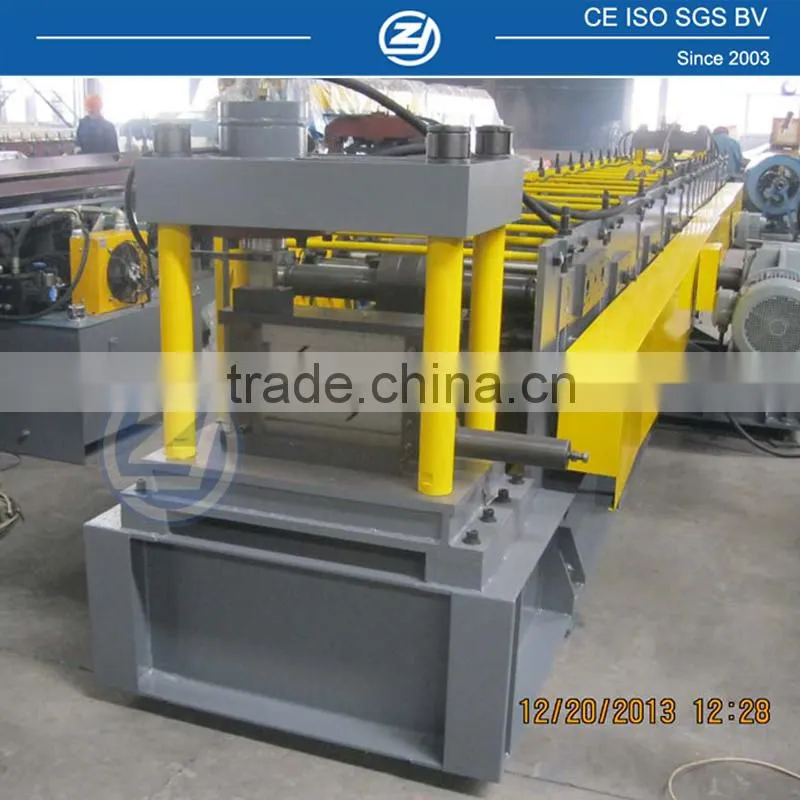

Hydraulic cutting system |
1set |
Controlling system |
1set |
Run out table |
1set |
3. Working folw
Decoiler--Feeding & Guiding--Leveling--Punching--Roll forming--Hydraulic cutting--Products to run out table
About us
We are professional in making roll forming machines since 2003.
Company occupies 6650, in which 5650 for workshops.
1. Capacity: 12-15 sets/month
2. Delivery: in only 5-8 weeks for urgent order
3. Have our own tool center. 12 sets CNC machines to process machine rollers.
4. Zhongyuan is a "All-in-house source"
--from raw material to the final high-precision forming machine. We have our precise tooling center.
5. Over 15 years engineers to design and make your machines.
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.
3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.
5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome you visit us and test machine by yourself in our factory.
6) Q: Do you sell have this metal purlin making machine in stock?
A: No, machine is made to order.
7) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are ALIBAB’s Gold supplier with BV assessment (Audit report can be provided).
We joined Alibaba trade assurance. With Trade Assurance, you’re covered for On-time shipment and Pre-shipment product quality (Optional).
8) What should I provide if I`d love to customized my machine?
A: To customize machine, we`d love to know:
1. Profile drawing
2. Raw material: the width(1250mm?), thickness(0.3-0.7mm?), and yield strength of steel coil.
3. Voltage: designed per your requirement
4. Configuration requirement: Hydraulic or manual decoiler/ stacker
Have no idea about them?
We will be glad to recommend machines ----Just let us know your country!
9) How is your cooperate process?
A: Below is the cooperation flow chart
Lifetime services;
Technician can be sent to your factory to install the machine and train your workers
Get Free:
"Send" below to get profile drawing & design technical support by our 15 year experience technicians FOR FREE!
