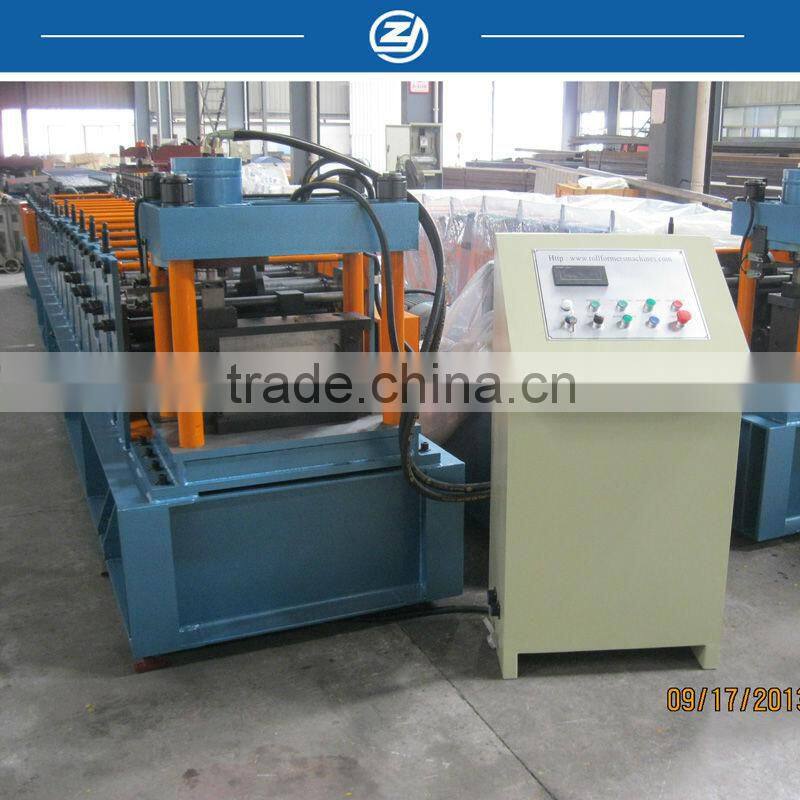

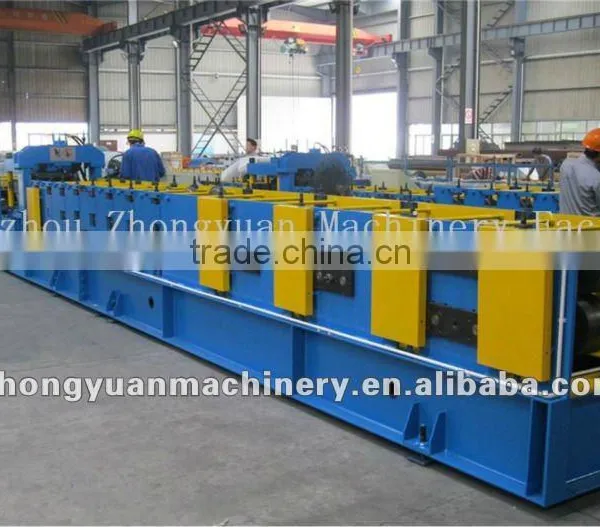

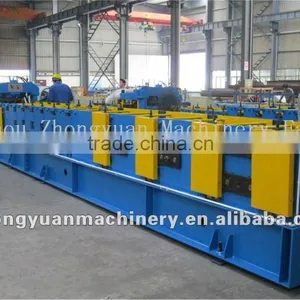

Heavy Duty C Purlin Roll Forming Machine
Product Feature

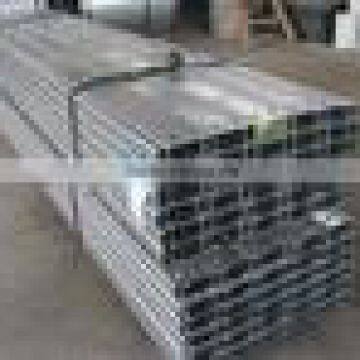

The C-shaped purlines formed by C shape roll forming machine have excellent anti-bending property and are easy to install. They are widely used as the supporter of roof and wall in large-scale and mid-scale construction, such as factory, warehouse, garage, exhibition center, cinema, theatre, garden and so on.
Machien was designed by 15 years experienced R&D members with lifetime services.
Certificate: ISO 9001, CE,
Cr12 mould steel cutter with quenched treatment.
Improved structure, more stable cutting performance.
1. Main technical Parameters
Item | Specification | |
Material | Type | Galvanized coils |
Thickness | 1.5-3mm | |
Yield strength | 235Mpa | |
Roller material | Cr12 mould steel | |
Forming speed | 10-15m/min | |
Output speed | 6-8m/min | |
Speed adjusting mode | AC Frequency | |
Roller drive | Decelerating motor + Chain drive | |
Cutting mode | Hydraulic cutting | |
Cutter material | Cr12 mould steel | |
Length measurement | Encoder | |
Control mode | Mitsubishi PLC | |
Operating mode | Button + Mitsubishi Touch screen | |
Main motor power(kw) | 15KW | |
Total power(kw) | 20.5KW | |
2. Components
2.1 Components spec.:
1. Decoiler Max. Capacity: 3000kgs
2. Hydraulic station power: About 5.5Kw (Depend on final design)
3. Control system: Mitsubishi PLC with touch screen
4. Cutting length: Cut-to-length
3.Process flow:
Decoiler -- Feeding & Guiding – Leveling--Punching--Roll forming---Hydraulic Cutting – product to run out table
4. Rollers and shafts

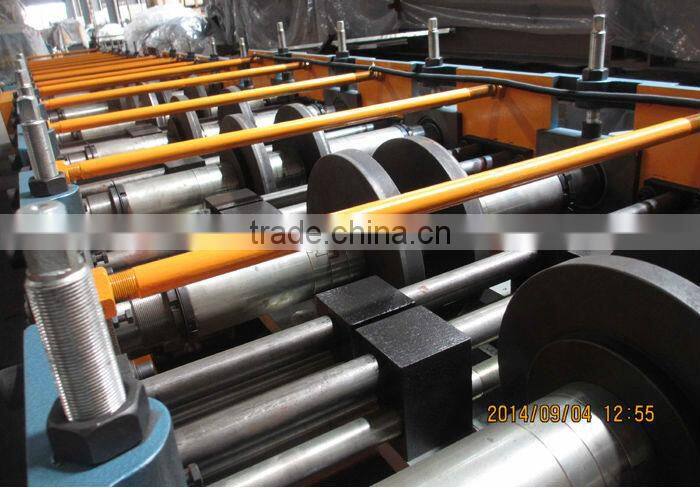

Rollers material: No.45 Forged Steel with Hard Chrome
Shafts for rollers: Grand twice, 72mm diameter solid steel
Process of rollers and shafts

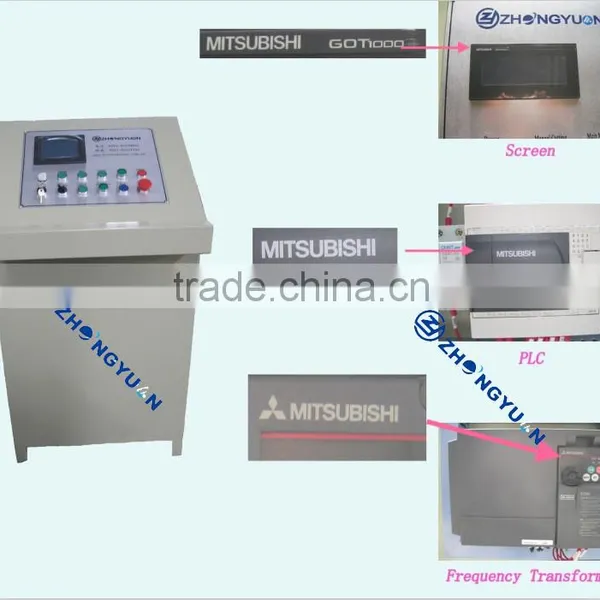

PLC Controller for machine controller system
Operation mode: Button + Touch screen
Inside of PLC Controller for reference
Please feel free to contact us for more information!
