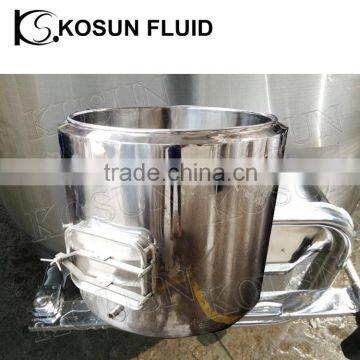

Stainless steel food grade beer mash tun vessel
Please contact us with your specification of the stainless steel tank you want, Our engineering team will give you the best solutions and drawings to confirm the design, We provide excellent finish tanks, all weldings ground smoth to meet the highest requirement for food grade application.
Our products range including whole brewing system , Fermenter tank, Jacket kettle ,mash tun ,with high or low pressure, Jacketed or Non jacketed.
This mash system is primarily composed of mash tun, lauter tun, brew kettle whirlpool kettle etc.
All the system is made from high quality stainless steel steel 304 with the international standard.
The inner part of our machines in touch with mash or other materials has gone through the mirror polishing process, and the other part receives a Matt finish. In this way, we can provide our clients with a mash system featuring high technology, superior quality, low price ,and beautiful appearance.The working volume ranges from 100L to 10,000L
Full stainless steel work platform w safety railing and non-slip substrate
Stainless steel brewhouse, piping, valves, clamps and fittings
Sanitary Single Stage Heat Exchanger 100 sq. ft. surface area
Control System
- Fully automated with PLC and oversized touch screen display
- Brew recipe storage and recall
- Step mash program sequencing and recipe storage
- Pneumatic actuated fluid valve system
- Automatic steam valve controls (steam valves not included)
- Automatic temperature controls (brew house and cellar tanks)
- Variable frequency speed control on all pumps and motors
- Remote auger on/off control
Mash / Lauter Tun
- Stainless steel grist hydrator w/ hot & cold hydration inlet
- Upper and lower steam jackets w/ independent valve control
- Heavy Duty false bottom with pillar support system
- CIP spray nozzles under false bottom
- Multiple wort drain locations
- Fully insulated vessel
- Stainless steel cladding
- SS CIP spray ball with 360° of coverage.
- Interior light
- Sparge ring assembly
- Top manway (tempered glass)
- Side manway for automatic spent grain out process
- Automatic variable speed rake system and spent grain plow
Brew Kettle / Whirlpool Tank
- Upper and lower steam jackets w/ independent valve control
- Tangential whirlpool inlet
- Fully insulated vessel
- Stainless Steel Cladding
- SS CIP spray ball with 360° of coverage.
- Top manway (tempered glass)
- Interior light
Wort Pump
- Waukesha/stainless steel wash-down pump
- VFD speed control
Whirlpool Pump
- stainless steel wash-down pump
- VFD speed control
Mash Tun | Function: mashing (convert the starches in crushed grains into sugars for fermentation) Material: SUS304 or red copper cladding Decoction mashing and infusion mashing Steam jacketed & insulation Or simple |
Lauter Tun | Function: filtering and clarifying the sugar liquid (called wort) out of the heated water-malt mixture (called mash) that comes from the mashing tun Material: SUS304 or red copper cladding V-wire false bottom Rake with motor Sight glass, CIP jets, etc for option |
Boiling Kettle
| Function: boiling for sterilization, releasing of hop flavours, bitterness and aroma compounds through isomerization, stopping of enzymatic processes, precipitation of proteins, and concentration of the wort Material: SUS304 or red copper cladding Heating method: steam, electric or direct fire Steam jacketed & insulation |
Whirlpool Tun | Function: whirlpooling, classifying Material: SUS304 or red copper cladding Tangential wort inlet |
Hot Water Tank | Function: saving and supplying hot water for mashing and sparging Material: SUS304 Heating method: steam, electric or direct fire Steam jacketed & insulation |
Heat Exchanger | Function: cooling down the wort to the fermentation temperature Two stages |
