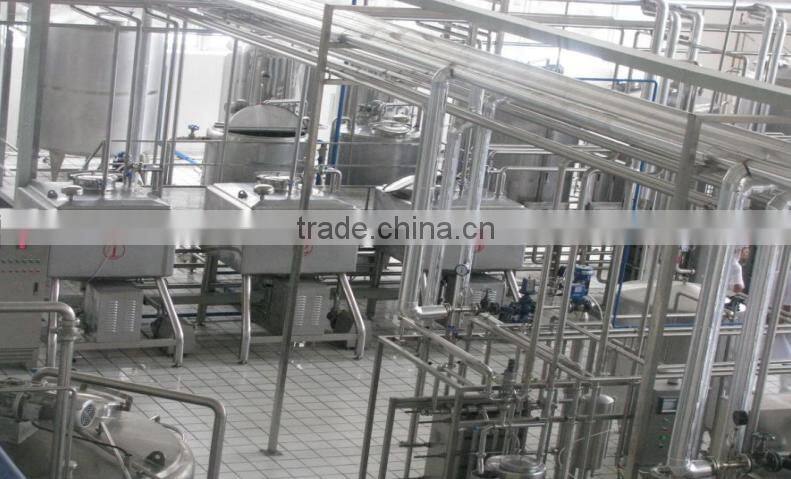

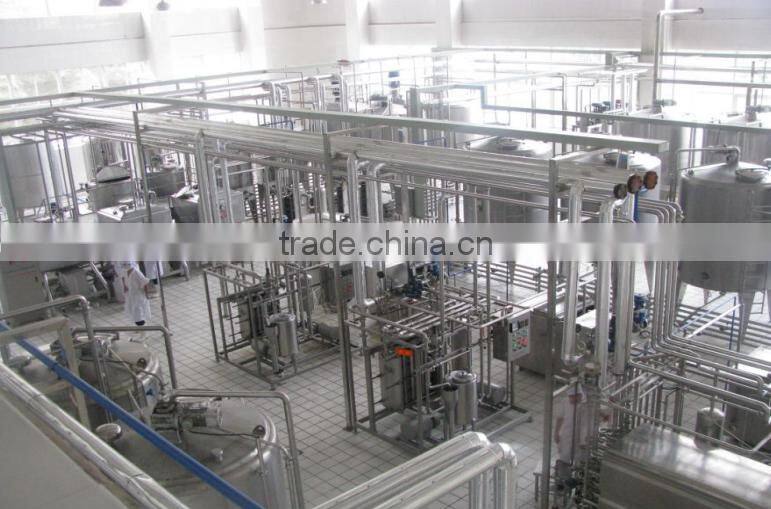

Stainless steel food grade industrial beer brewing equipment
Beer brewery system micro brewery equipment
Mash/lauter tank: used for mashingin, lauter, recirculation, and sparging.
*Stainless steel material 304/316
*Exterior thickness: 1.5~2.0mm
*Interior thickness:2.5mm~3.0mm
*Flange&dish head
*Polyurethane 80~100mm
*Rotary cleaning ball
*Recirculation with sight glass
*Coned bottom
*Raker knife with variable speed drive
*False bottom
*Ring of sparging
*Temperature senser
*Separate mash tun, lauter tank available
Kettle/whirlpool tank:used for boiling and whirlpool of the wort
*Stainless steel material 304/316
*Exterior thickness: 1.5~2.0mm
*Interior thickness:2.5mm~3.0mm
*Stainless steel heating jacket, both on the bottom and around the side
*Flange&dish head
*Spray cleaning ball
*Temperature senser
*Equip with agitator
*Condenser device
*Separate kettle, whirlpool tank
Optional:
3-vessel: mash tun-lauter tank-kettle/whirlpool tank
mash/kettle tank-lauter tank-whirlpool tank(combination type optional)
4-vessel: mash tun-lauter tank-kettle-whirlpool tank
Hot water tank, Screw conveyer, Grist case optional
Process: mirro polishing, pure argon gas protecting welding, double face forming
Panel: Mirro/wire-drawing/2B optional
Specializing in the production of beer brewery system micro brewery equipment
Standard features of the fermenters/unitanks/CCVs:
Conical bottom, cylindrical top, stainless steel 304 double walled jacket tanks
Bottom cone 60-75 degree, allow the yeast to flow towards the cone's apex
Compression resistance design, design pressure 0.3Mpa, working pressure 0.15Mpa
Dimple Plate Jacket for cooling, Stainless steel cooling belt or Miller board cover the body & Cone bottom
to efficiency cooling all the parts
Both the tank and the jacket will have 48 hours pressure test&inspection
Stainless steel legs(3 or 4), with screw assembly to adjust leg height
Dry hops adding port, carbonization port,racking arms optional
Stainless steel ladders for large tanks
All relative valves: pressure regulating valve, safety valve, sampling valve, drainage valve food and sanitary grade stainless steel 304 material
PU(Polyurethane) or Rock wool Foam Insulation, Cover Body & Cone Bottom to Keep Thermal
Single tank, single control
Top or side manhole
Main items | Main machine |
Malt milling system | Double rollers malt miller machine |
Mash system | Mash tun/kettle boiler, lauter tun/whirlpool tun, wort pump, Mirror polishing Mechanical agitation: Stirring moter adopts variable frequency stepless speed control, improve wort preparation time. |
Fermenting system | Fermentation tank, inner tank adopts international standard food grade SUS.304 All welding us double-sided welding argon gas protection, double-sided forming can improve the weld ability if under pressure. Mirror polishing |
Heating system | Electric heating/ steam heating/ direct fire heating |
Control system | Control cabinet, touch screen. Simens /LG PLC control |
Chiller system | Ice water tank, cold water tank and pumps, plate heat exchanger, chiller |
Filter system (Opional) | Membrane filtration or plate filter machine or Diatomite filter |
Storage system (Customized) | Beer bright tank, beer storage tank |

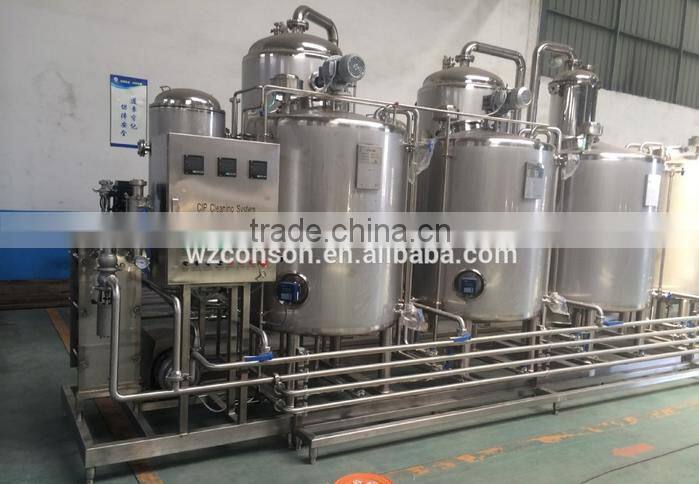

Cleaning system | CIP cleaning system, include alkali tank and disinfection tank, cleaning pump. Cleaning ball: internal comprehensive cleaning, improve the quality of internal cleaning. |
Filling system (Opional) | Manual and automatic bottle filling line, keg filler and washer machine |
