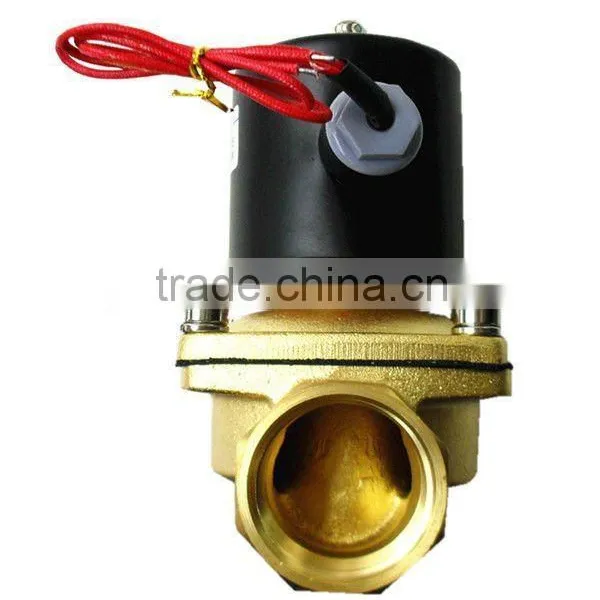

Product Name: Brass Industrial Oven 24 volt solenoid valve
------------High quality with reasonable price,Sincerely welcome to contact us!
Now we have four series,2W,L,S and PU series,they are widely used for water,gas,oil ,air and other mediums.With different sealing material,coill material,boday material,those series can meet most requipments for customers. if you have any other special inquiry,just tell us,we will try to support you!
Following is photos of standard AC 220V,but we have 24vdc coil and support 24vdc type.
1.It can use in Water,Oil,Gas,Air Medium
2.Voltage: DC12,24,36;AC36,110,220,380V
3.Port Size :1inch
4.Working temperature : NBR:-5~80°C;VITON:-5~180°C
5.Max valve pressure : 10.5KGF/CM
6.Working Pressure : 0~5 KGF/CM for water

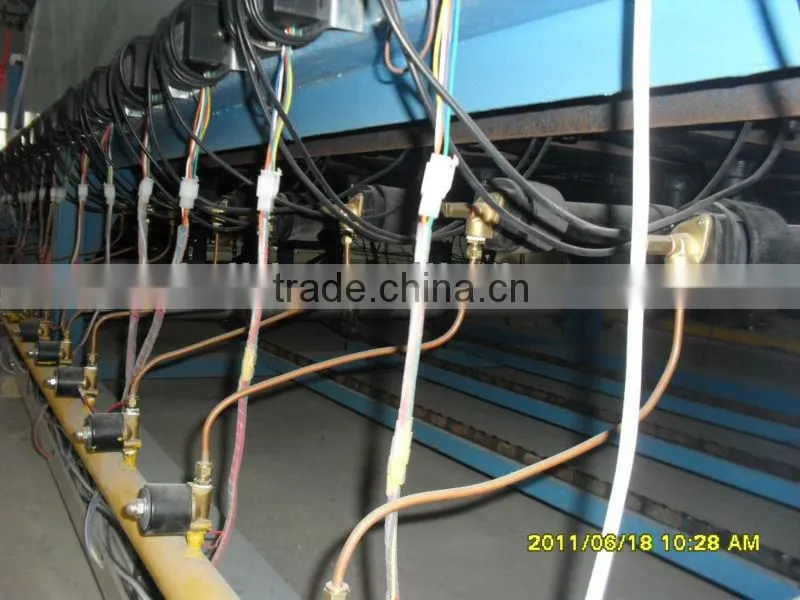

Paint Oven Solenoid Valve Detail describe and pictures
All solenoid valve models for Choice:
| Model | Sealing material | Material of Body | Orifice Size(mm) | Port Size | Motion Pattern | Working Pressure KGF/CM |
Max valve pressure | Oil Seal Material | ||
| NBR | VITON | PTFE | ||||||||
| 2W025-06 | √ | Brass | 2.5 | 1/8 | Direct Drive | 0~7 | 10 | NBR. EPDM or VITON | ||
| 2W025-08 | √ | 2.5 | 1/4 | |||||||
| 2W040-10 | √ | 4 | 3/8 | |||||||
| 2W160-15 | √ | √ | 16 | 1/2 | Water:0~5 Oil:0~5 Gas:0~7 Air:0~7 |
10.5 | ||||
| 2W200-20 | √ | √ | 20 | 3/4 | ||||||
| 2W250-25 | √ | √ | 25 | 1 | ||||||
| 2W350-35 | √ | √ | 35 | 1 1/4 | ||||||
| 2W400-40 | √ | √ | 40 | 1 1/2 | ||||||
| 2W500-50 | √ | √ | 50 | 2 | ||||||
| 2S160-15 | √ | √ | Stainless steel #304&316 | 16 | 1/2 | Direct Drive | Water:0~5 Oil:0~5 Gas:0~7 Air:0~7 |
10.5 | NBR. EPDM or VITON | |
| 2S200-20 | √ | √ | 20 | 3/4 | ||||||
| 2S250-25 | √ | √ | 25 | 1 | ||||||
| 2S350-35 | √ | √ | 35 | 1 1/4 | ||||||
| 2S400-40 | √ | √ | 40 | 1 1/2 | ||||||
| 2S500-50 | √ | √ | 50 | 2 | ||||||

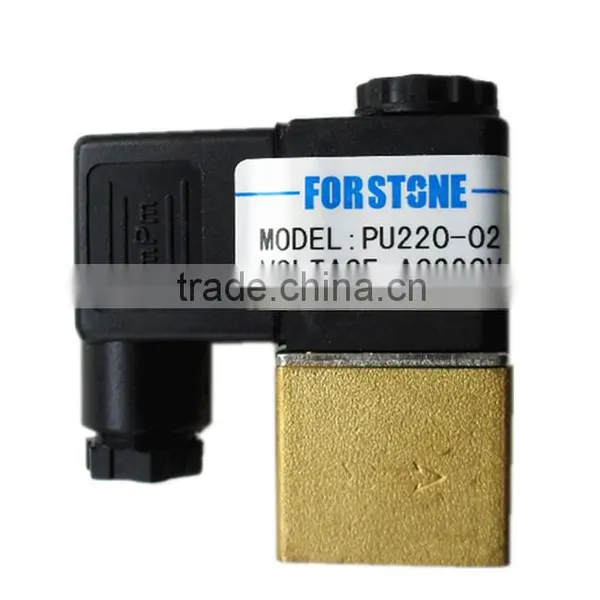

| PU220-01 | √ | Brass | 1.5 | 1/8 | Direct Drive | 0~7 | 10.5 | NBR.EPDM or VITON | ||
| PU220-02 | √ | 2.3 | 1/4 | |||||||
| PU220-03 | √ | 8 | 3/8 | |||||||
| PU220-04 | √ | 13 | 1/2 | |||||||
| PU220-06 | √ | 20 | 3/4 | |||||||
| PU220-08 | √ | 25 | 1 | |||||||
| 2L170-10 | √ | Brass | 17 | 3/8 | Pilot-operated | 1~15 | 22.5 | PTFE | ||
| 2L170-15 | √ | 17 | 1/2 | |||||||
| 2L170-20 | √ | 17 | 3/4 | |||||||
| 2L200-25 | √ | 22 | 1 | |||||||
| 2L300-35 | √ | 30 | 1 1/4 | |||||||
| 2L300-40 | √ | 30 | 1 1/2 | |||||||
| 2L500-50 | √ | 50 | 2 | |||||||
Our good severice for you!!
GOOD, FAST, IN GOOD FAITH.
1: We promise each product have predelivery test and any problem after sell we will deal with.
2: We will choose the fastest, safest and cheapest way to delivery.
3: IF you have any question about the technology of burners, use way and install, please feel free to tell us. we will explain it detailly.
SHIPPING WAY:
Please contact me online, or just send me a message. we will reponse to you in 2 hours on working days.
