Specifications
hydraulic Solenoid Valve1.Water,Gas,Oil,Air
2.nice quality and price
3.24VDC,110V,220VAC
4.Brass, SS,VITON,NBR

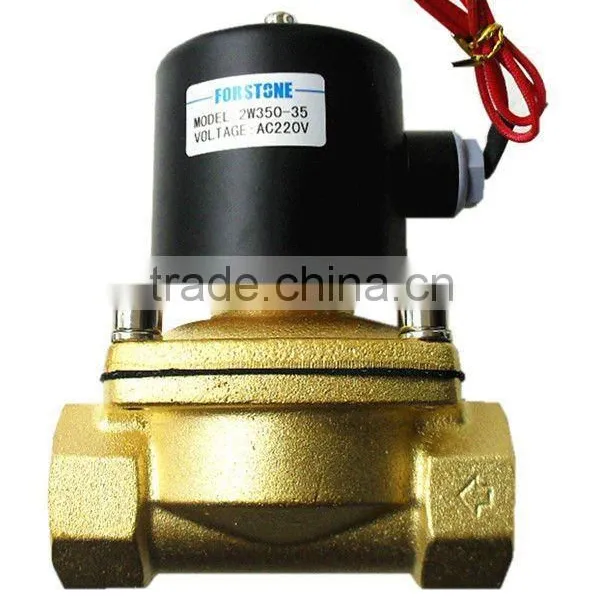

various types hydraulic Solenoid Valve with good quality
2W series solenoid valve are 2/2way, direct action type, are most popular valves for many conditions, especially in the water treatment system, such as water heater. It can start working at zero differential pressure. This type of valve can change the coils to be as explosion-proof solenoid valve or water-proof solenoid valve to be used in water.
Specification
1.Item No.: 2W025-08 ;
2.Normal closed type
3.Wide application, suitable for various kinds of gas and liquid
4.Operating temperature range: 23 to 356 F
5.Joint pipe bore: 1/4 inch
6.Aperture of flow ratea: 2.5mm
7.Working pressure: 1to 7 kgf /cm
8. Max working pressure: 5 kgf/cm for water and oil ; 7 kgf/cm for gas and air
9. Max valve pressure: above 10 kgf/cm
Technical
Specs and Descriptions |
2W040-10 |
2W160-15 |
2W200-20 |
2W250-25 |
2W350-35 |
2W400-40 |
2W500-50 |
Aperture of flow rate |
4 16 |
20 |
25 |
35 |
40 |
50 |
|
CV Value |
0.6 4.8 |
7.6 |
12 |
24 |
29 |
48 |
|
Port Size |
3/8” |
1/2” |
3/4” |
1” |
1-1/4” |
1-1/2” |
2” |
Operation Fluid viscosity |
Below 20CST |
||||||
Working Pressure |
Water/Oil:0~0.5Mpa Air/Gas:0~0.7Mpa |
||||||
Media |
Water, Oil, Gas, Air |
||||||
Motion Pattern |
Direct Drive |
||||||
Type |
Normal Closed , Normal Open |
||||||
Max Pressure Resistance |
10.5MPA |
||||||
Working Temperature |
23 to 356 F |
||||||
Voltage Range |
±10% |
||||||
Material of Body |
2W:Brass; 2S: Stainless Steel |
||||||
Material of Oil Seal |
NBR/ VITON |
||||||
- besides 2 w series, supply 2S series, 2PU series, 2L series
- 2S series are stainless steel material
- 2L series use PTFE as sealing material, special for Steam valve, its max valve pressure is 22.5
- 2PU series only has NBR as sealing material
- Different inches, including 1/8,1/4, 3/8, 2/1, 3/4,1, 1'1/4, 1'1/2, 2.
- Offer souring service
- Superiority: Plumbing parts, plumbing fittings, oil coolers, heat exchanger, hydraulic oil coolers, infrared catalytic gas burner, conveyor chain, dust collector catridge.
- shipping serive: stable relationship with shipper.
