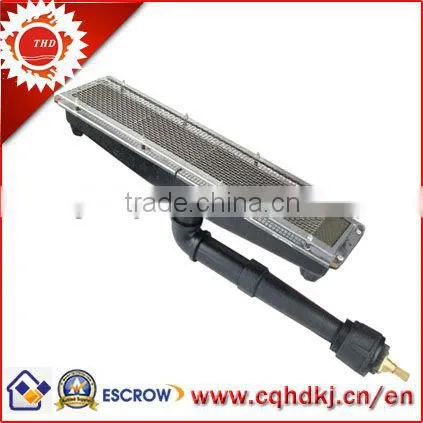

lpg portable infrared gas stove heater parts HD162
company profiles :
Supplier assessment certificate
Industrial series infrared burners
MODEL |
Dimension |
Weight |
GasType |
Heat Output |
Consumption |
||
mm |
kg |
KW/h |
Kcal/hr |
NG(m3/h) |
LPG(kg/h) |
||
HD61 |
423*80*94 |
3.8 |
NG/LPG |
2.4 |
2030 |
0.18 |
0.18 |
HD82 |
219*164*108 |
4.8 |
NG/LPG |
3.1 |
2700 |
0.24 |
0.24 |
HD101 |
690*80*115 |
6.9 |
NG/LPG |
3.9 |
3380 |
0.3 |
0.29 |

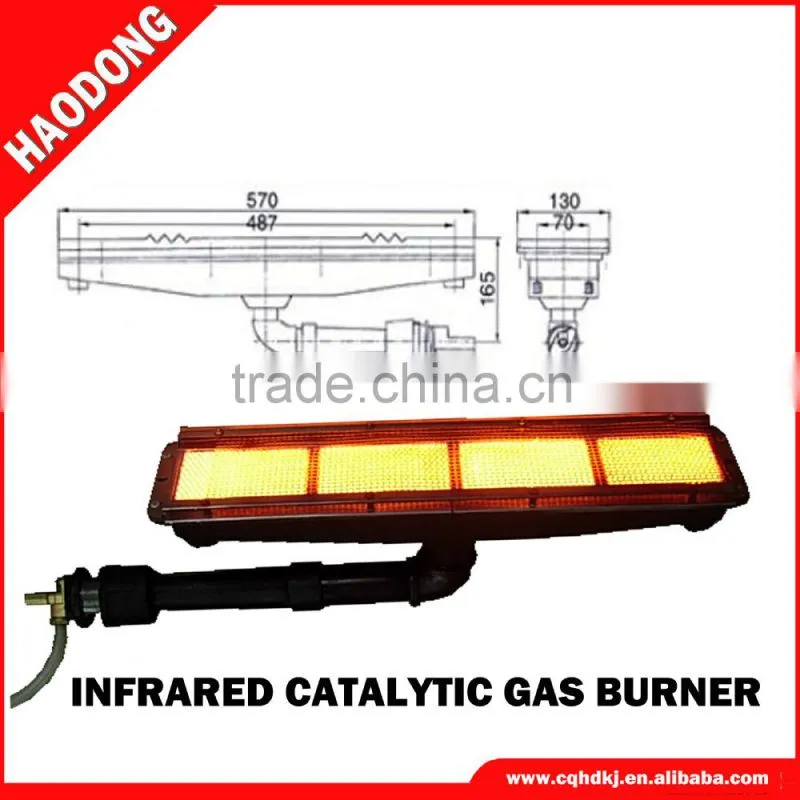

HD162 |
570*130*175 |
8 |
NG/LPG |
6.3 |
5400 |
0.49 |
0.47 |
HD242 |
840*130*175 |
11.7 |
NG/LPG |
9.4 |
8120 |
0.75 |
0.71 |
HD262 |
930*130*175 |
13 |
NG/LPG |
10.9 |
9360 |
0.8 |
0.82 |
Material of lpg portable gas stove
1. Shell: Cast Iron
2. Radiant part: cordierite honeycomb plates with black processed rare-earth catalyst coated
3. Nozzle: brass
4. Up cover: stamped stainless iron
Advantages of lpg portable gas stove :
1.Save above 30% energy than electric
2.High efficient: preheating up time can be reduced to under 30min
3.Eco-friendly :CO<80ppm;NOx<10ppm;CHx<50ppm
4.Naturally aspirated burner,no need of accessories equipment,like air blower,fire chamber...
Usage of technical parameters
Table 1:The use of technical parameters
Items |
Technical parameters |
Types |
natural gas (NG),liquefied petroleum gas (LPG) |
Light-off temperature |
≥350 |
complete combustion temperature |
≤380 |
Heat source temperature |
around 850 |
Baking temperature range |
30---850 |
Wavelength range |
1.9μm--15μm |
|
Furnance pressure natural |
2000pa(NG)/2800pa(LPG) |
Table 2:Comparison table for all kinds of energy consumption
|
Furnace type Parameters |
Electronic |
Oil furnace |
Coal-fired furnace |
Infrared catalytic heaters |
|
Energy requirement
|
10,000Kcal |
10,000Kcal |
10,000Kcal |
10,000Kcal |
Temperature |
180 |
180 |
180 |
180 |
Energy consumption |
Electricity(15 kW/h)
|
Electricity (1Kw/h)+ diesel (2Kg) |
Coal (10Kg)
|
LPG(0.9Kg) |
Heating time |
20 minutes |
40 minutes |
90 minutes |
5-8 minutes |
Applied Range lpg portable gas stove :
Infrared catalytic gas burner is good choice industrial drying,baking or curing oven,especially in tunnel&converyor oven,saving production&equirpment cost,demand of space is small and easy to control......It martched with auto-igntion,safe controller and keep stable temperature.Now is already widely used industrial drying,especially in metal curing & food baking.......

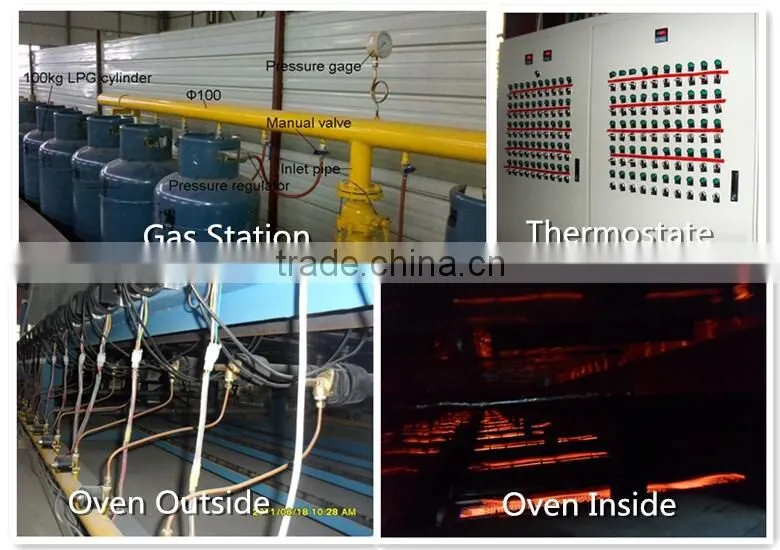

Color steel plate curing oven outside Color steel plate curing oven inner side
Packing Photos:
Company honours
Contact information Whatsup:+8613883514635
Trade manager:cn1500440252
If any need, welcome to contact us freely!! ,
We'll do our best to serve for you!!
